Yamaha MG12 mixer
€383,00
Unit price
/
Not available
Description
Description
- Compact live mixer with 12 channels
- D-PRE mic preamps
- 1-button compressors
- Phantom power + PAD switch
- 3-band EQ + high pass filter

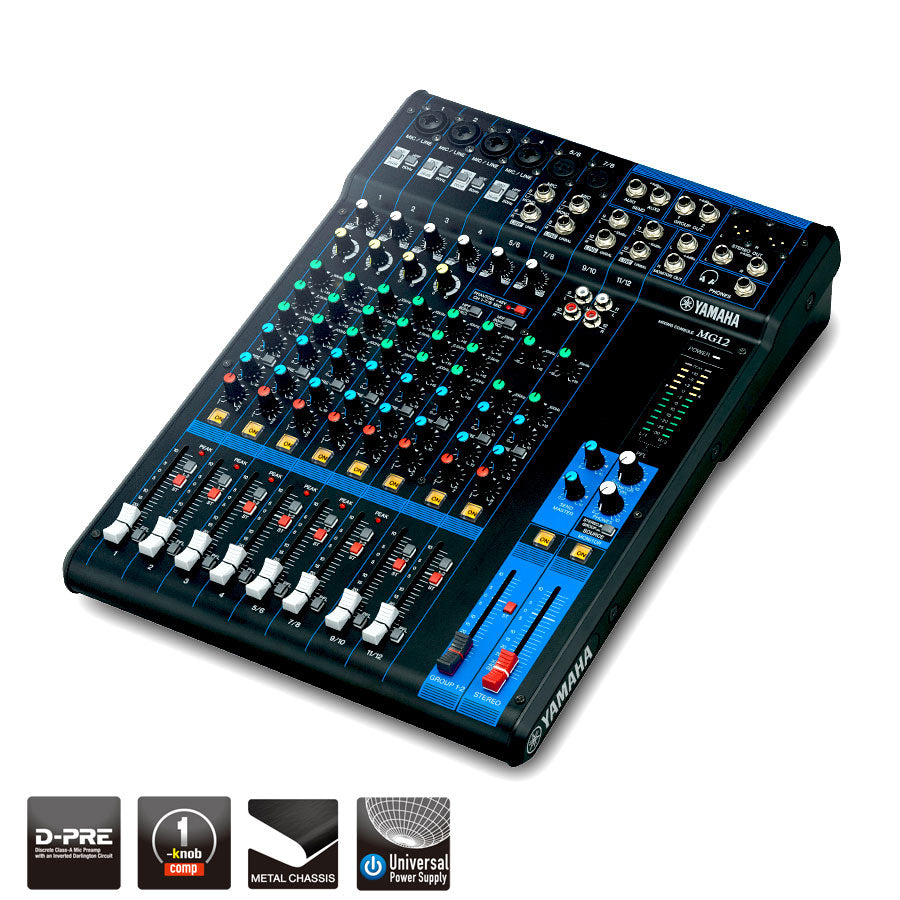

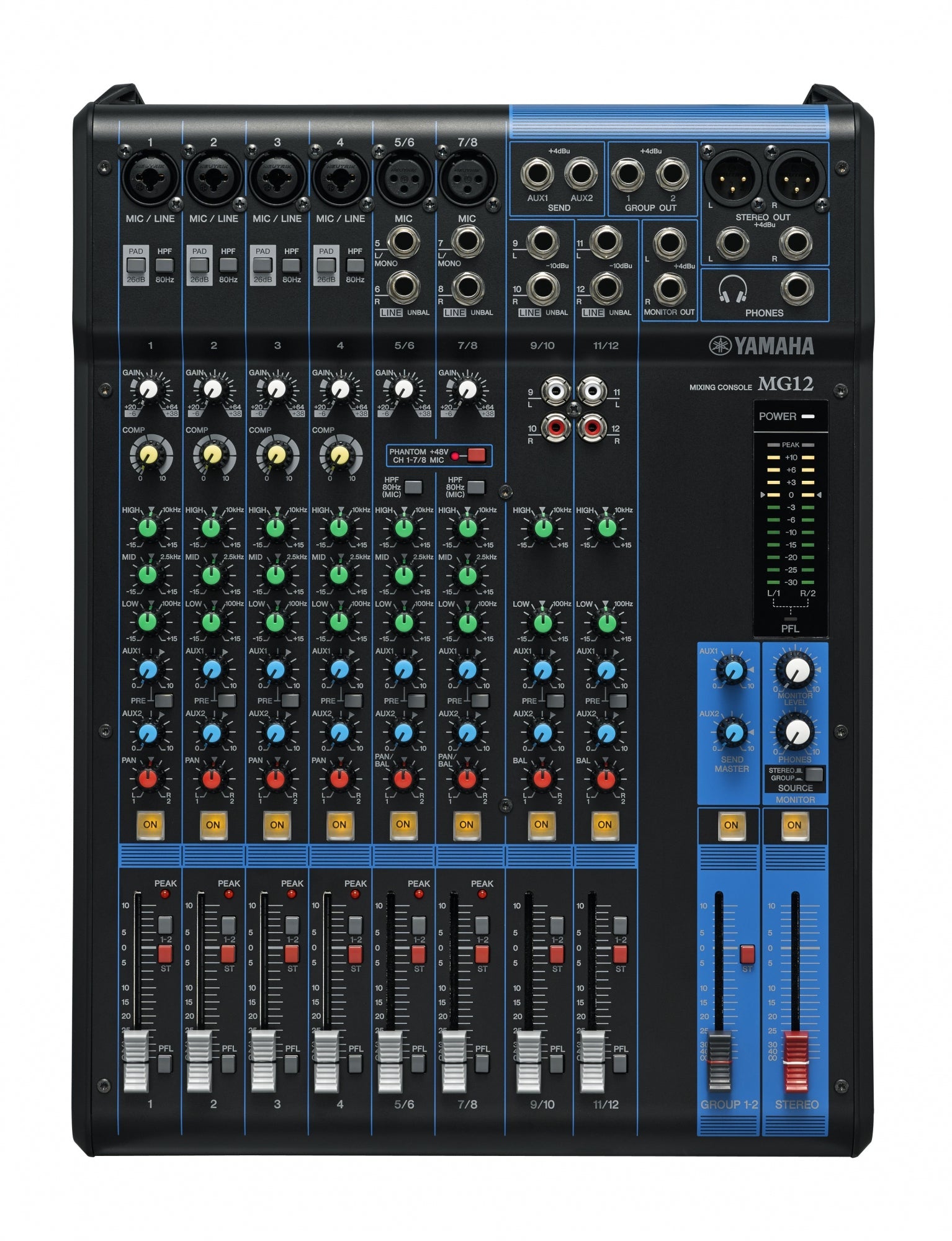

Yamaha MG12 Live Mixer
Yamaha The MG12 is a 12-channel live mixer with 6 mic/12 line inputs, 48 V phantom power, PAD switch on mono inputs, 3-band EQ and high pass filter to eliminate unwanted low frequency sounds.

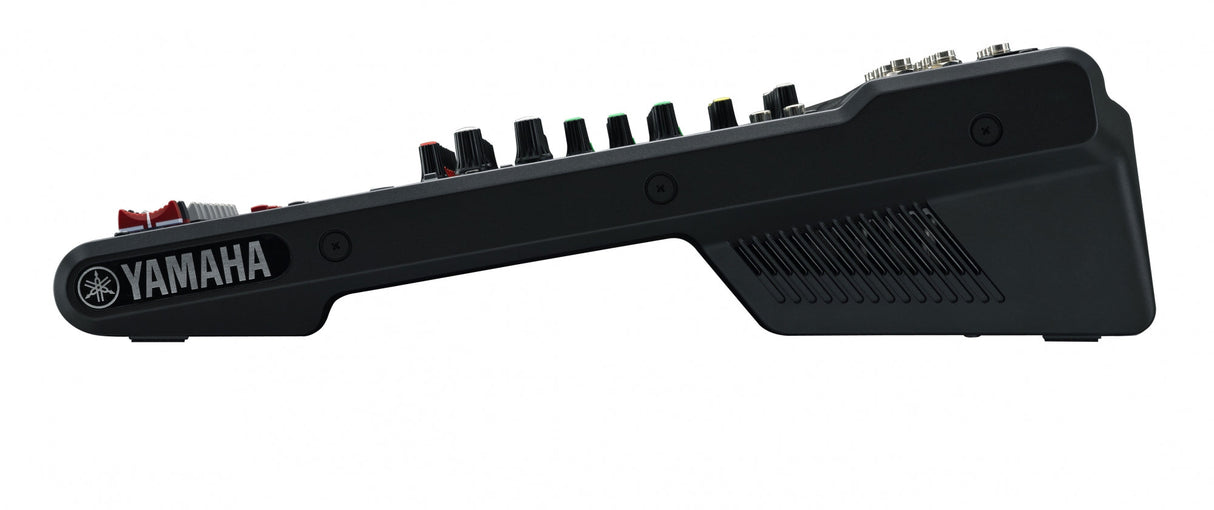

The mixer is built in powder coated metal chassis with a streamlined design that makes the MG12 durable and provides passive cooling of components.
D-PRE mic preamps
Yamaha The MG12 features Class A D-PRE mic preamps with inverted Darlington circuitry and operational amplifiers, giving the mixer more power and reduced impedance. The D-PRE preamp, with its wide frequency response, can handle signals from all audio sources.
1-button compressors
With the turn of a single knob, you can adjust the compressor on the Yamaha MG12, adapting the audio signal to instruments such as guitars, basses, drums and more.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Specifications | |
Outline | |
| Phantom Power I/O | +48 V |
Input Channels | |
| Mono [MIC/LINE] | 4 |
| Mono/Stereo [MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 2 |
| GROUP OUT | 2 |
| Bus | Stereo: 1, GROUP: 2, AUX: 2 |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General Specifications | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 - 240 V, 50 / 60 Hz |
| Power consumption | 22 W |
| Width | 308 mm (12.1") |
| Heigth | 118 mm (4.6") |
| Depth | 422 mm (16.6") |
| Net weight | 4.0 kg (8.8 lbs.) |
| Accessories | Included Accessory: Owner's Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12 |
| Others | Operating Temperature: 0 to +40C |
