Description
Description
- Frequency radius 35Hz ? 36 kHz
- New technology from JBL
- Designed for control room and broadcast work

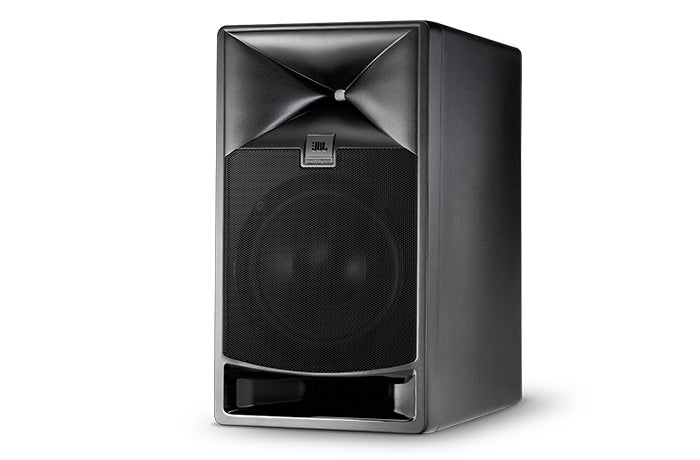

JBL LSR708i
Features
- Next Generation Systems for Post and Broadcast Production in Control Rooms and Trucks
- Next Generation Driver Technology
- Patent Pending Image Control Waveguide
- Compact, Install Friendly Enclosures
Technology
- A seamless crossover and uncolored response in the critical dialog range.
- Neutral off-axis response for greater accuracy and room-to-room consistency
- Detailed imaging and a coherent transition between screen channels, surrounds and overhead speakers.
- The new 2409H High Frequency transducer incorporates an innovative low-mass annular diaphragm that delivers smooth response beyond 40 kHz, with extraordinary output and very low distortion.
System integration
- Modular and scalable for number of channels and room size
- 7 Series Studio Monitors and the JBL M2 Master Reference Monitor can be combined to produce a wide range of systems
- Compact enclosures and mounting hardware allow versatile mounting options and unobstructed sight lines
- Centralized amplification and processing eliminates the requirement for power source at each speaker location
- BSS BLU link Networked Audio for ease interface and reduced system noise
- Harman HiQnet equipped components can be centrally controlled via hardware, software or wireless tablet
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Specifications | |
Frequency Response | -1.5 dB @ 45Hz - 23kHz |
Frequency Range | 35Hz - 36 kHz |
Max SPL | (80 Hz - 20 kHz) >108 dB SPL / 1m |
Maximum Peak SPL | (80 Hz - 20 kHz) >114 dB SPL / 1m |
HF Driver | 2409H |
LF Driver | 728G |
Dividing Network Transition Frequency | 1.7 kHz |
Input Types | Phoenix Terminals accept 12 gauge speaker wire |
Dimensions (HxWxD) | 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm) |
Weight Each | 25.2 lb (11.5 kg) |
Enclosure | Birch plywood reinforced for mounting |
Mounting | Top, bottom and rear mounting points. 4-hole mounting pattern |
