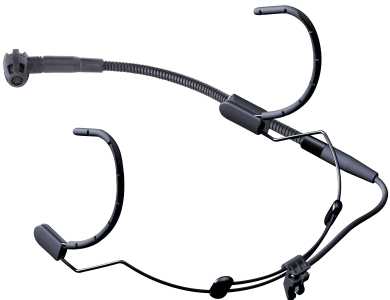

AKG C520L Headset Microphone (Mini XLR)
AKG The C520L is a gooseneck headworn microphone for precise placement near the user's mouth.
The C-520L from AKG has a wide dynamic range for great vocal sound.
The C 520L is ideal for soloists, singing keyboard players, drummers, dancers and aerobics instructors. The gooseneck can be placed on either side and is adjustable at the neck.
Comes with Mini XLR connection.
Lead vocals
Head-worn microphone
Handsfree use
Backing vocals
- Head-worn microphone with continuously adjustable behind-the-neck headband
- External shock mount for high mechanical-noise rejection
- Miniature gooseneck for precise positioning near the user?s mouth
- Microphone arm provides choice of left or right-hand use
A transducer shock mount reduces handling noise to a minimum. The moisture shield prevents perspiration from penetrating into the transducer element,ensuring a high degree of humidity protection for the microphone.
Version: C 520 L for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
| Polar pattern | cardioid |
| Frequency range | 60 Hz to 20 kHz |
| Sensitivity | 5 mV/Pa (-46 dBV) |
| Max. SPL | 130 dB/132 dB (for THD = 1 %/3 %) |
| Equivalent noise level (IEC 60268-4, A-weighted) | 31 dB-A |
| Signal/noise ratio (A-weighted) | 63 dB |
| Impedance | <= 200 ohms |
| Recommended load impedance | >= 2000 ohms |
| Power requirement | 9 to 52 V phantom power to DIN 45596 or battery powering from B 29 L, or AKG bodypack transmitter |
| Connector | C 520: 3-pin male XLR; C 520 L: 3-pin mini XLR |
| Cable | C 520: 3 m (10 ft.); C 520 L: 1.5 m (5 ft.) |
| Finish | matte black |
| Dimensions | length: 195 mm (7.7 in.) (microphone only); max. diameter: 134 mm (5.3 in.) |
| Net weight | 26 g (0.9 oz.) |
| Shipping weight | C 520: 380 g (13.4 oz.); C 520 L: 260 g (9.2 oz.) |
