LD Systems DEEP2 4950 Amplifier 4x490W 8 Ohm
LD Systems The DP4950 is a Class H amplifier with 2 x 490 Watt RMS in 8 Ohm, and with the possibility of 2 Ohm function as well as bridge coupling. A very good amplifier for the price.
The DP 4950 from LD Systems has Clip Limiter for protection against overload, all the connectivity you need, robust steel cabinet, minimal depth of only 35cm and a very clear sound.
LD Systems DEEP2 4950 Amplifier 4x490W 8 Ohm
PA POWER AMPLIFIER 4 X 810 W 4 OHMS
The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

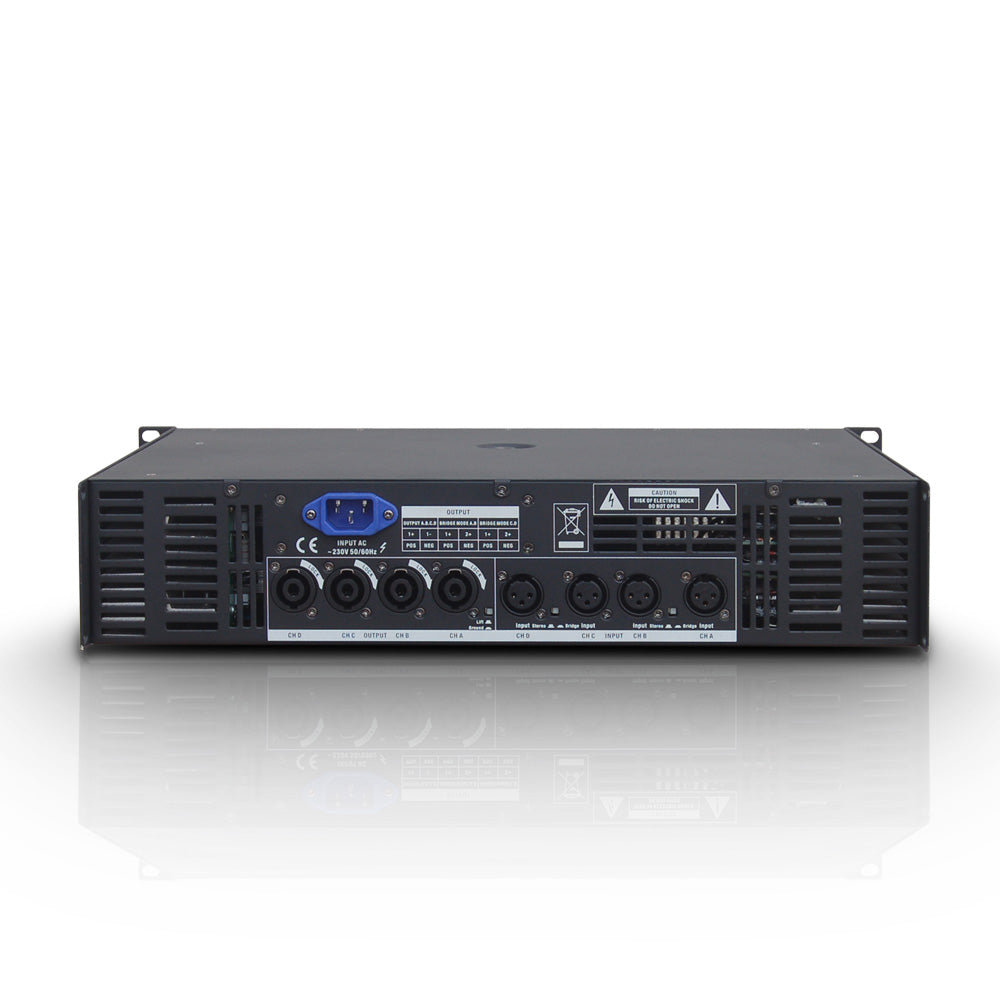

The DEEP2 series features a Clip Limiter as well as every common protection circuits. On the rear panel you will find all the common In- and Outputs.
The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.
The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.
| Product number: | LDDP4950 |
|---|---|
| Product type: | power amplifier |
| Type: | 4-channel |
| Rated ouput power (1kHz @ 4 Ohms): | 4 x 810W |
| Rated ouput power (1kHz @ 8 Ohms): | 4 x 490W |
| Rated ouput power (1kHz @ 8 Ohms, bridged): | 2 x 1600W |
| Output circuitry: | Class H |
| Frequency response: | 20 - 20000Hz |
| THD: | < 0,1 % |
| Signal-to-noise ratio: | 105dB |
| Damping factor: | > 400 |
| Crosstalk: | >70dB |
| Gain: | 38dB |
| Input sensitivity: | 0,775 |
| Protection circuits: | short circuit, DC protection, thermal overload |
| Controls: | ground lift, 2 x volume, mains switch (on/off), bridge/stereo mode selector |
| Display: | Power, signal, limit, protect (protection circuit engaged) |
| Loudspeaker outputs: | 4 |
| Speaker output connections: | Speakon compatible |
| Cooling: | highly efficient, automatic |
| Operating voltage: | transformer, 230 V AC / 50-60 Hz |
| Weight: | 19,6kg |
