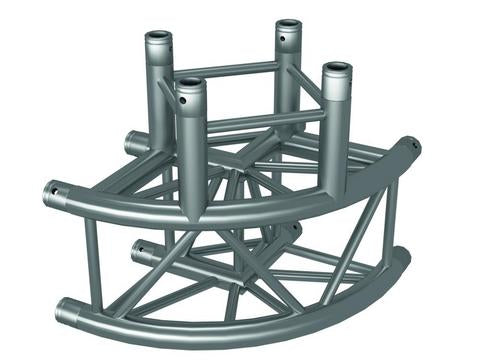

Alutruss QUADLOCK 6082C-30R 3-way T-piece
Loading...
€664,95
Unit price
/
Not available
Secure checkout
Alutruss QUADLOCK 6082 truss with 4 crossbars made of aluminium for lowest possible weight.
Each assembly on QUADLOCK 6082 is made with 4 cones, pivot and pins, accessories for assembly included.
QUADLOCK 6082 from Alutruss is assembled with cones that ensure a 100% accurate assembly for the highest possible load.
The Quick-Lock system ensures fast, efficient and aesthetic assembly - even when assembled and disassembled daily.
Specifications of Alutruss QUADLOCK 6082:
Each assembly on QUADLOCK 6082 is made with 4 cones, pivot and pins, accessories for assembly included.
QUADLOCK 6082 from Alutruss is assembled with cones that ensure a 100% accurate assembly for the highest possible load.
The Quick-Lock system ensures fast, efficient and aesthetic assembly - even when assembled and disassembled daily.
Specifications of Alutruss QUADLOCK 6082:
- Max. System length: 12 meter
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminium-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- Main chords: 50 x 2 mm
- Braces: 16 x 2 mm
- Alloy: EN-AW 6082 T6 (AlMgSi1 T6)
- Welding material: AlMg 5
- Welding technique: TIG-welding
- Outer dimensions: 290mm x 290mm
| Load table QUADLOCK 6082 | ||
| Span (m) | Point load (kg) | UDL (kg/m) |
| 1 | 1500 | 1500 |
| 2 | 1500 | 773 |
| 2,5 | 1500 | 699 |
| 3 | 1292 | 627 |
| 4 | 950 | 432 |
| 5 | 798 | 274 |
| 6 | 646 | 192 |
| 8 | 475 | 107 |
| 10 | 380 | 72 |
| 12 | 304 | 47 |
