• Active speaker with built-in 2000 Watt digital amplifier.
• Delivers 135 dB Max. SPL.
• Integrated FIR-Drive DSP system (Digital Signal Processor)
• 15" SMX bass unit and 1,25" HF titanium cpmpression driver.
• 90 x 60 degree horn.
• Built in 18mm plywood with EV Coating.

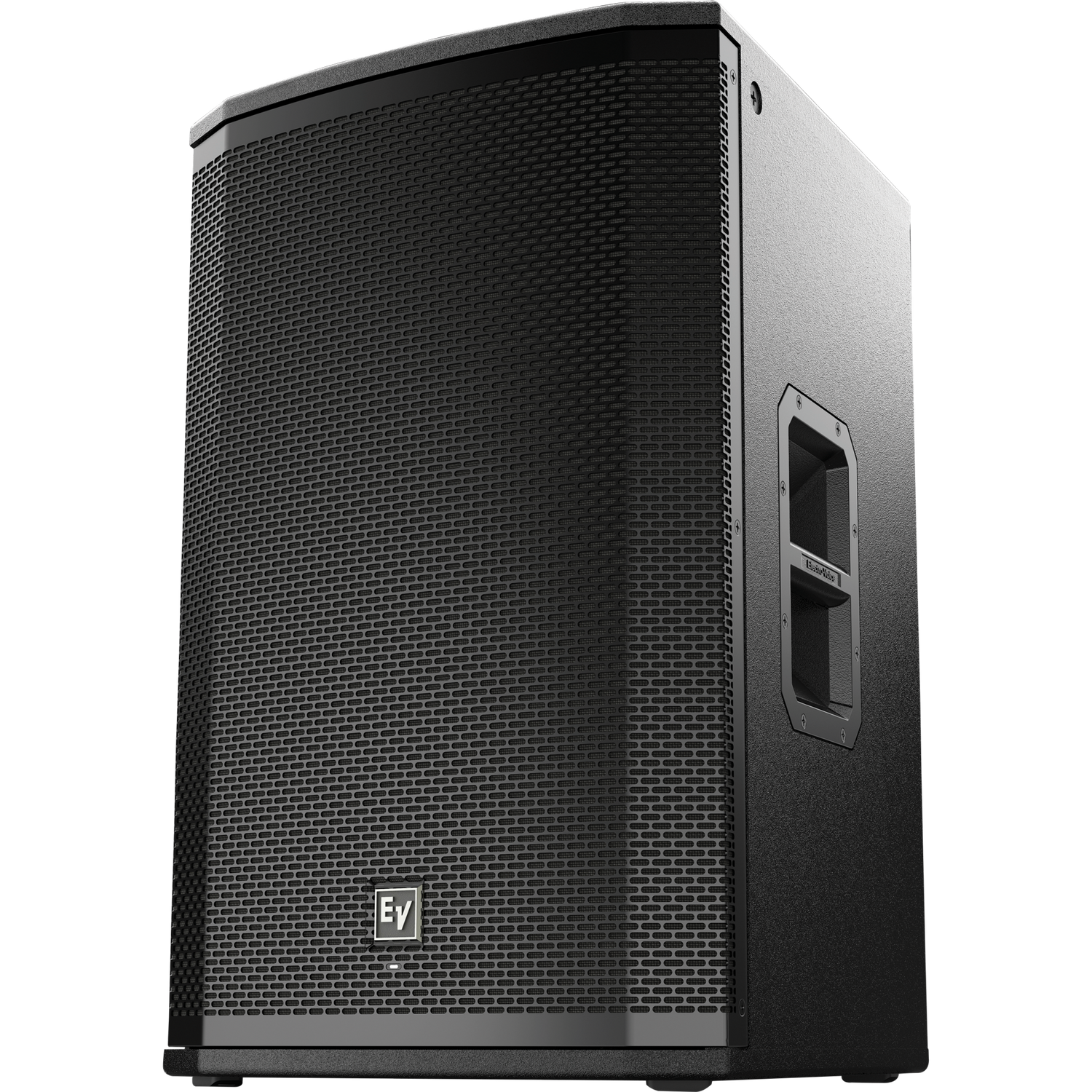

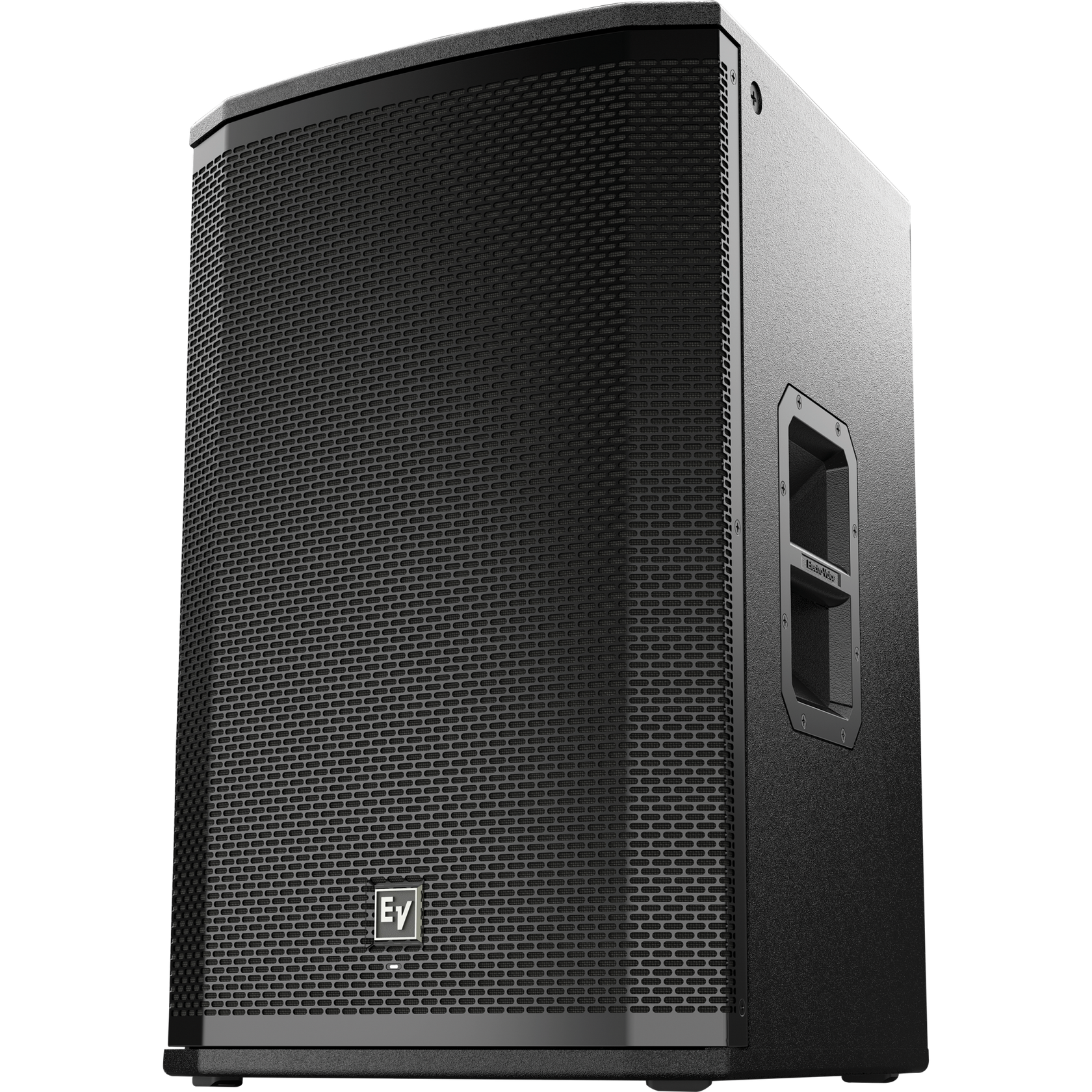

Electro Voice ETX-15P

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX Powered Loudspeakers apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs

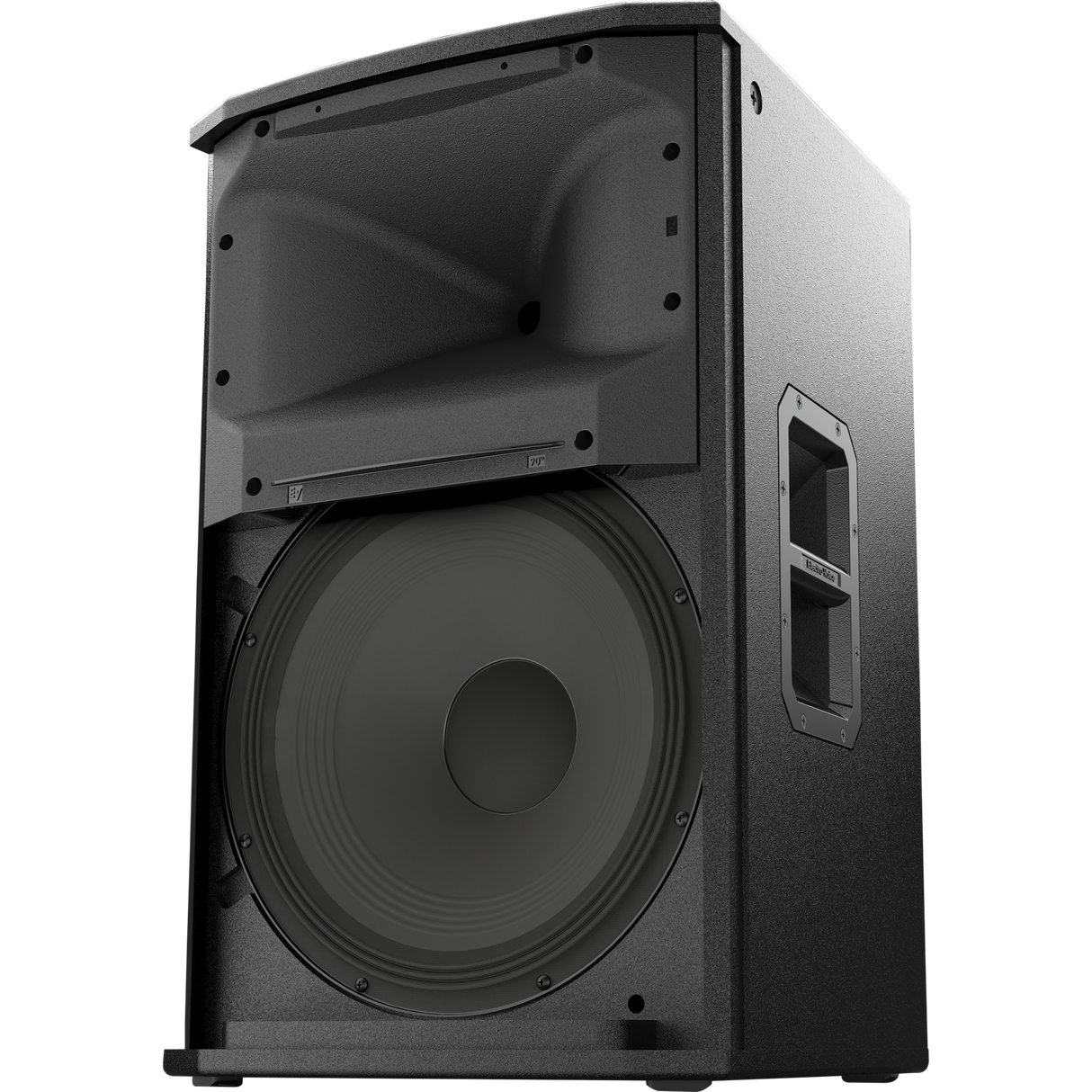

• 15-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL

Frequency Range	40 Hz - 20 kHz
Maximum SPL	135 dB peak dB
Power Consumption	100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A
Power Rating	2000 W
Frequency Response	48 Hz - 20 kHz
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	60 °
LF Transducer	SMX2150 380 mm (15 in)
HF Transducer	DH3-B 1.25-in titanium compression driver
Crossover Frequency	1500 Hz

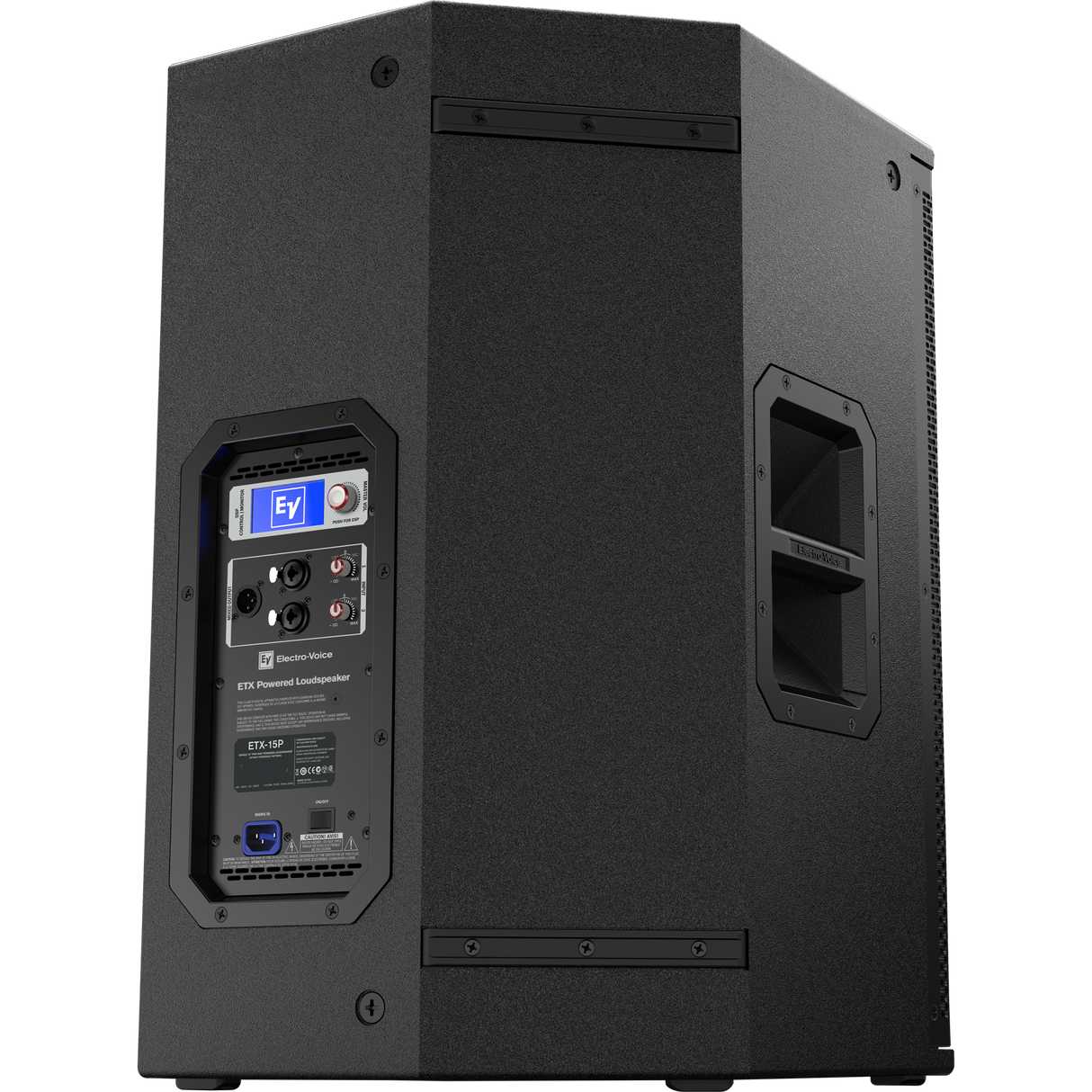

Connector Type	(2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material	18-mm, 13-ply birch plywood with EVCoat
Grill	16AWG steel with powdercoat
Suspension	(8) M10 suspension points
Height	691 mm (27.2")
Width	431 mm (16.97")
Depth	447 mm (17.6")
Weight Net	27.7 kg (61.07 lbs)
Shipping Weight	31.5 kg (69.45 lbs)
