- Aktiv 3-vejs højttaler
- Indbygget 2000 Watt digital forstærker
- Leverer 136 dB max. SPL
- Integreret FIR-Drive DSP system

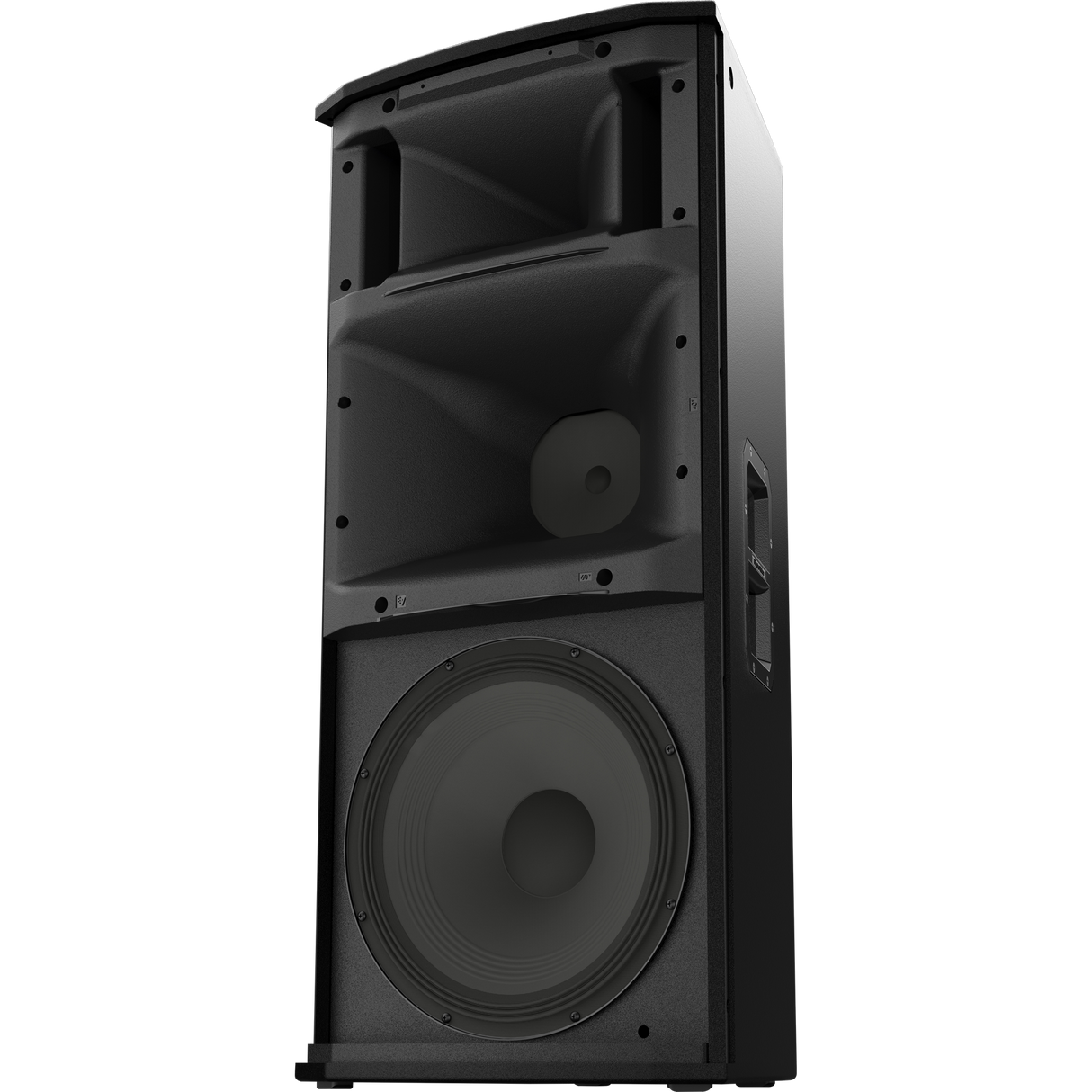

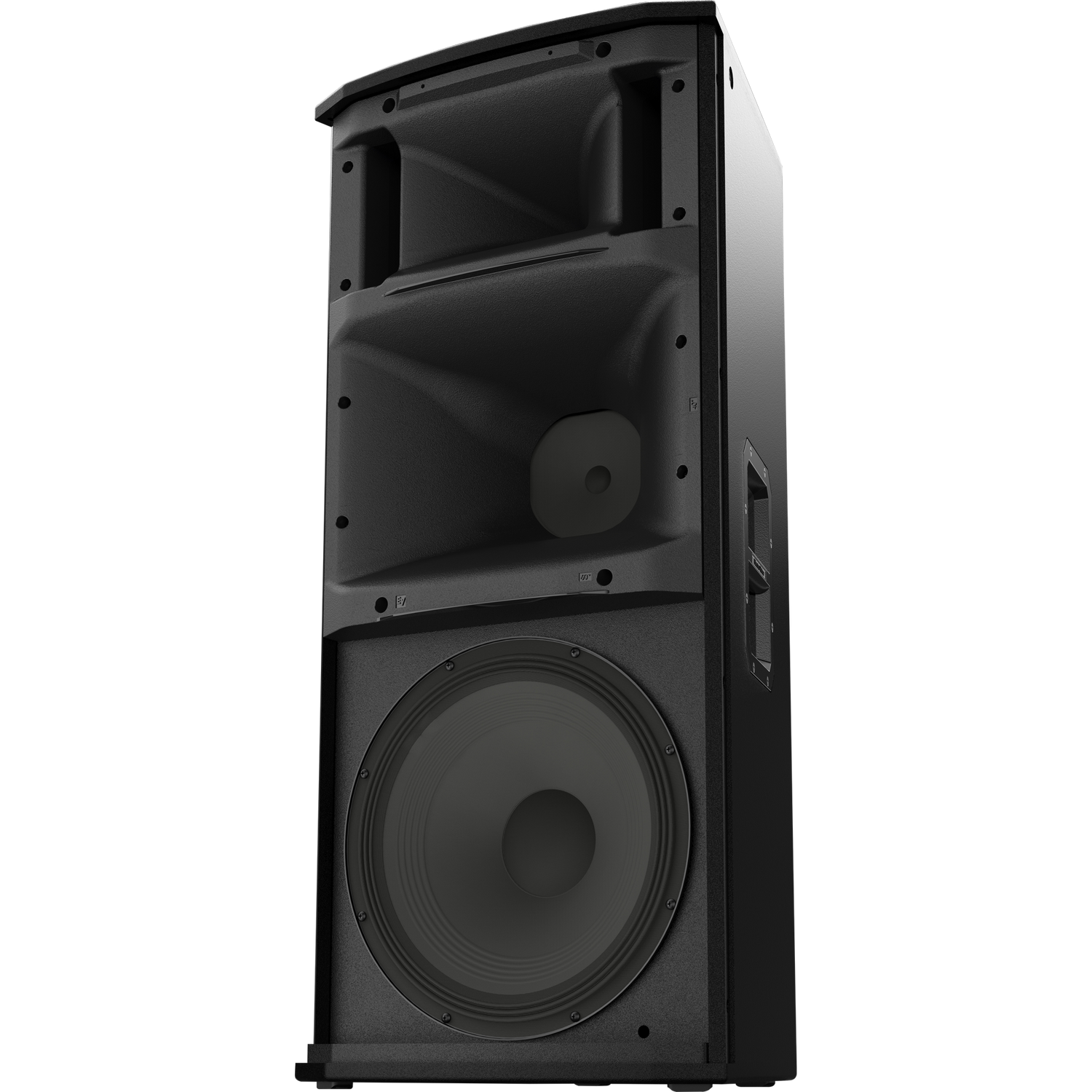

- 15" basenhed
- 6,5" mellemtone
- 1,25" HF titanium compression driver
- 60 x 40 graders spredning
- Bygget i 18mm krydsfiner med EV Coating
ETX aktive højttalere kombinerer intelligent teknologi og innovative industrielt design og opnår derved spektakulære lydmæssige resultater. EVs følsomme enheder og effektive Klasse-D forstærkere, Signal Synchronized transducere (SST) waveguide design og smart FIR-Drive DSP arbejde alle sammen for at give den uforlignelige EV lydkvalitet og præcis gengivelse - også ved højeste SPL.
| Frequency Range | 38 Hz – 20 kHz |
| Maximum SPL | 136 peak dB |
| Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
| Power Rating | 2000 W |
| Frequency Response | 48 Hz – 20 kHz |
| Coverage (Nominal -6 dB) H | 60 ° |
| Coverage (Nominal -6 dB) V | 40 ° |
| LF Transducer | SMX2151 380 mm (15 in) |
| MF Transducer | EVS-6C 6.5-in midbass driver |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 700 Hz, 2900 Hz |

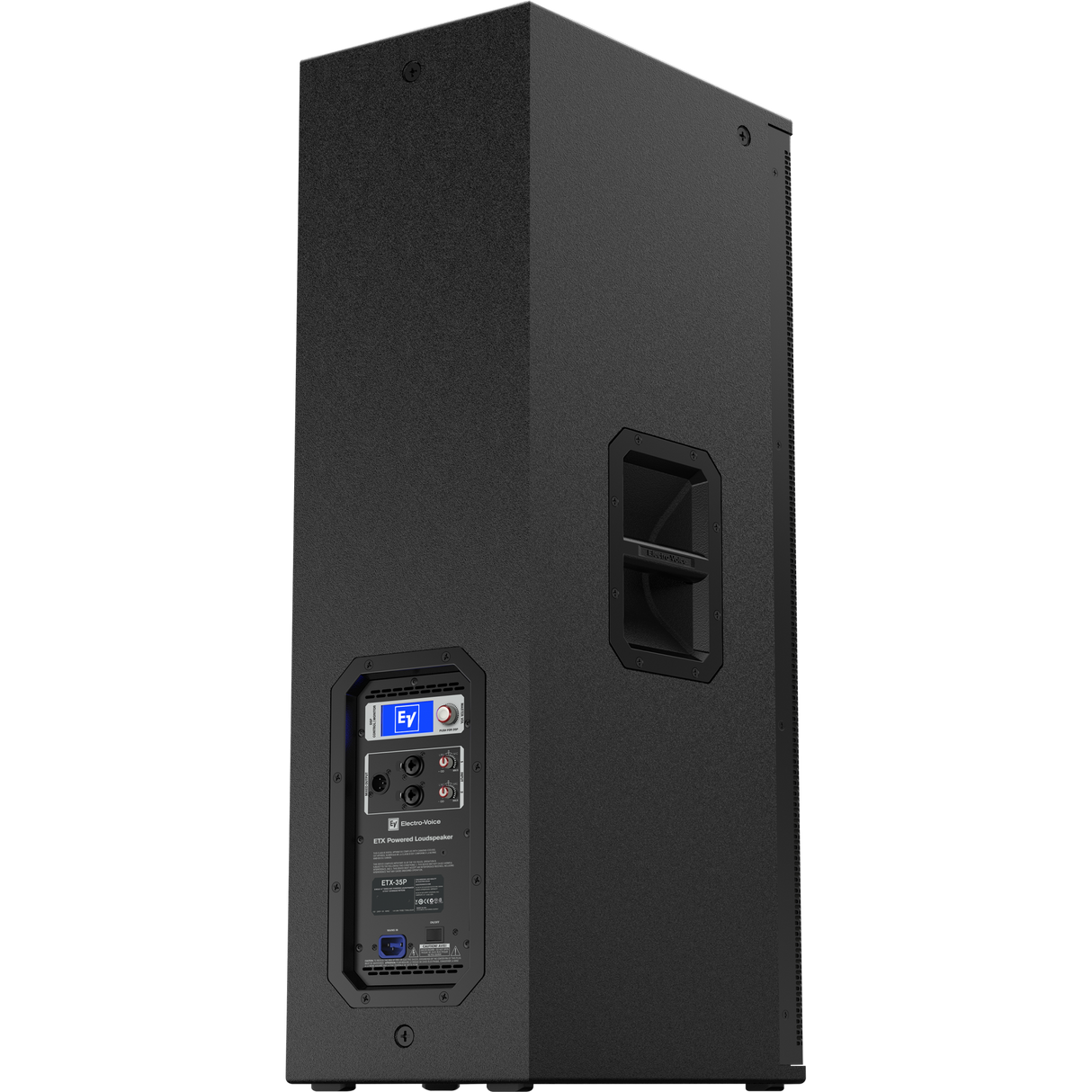

| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grill | 16AWG steel with powdercoat |
| Suspension | (8) M10 suspension points |
| Height | 1023 mm (40.28") |
| Width | 469 mm (18.46") |
| Depth | 426 mm (16.77") |
| Weight Net | 41.7 kg (91.93 lbs) |
| Shipping Weight | 46.8 kg (103.18 lbs) |
