- Active 2-way speaker
- Maximum sound level of 129 dB
- Compact design
- Frequency range of 55 Hz - 20 kHz
- Heat dissipation
- 4 year warranty on units and amplifier

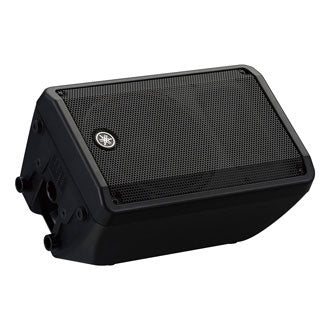

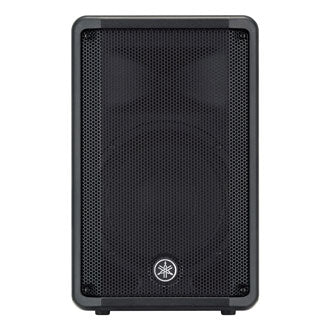

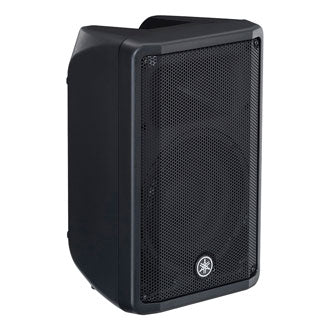

Yamaha DBR10 Active Speaker
Yamaha The DBR10 is an active 2-way speaker with bass reflex cabinet. It has a frequency range of 55 Hz - 20 kHz, different types of I/O connectors and heat dissipation, which provides fan cooling of the speaker for better performance.
Great sound, in the well-known Yamaha quality.
On Yamaha DBR 10 and on the rest of Yamaha DBR series provides Yamaha 4 years warranty on both units and amplifier part.
High sound level
Yamaha TheDBR10 can produce a maximum sound level of 129 dB and has dynamic output power of 700 W and continuous output power of 325 W.
Suitable for singing, speaking and music which is reproduced clearly in a beautiful sound image
Compact size
Thanks to Yamaha DBR10's light weight of only 10.5 kg and compact design, the speaker is easy to transport and use for both small and large events.
Can be mounted on speaker stand
Specifications
| Speaker type: | 2-vejs, Bi-amp aktiv højttaler, basreflekskabinet |
| Frequency range (-10dB): | 55Hz – 20kHz |
| Nominal coverage: |
|
| H: | 90° |
| V: | 60° |
| Components: |
|
| LF: | Diameter: 10" enhed, svingspole:2", Magnet:Ferrit |
| HF: | Membran:1", type: 1" throat kompressionsenhed, Magnet:Ferrit |
| Crossover: | 2.1kHz: FIR-X tuning™ (faselineært FIR filter) |
| Output power: | Dynamisk:700 W (LF: 500 W, HF: 200 W) / Kontinuer: 325 W (LF: 260 W, HF: 65 W) |
| Maximum output level (1m; on axis): | 129dB SPL |

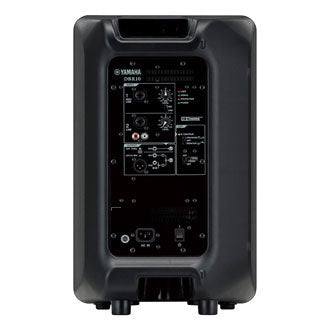

| I/O connectors: | INPUT1: Combo x1, INPUT2: Combo x 1 + phono x 2 (ubalanceret), OUTPUT: XLR3-32 x 1 (CH1 parallelt ført igennem eller CH1+CH2 Mix) |
| Processors: | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Heat dissipation: | Blæserkølet, 4 hastigheder |
| Power requirements: | 100 V, 100-120V, 220-240 V, 110/127/220V (Brasilien), 50/60Hz |
| Power consumption: | 60W (ved 1/8 power), 18W(tomgang) |
| Cabinet material: | Plastik |
| Finish: | Sort |
| Handle: | Top x 1 |
| Flying and mounting hardware: | Underside x 2, bagside x 1 (passer til M8 x 15 mm øjebolte) |
| Pole socket: | 35mm (Underside x 1) |
| Dimensions: |
|
| W: | 308mm (12.1") |
| H: | 493mm (19.4") |
| D: | 289mm (11.4") |
| Net weight: | 10.5 kg (23.2 lbs) |
| Accessories: | BBS251, BCS251, BWS251-300, BWS251-400 (monteringsbøjle, ekstratilbehør) |
