- 2-way speaker with bass reflex cabinet
- Transportable design
- Suitable for installations or as floor monitor
- RF protection
- 1.4" compression unit

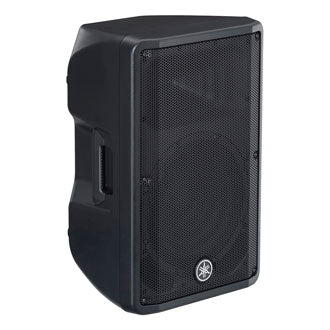

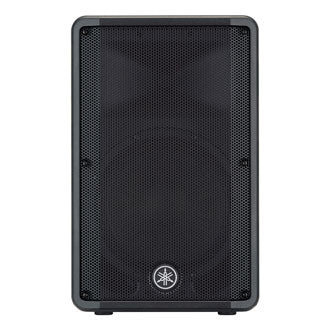

Yamaha CBR12 Passive Speaker
Yamaha CBR12 is a passive 2-way speaker with bass reflex cabinet, 1.4? compression unit and 12" cone. The speaker has a frequency range of 48 Hz - 20 kHz and a maximum sound level of 125 dB.
Versatile and easy to transport

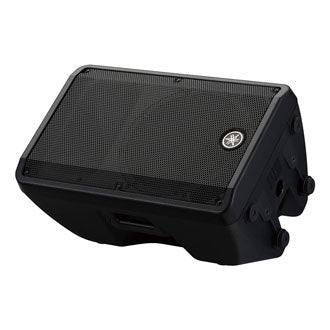

Yamaha The CBR12 has a transport-friendly design with handles on the sides and steel grille on the front to protect against wind and weather. The CBR12 is characterised by its versatility, as it is relatively small and lightweight while still being able to produce optimal sound. The speaker's design also makes it ideal as a floor monitor or for high installations using M8 flying points.
RF protection
All speakers in the CBR series have HF protection, which protects the tweeter unit against overheating. Yamaha The CBR12 also has a responsive bass unit and compression unit that provide reduced distortion of sound.
Specifications
| Speaker type: | 2-vejs højttaler, basreflekskabinet |
| Frequency range (-10dB): | 48 Hz - 20 kHz |
| Nominal coverage: | H: 90° V: 60° |
| Components: | LF: 12" membran, 2" svingspole (ferrit magnet) HF: 1.4" svingspole, kompressionsenhed (ferrit magnet) |
| Crossover: | 2.1 kHz |
| Power rating: | NOISE: 175W PGM: 350W PEAK: 700W |
| Nominal impedance: | 8Ω |
| SPL: | Sensitivity (1W; 1m on axis): 96dB SPL Peak (Calculated): 125 dB SPL |

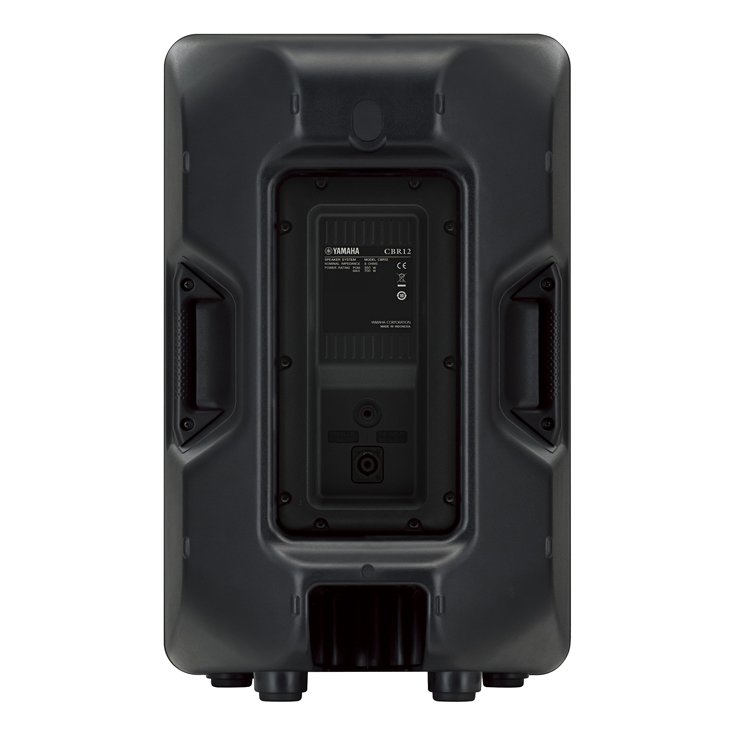

| I/O connectors: | 1/4" jack x 1, speakON NL4MP x 1 |
| Cabinet material: | Plastik |
| Finish: | Sort |
| Handle: | Side x 2 |
| Flying and mounting hardware: | Underside x 2, bagside x 1 (passer til M8 x 15 mm øjebolte) |
| Pole socket: | Φ35 mm underside x 1 |
| Dimensions: | W: 376mm (14.8") H: 601mm (23.7") D: 348mm (13.7") |
| Net weight: | 13.9 kg (30.6 lbs) |
| Accessories: | Højttalerbeslag (ekstratilbehør): BBS251, BCS251, BWS251-300, BWS251-400 |
