€2.595,21
Unit price
/
Not available

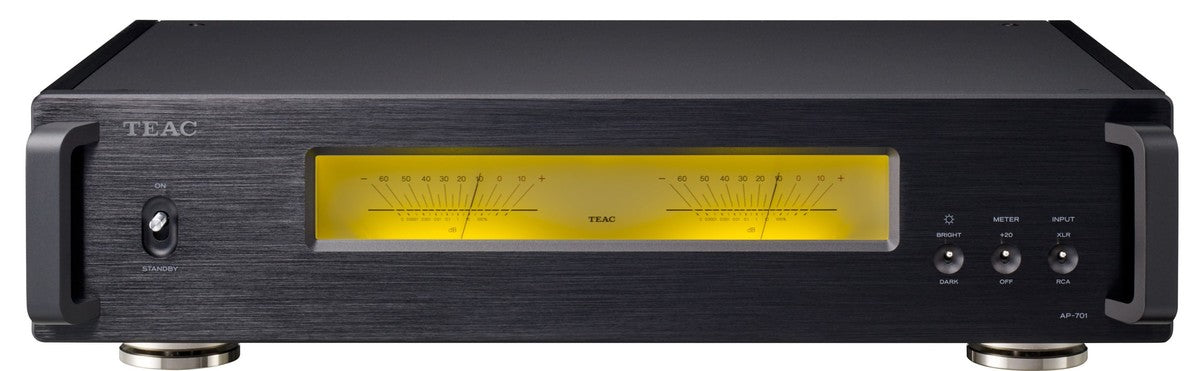

TEAC AP-701 Stereo/Mono Amplifier (Black)
€2.595,21
Unit price
/
Not available
Description
Description
- Dual mono power amplifier with fully balanced design
- 2 x Hypex Electronics Ncore power amplifier modules
- Two independent power supplies
- High output of max 260 W + 260 W (4 ohms) / 170 W + 170 W (8 ohms)
- Fan-free design
- Compact space-friendly design
- 12V trigger in and through for power synchronization
TEAC AP-701 Stereo/Mono Amplifier (Black)
- Dual mono power amplifier with fully balanced design.

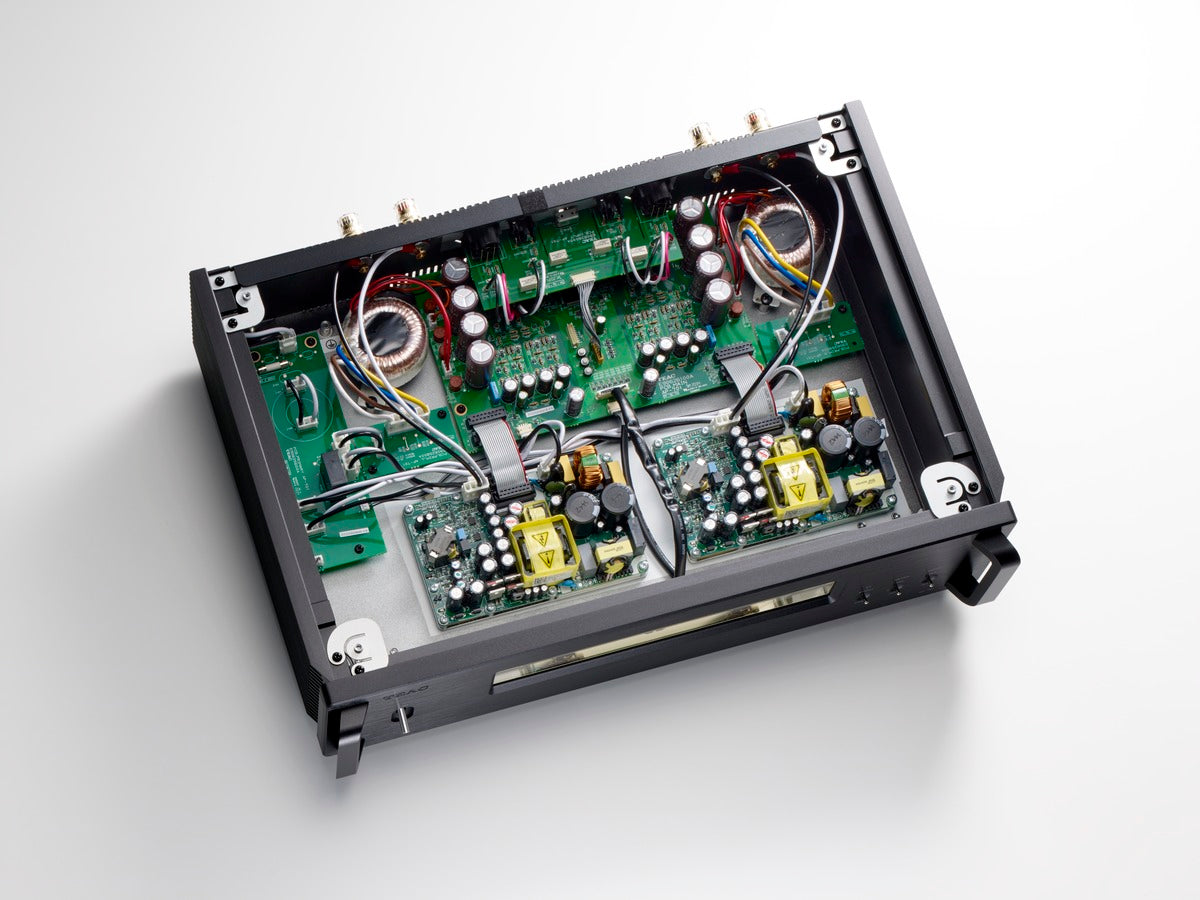

- Two custom-made Hypex Electronics Ncore power amplifier modules, each with its own power supply.
- Complete dual mono structure from input to output, thus zero interference between right and left channels.
- High output of max 260 W + 260 W (4 ohms) / 170 W + 170 W (8 ohms).
- Vibration-free floating construction.
- Fan-free design thanks to efficient ventilation system.
- Direct wiring from the input circuit sends the signal to the discrete buffer circuits without losing clarity.
- Compact space-friendly design.
- Two linked VU meters.
- 12V trigger in and through for power synchronization.
- Includes power cable, foot pads, manual.
- Available in black and silver.
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
- Product weight:9.9 kilograms
- Product height:11.1cm
- Product width:44.4cm
- Product length:34.8cm
- Product weight:9.9kg

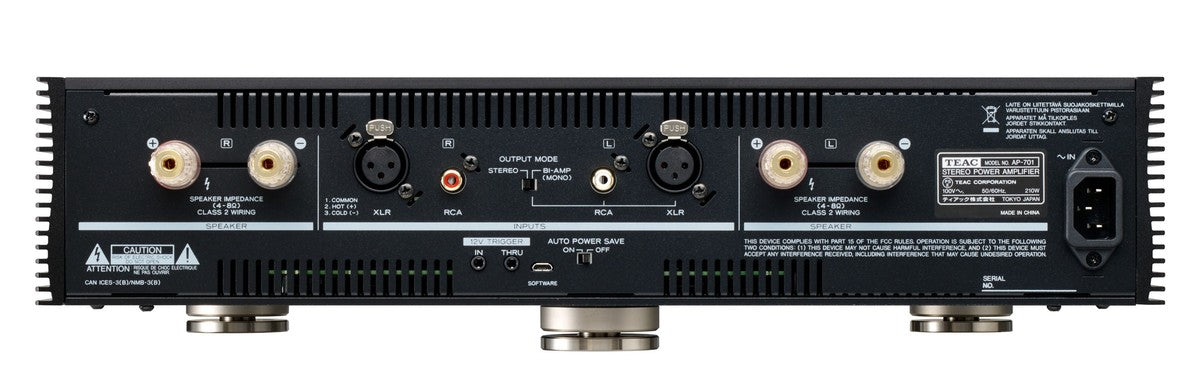

- RCA:1
- Input level & impedance RCA:1.6V & 32k (in STEREO mode) 16k (in BI-AMP mode)
- XLR:1
- Input level & impedance XLR:1.6V 64k (in STEREO mode) 32k (in BI-AMP mode)
- AMPLIFICATION
- Dynamic output (4): 260 + 260W
- Rated output (4): 230 + 230W
- THD at rated ouput (4): 1%.
- Dynamic output (8): 170 + 170W
- Rated output (8): 125 + 125W
- THD at rated output (8): 1%.
- S/N ratio: 110dB
- Speaker impedance: 4-8
- Frequency response: 10-50000Hz
- Channels: 2
- 12 volt trigger: In & Out
- Power consumption: 0.4-210W
Brand: TEAC
SKU: AQI-AP-701-B
Weight: 13.67 kg
