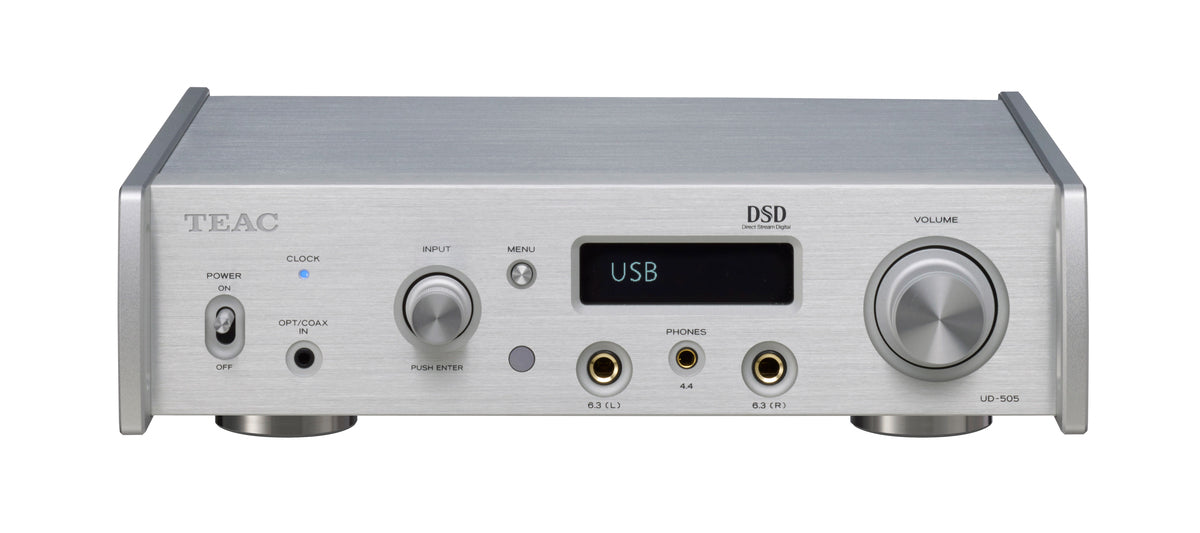

TEAC UD-505-X USB DAC Pre-amplifier (Silver)

• Dual mono USB DAC with integrated fully balanced headphone amplifier
• High-end audio, fully balanced design through all stages, in a compact design
• D/A converter section uses an ESS Technology ES9038Q2M for each channel
• ESS Technology ES9038 Q2M high-performance DAC supports resolutions up to 22.5 MHz DSD and 768 kHz/32 bit PCM
• There is a built-in DAC chip in each of the stereo channels. ESS Technology ES9038Q2M SABRE32 Reference DAC - an acclaimed DAC in high-end audio
• 32-bit HyperStream® II DAC architecture and Time Domain Jitter Eliminator provide exceptional dynamic range and increase linearity in D/A conversion
• Bluetooth High-quality streaming
• Hi-Res audio playback supporting DSD512 (22.5MHz) and PCM 768kHz/32bit PCM

TEAC UD-505-X USB DAC Pre-amplifier (Silver)

• Dual mono USB DAC with integrated fully balanced headphone amplifier.
• High-end audio design combined with a compact and space-saving construction.
• D/A converter section utilizes an ESS Technology ES9038Q2M for each channel.
• High signal to noise ratio - 110dB.
• ESS Technology ES9038 Q2M high-performance DAC supports resolutions up to 22.5 MHz DSD and 768 kHz/32 bit PCM.
• There is a built-in DAC chip in each of the stereo channels. ESS Technology ES9038Q2M SABRE32 Reference DAC - an acclaimed DAC in high-end audio.
• 32-bit HyperStream® II DAC architecture and Time Domain Jitter Eliminator provide exceptional dynamic range and increase linearity in the D/A conversion.
• This gives you clear and precise audio playback.
• Dual mono circuitry with fully balanced design through all amplifier paths from input to output.
• High-quality wireless streaming via Bluetooth (SBC, AAC, LDAC, aptX HD codecs).
• Built-in clocks for 44.1kHz and 48kHz, and external 10MHz clock input.
• Hi-Res audio playback supporting DSD512 (22.5MHz) and PCM 768kHz/32bit PCM.
• 7 types of PCM digital filters.
• Upconversion up to 24.5MHz DSD and 384kHz/32bit PCM.
• TEAC-HCLD2 buffer circuit with optimized current output.
• TEAC-QVCS quad volume control system.

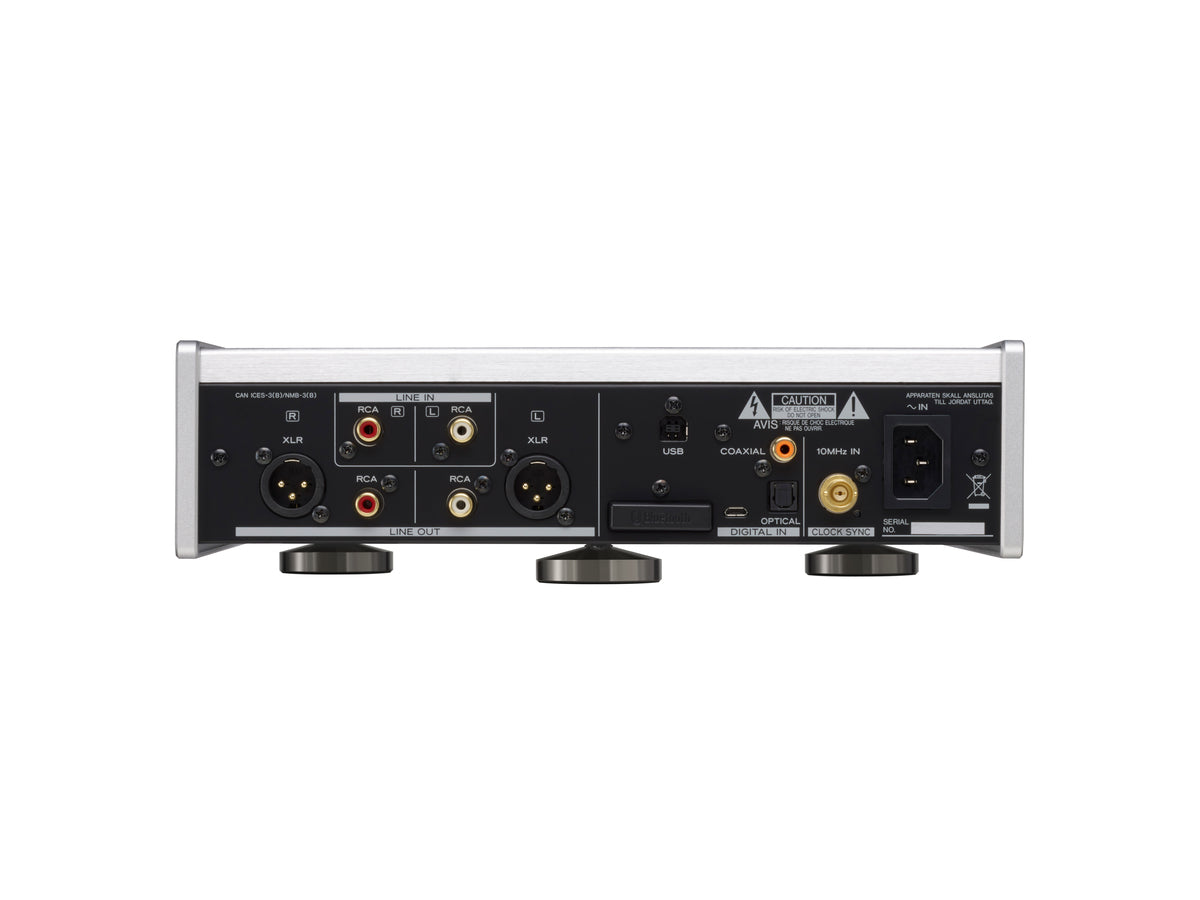

• 4.4mm 5-pin Pentaconn 1 connector and dual 1/4" (6.3mm) TRS connectors for balanced and active ground.
• OLED display with dimming option.
• "Stressless Foot" design with three feet.
• Semi-floating design top panel.
• Bulk Pet 2 USB transfer technology with 4 transfer modes for different audio modes.
• Free TEAC HR Audio Player for Windows/Mac.
• Includes power cable, RCA mini plug adapter cable, remote control, 2 AAA batteries, 3 foot pads, manual.
• Available in silver and black.
