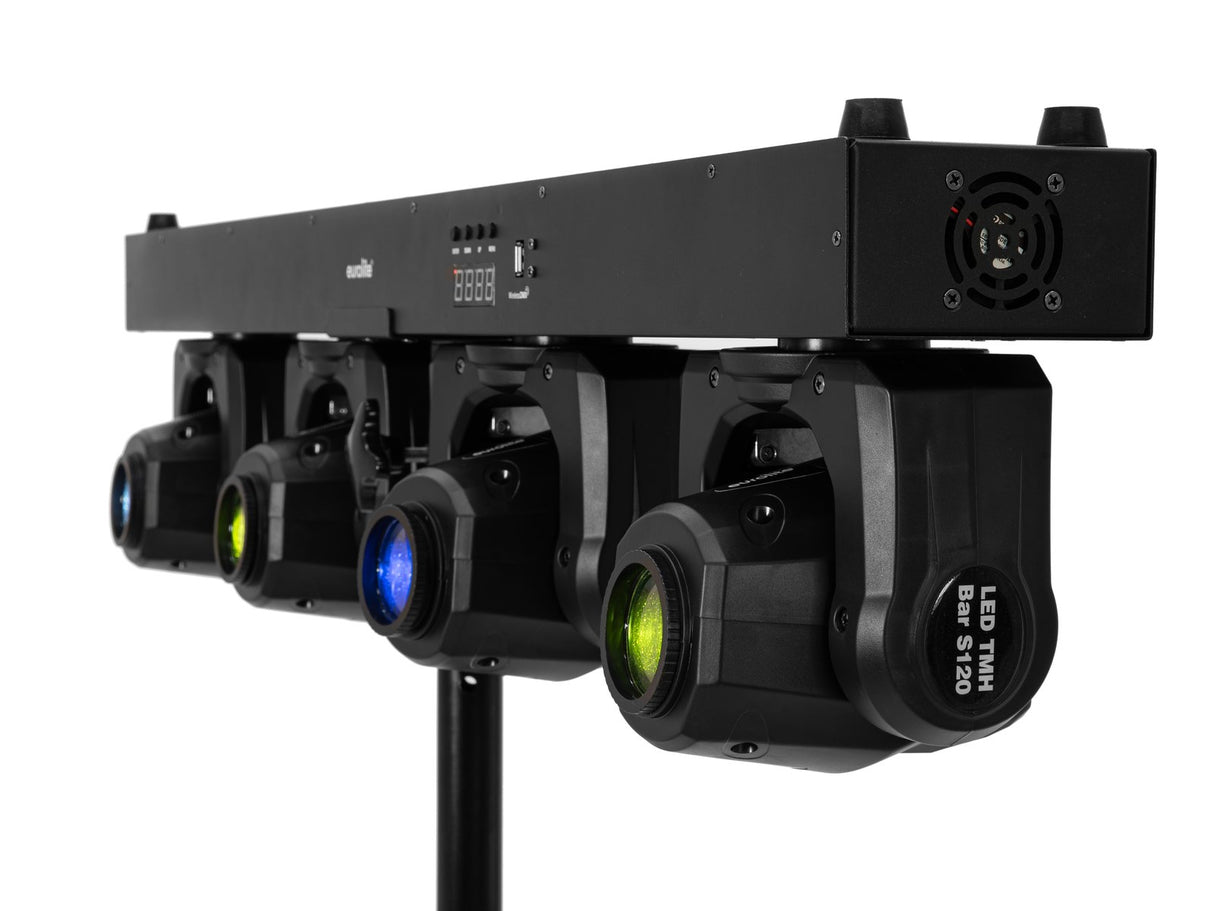

Eurolite LED TMH Bar S120 Moving Head

• LED lighting system with 4 individually controllable 30W moving heads and gobo- and color wheels
• 4 powerful 30 W COB LEDs for intense brightness
• Control via stand-alone, DMX, Sound to light, Master/slave, QuickDMX via USB, CRMX by LumenRadio and W-DMX (optional)
• Gobo-Color wheel with 7 gobos, color wheel with 7 dichroic filters, strobe and beam effect
• 540° PAN and 180° TILT, electronic dimmer, flicker-free technology and 13° beam angle

Eurolite LED TMH Bar S120 Moving Head

• 4 individually controllable 30 W moving heads with COB LEDs for intense brightness.
• Control options: stand-alone, DMX, Sound to light, Master/slave, QuickDMX via USB (optional), CRMX by LumenRadio via USB (optional), W-DMX by wireless solution (optional).
• Gobo-Color wheel with static gobos, manual focus and 7 gobos plus open position and shake effect.
• Color wheel with 7 dichroic filters plus open, half-color and Rainbow effect with adjustable speed.
• Strobe effect and beam effect for dynamic light shows.
• 540° PAN and 180° TILT with precise positioning thanks to 16-bit resolution.
• Electronic dimmer and flicker-free technology.
• Beam angle of 13° for focused light output.

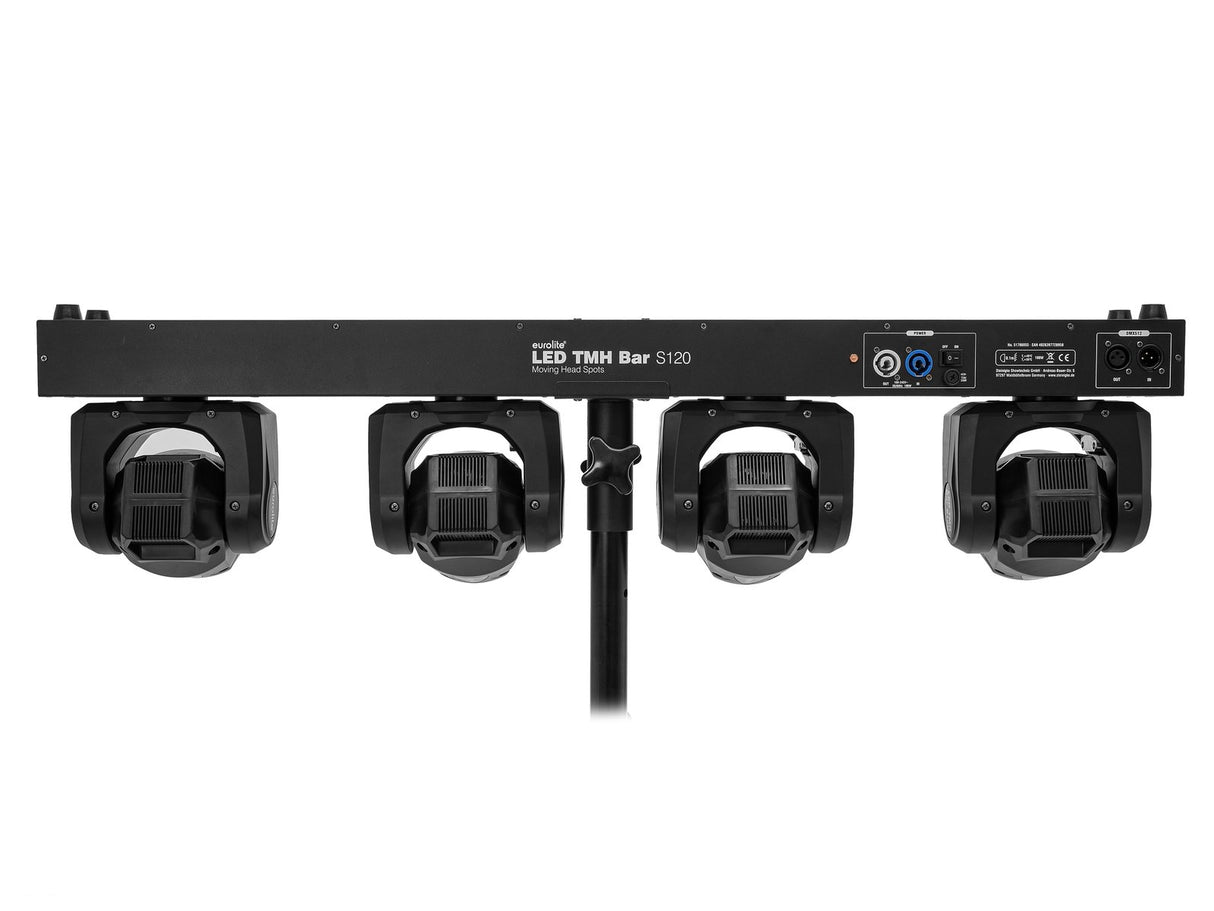

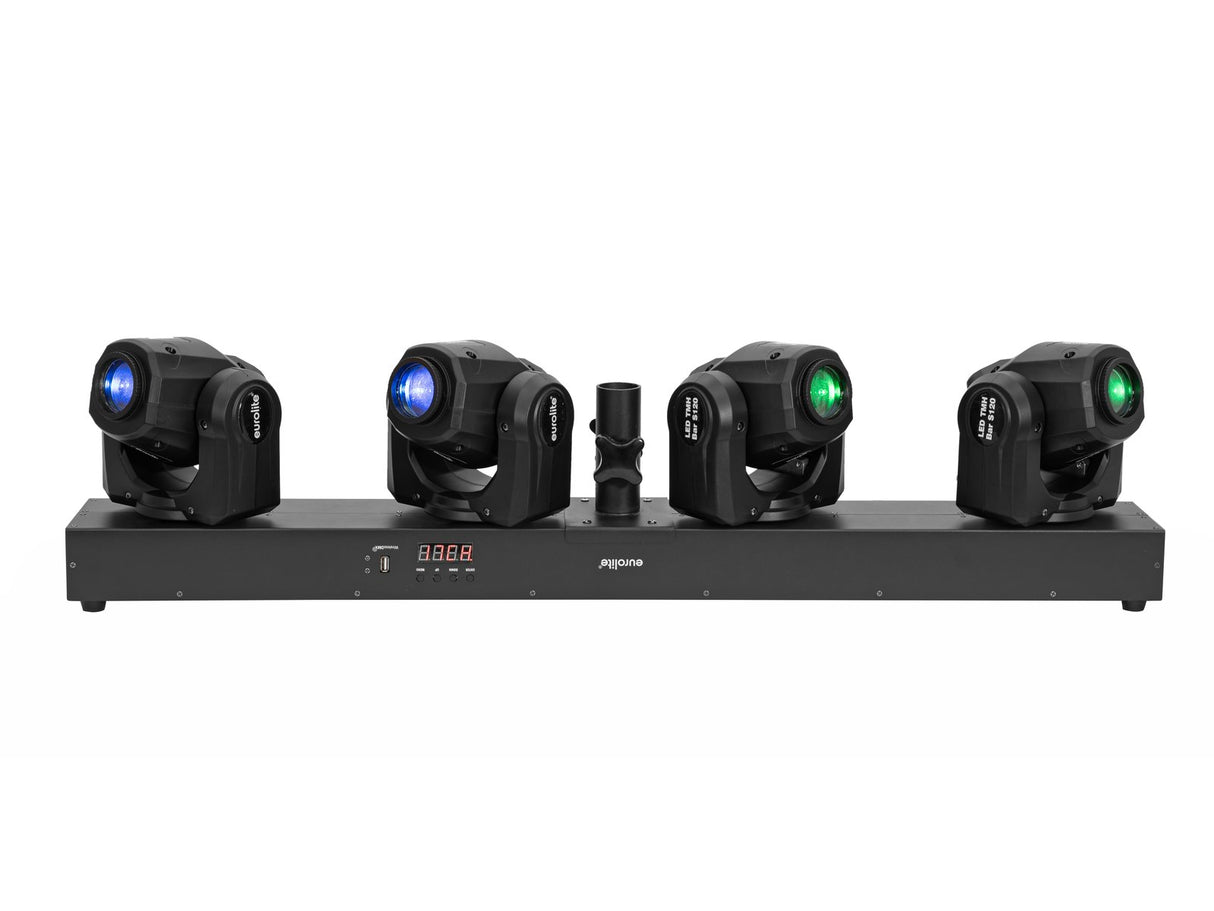

• Crossbar with integrated DMX controller and stand holder for easy setup and control.

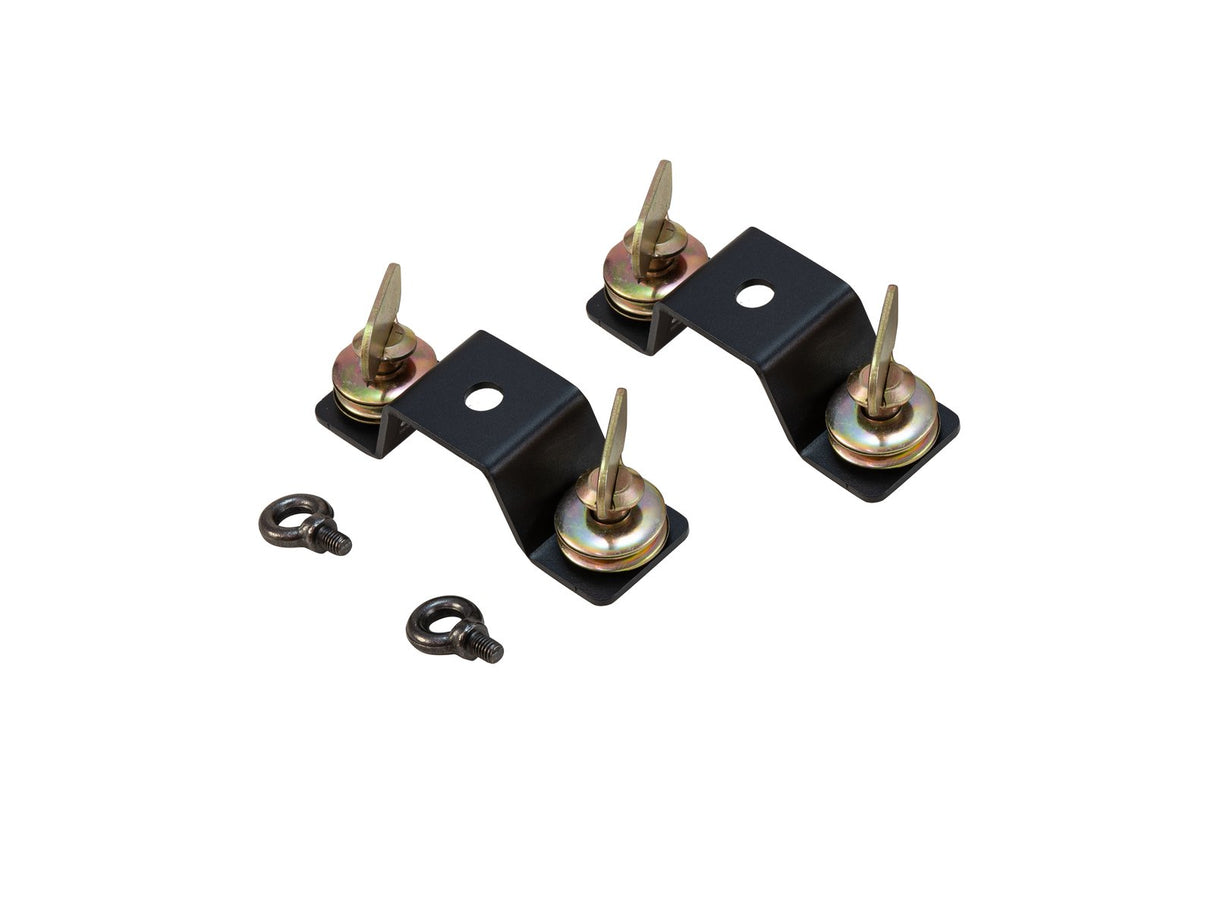

• Omega bracket for secure mounting and 4-digit 7-segment LED display for clear visual indications.

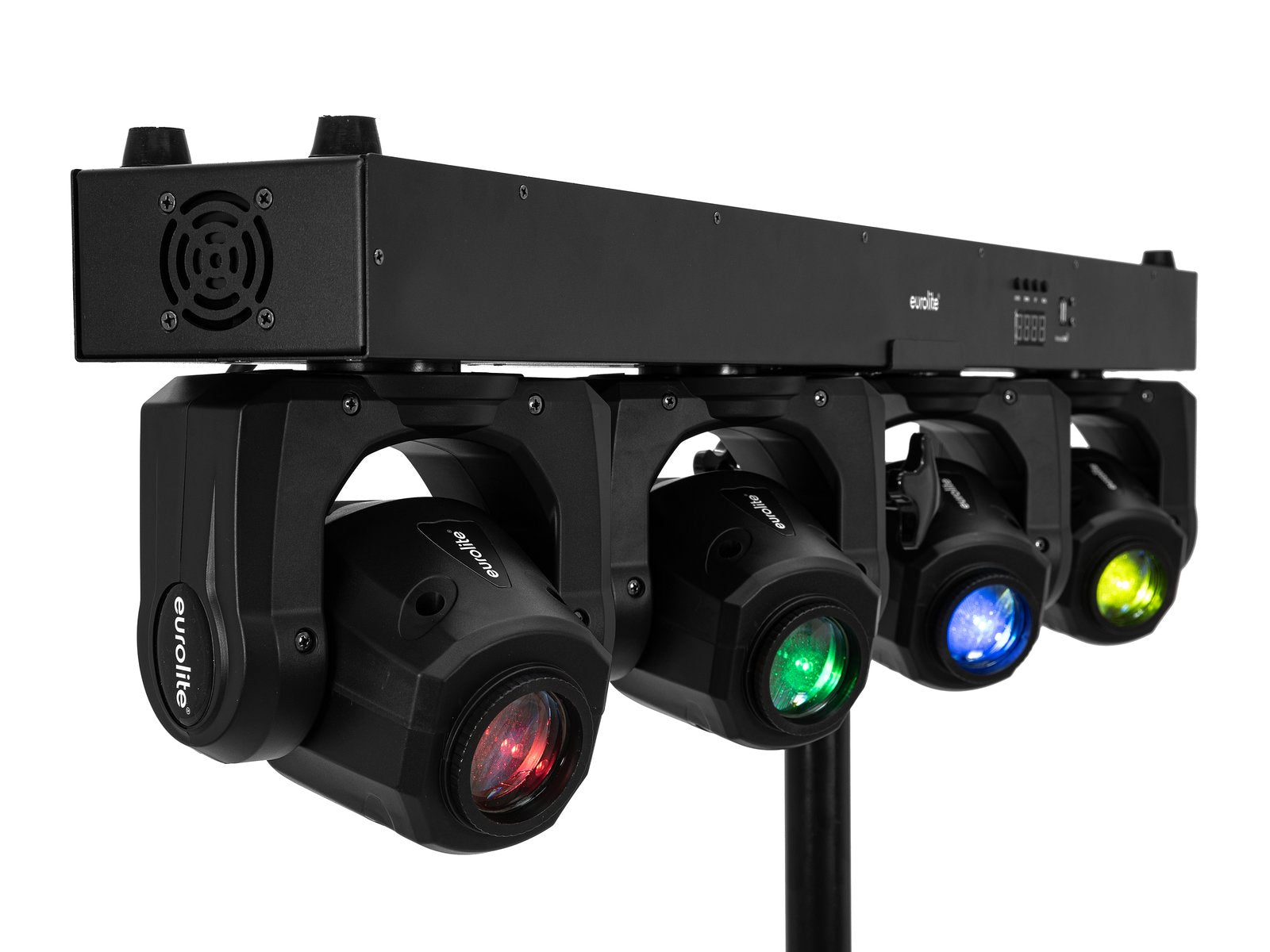

• Efficient cooling with temperature controlled fan and power input/output for powering up to 8 units.
• Pre-programmed in Colorchief, Light´J and Light Captain.
• Suitable for clubs, dance schools, weddings, galas, banquet halls and by mobile DJs and entertainers.
• Can be used standing, suspended or on a stand.
• Includes: 1 x moving light, 1 x user manual, 1 x power cable, 2 x omega brackets, 2 x safety eyes.
• Stand not included.

• Strømforsyning: 100-240 V AC, 50/60 Hz
• Strømforbrug: 100 W
• IP-klassifikation: IP20
• Beskyttelsesklasse: Beskyttelsesklasse I

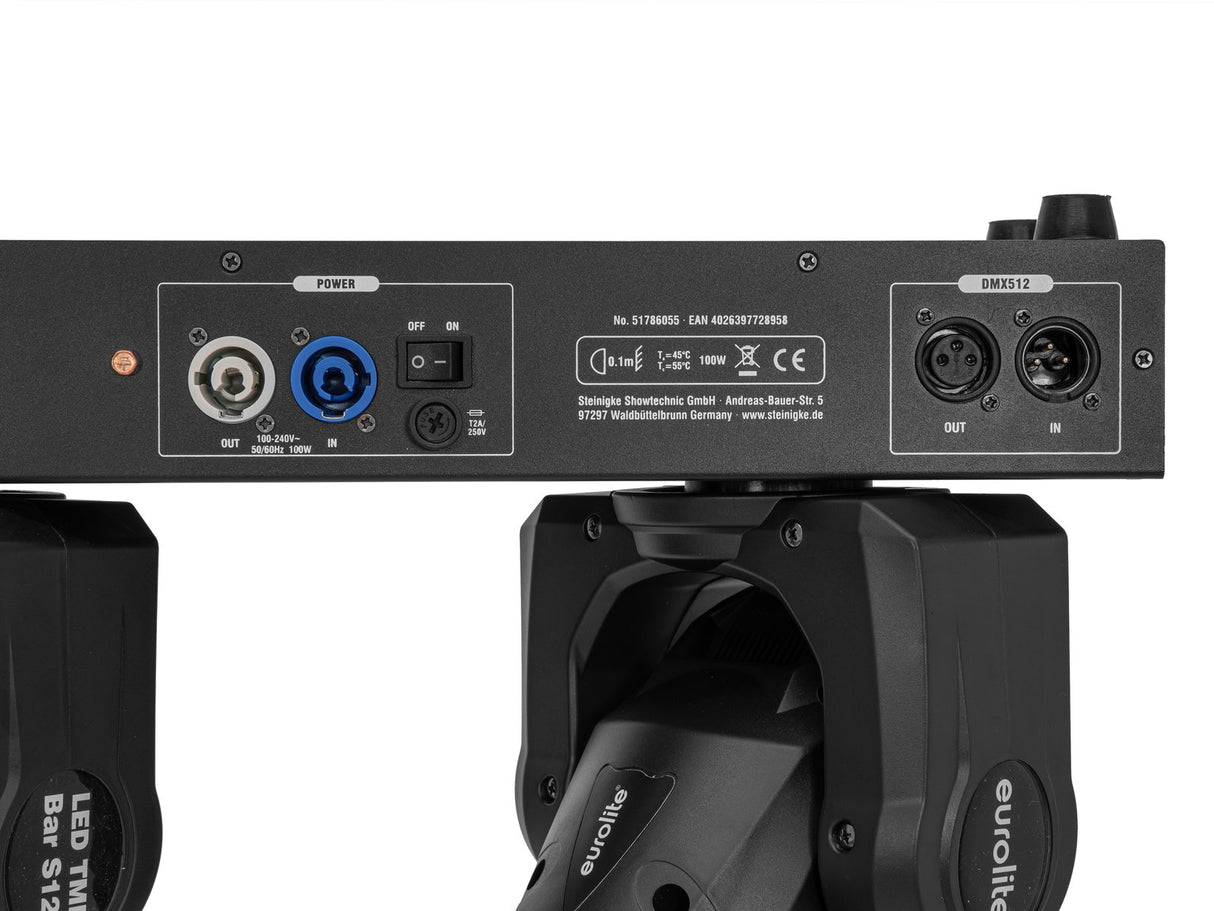

• Strømtilslutning: Netindgang via P-Con (blå), monteringsversion strømkabel med sikkerhedsstik (medfølger)
• Strømudgang: P-Con (grå), monteringsversion
• Sikring: 5 x 20 mm, T 2 A Sikring udskiftelig
• Lampe type: LED lampe
• LED: 4 x 30 W COB (chip-on-board)
• Farvetemperatur: 7300K
• Maks. TILT bevægelse: 180° Positionering; Nøjagtig positionering (16 bit opløsning)
• Maks. PAN bevægelse: 540° Positionering; Nøjagtig positionering (16 bit opløsning)
• Udstyr: Gobo-hjul med statiske gobos; Manuel fokus; Farvehjul
• Farvegenerering: Farvehjul med 7 dichroiske filtre plus åben; Halve farver valgbare, Regnbueeffekt med justerbar hastighed
• Gobos: Gobo-hjul med statiske gobos, 7 gobos og åben; Shake-effekt
• DMX kanaler: 3; 5; 9; 11; 17; 21; 30; 38
• DMX indgang: 3-pin XLR (M) monteringsversion
• DMX udgang: 3-pin XLR (F) monteringsversion
• Køling: Temperaturstyret ventilator
• Styring:
  • Stand-alone
  • DMX
  • Lyd til lys via mikrofon
  • Master/slave funktion
  • QuickDMX via USB (valgfri)
  • CRMX fra LumenRadio via USB (valgfri)
  • W-DMX via trådløs løsning (valgfri)
• Forudprogrammeret i:
  • Colorchief
  • Light´J
  • Light Captain
• Projektion: Flimmerfri
• Strålevinkel: 13°
• Strålevinkel (1/2 top): 13°
• Belysningsstyrke i Lux (lx):
  • Kold hvid (CW) 1m: 8899 lx
  • 3m: 856 lx
  • 6m: 205 lx
• Husfarve: Sort
• Monteringssystem: 2x Omega beslag

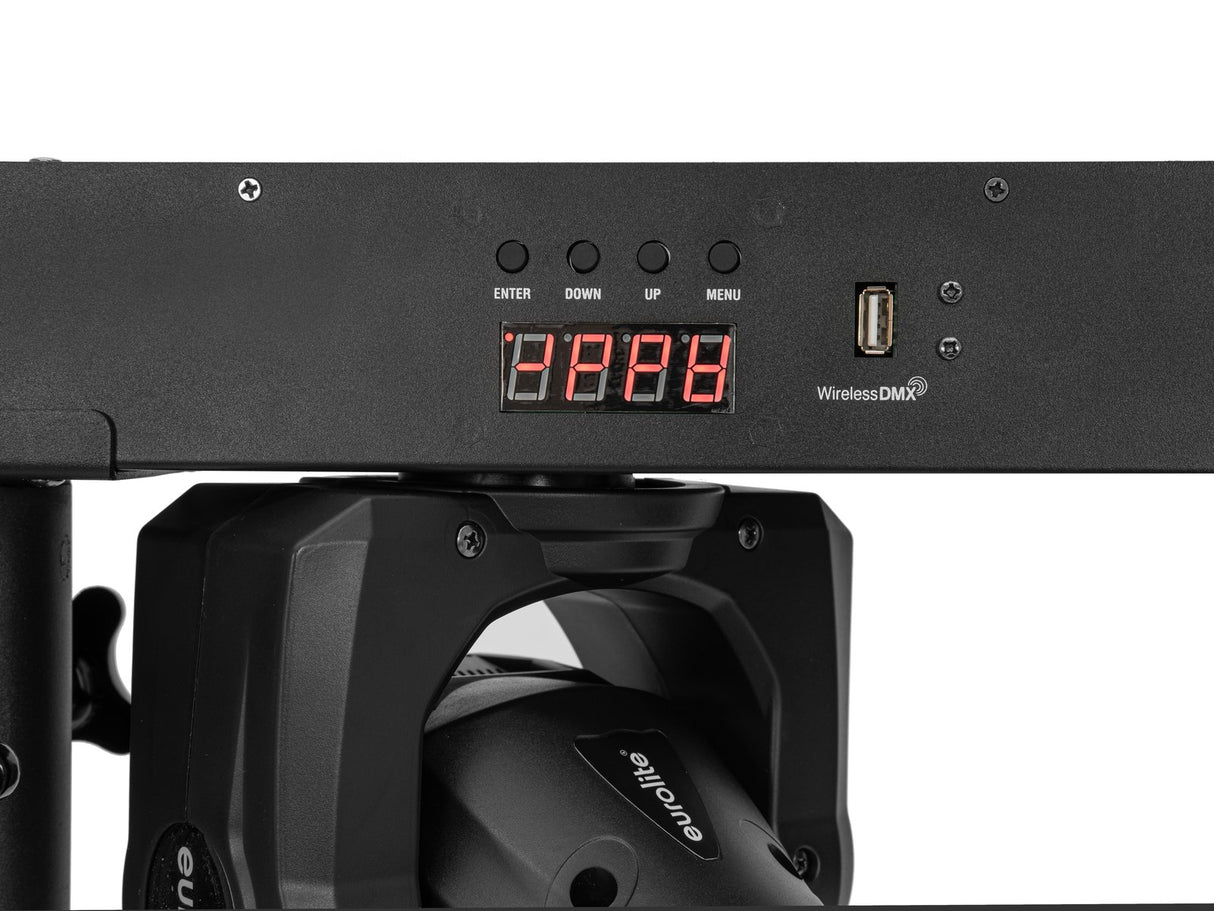

• Display type: 4-cifret 7-segment LED display
• Transporthjælp: Gummifødder
• Dimensioner:
  • Bredde: 1 m
  • Dybde: 17.5 cm
  • Højde: 28.0 cm
• Vægt: 13.00 kg
• Støjklassifikation: Klasse 3 (tydeligt opfattelige lyde)
