• 1,200 W heater and high-performance pump for powerful smoke output
• 12 x 10W RGBA 4-in-1 LEDs for uniform smoke illumination

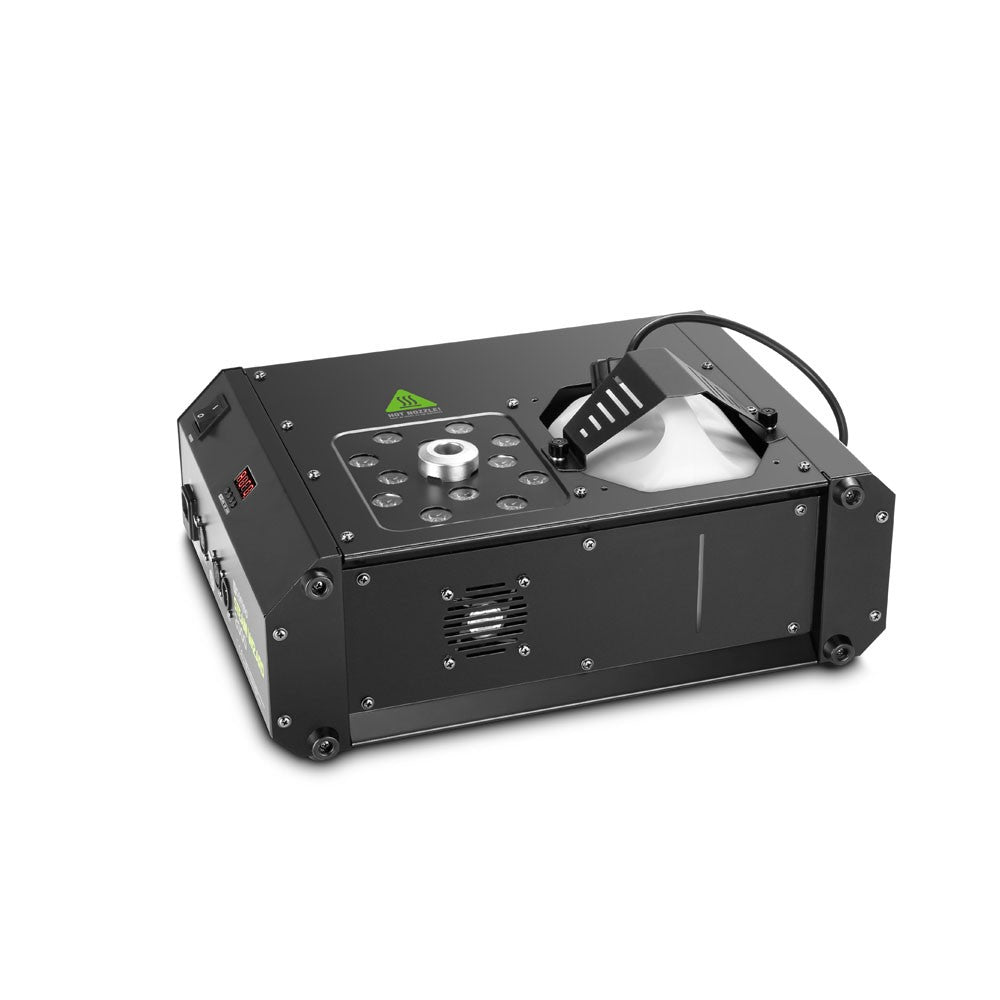

• Vertical or horizontal mounting

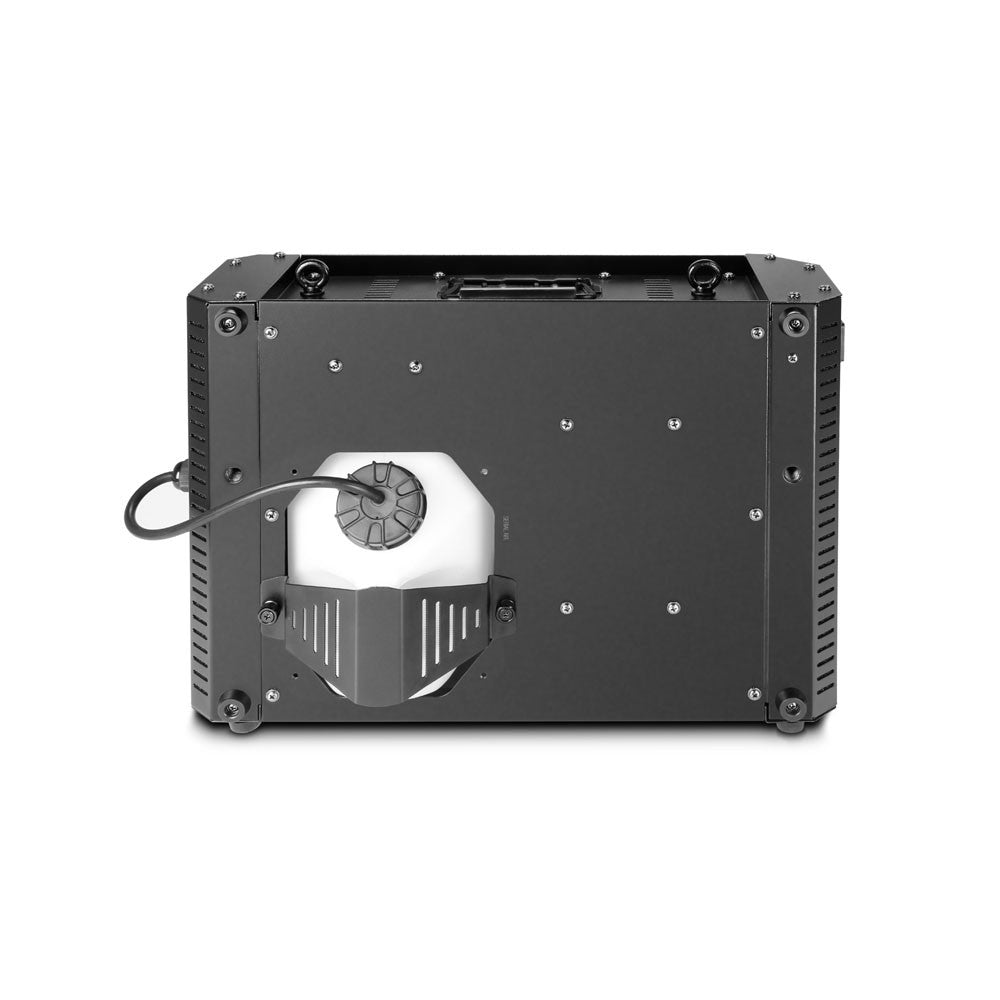

• Top or bottom liquid tank location options
• Bottom tank location allows easy overhead installation for downward smoke output
• Automatic shut-off prevents pump damage when liquid tank is empty
• LED indicators for liquid tank and operating status
• 4-channel DMX control

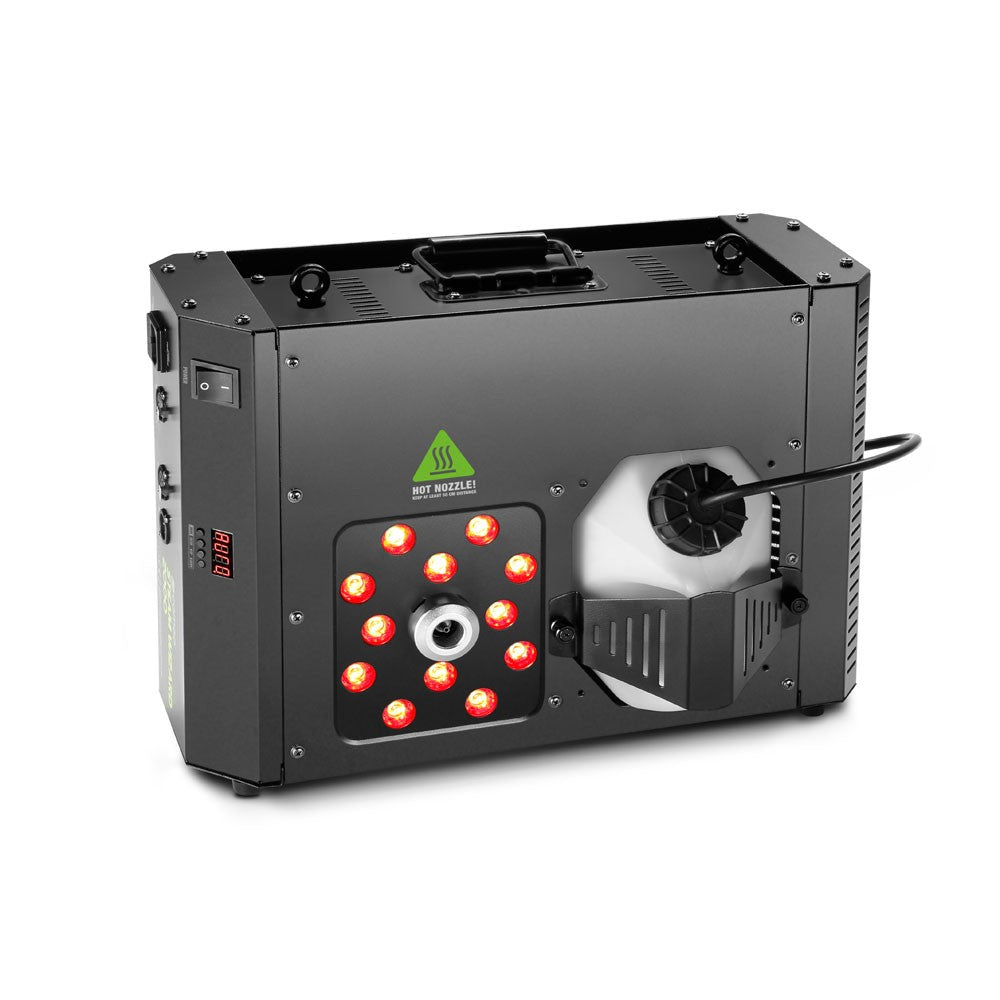

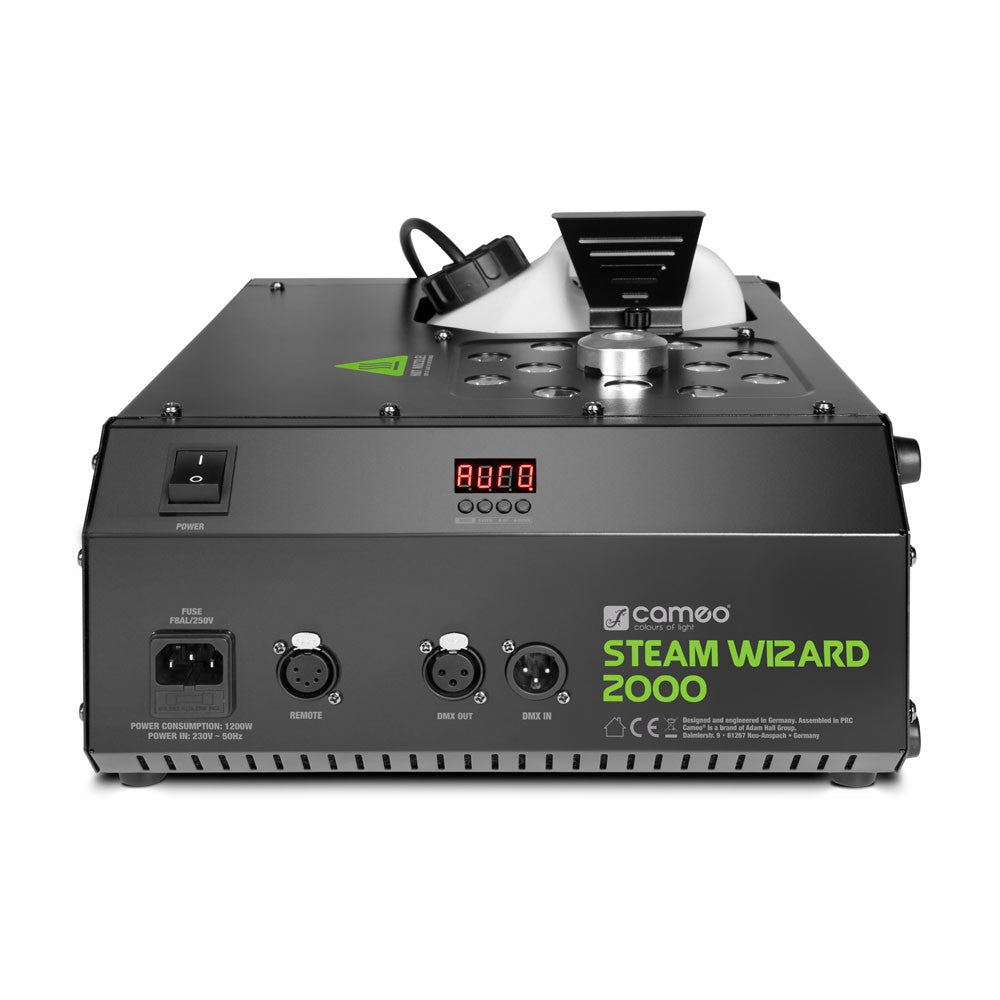

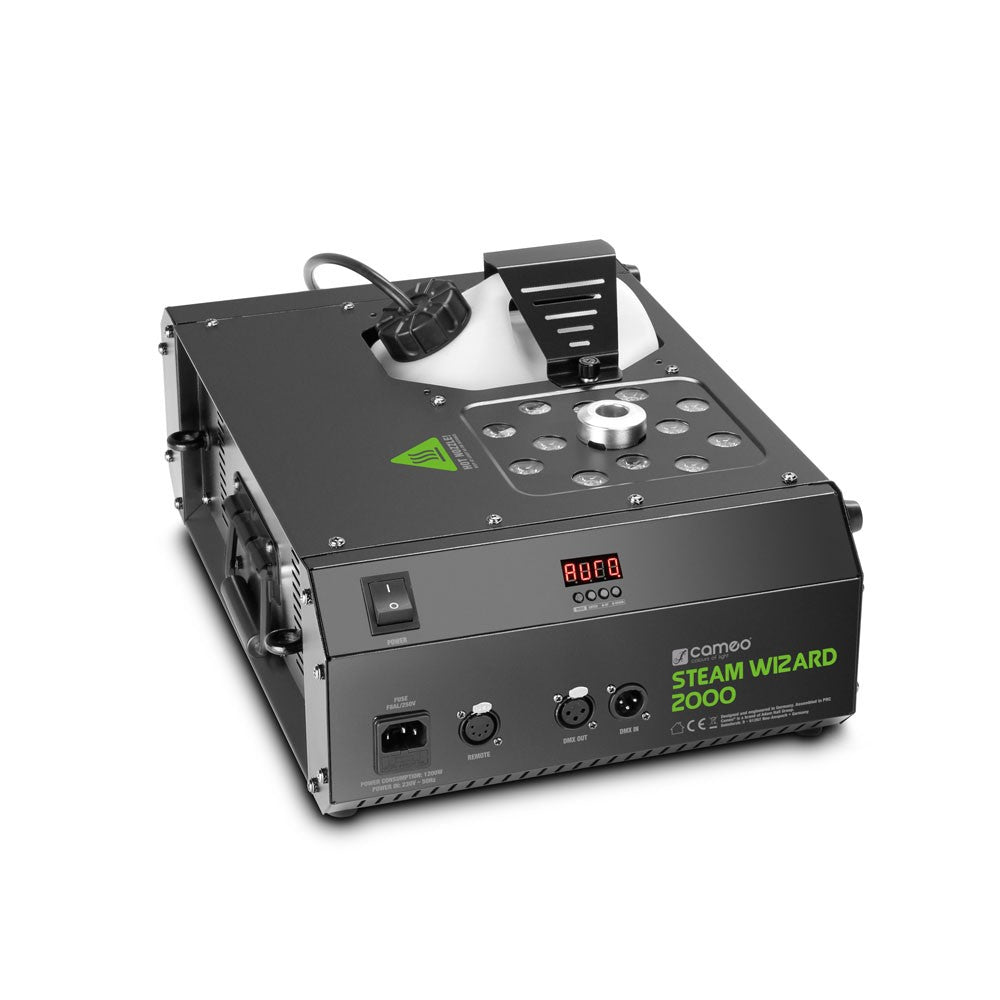

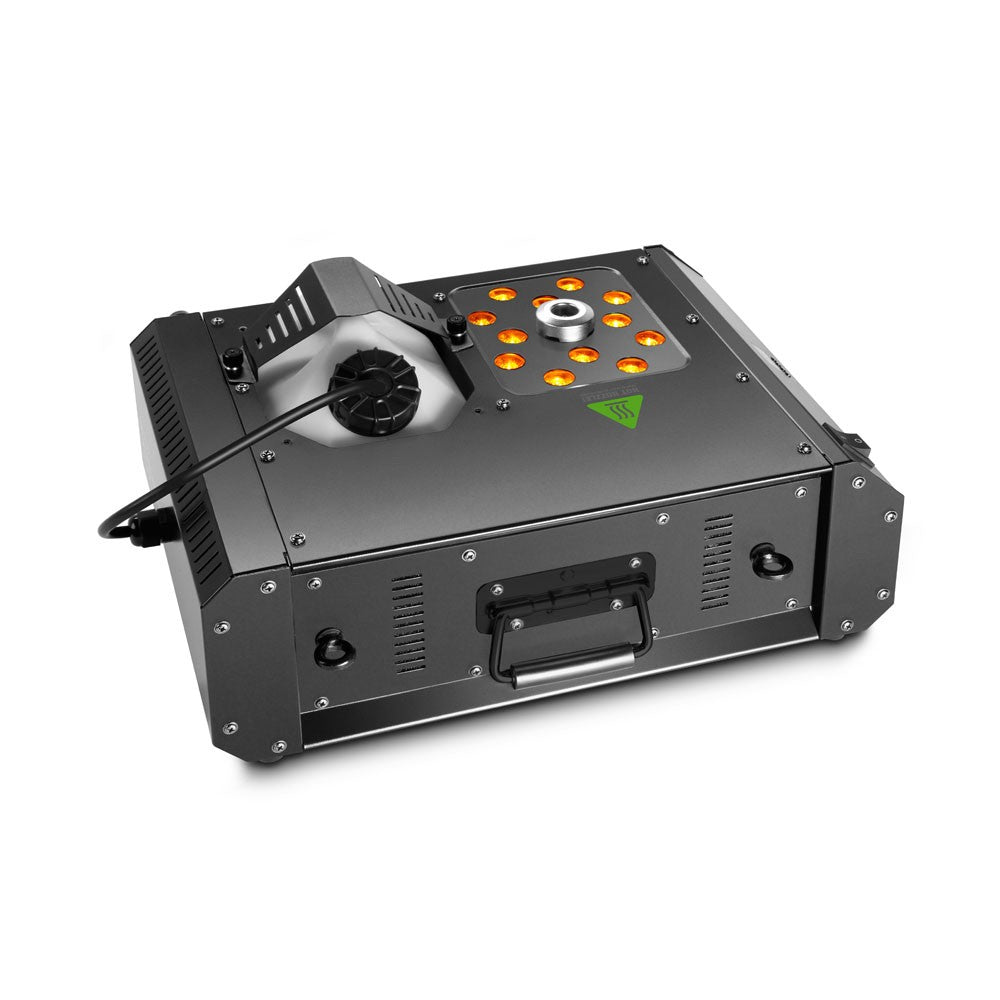

Cameo Steam Wizard 2000 (1200W)

• The Cameo Steam Wizard 2000 produces dense, water-based smoke with a shooting range of 7 meters, illuminated by 12 x 10-watt RGBA LEDs.
• Vertical smoke machine with options for ground control, overhead installation, and horizontal mounting.
• Equipped with a powerful 1,200-watt heating element and a high-performance pump for consistent smoke output and minimal warm-up time between smoke bursts.
• LED indicators show operational status and fluid level, while an automatic shut-off feature protects the pump when the fluid tank is empty.

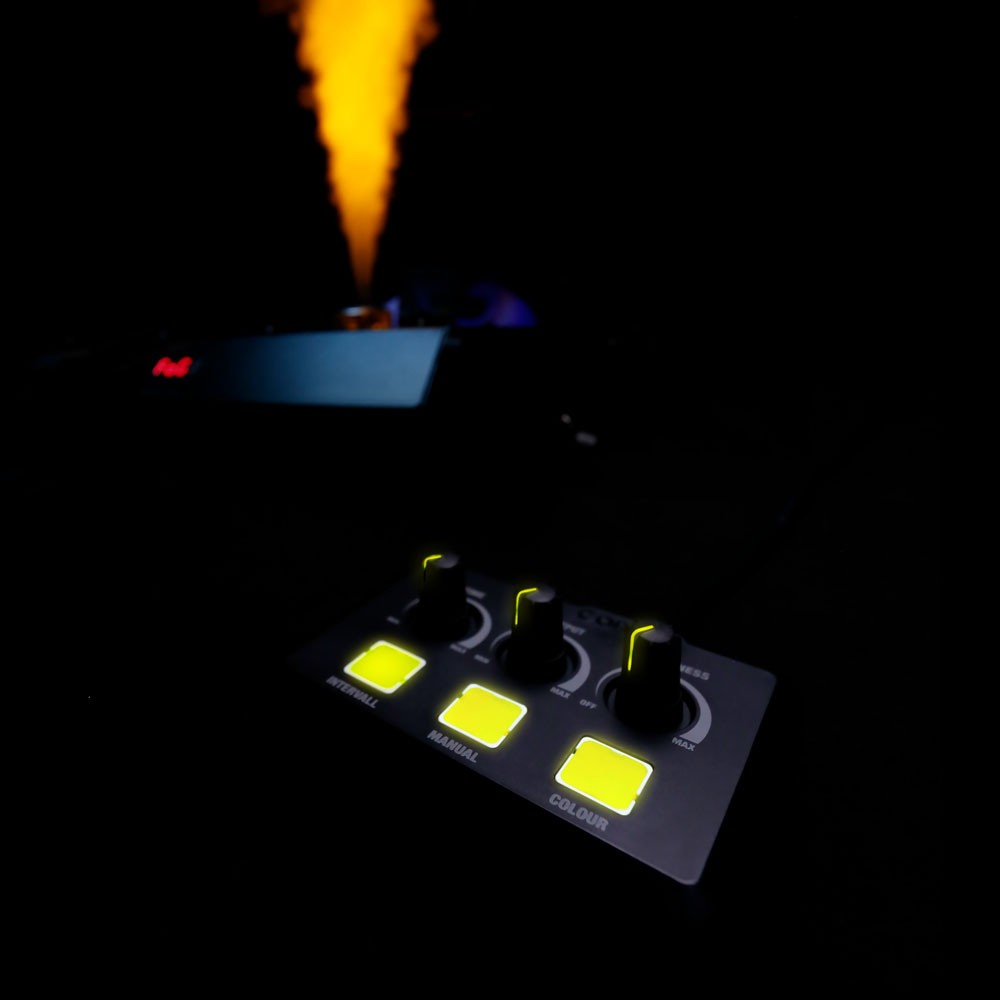

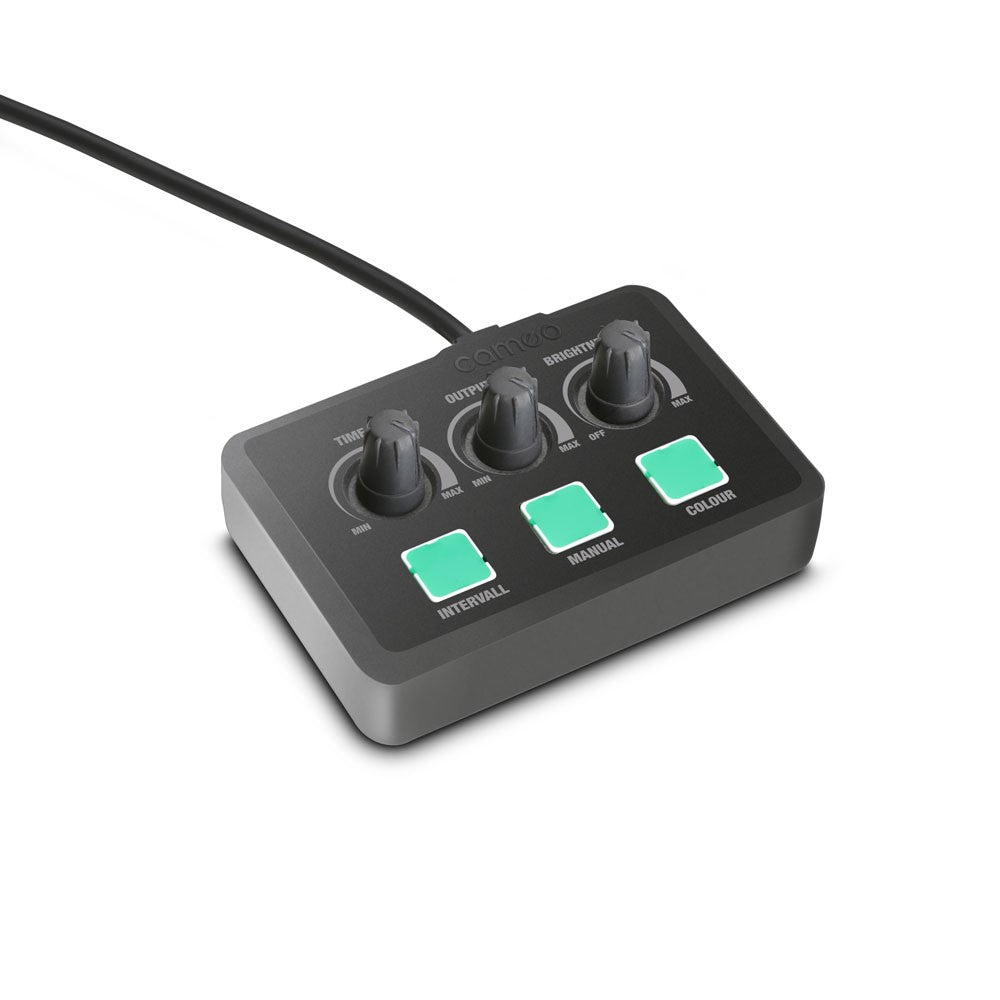

• Can be operated via DMX in 4-channel mode or with the included remote control with illuminated buttons.
• 1,200-watt heating element and powerful pump ensure strong smoke output with short warm-up time.
• 12 x 10W RGBA LEDs provide effective and uniform lighting of the smoke.
• Flexible mounting: Vertical, horizontal, and top or bottom placement of the fluid tank.
• Automatic shut-off protects the pump when the fluid tank is empty.
• Remote control with illuminated buttons and 4-channel DMX control.
• Compact vertical smoke machine that produces smoke jets up to 7 meters, illuminated by 12 powerful RGBA LEDs.
• With both top and bottom placement of the fluid tank, the machine can be mounted vertically or horizontally, providing setup flexibility.
• The Steam Wizard 2000 features a 1,200-watt heating element and a high-performance pump for reliable smoke production with minimal warm-up time.
• The machine's LED indicators inform about fluid level and operational status, while an automatic shut-off feature prevents damage to the pump.
• The unit can be controlled via 4-channel DMX or with an included remote control that has illuminated buttons.

Product Specifications

Product Type:
Fog and Wind Machines

Type:
Fog machine with LEDs

Power:
1200 W

Output Volume:
Approx. 500 m³/min

Range of Fog Output:
Approx. 7 m

Warm-up Time:
Approx. 3 min

Fog Duration:
Approx. 10 sec.

Reheating Time:
Approx. 8 sec.

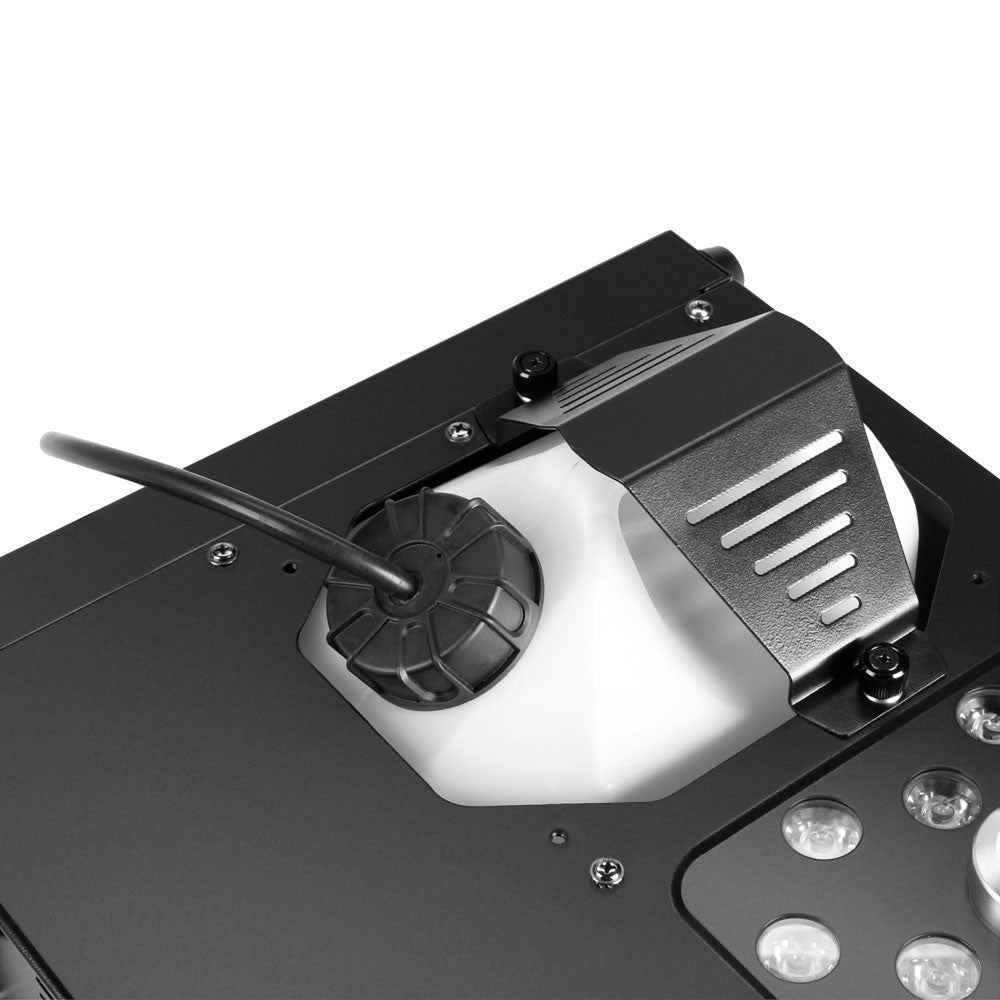

Fluid Tank Capacity:
2.5 l

Fluid Consumption:
Approx. 50 ml/min

Number of LEDs:
12

LED Colour Spectrum:
RGBA

LED Type:
10 W 4 in 1 LED

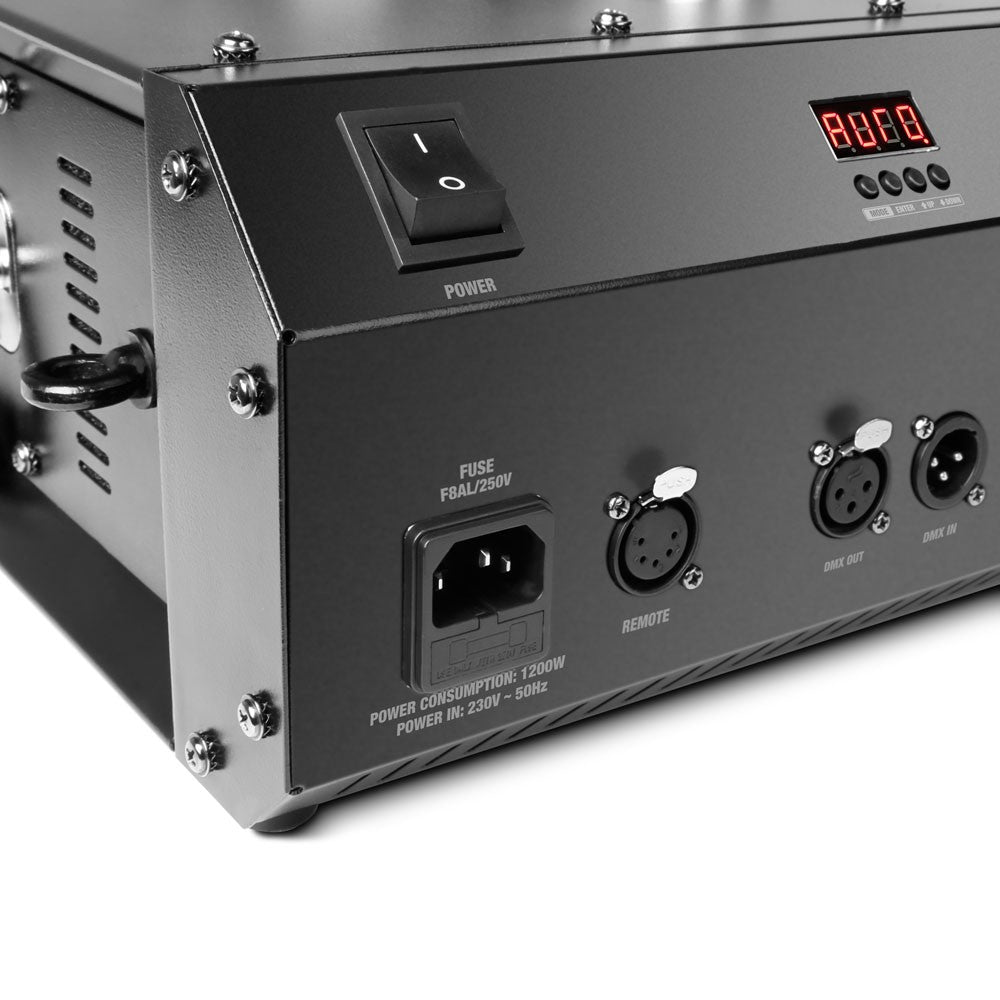

Remote Connection:
XLR 5-pin male

Remote Cable Length:
10 m

Remote Functions:

• Colour change
• Continuous operation
• Duration
• Interval
• LED brightness
• Manual control
• Output level

DMX Input:
XLR 3-pin male

DMX Output:
XLR 3-pin female

DMX Mode:
4-channel

DMX Functions:

• Colour change
• Colour fade
• Colour jump
• Dimmer
• Output level
• Strobe

Controls:

• Enter
• Mode
• Value Down
• Value Up

Indicators:
4-digit LED display

Operating Voltage:
230 V AC, 50 Hz

Fuse:
F8AL / 250 V

Power Consumption:
1200 W

Power Connector:
IEC power connector female

Housing Material:
Metal

Cabinet Colour:
Black

Width:
300 mm

Height:
140 mm

Length:
420 mm

Weight:
9 kg
