• Drum module for hybrid drum kit
• Including module and sensor/microphone
• 757 sounds
• 50 presets
• 200 user programs

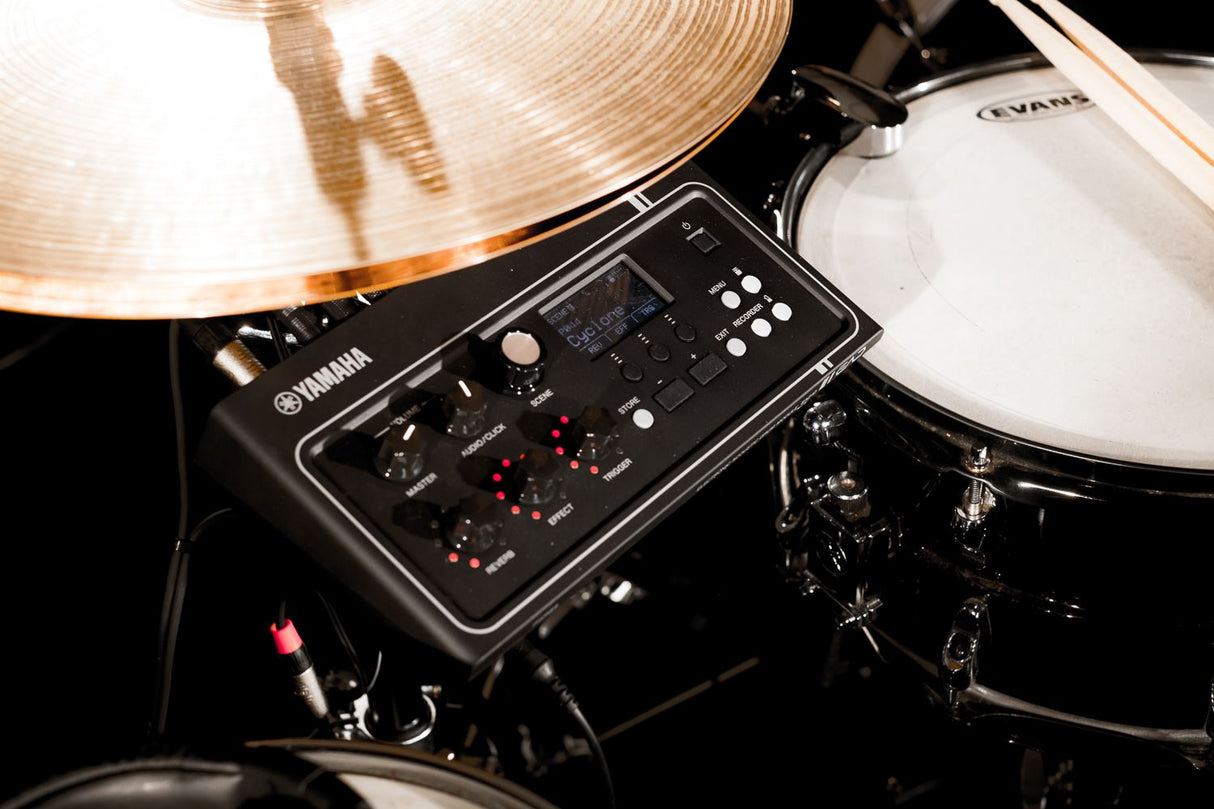

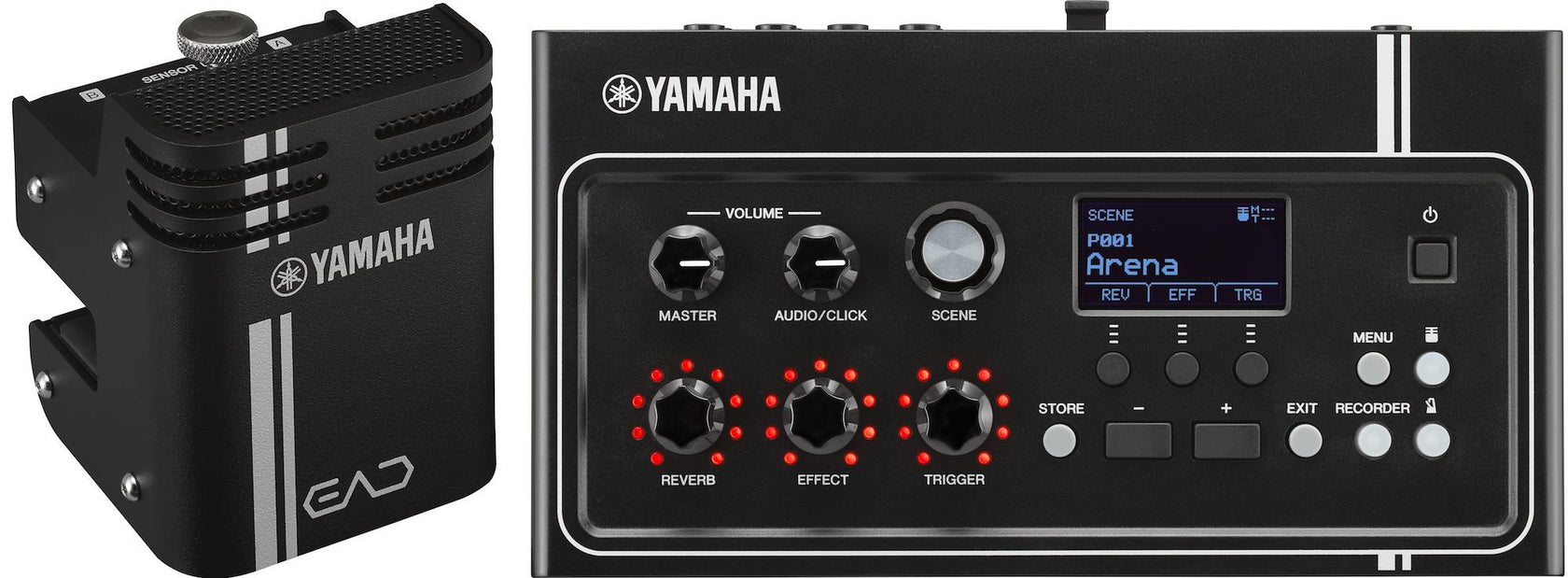

Yamaha EAD10 Drum module

• Smart module for combining acoustic and electric drum kits.

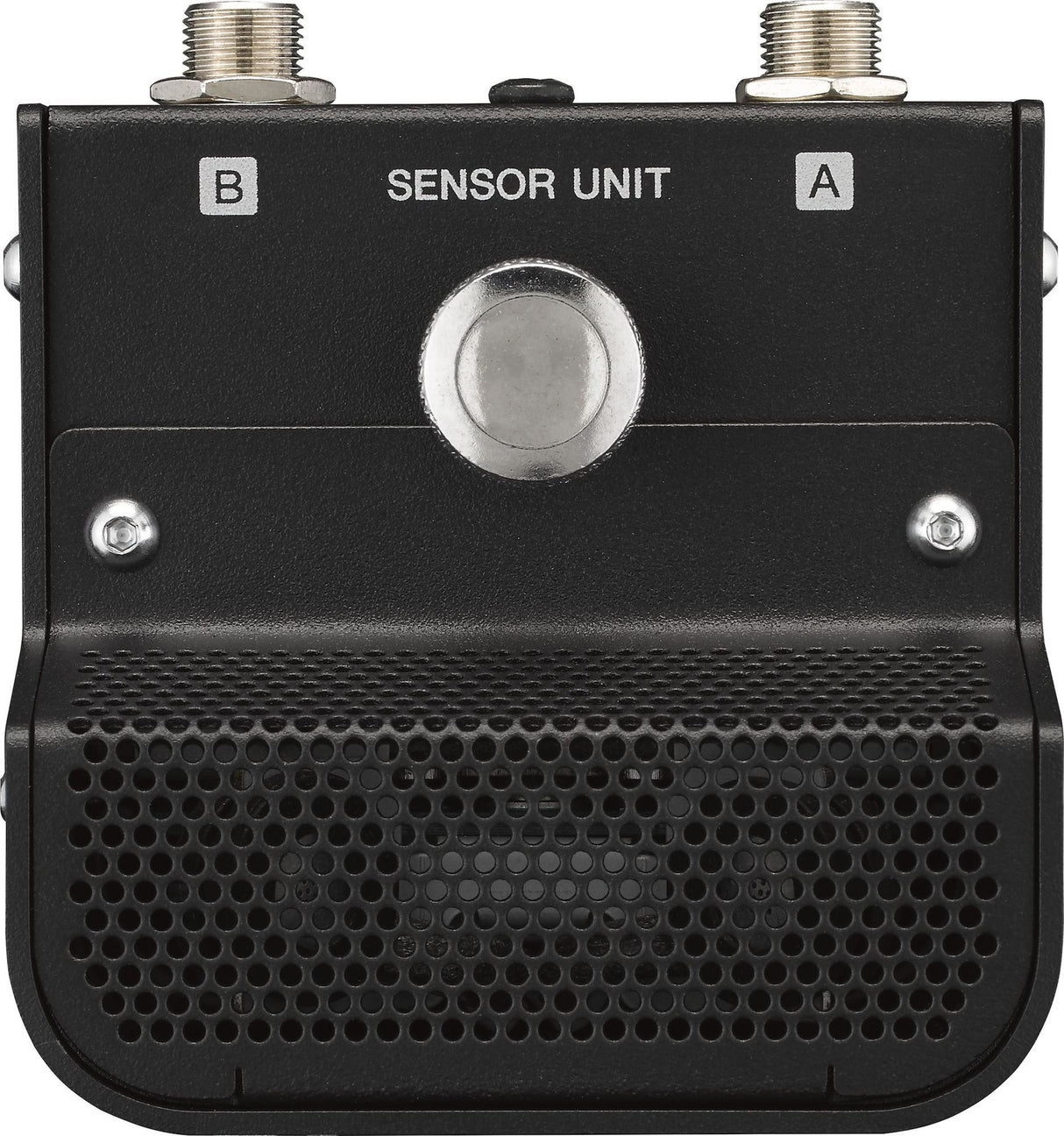

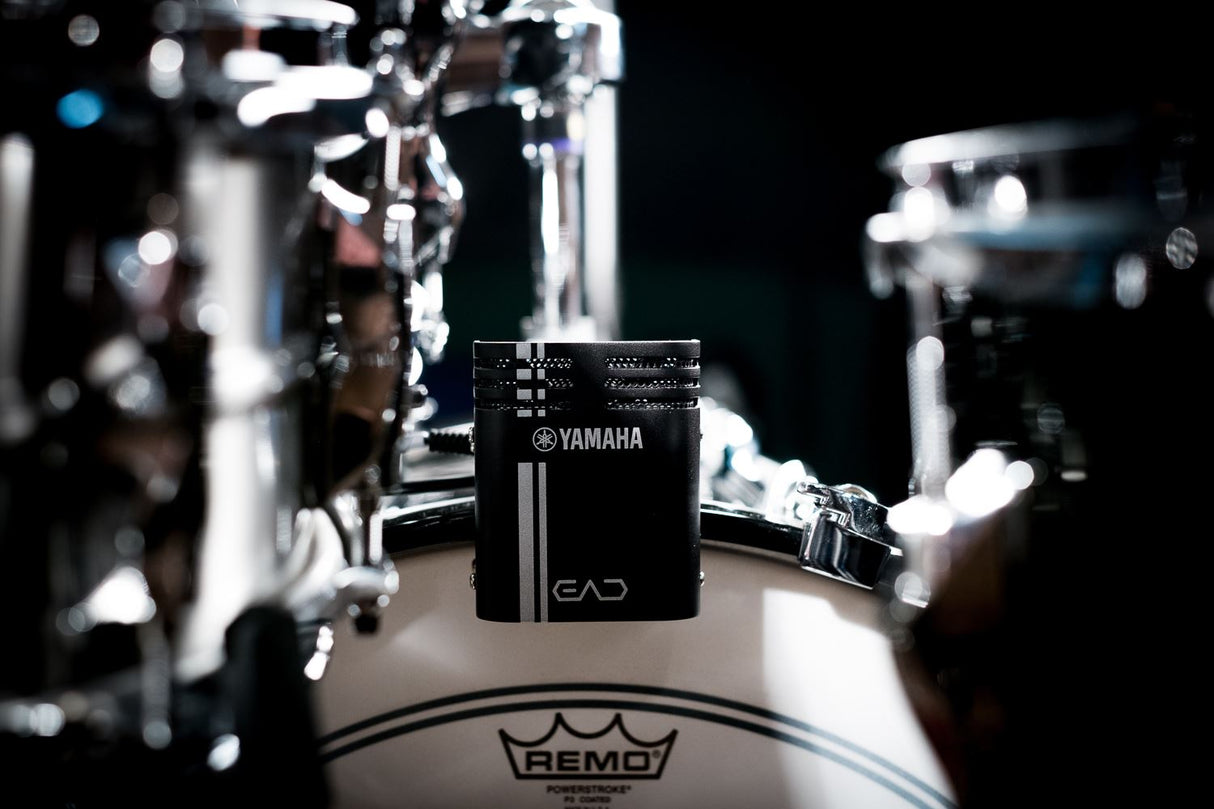

• The sensor is mounted on the bass drum kit, which then picks up the entire drum kit with the built-in stereo microphone.
• 6 trigger inputs, AUX input and USB input
• Play to your favorite songs through the module
• Built-in metronome - EAD10 automatically analyses tempo of incoming sound

• Polyphony: 64

• 757 sounds - bass drum, snare drum, cymbal, tambourine, cowbell, etc.

• Effects: 11 x reverb, distortion, delay, wah, compressor and flanger

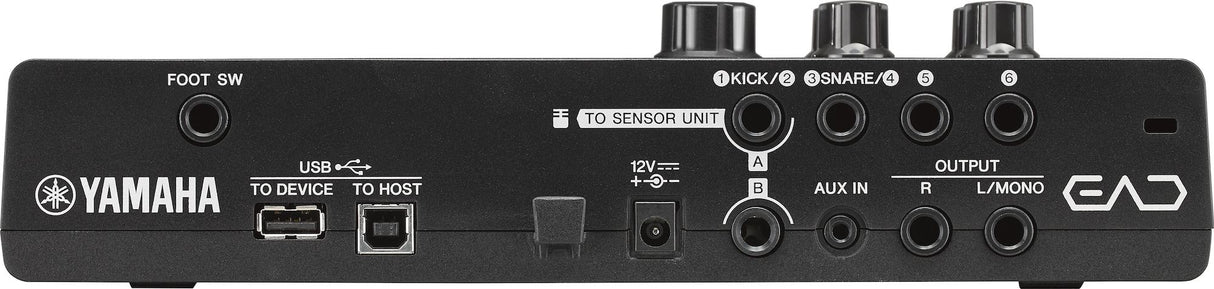

• Inputs in trigger module: 2 x 1/4" (sensor/kick), 1 x 1/4" (vortex), 2 x 1/4" (trigger 5,6)

• Analog inputs: 1 x 1/8" aux in

• Analog outputs: 2 x 1/4" main out, 1 x 1/4" headphone

• USB: 1 x Type B, 1 x Type A

• 1 x 1/4" input for footswitch

• Recording time: 1 minute and 30 seconds (internal memory), 30 minutes (USB memory)

• File format WAV (16-bit/44.1kHz)

• 12V DC power supply included

• Click-track: 30-300 BPM, tap tempo function

• Dimensions (module): 260 x 63 x 128 mm

• Dimensions (sensor): 76 x 88 x 78 mm

• Weight: 654g (module), 464g (sensor)
