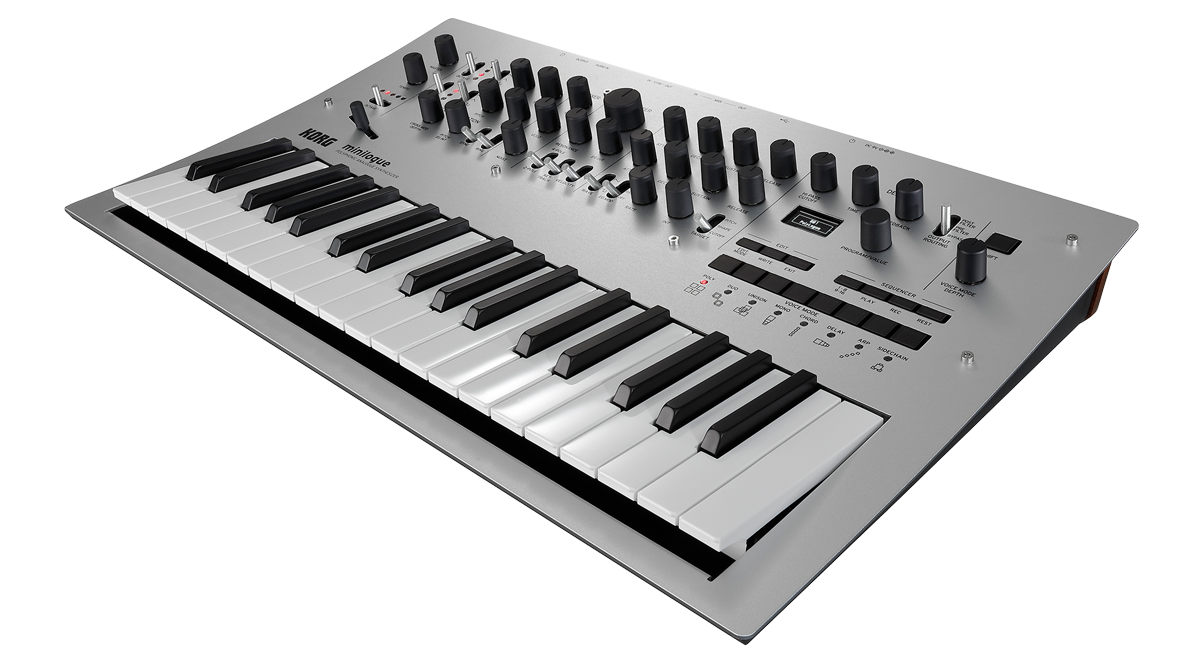

Korg Minilogue Analog Synthesizer
-
Polyphonic 100% analog synthesizer
-
37 velocity-sensitive slimkey keys
-
Built-in digital delay
-
Incredibly powerful synthesizer for the price
-
Power supply included
Korg Minilog
-
Korg Minilogue is a powerful analog synthesizer with 4-voice polyphony and 37 velocity-sensitive keys
-
It is programmable with 200 memory locations (comes with 100 presets).
-
Korg Minilogue has a 16-step polyphonic sequencer, oscilloscope function with visual display of waveforms.
-

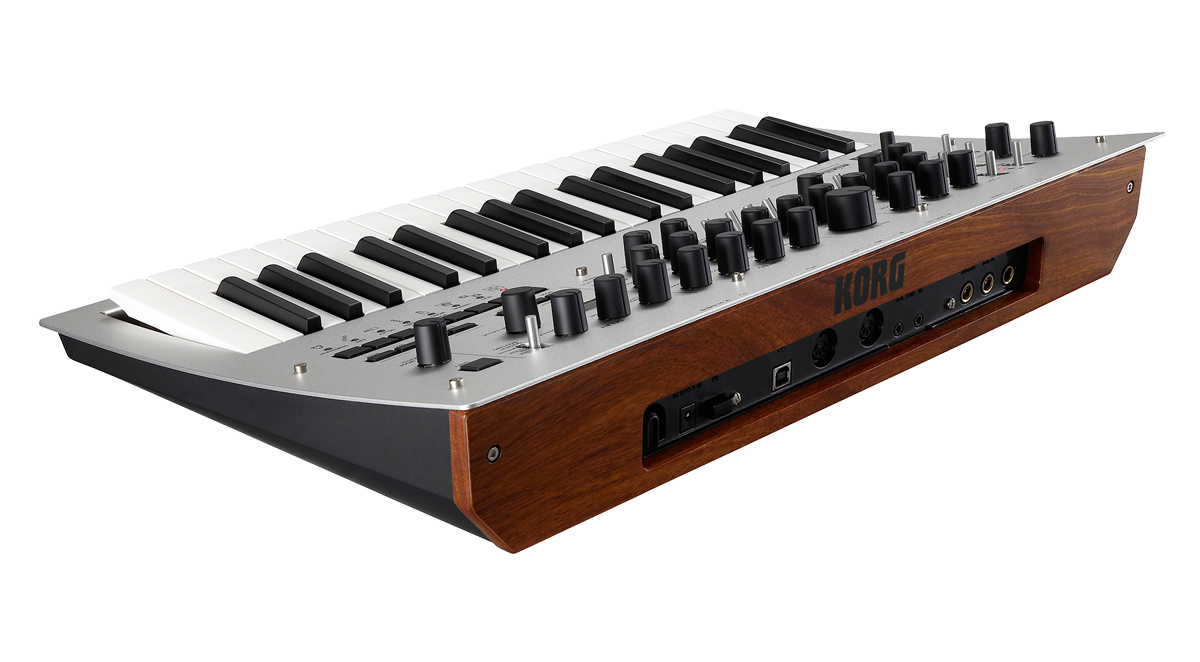

The synthesizer is robust and elegant with aluminium top panel, rubber coated knobs and wooden back.
-
With full MIDI, USB MIDI and Audio Sync for all types of live and studio interfacing, including direct sync with Korg SQ1, volca, electribe and more.
-
Voice Mode for configuration of the 4 voices: POLY - works as 4-voice polyphonic synthesizer, DUO - unison 2-voice synthesizer, UNISON - unison all-mono synthesizer, MONO - mono synth with sub-oscillator, CHORD - produces chords, DELAY - voices 2-4 are played consecutively after voice 1, ARP - arpeggiator, SIDE CHAIN - when a note is played, the volume of the previous note is lowered.
- Keyboard: 37-keys (Slim-key, velocity sensitive)
- Sound Generation: Analog synthesis
- Maximum Polyphony: 4 voices
- Program: 200 programs (100 Presets / 100 Users) Each program includes voice mode and sequence data settings. Up to eight favorite programs can be registered
- Voice Modes: 8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain). VOICE MODE DEPTH can vary different parameters in each mode
- Main Synthesis Parameters: VCO1: Octave, Wave (Saw, Triangle, Square), Pitch, Shape. VCO2: Octave, Wave (Saw, Triangle, Square), Pitch, Shape. VCO2 MODULATION: Cross Mod Depth, Pitch EG Int, Sync, Ring. MIXER: VCO1, VCO2, Noise. FILTER: Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity. AMP EG: Attack, Decay, Sustain, Release. EG: Attack, Decay, Sustain, Release. LFO: Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff). DELAY: Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
- Sequencer: 16-step polyphonic sequencer, Motion sequence can be used on up to four parameters

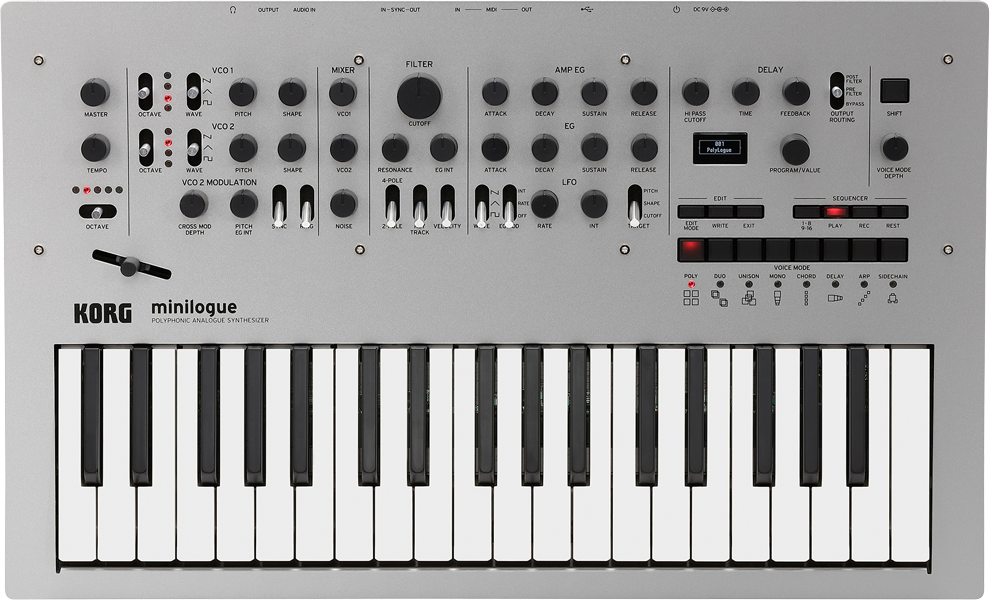

- Controls: 41 dedicated panel controls deliver immediate parameter access, A slider can control different parameters for each program
- Display: Real-time OLED oscilloscope provides visual feedback of parameter changes

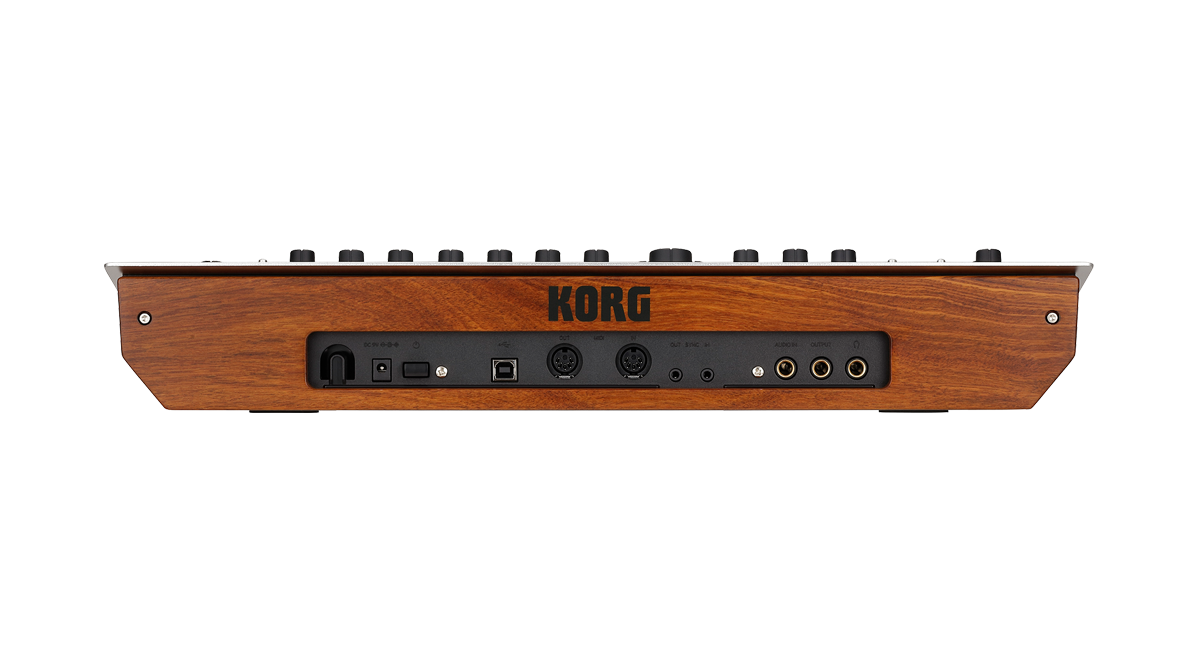

- Connectors: Headphones (6.3mm stereo phone jack) Output (6.3mm monaural phone jack) Audio In (6.3mm monaural phone jack) Sync In (3.5mm monaural mini jack) Sync Out (3.5mm monaural mini jack) MIDI In, MIDI Out, USB Type B
- Power Supply: AC adapter (DC9V) KA350
- Power Consumption: 8W
- Dimensions (W x D x H): 500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
- Weight: 2.8 kg / 6.17 lbs.
- Included Items: AC adapter
