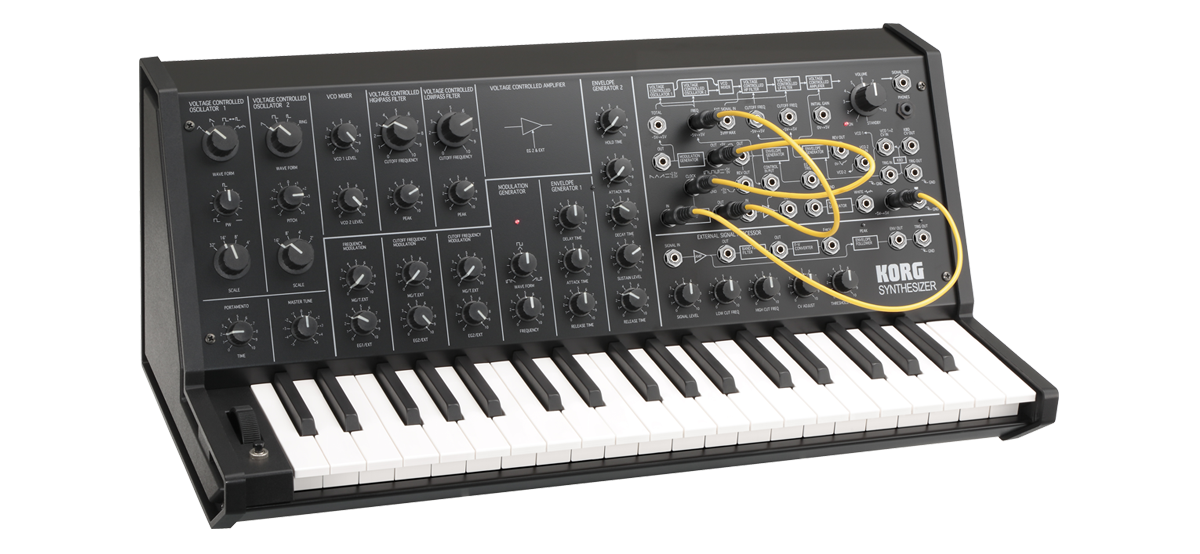

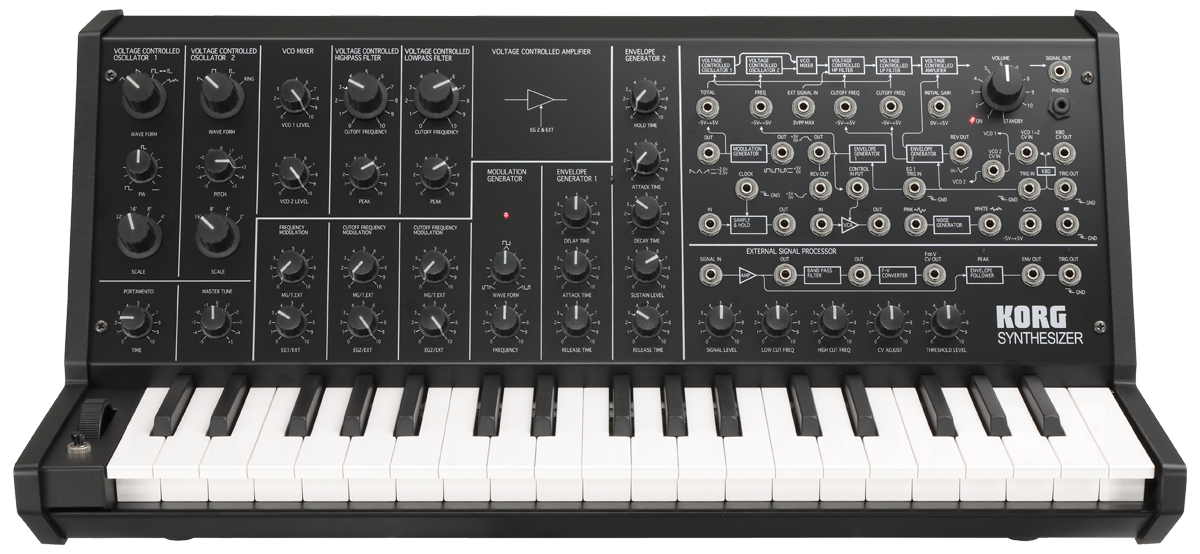

Korg MS-20 Mini
- Modern version of the classic and legendary MS-20
- Monophonic Analog Synthesizer with modern functionality
- patchable semi-modular
- 2 x VCO, Noise generator, 2 x LFO, ADSR
Modern edition of the classic and legendary MS-20 first released 1978. A powerful semi-modular monophonic Analog Synthesizer with modern functionality.
Specifikationer
Keyboard
C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
Voltage Controlled Oscillator 1 (VCO 1)
Scale (32', 16', 8', 4') (6 octaves, +cent, -cent)
Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes)
Pulse width adjust 1:1 - 1:infinity
Voltage Controlled Oscillator 2 (VCO 2)
Scale (16', 8', 4', 2') (6 octaves, +cent, -cent)
Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes)
Pitch (± 1 octave)
VCO Master control
Master tune (± 100cent)
Portamento (max. 10sec)
FFrequency modulation intensity by MG/T.EXT (-5V - +5V)
Frequency modulation intensity by EG1/EXT (-5V - 0V)
VCO Mixer
Voltage Controlled High Pass Filter (VCF HPF)
Cutoff frequency (50Hz - 15,000Hz)
Peak (flat - self OSC)
Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V)
Voltage Controlled Low Pass Filter (VCF LPF)
Cutoff frequency (50Hz - 15,000Hz)
Peak (flat - self OSC)
Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V)
Envelope Generator 1
Delay time (10sec)
Attack time (10sec)
Release time (10sec)
Envelope Generator 2
Hold time (20sec)
Attack time (10sec)
Decay time (10sec)
Sustain level (0V - 5V)
Release time (10sec)
Modulation Generator (LFO)
Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse)
Frequency (0.1Hz ～ 20Hz)
Manual controller
Cntrol wheel (center click)
Momentary switch -->GND
Control section
Input signal level
Low cut frequency (50Hz - 2,500Hz)
High cut frequency (100Hz - 5,000Hz)
CV adjust
Threshold level

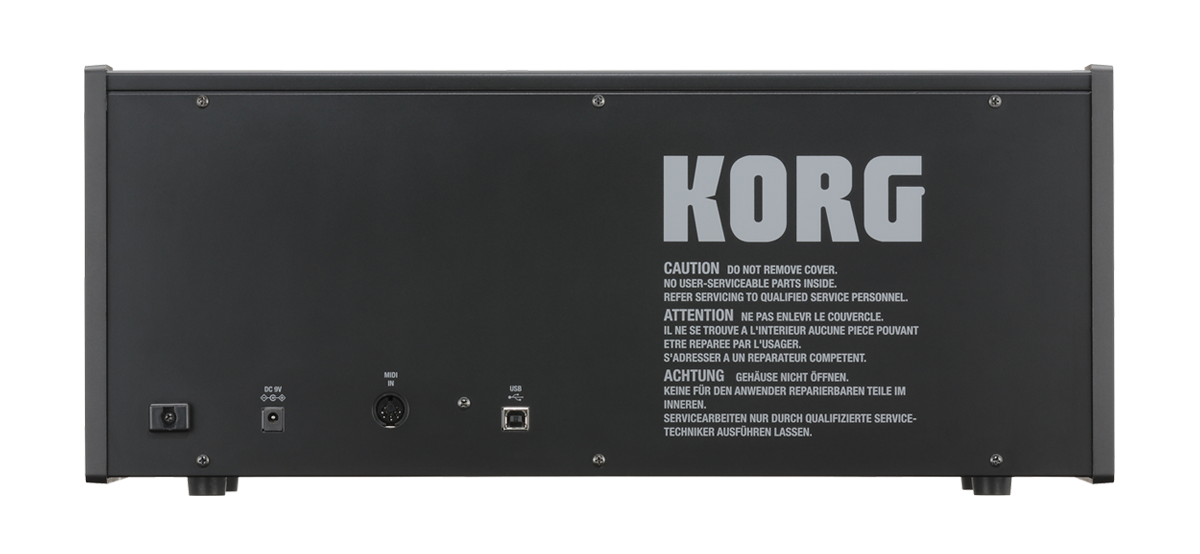

Input and Output
Signal In
Amplifier Out
Band pass filter Out
CV Out (0 - +8.4V)
ENV Out (0 - +5V)
Trig Out (+5V-->GND)
Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω)
Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW)
Type B, USB-MIDI Input/Output *Only note messages (velocity is not used) can be transmitted and received.
MIDI In, Only note messages (velocity is not used) can be transmitted and received.
Power Supply
DC9V
Dimensions
(W x D x H)
493 ×257 × 208 mm / 19.41 x 10.12 x 8.19 inches
Weight
4.8 kg / 10.58 lbs.
Accessories
AC adaptor (9V/1.7A), Patch Cord x 10
