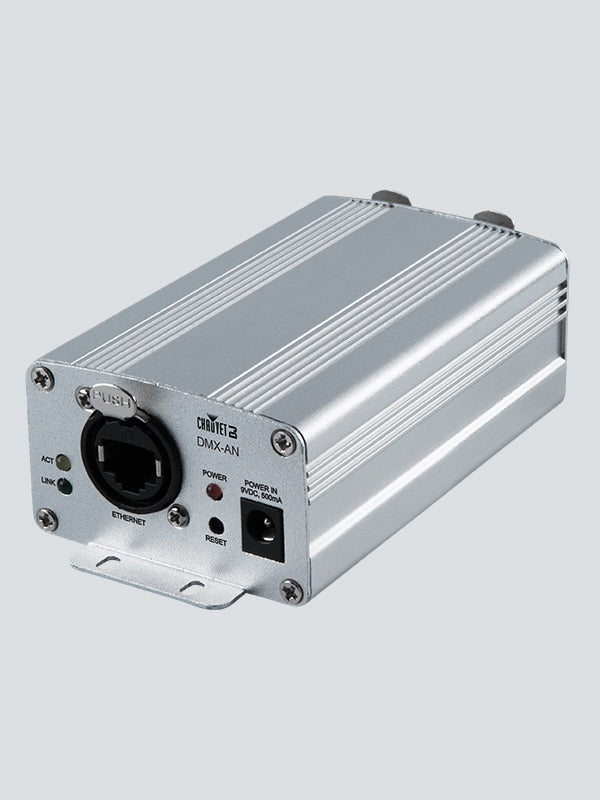

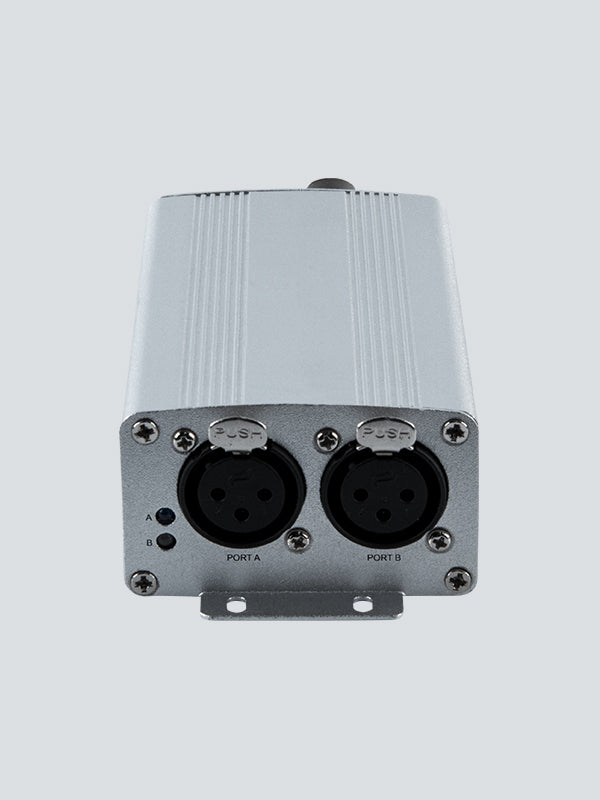

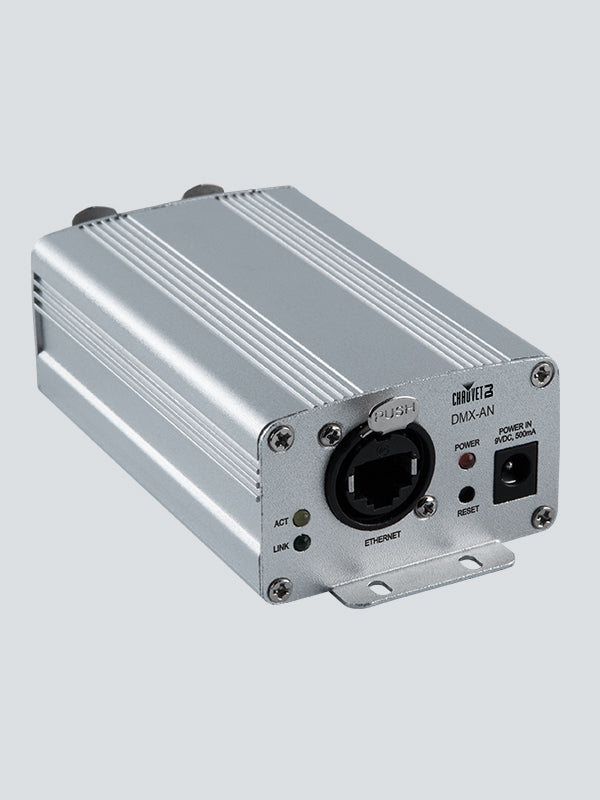

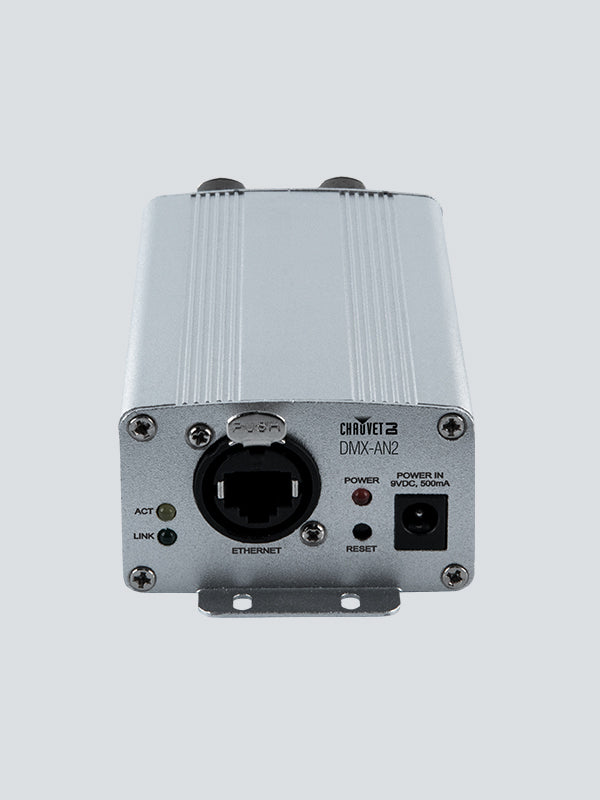

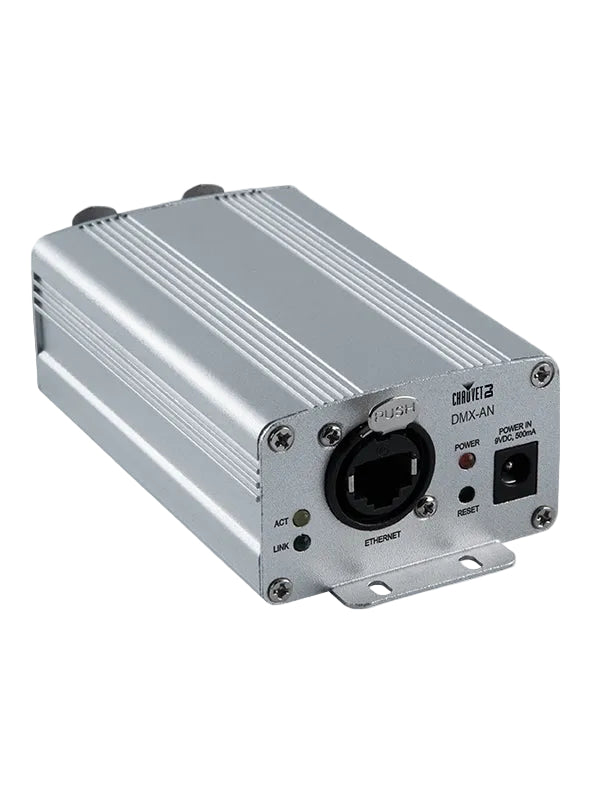

Chauvet DMX-AN2
Converts ethernet to DMX
Supports Art-Net and sACN
2 DMX universes via one network connection
Neutrik etherCON network connector
Web-based setup
Supports PoE or external power
LED status indicators
The DMX-AN2 Interface from Chauvet is an Art-Net/sACN node that converts one ethernet connection to two DMX universes.
The device has a built-in web-based interface, allowing setup via browser without subnet configuration. If the IP address changes, the connection is automatically forwarded.
The DMX-AN2 can be powered via Power over Ethernet (PoE) or external power supply. Front-mounted LED indicators show the device status.
Specifications
- Art-Net / sACN node
- Ethernet to DMX interface
- 2 DMX universes
- Neutrik etherCON
- Web-based GUI
- Automatic forwarding upon IP change
- PoE support
- External power supply supported
- LED status indicators
- DMX Channels: 1024
- DMX Connectors: 3- pin XLR
- Input Voltage: (DC): 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
(POE): 48V 0.4 A - Weight: 0.4 lb (0.2 kg)
- Size: 4.7 x 2.5 x 1.5 in (120 x 64 x 39 mm)
- Approvals: CE
- Control Protocol: Art-Net, DMX, sACN
- Art-Net Version: 3
