Yamaha DZR15 Aktiv PA Højttaler
€12.671,12
Unit price
/
Not available
Description
Description
- Højtspillende 2-vejs højtaler til dem der ikke går på kompromis med lyden
- 139dB SPL og 96kHz DSP
Yamaha DZR15

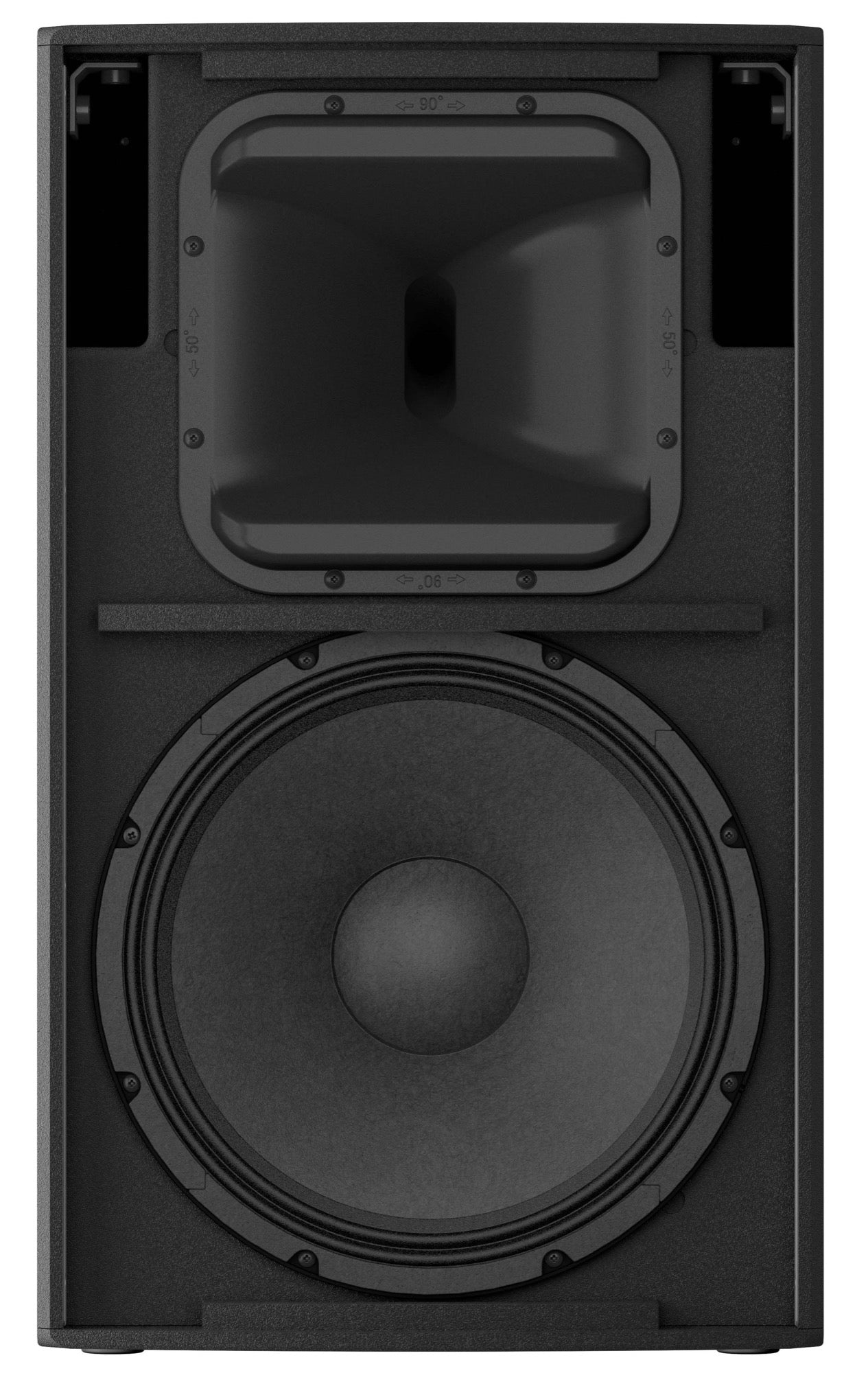

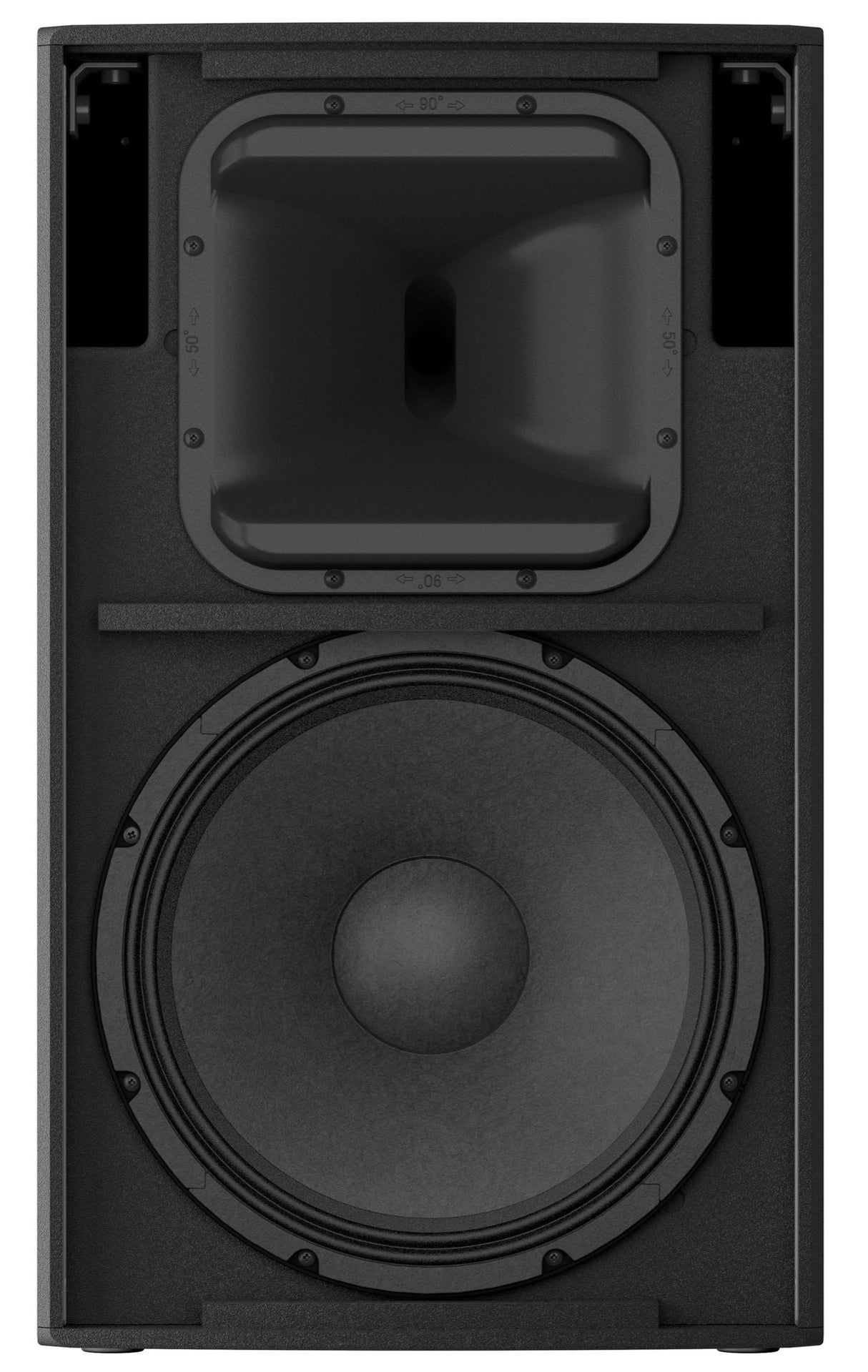

- 2-vejs PA højtaler: 2" HF og 15" LF højtalere.
- Krystalklar lyd med en maksimal SPL på 139dB.
- Avanceret DSP processor med masser af effekter og presets.
- Frekvensområde mellem 34Hz-20kHz rammer hele frekvensområdet.
- FIR-X tuning.
- Letvægtsdesign af krydsfiner.
Specifications
Specifications
-
ColorBlack
-
Weight (kg)
More specifications
More specifications
| Speaker type |
| 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) |
| 34Hz - 20kHz |
| Coverage area |
| H90ﾟ x V50ﾟ(Rotatable) |
| Components | LF | 15" Cone, 3" Voice Coil, Neodymium magnet |
| MF | - | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover |
| 1.7kHz (FIR-X) |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters |
| 96kHz AD/DA |
| Maximum output level (1m; on axis) |
| 139dB SPL *1 |
| Power rating | Dynamic | 2000W (LF:1000W, MF/HF: 1000W) *2 |
| Continuous | 1300W (LF: 920W, MF/HF: 380W) | |

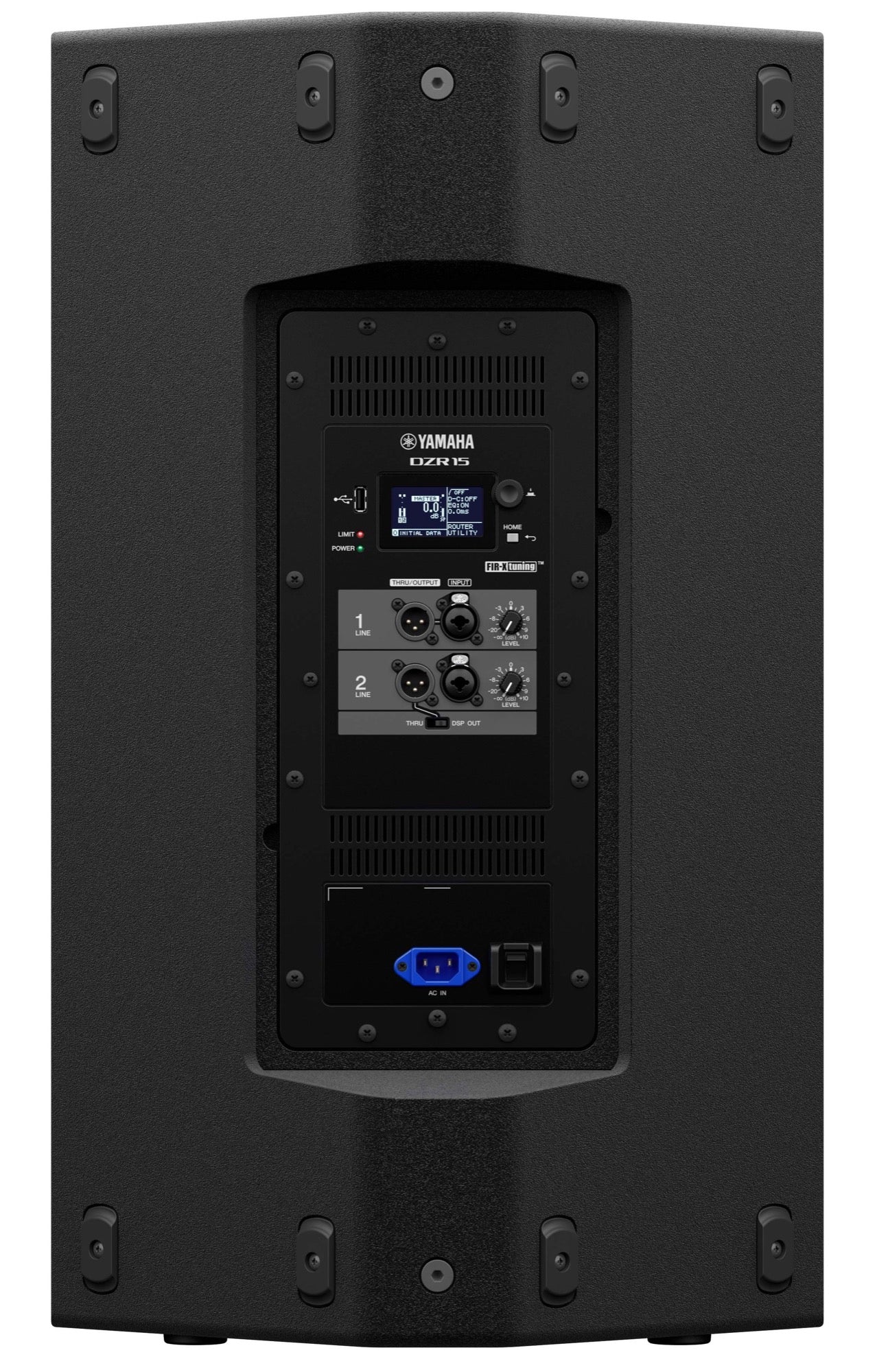

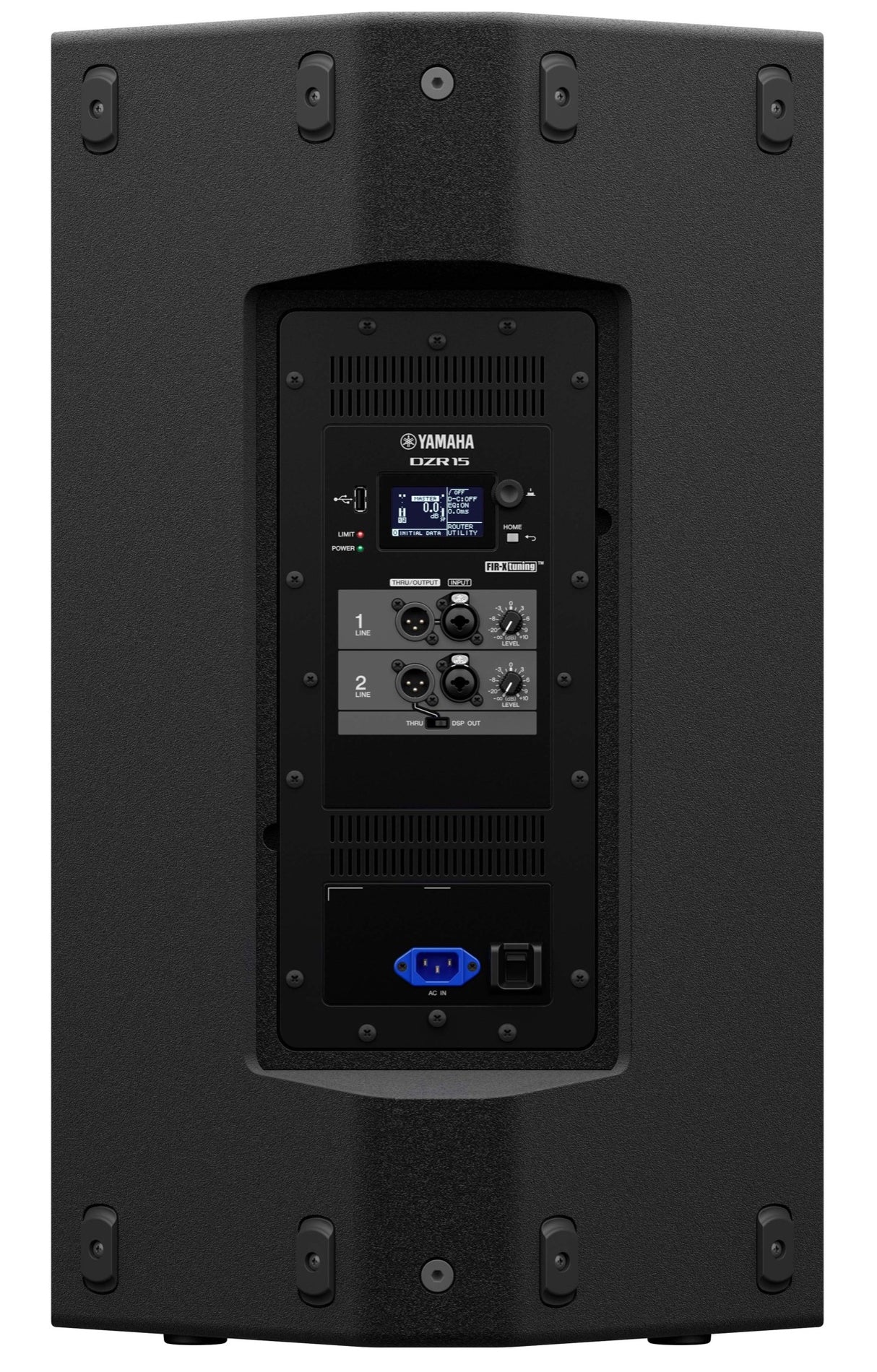

| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class |
| Class-D |
| Cooling |
| Fan cooling, Variable speeds |
| Power consumption |
|
