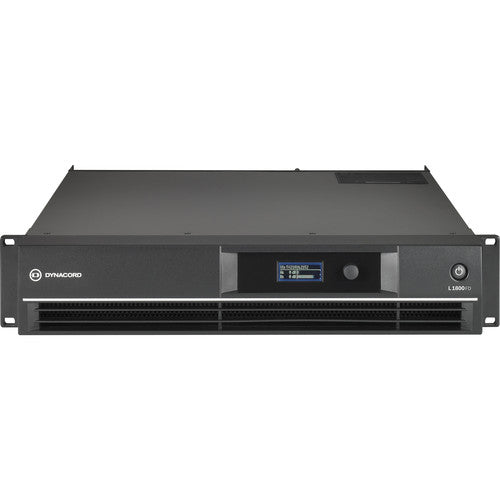

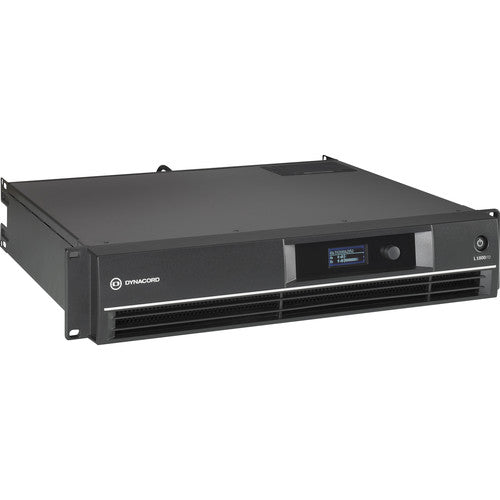

Dynacord L1800FD Amplifier With 2x950W And DSP
1
of
4
Loading...
€854,95
Unit price
/
Not available
Secure checkout
- 1800W DSP amplifier
- Compact and ideal for live/studio sound on the go
- True 2 Ohm stability
- FIR Driver Technology
- One-button DSP setting
Dynacord L1800FD Amplifier 2x650W and DSP
- Professional DSP amplifier ideal for live, studio and on the road.
- Huge 1800W power with great sound performance.
- Fully integrated Speaker rocessing with FIR driver technology.
- Consistent and stable performance even at 2 ohms.
- Easy and intuitive 'one-button' DSP setting.

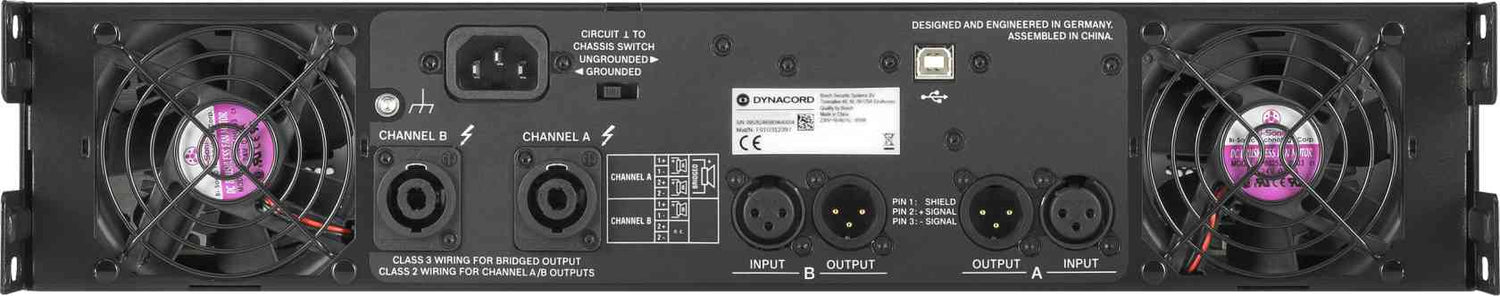

- With both balanced XLR in and out.
- Measures: 483 x 88 x 462.4 mm
- Weight: 15.2 kg
| Load Impedance | 2 Ω | 2.6 Ω | 4 Ω | 8 Ω |
| Maximum Output Power, Single Channel | 1600 W | 1300 W | 950 W | 480 W |
| Maximum Output Power, Dual Channel | 1400 W | 1200 W | 850 W | 450 W |
| Maximum Output Power, Bridged | — | — | 2800 W | 1700 W |
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 65.1 V | |||
| Voltage Gain Ref.1 kHz | 32.0 dB | |||
| THD at 600 W/4 Ω MBW = 80 kHz, 1 kHz | < 0.05% | |||
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
| DIM30, 3.15 kHz, 15 kHz | < 0.05% | |||
| Maximum Input Level | +21 dBu | |||
| Crosstalk ref. 1 kHz, at 100 W/4 Ω | < -80 dB | |||
| Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (±1 dB) | |||
| Input Impedance, Active Balanced | 20 k Ω | |||
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω | >105 dB | |||
| Output Noise, A-weighted | < -68 dBu | |||
| Output Stage Topology | Class AB | |||
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | |||
| Power Consumption 1/8 Maximum Output Power @ 4 Ω | 700 W | |||
| Mains Fuse | 240 V/230 V: T12AH; 120 V/100 V: T25AH | |||
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | |||
| Cooling | Front-to-rear, 3-stage-fans | |||
| Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
| Safety Class | I | |||
| Color | Black | |||
| Dimensions (W x H x D), mm | 483 x 88 x 462.4 | |||
| Weight | 15.2 kg (33.5 lb) | |||
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | |||
| Remote Control | SONICUE sound system software ** | |||
| Accessories | RMK15 (rear rack mount kit) | |||
If you have questions about this product before placing an order, please contact our staff – we get back to you as quickly as possible, and always within 24 hours on weekdays.
I have a question about this product
Matching accessories:

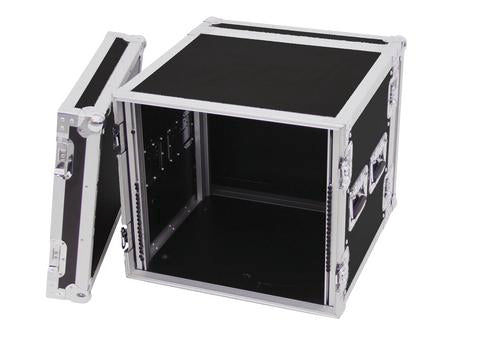

Roadinger Rack PR-2, 10U, 47cm deep
External warehouse – Estimated delivery in 10–14 business days.
€339,95

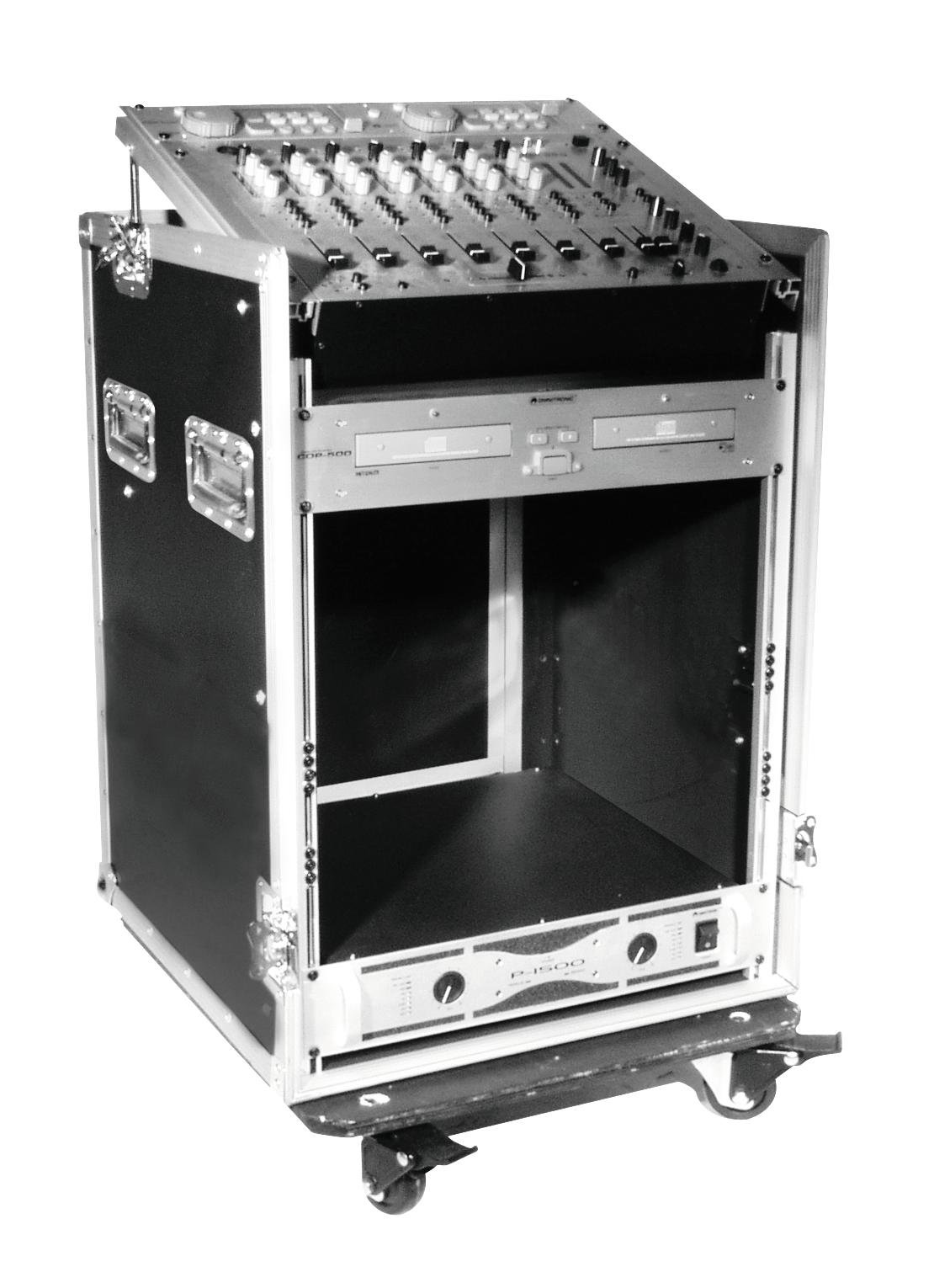

Roadinger Combi Rack with wheels
