Description
Description
- Professional rack unit for controlling speakers and sound sources.
- Listen to different sound sources on up to three sets of monitors.
- Hi-fi D/A converter.
- Highest quality components.

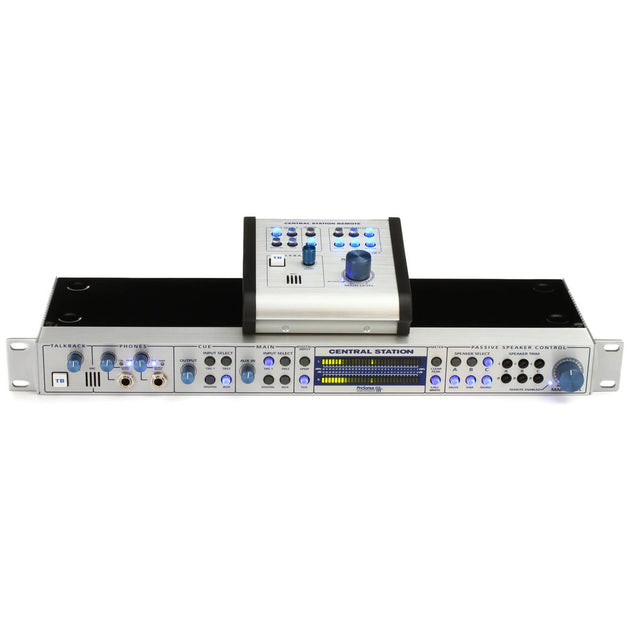

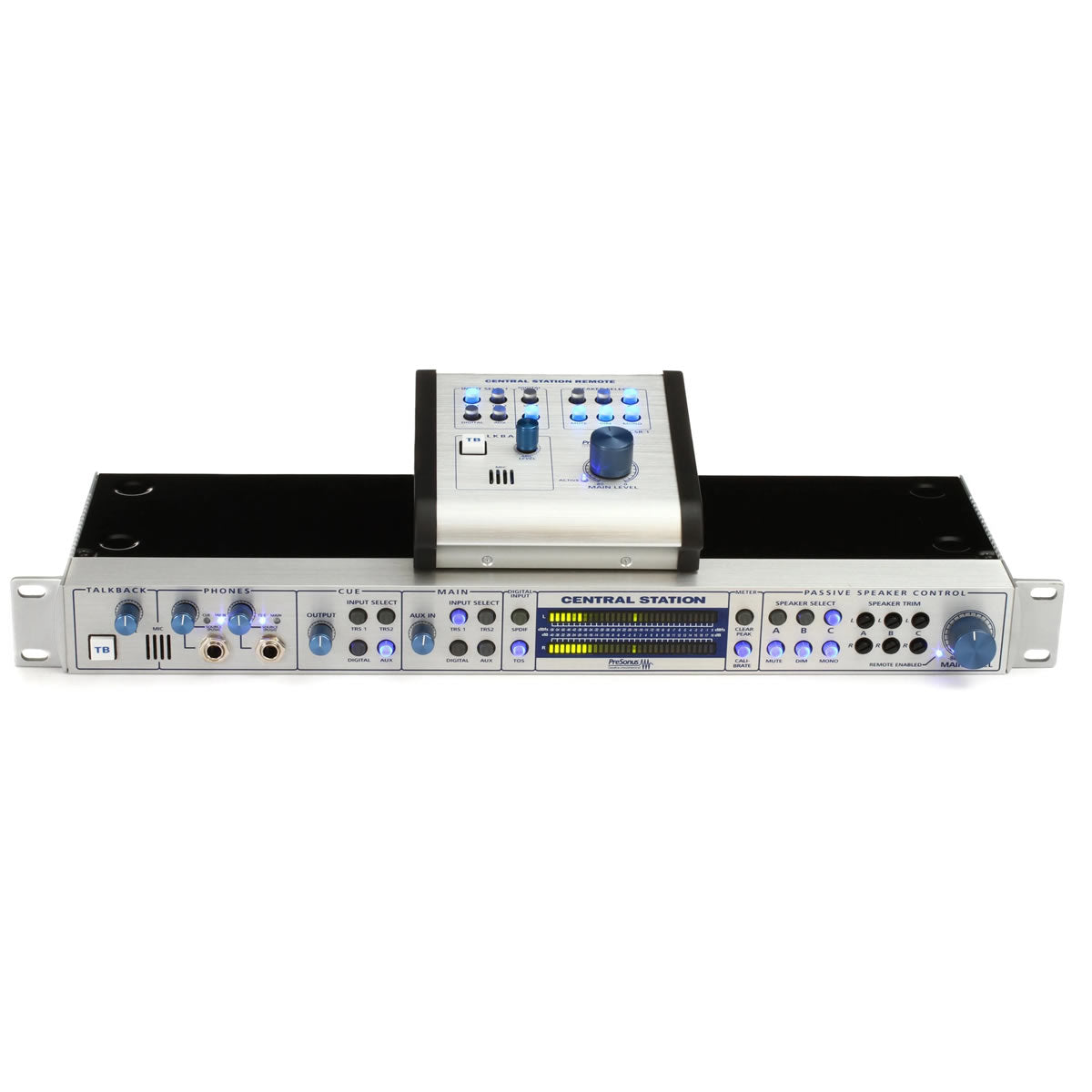

Presonus Central Station Plus
Choose Central Station as your monitor controller and you will be able to easily switch between different stereo inputs, as well as analogue and digital inputs. Sound can be sent to three sets of monitors with individual volume control, so you can always switch between your speakers seamlessly. The digital input can convert up to 24-bit, 192 kHz digital signal to analogue sound of the highest Hi-fi quality. The unit automatically detects the current sampling rate. The Central Station also brings together a host of features to make it easy for you to keep your workflow organised and moving.

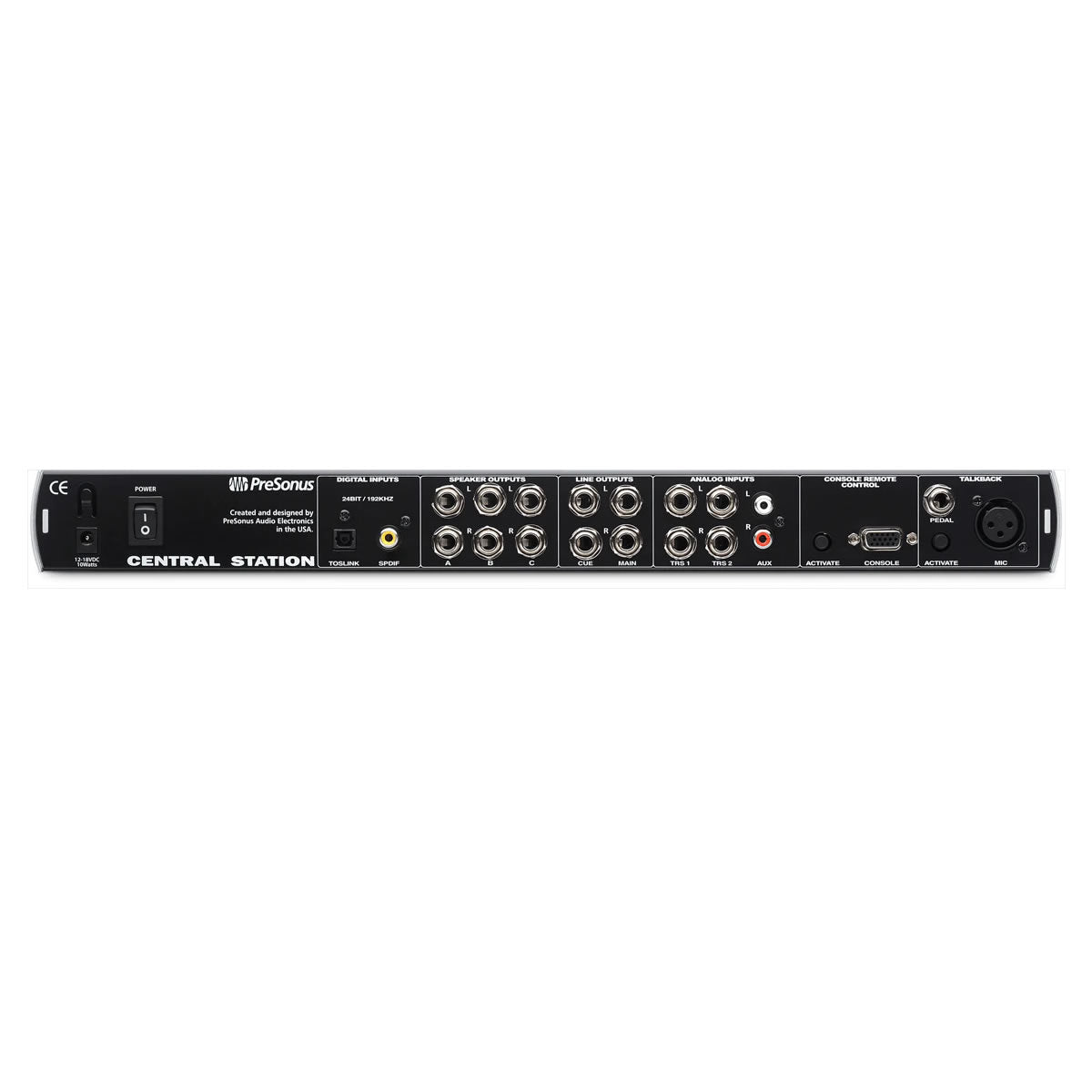

- Inputs for three different stereo sets, analogue inputs as well as a digital input.
- Easily switch between three sets of monitors with individual trim pots and use two pairs of headphones, each with its own volume.
- Digital/Audio converter that converts high-resolution audio up to 24-bit, 192 kHz with a dynamic range of more than 115 dB.

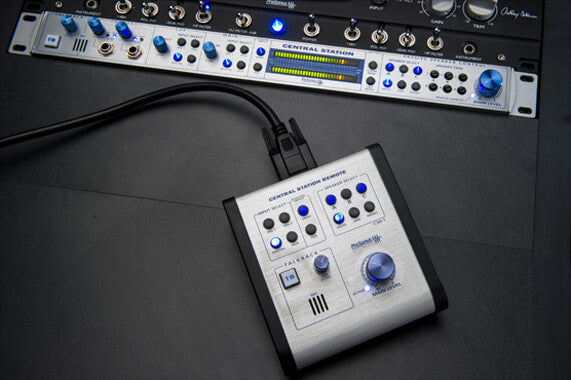

- Avoid cable clutter, with just one connection between the remote and the rack unit that has all the inputs and outputs at the back where the wires belong.
- Highest quality components that ensure clear sound and optimize dynamic and frequency response with minimal noise.
- Handy functions for mono-summing, Dim and Mute, let you listen on different monitors, while keeping the same levels.
Technical specifications
Technical specifications
Indgange | |
|---|---|
TRS 1 & 2 | |
| Type | ¼" TRS Passive-Balanced |
| Input Impedans | 2-5 kΩ (Speaker load and Trim level dependent) |
| S/N Ratio | > 140 dB |
| THD+N | < 0.0005% (1 kHz @ 0 dBu) |
| Frekvensrespons | > 1 MHz |
AUX | |
| Type | RCA Active-Unbalanced |
| Input Impedans | 8 kΩ |
| S/N Ratio | > 115 dB (1 kHz @ 0 dBu, Unity gain) |
| THD+N | < 0.002% (1 kHz @ 0 dBu, Unity gain) |
| Frekvensrespons | 10 Hz-50 kHz, -0.5 dB |
| Gain Range | -90 dB to +20 dB |
S/PDIF | |
| Types | RCA 75Ω coax and Toslink optical |
| Dynamic Range | 117 dB |
| THD+N | 0.0025% (1 kHz @ -1 dBfs) |
| Maks. output | +18 dBu (Active-Balanced) |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Dimensioner | |
|---|---|
Rack Unit | |
| Konstruktion | 1U steel chassis |
| Dimensioner | 19 (W) x 1.75 (H) x 6.25 (D) inches |
| Vægt | 5.0 lbs |
Strømforsyning | |
| Konstruktion | Molded Plastic |
| Dimensioner | 2.5 (W) X 2.3 (H) X 4.0 (D) inches |
| Vægt | 2.5 lbs |
Input Meters | |
|---|---|
| Type | Dual 30 segment LED w/ Peak Hold |
| Range | -48 dB to +18 dB (-66 dBfs to 0 dBfs) |
| Præcision | > 0.25 dB |
| Frequency Range | 10 Hz-22 kHz |
| Calibrate Range | ±18 dB |
Audio udgange | |
|---|---|
Højttalere | |
| Type | ¼" TRS Passive-Balanced |
| Type - med Mono aktiveret | ¼" TRS Active-Impedance Balanced |
| Trim volume range | -90 dB to 0 dB |
| Main volume range | -90 dB to 0 dB |
| Dim volume | -30 dB |
Main | |
| Type | ¼" TRS Active-Balanced |
| Output Impedans | 51Ω |
| THD+N | < 0.0025% |
| Frekvensrespons | 10 Hz-50 kHz, -0.5dB |
Cue | |
| Type | ¼" TRS Active-Impedance Balanced |
| Output Impedans | 51Ω |
| THD+N | Less than 0.003% (1 kHz @ 0 dBu) |
| Frekvensrespons | 10 Hz-50 kHz, -0.5 dB |
| Gain Range | -90 dB to 0 dB |
| Dim volume | -30 dB (Talkback aktiveret) |
Headphones | |
| Type | ¼" TRS Active Stereo |
| Maks. output | 150 mW/channel @ 60Ω load |
| THD+N | 0.015% (150 mW/channel @ 60Ω load) |
| Frekvensespons | 10 Hz-50 kHz, +1 dB |
Talkback | |
|---|---|
Dynamic Microphone Input | |
| Type | XLR Female Balanced |
| Input Impedans | 2,400Ω |
Internal Microphone | |
| Type | Electret Condenser |
| Følsomhed | -42 dB |
Mikrofon Preamps | |
| Gain Range | 15-55 dB |
Strømforsyning | |
|---|---|
| Type | External A.C. Transformer/Internal Linear |
| Power Consumption | 40 VA |

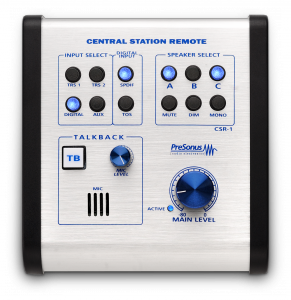

CSR-1 Control Station Remote | |
|---|---|
| Dimensioner | 5.25 (W) x 5.75 (H) x 2.38 (D) inches |
| Vægt | 1.25 lbs. |
| Kabel | 12-foot DB15M to DB15M (male-male) |
