Description
Description

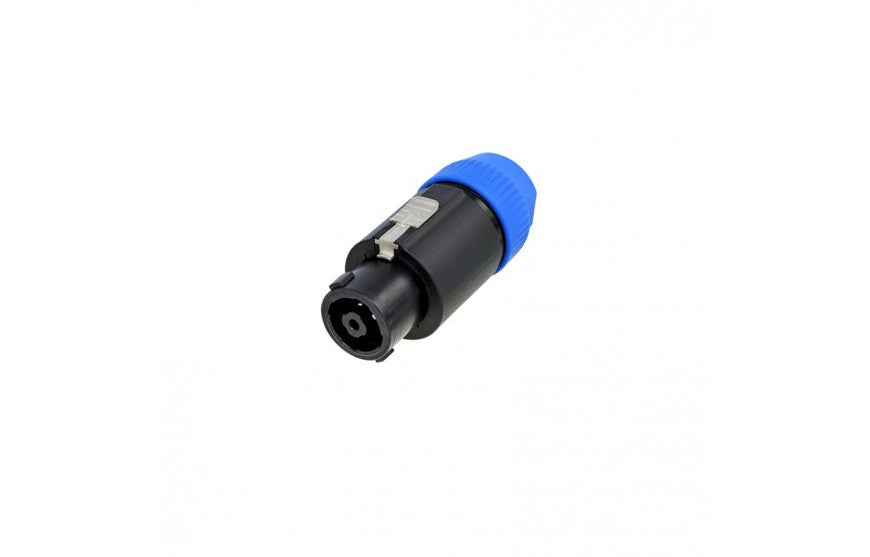

- 8-pin cable connector, locking mechanism, chuck-type strain relief for cables with a diameter of 8-20 mm, 30 A continuous per contact.
- The industry standard for speaker connections offers extremely reliable and robust cable connectors with a secure locking system.
- They feature solid contacts with screw terminals, including protection for multi-stranded wires, and also offer solder connections.
Technical specifications
Technical specifications
- Connection Type speakON
- Gender female
- Electrical
- Contact resistance ≤ 3 mΩ (after lifetime)
- Dielectric strength 4 kVdc (peak)
- Insulation resistance > 1 GΩ (after dampheat)
- Rated current per contact 30 A rms continuous
- Rated current per contact 40 A audiosignal, duty cycle 50 %
- Rated voltage 250 V ac
- Attention speakON is NOT to be used as an AC mains or power supply connector!
