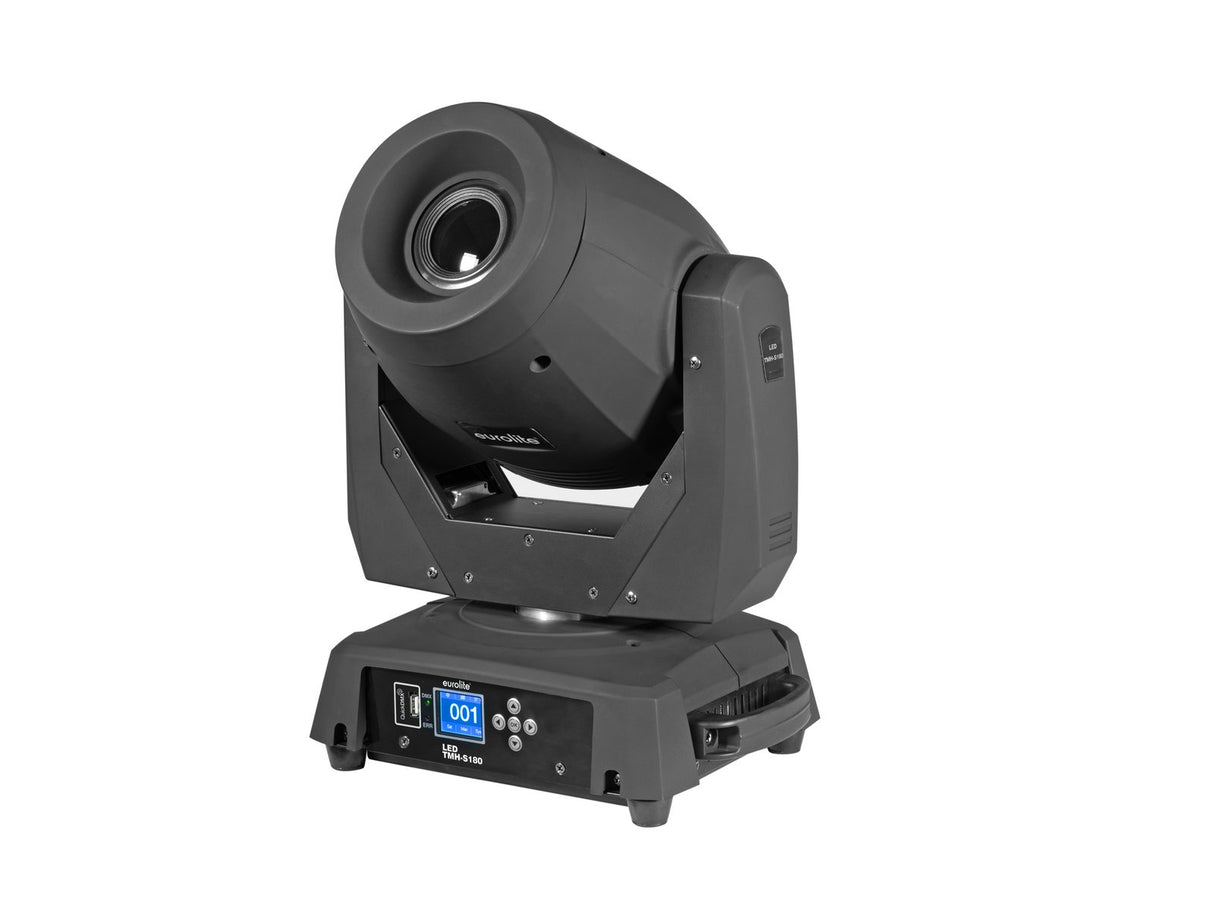

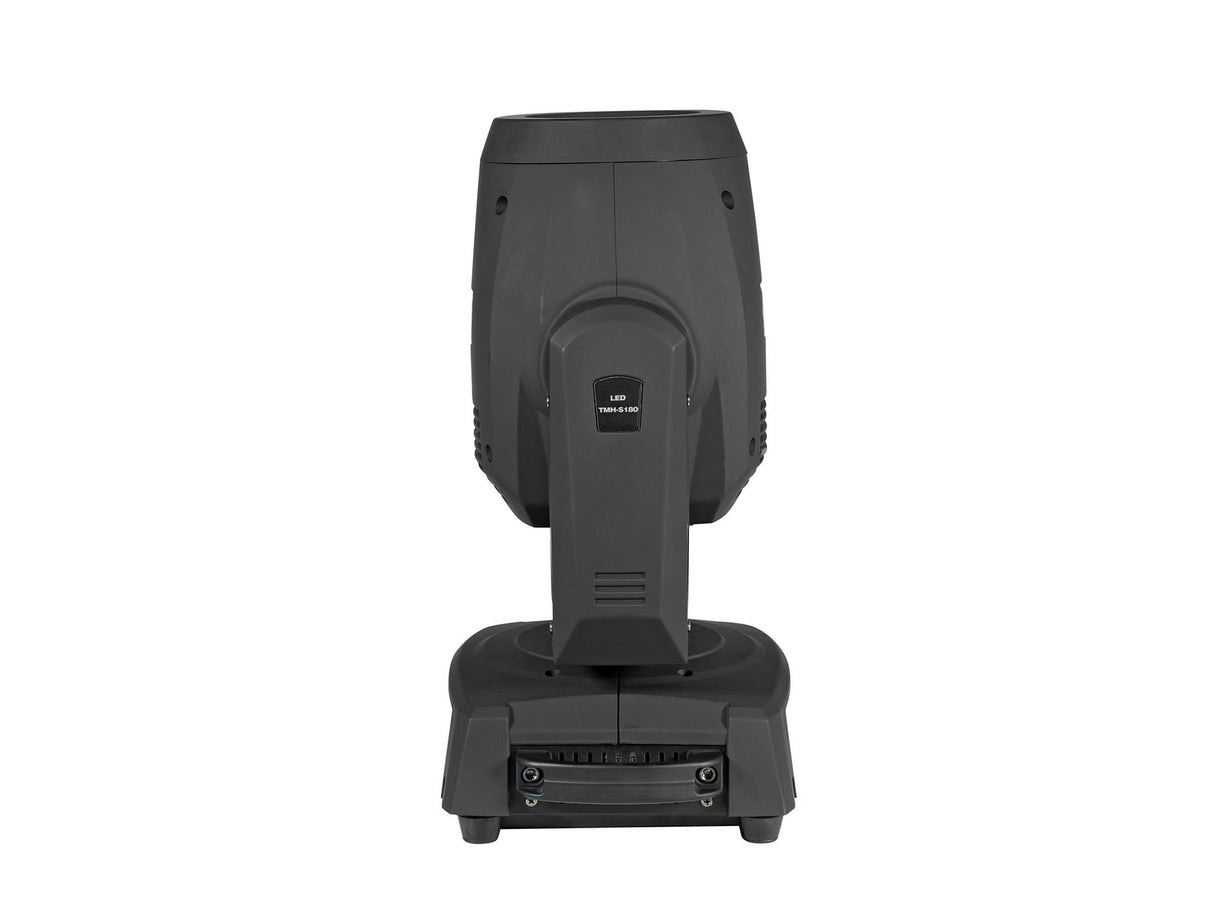

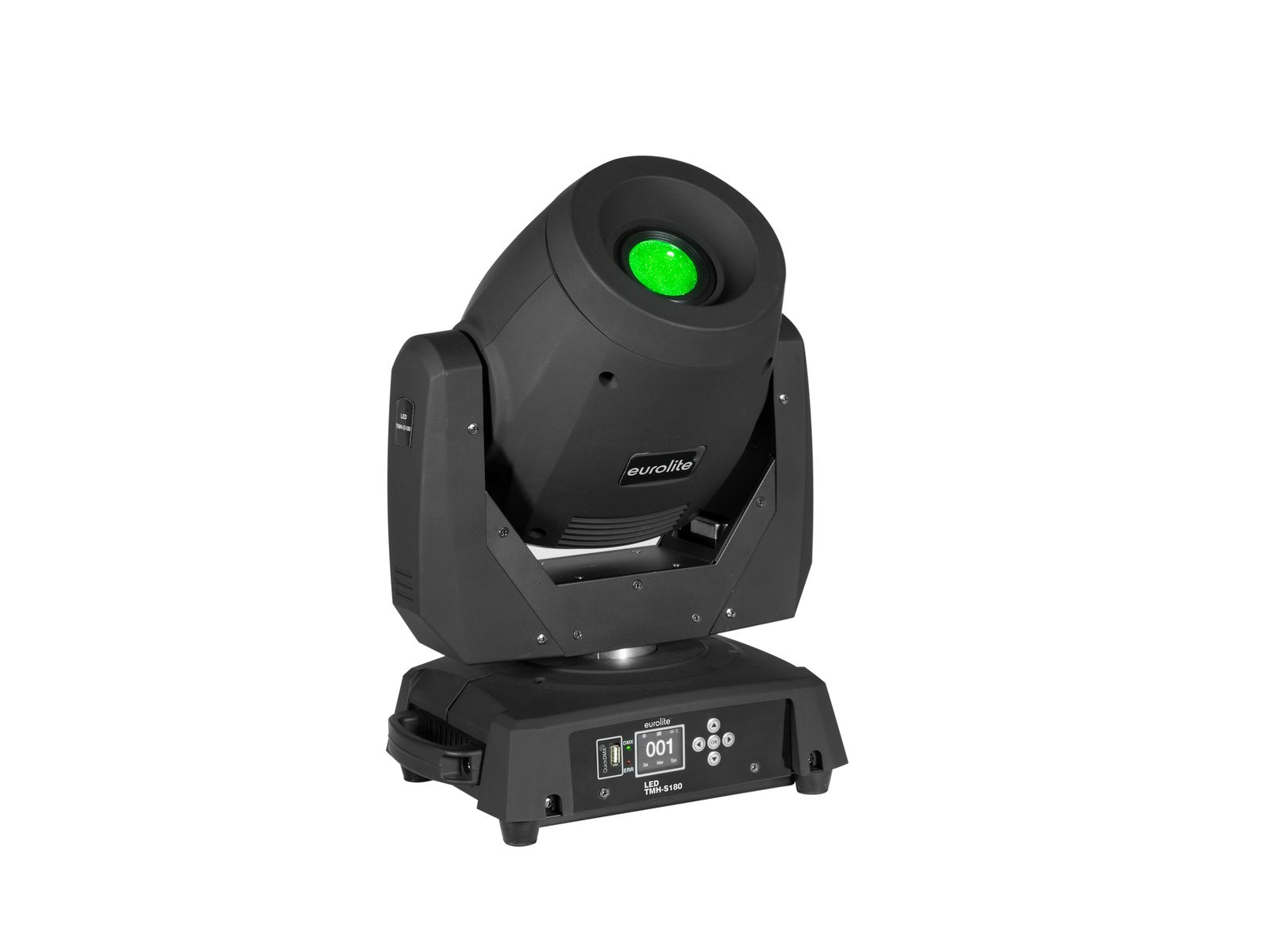

EUROLITE LED TMH-S180 Moving-Head Spot
1
of
12
Loading...
€917,95
Unit price
/
Not available
Secure checkout
- Equipped with a white 200 W COB LED
- Narrow beam angle of 10°
- Stand-alone, master/slave and DMX mode
- Internal programs
- Rotating 3-facet prism
- Exact positioning via 16 bit PAN/TILT movement resolution
- Strobe effect 0-18 Hz
- Random strobe effect
- Electronic dimmer (0-100%)
- Motorized focus
- Automatic position correction
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)

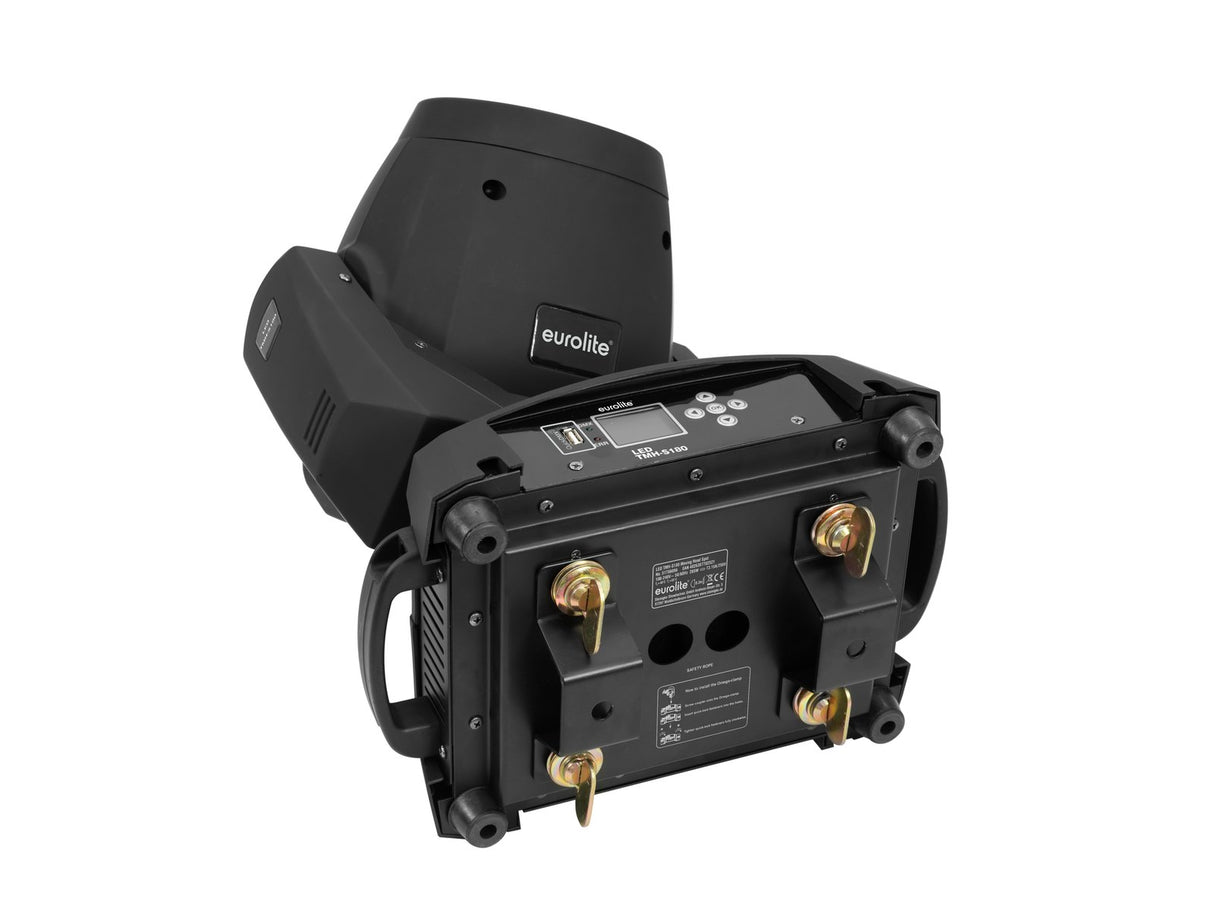

- Control panel with LC display for easy configuration
- Mains input and output for power linking up to 8 units
- LED: 1 x COB (chip-on-board) 200 W cold white (CW)
- Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 13; 15 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- Flicker-free projection
- Effect: Multi beam effect; gobo effect
Technical:
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 265 W
- IP classification: IP20
- Protection class: Protection class I

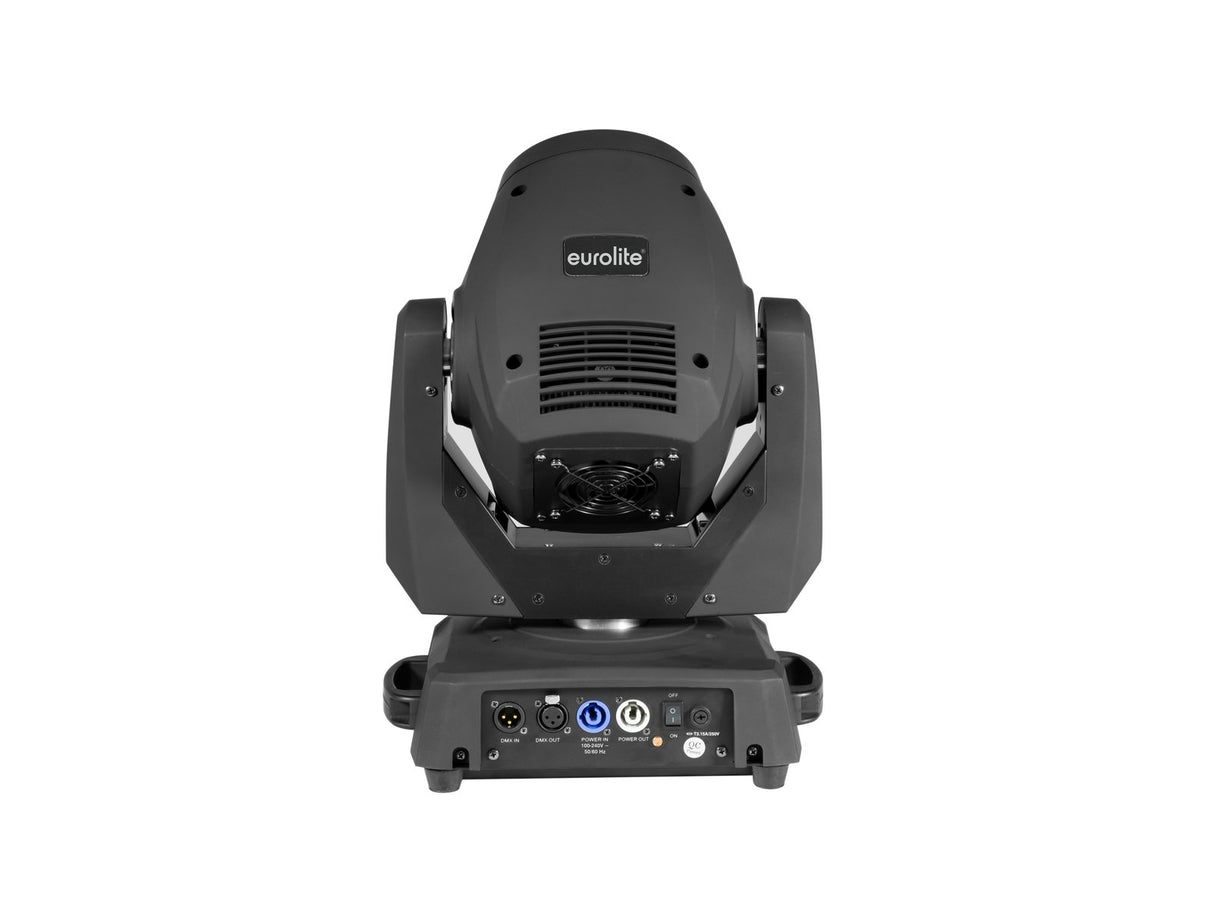

- Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
- Power output: P-Con (gray), mounting version
- Fuse: 5 x 20 mm, T 3,15 A Fuse replaceable
- Lamp type: LED lamp
- LED: 1 x 200 W COB (chip-on-board) cold white (CW)
- Max. TILT movement: 270° Exact positioning (16 bit resolution) Auto position correction (feedback)
- Max. PAN movement: 540° Exact positioning (16 bit resolution) Auto position correction (feedback)
- Flash rate: 0 - 18 Hz
- Equipment: Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
- Color generation: Color wheel with 8 dichroic filters plus open
- Half colors selectable, Rainbow effect with adjustable speedDMX channels: 13; 15
- DMX input: 3-pin XLR (M) mounting version
- DMX output: 3-pin XLR (F) mounting version
- Cooling: Cooling fan
- Control: Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
- Preprogrammed in: LED PC-Control 512; Light Captain
- Projection: Flicker-free
- Beam angle: 10°
- Beam angle (1/2 peak): 10°
- Illuminance in Lux (lx): Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
- Housing color: Black
- Display type: LCD display
- Noise classification: Class 3 (clearly perceptible sounds)
Gobos:
- Gobo wheel with rotating gobos, 7 gobos and open
- Outside diameter 23,5mm
- Image diameter 15mm
- Shake effect
- Gobos changeable
- Slot-in gobo system for easy gobo replacement
Dimensions:
- Width: 32,5 cm
- Depth: 27,0 cm
- Height: 45,5 cm
- Weight: 11,35 kg
Legal specifications
- Special product: Not designed for household room illumination
- Intended use: Show effect lighting
