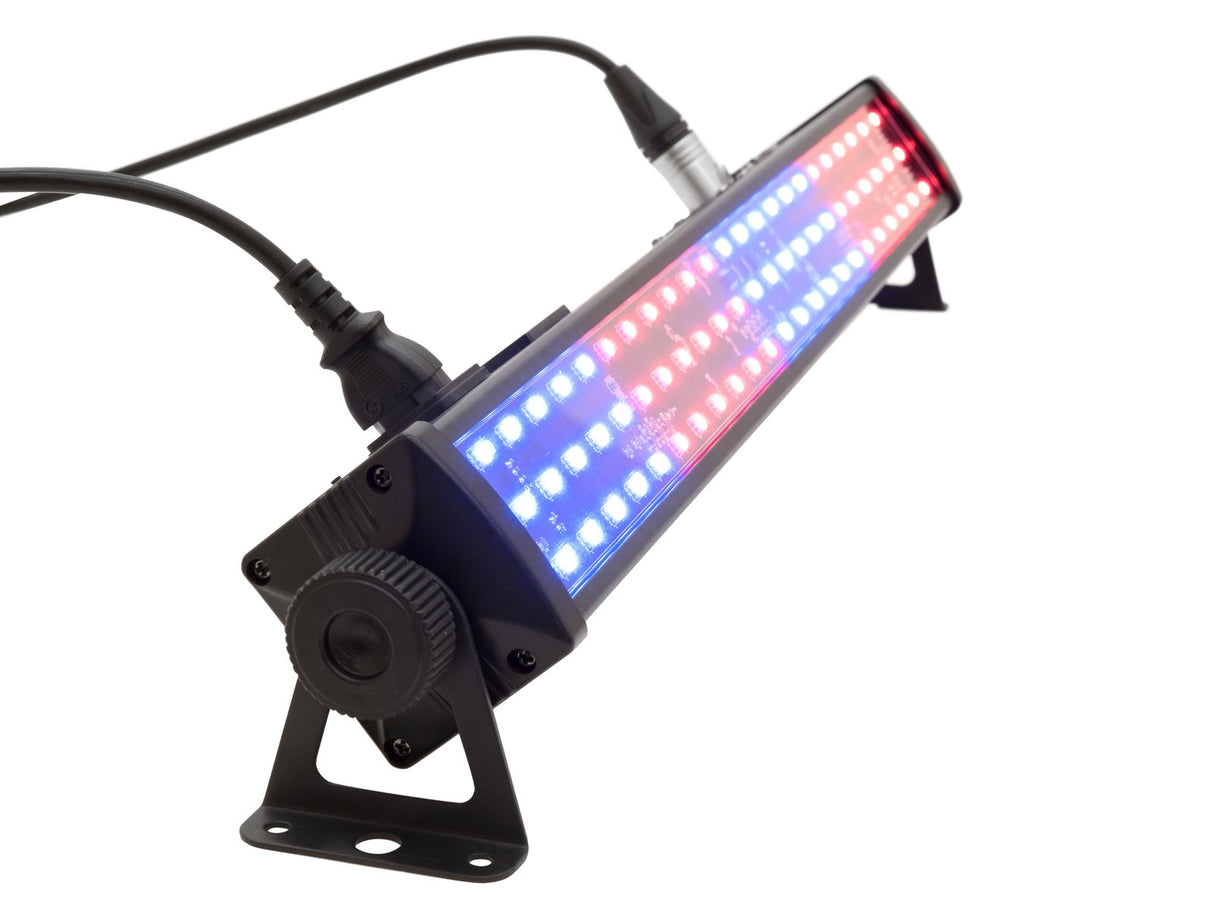

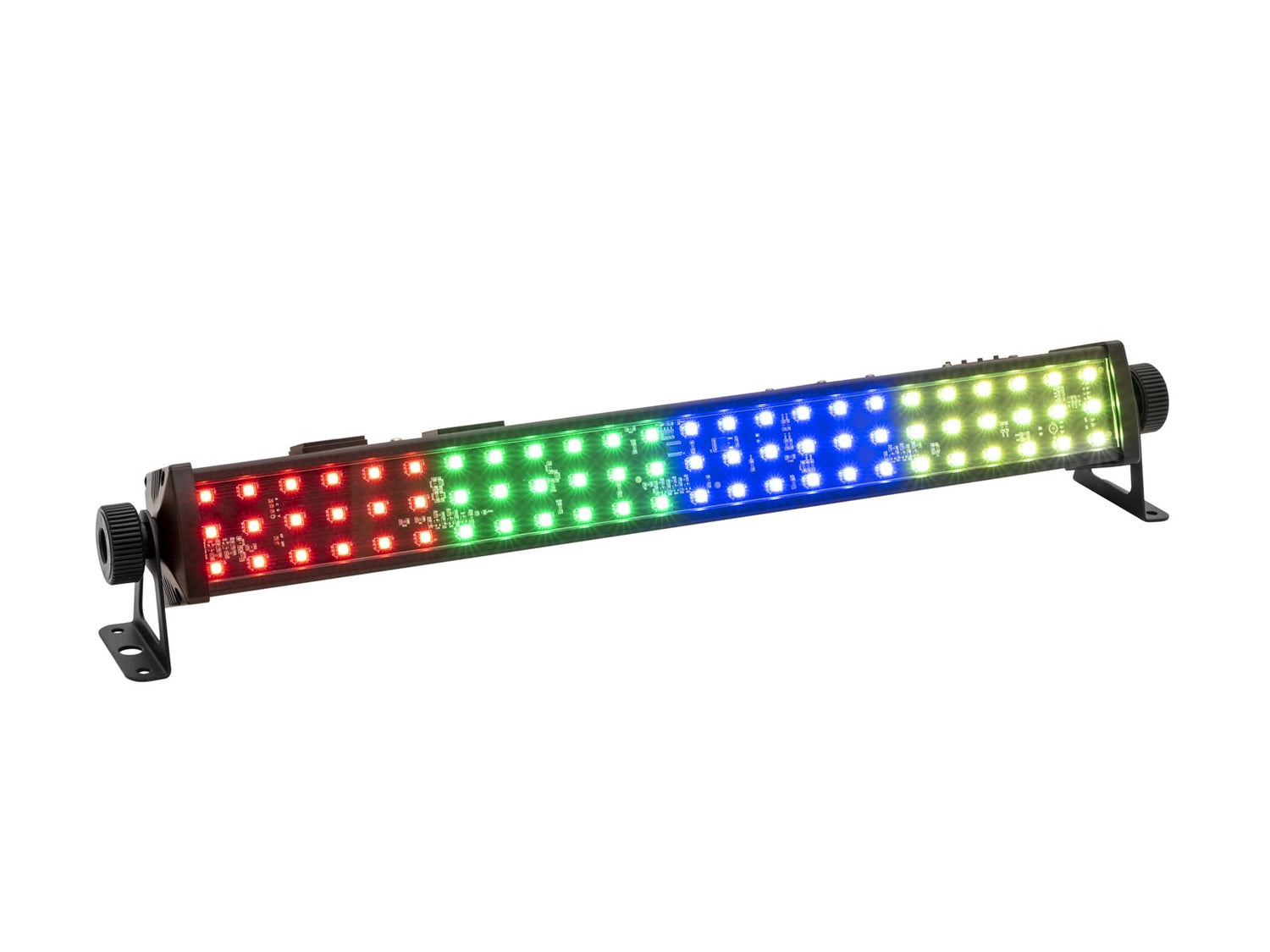

EUROLITE LED PIX-72 RGB Bar
1
of
10
Loading...
€76,95
Unit price
/
Not available
Secure checkout
- 4 individually controllable pixels (illumination units with 18 LED each)
- 72 RGB LEDs (SMD 5050)
- Stand-alone, master/slave and DMX mode

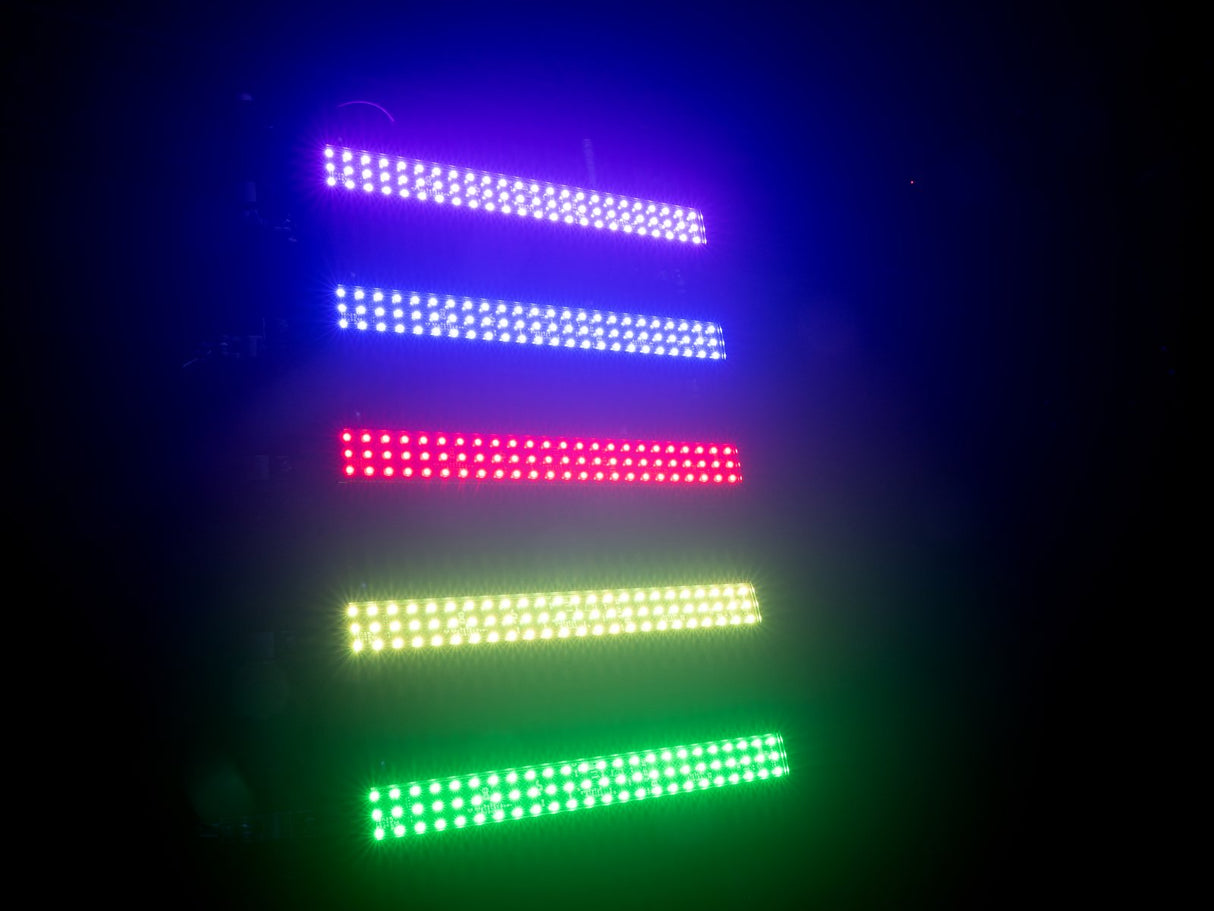

- Stepless color blend, color change, preset colors, dimmer and strobe effect

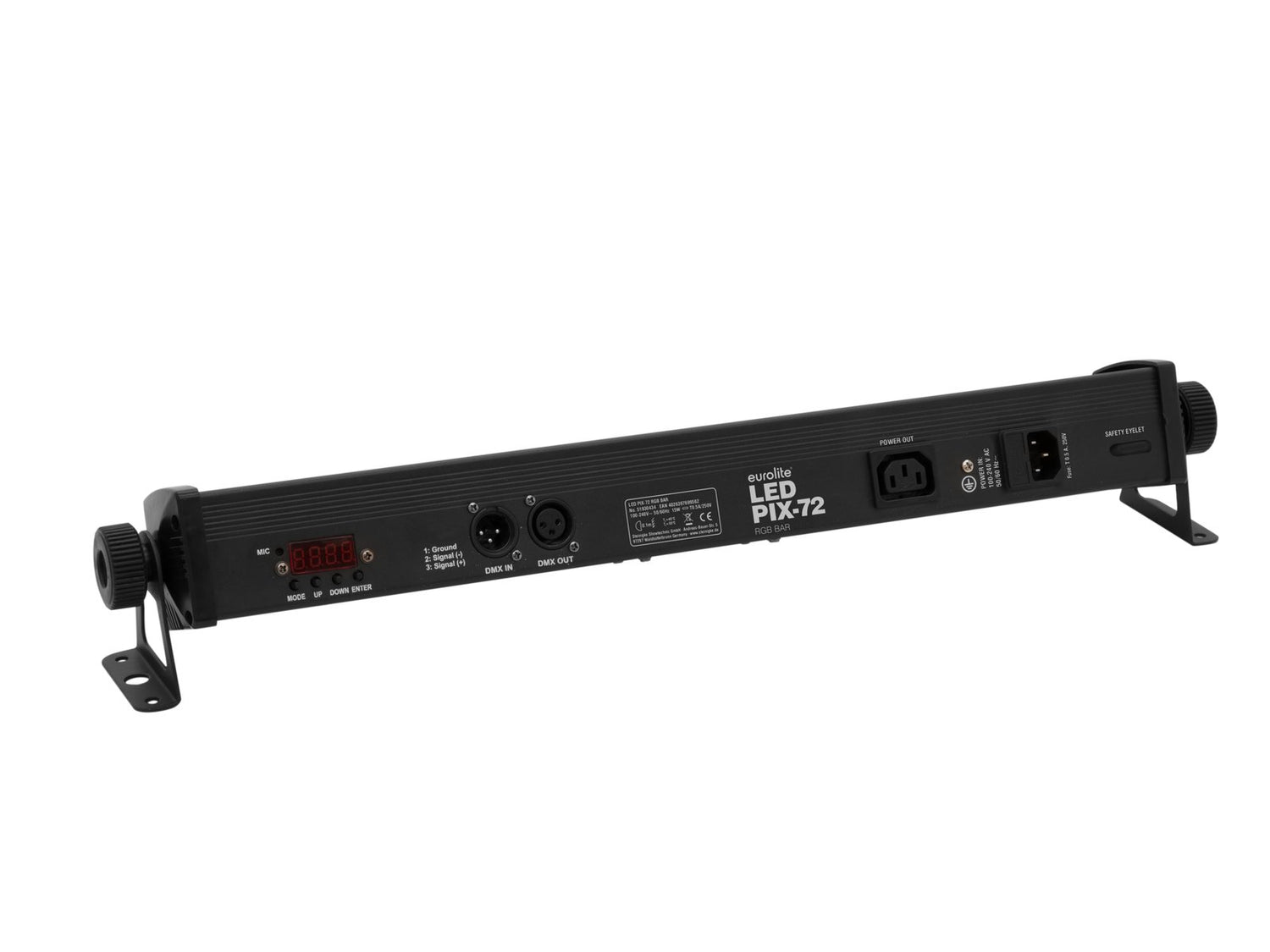

- Control panel with LED display for easy configuration
- 2 swivel mounting brackets
- Mains input and output for power linking up to 8 units
- LED: 72 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Can be operated in 3; 5; 6; 12; 12 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
- Preprogrammed in Light Captain
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IEC connector (F) mounting version |
| Fuse: | T 0,5 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 72 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 5; 6; 12; 12 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light Captain |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Length: 56,5 cm Depth: 7,0 cm Height: 9,0 cm |
| Weight: | 1,03 kg |
