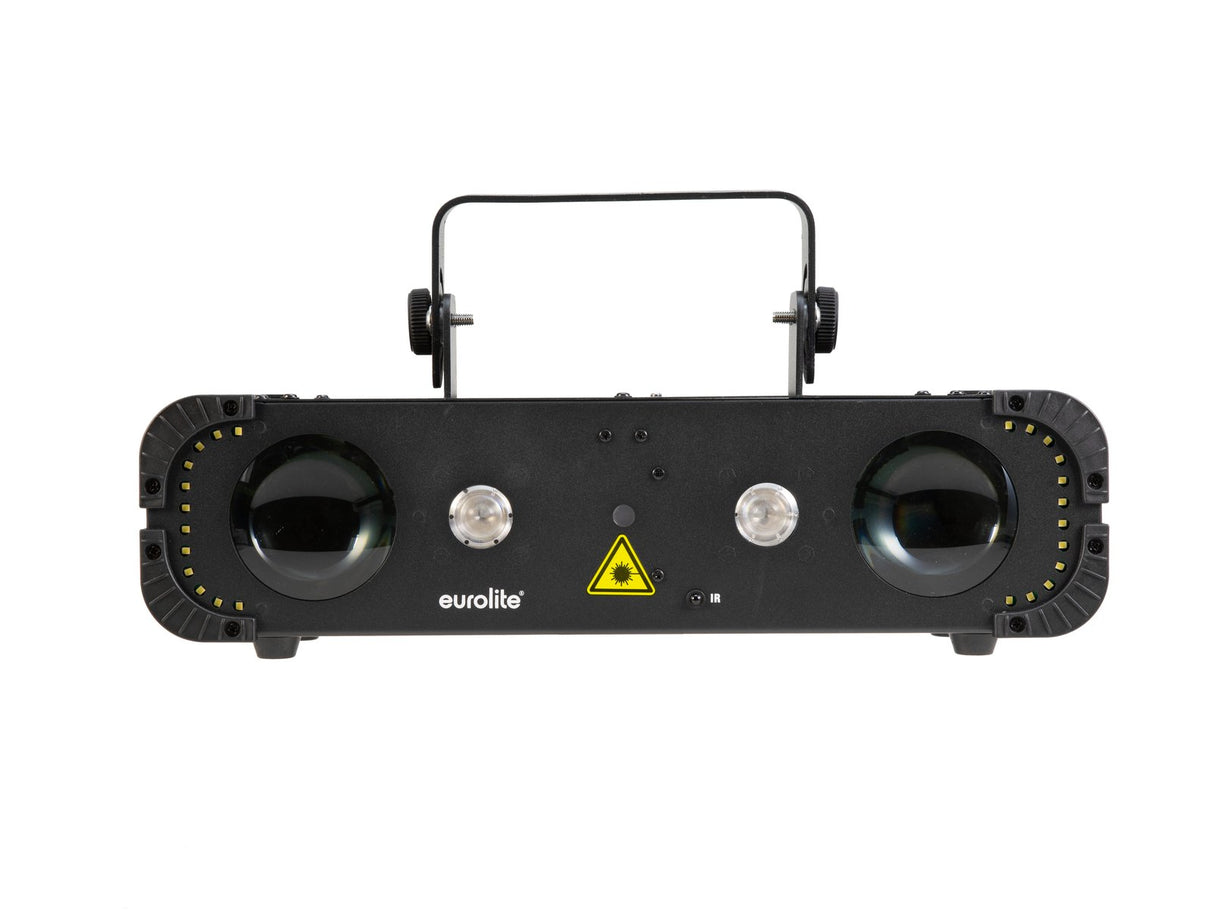

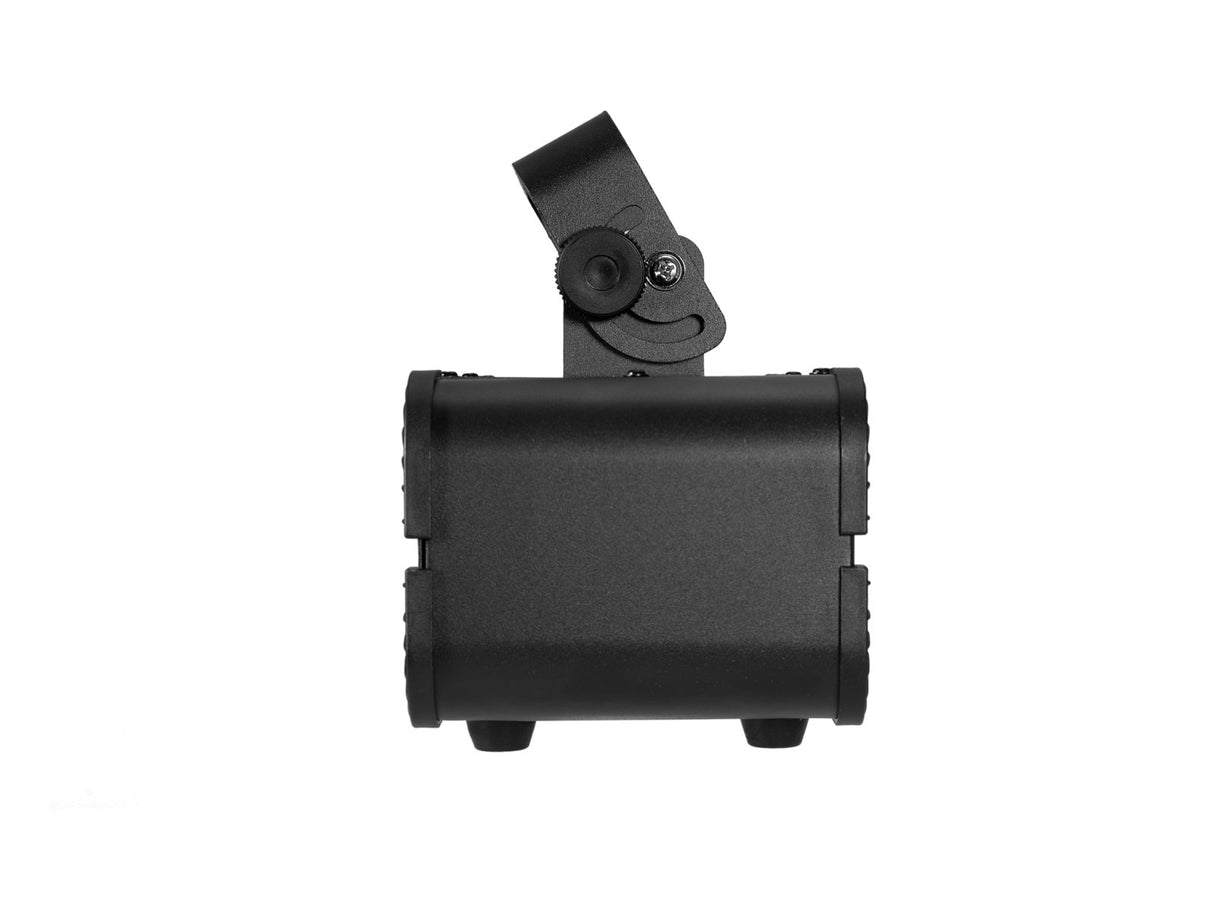

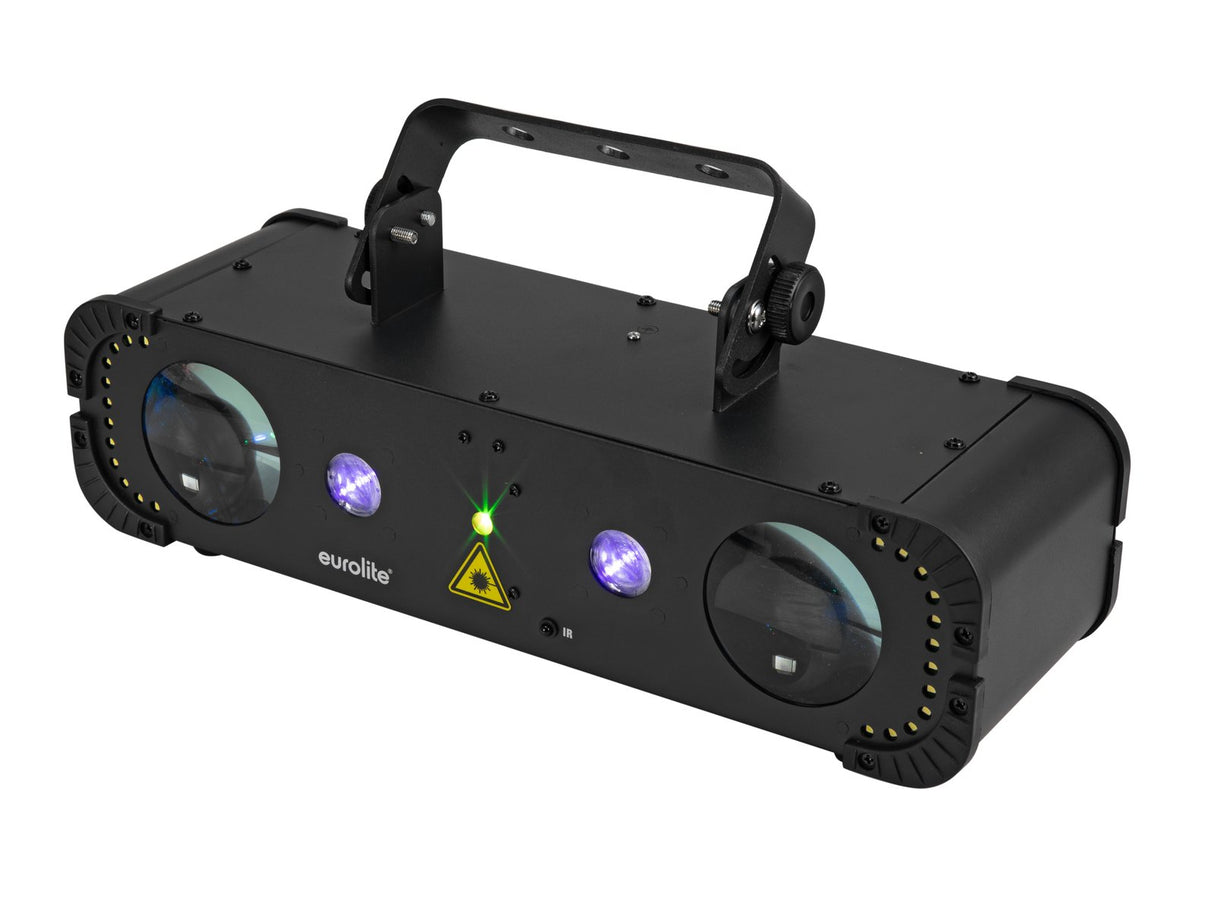

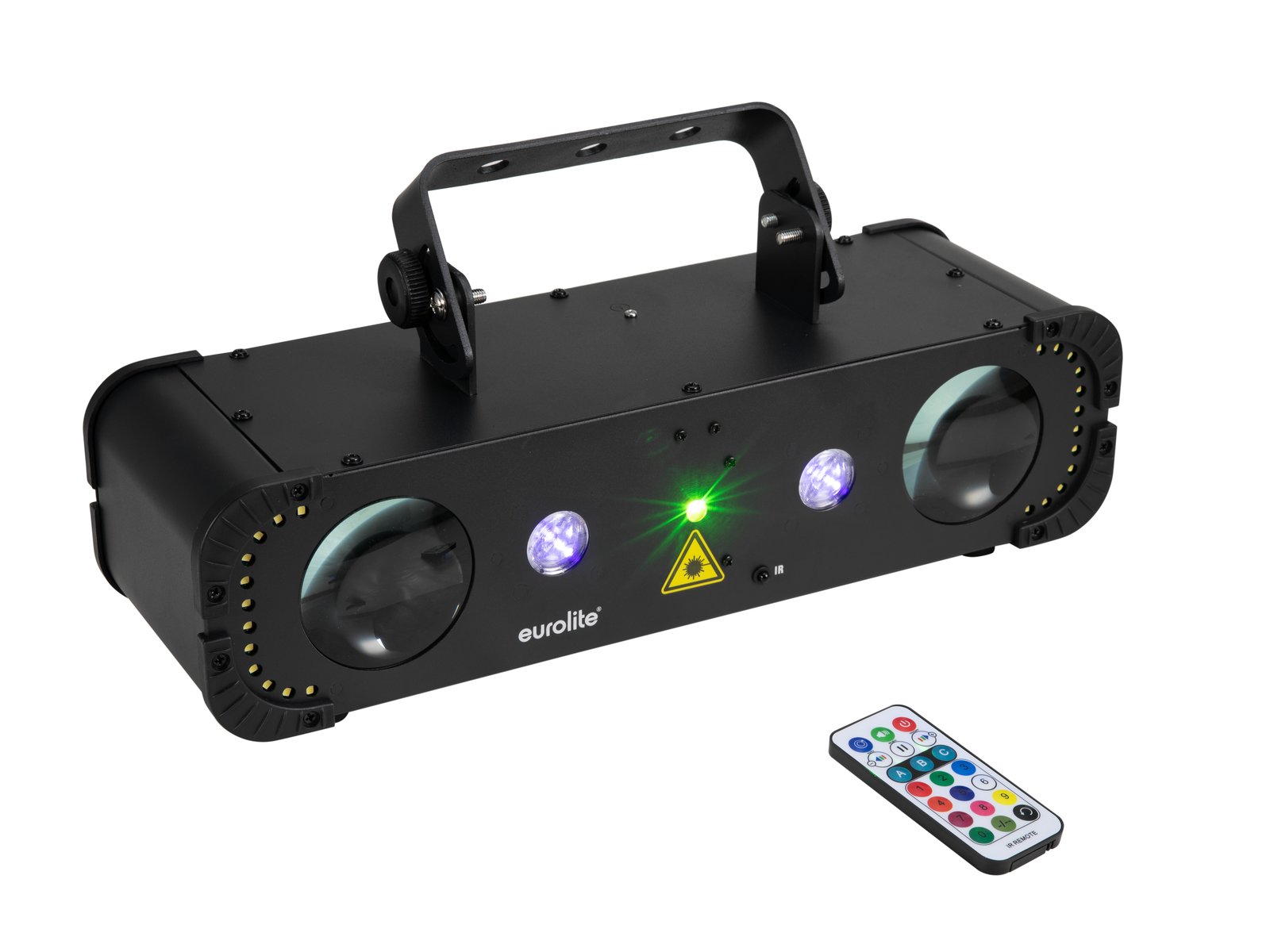

EUROLITE LED COMPACT Multi FX Laser Bar
- 2 laser diodes project thousands of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Matrixblacklight, laser and strobe can be controlled individually
- Mains input and output for power linking up to 8 units
- 24 powerful LEDs 0,5 W SMD cold white (CW)
- 2 powerful LEDs 3 W high-power ultra violet (UV)
- 128 powerful LEDs 5 mm R/G/B/W/A
- 14 integrated Showprograms
- Can be operated in 2; 5; 8; 10 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; IR remote control; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain
- Effect: Multi beam effect; flower effect; Strobe effect; UV effect; laser
- With Mounting bracket
- Monochrome 4 digits 7-segment LED display for easy controlling
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 30 W
- IP classification: IP20
- Protection class: Protection class I

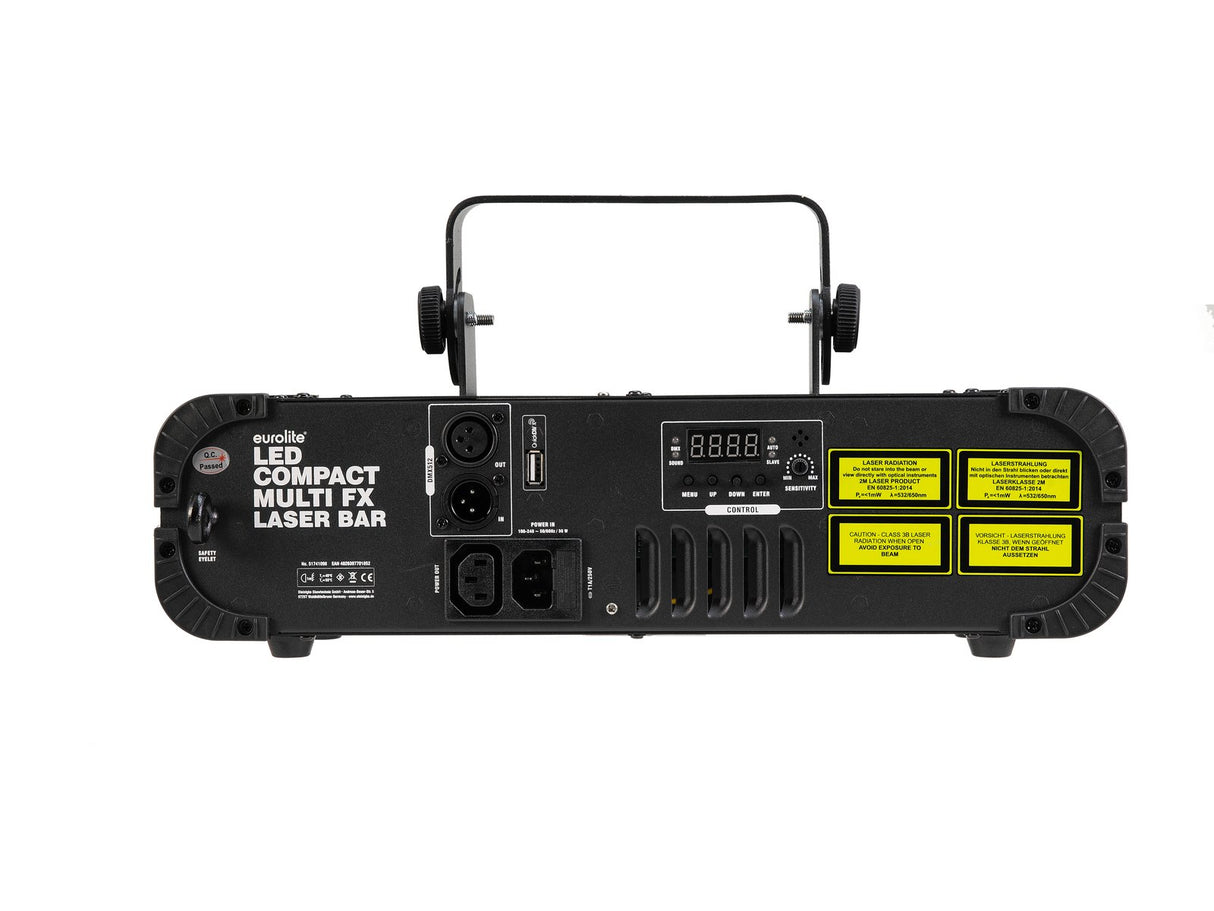

- Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
- Power output: 1 x IEC connector (F) mounting version
- Fuse: 5 x 20 mm, T 1 A Fuse replaceable
- Lamp type: LED lamp
- DMX channels: 2; 5; 8; 10
- DMX input: 1 x 3-pin XLR (M) mounting version
- DMX output: 1 x 3-pin XLR (F) mounting version
- Cooling: Cooling fan
- Control: DMX; IR remote control; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in: Light Captain; Light´J
- Housing color: Black
- Attachment system: Mounting bracket
- Display type: Monochrome 4 digit 7-segment LED display
Dimensions:
- Length: 40,5 cm
- Depth: 20 cm
- Height: 14,5 cm
- Weight: 2,85 kg
- Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
Laser:
- Laser class: 2M
- Laser color: R/G
- Laser module: Red (R) 100 mW 650 nm
- Green (G) 30 mW 532 nm
Spotlight:
- LED: 2 x 3 W high-power ultra violet (UV)
Light effect:
- LED: 128 x 5 mm R/G/B/W/A
Strobes:
- LED: 24 x 0,5 W SMD cold white (CW)
Remote control:
- Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
