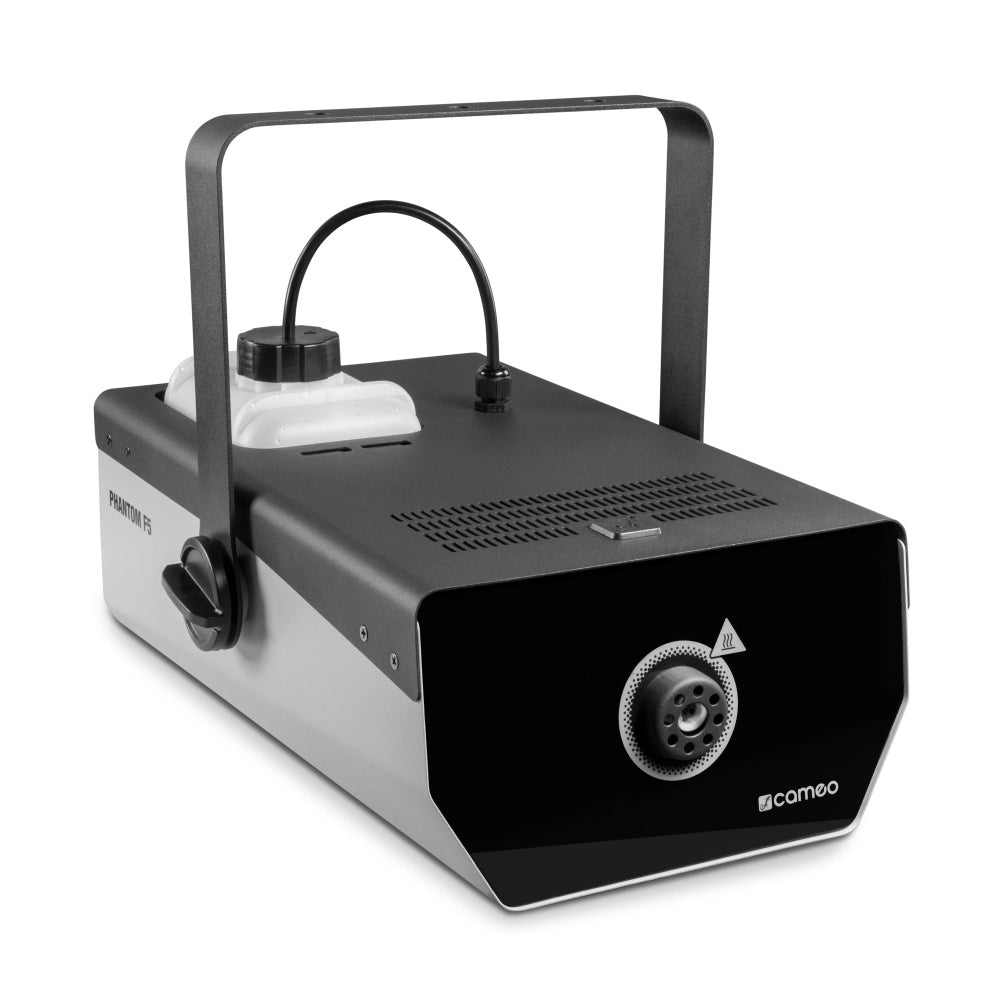

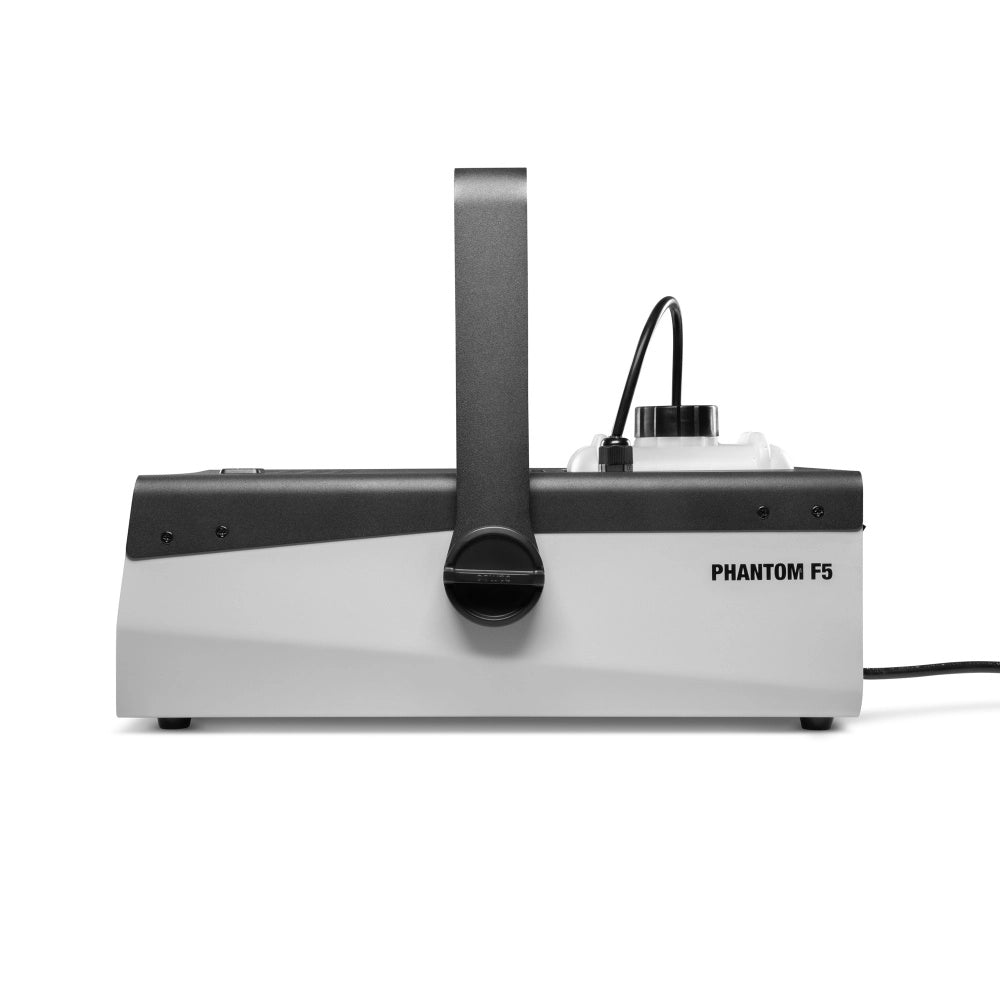

Cameo PHANTOM F5 Fog Machine
- Great smoke machine with 1500 w heat output
- Short heating time (about 4 minutes)
- Output up to 509 m³/min
- Tank with 1.8 L capacity and two-colour level indicator.
- Compatible with standard water-based smoke fluid
- DMX control and stand-alone function

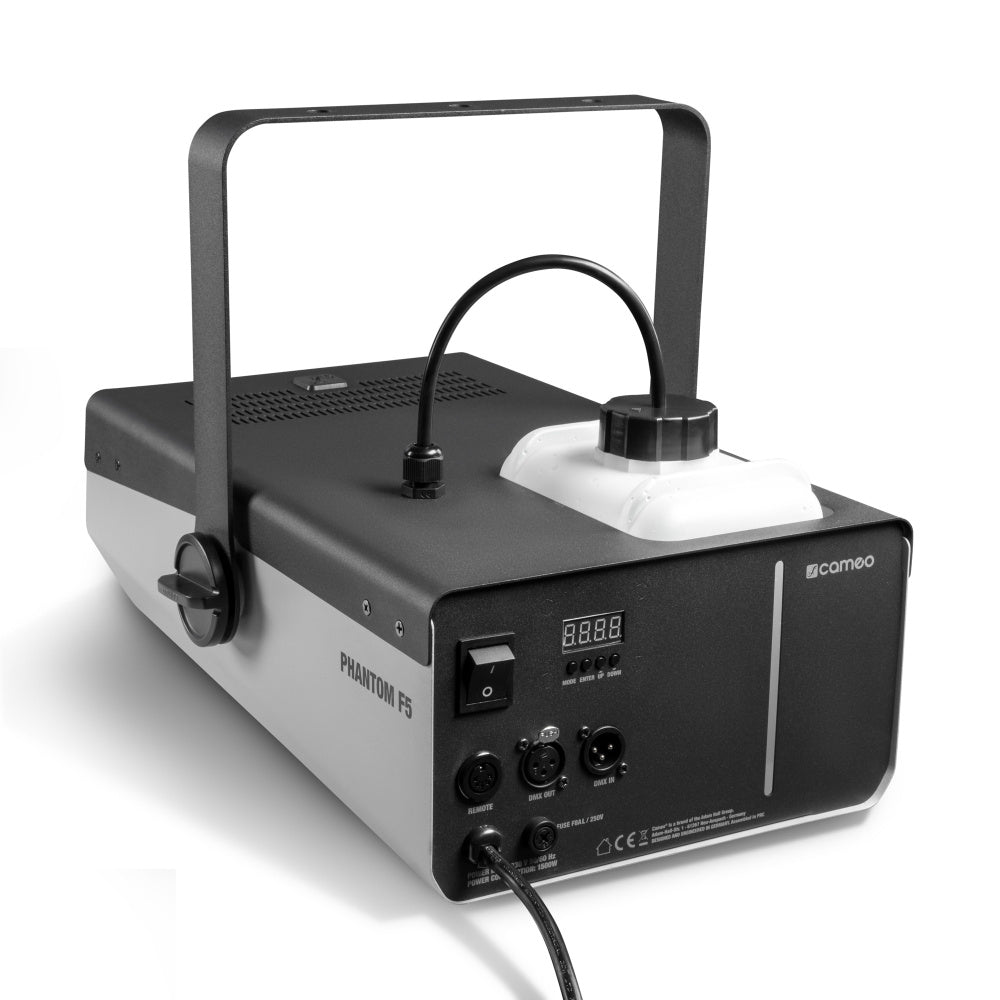

- Mounting bracket and multi-function remote control included
- LED display for easy setting
Cameo PHANTOM F5 Smoke Machine
- Highly efficient heating element with 1500 w heat output.
- Short heating time (approx. 4 minutes).
- Output up to 509 m³/min.
- Tank with 1.8 L capacity and two-colour level indicator.
- Compatible with standard water-based smoke fluid.
- Tank can be removed, making refilling hassle-free.
- DMX control and stand-alone function.
- Optimal coordination of pump and heat, ensures uniform smoke at any thickness.
- Mounting bracket and multi-functional remote control included.
- LED display for easy setting.
Product type
Fog Machine
Type
Fog Machine
Power
1500 W
Output volume
ca. 509 m³/min
Range of fog output
approx. 7 m
Warm-up time
approx. 3 min
Fog duration
ca. 14 s
Reheating time
ca. 12 s
Fluid tank capacity
1.8 l
Fluid Consumption
ca. 90 ml/min
Remote connection
DIN 5-Pol male
Remote cable length
10 m
Remote functions
Continous output, Duration, Interval, manual, Time, volume

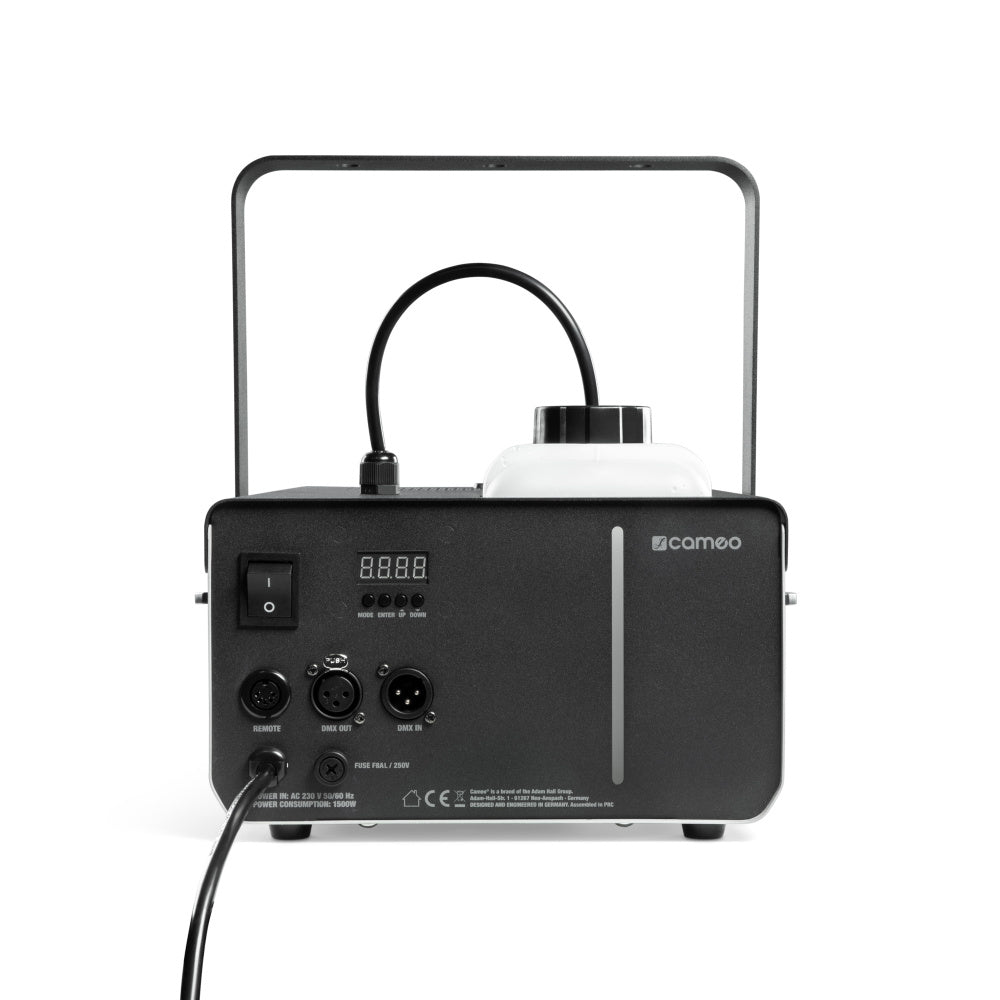

DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
1-channel, 3-channel
DMX Functions
Fog output on/off, Timer Duration, Timer Interval

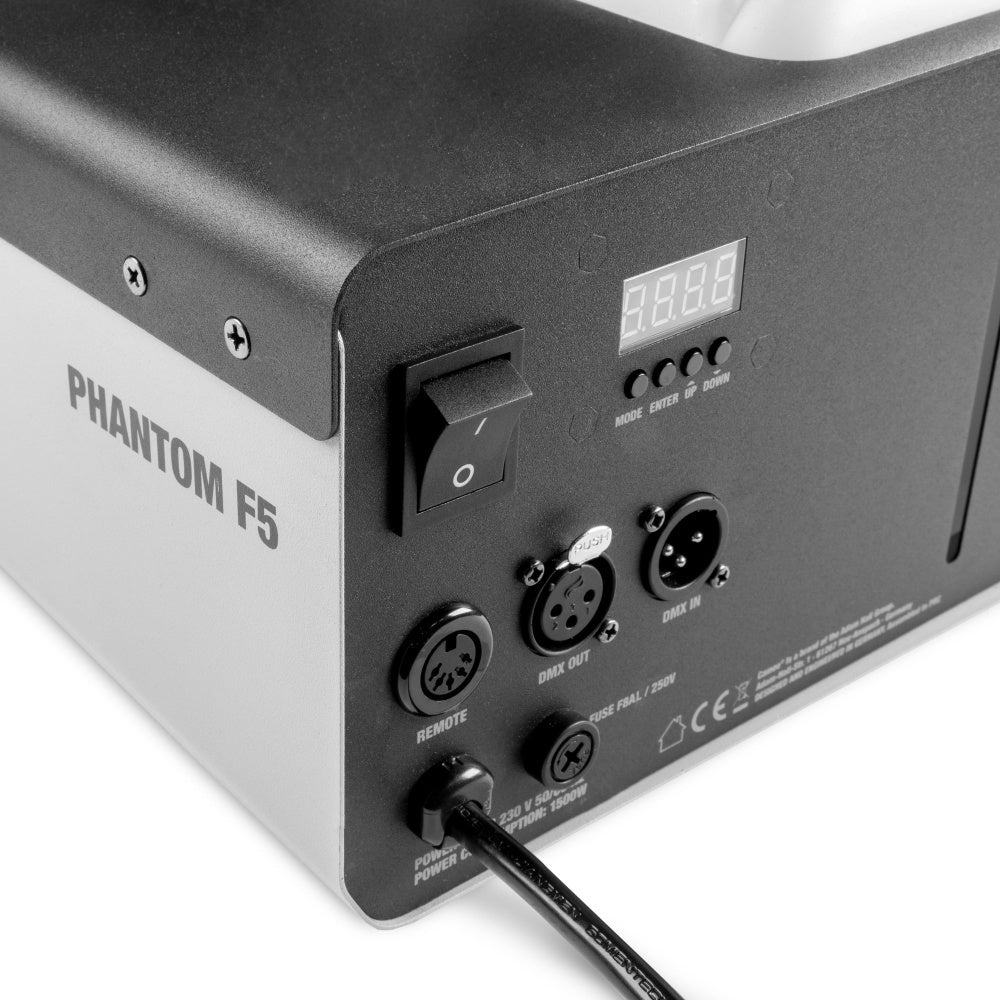

Controls
Down, Enter, Mode, Up
Indicators
4-digit LED display
Operating voltage
230 V AC / 50-60 Hz
Fuse
F8AL / 250 V
Power consumption
1450 W
Ambient temperature (in operation)
5 - 40 °C
Relative Humidity
< 85 %, not condensing
Power connector
CEE 7/7, Fixed connection cable
Housing material
Metal
Cabinet colour
Black, grey
Width
250 mm
Height
150 mm
Length
420 mm
Accessories (included)
4 rubber feet, Cable remote, canister
Weight
7,9 kg
