Alutruss DECOLOCK DQ4-1500 1,5 meter
1
of
2
Loading...
€233,95
Unit price
/
Not available
Secure checkout

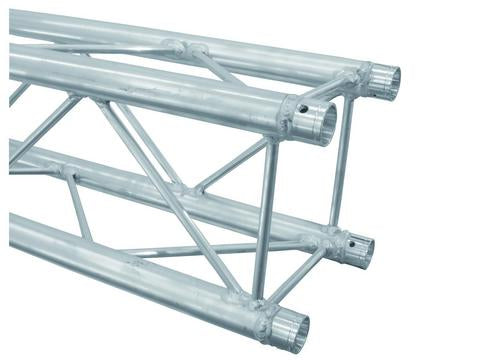

Alutruss DECOLOCK DQ4 truss with 4 crossbars made of aluminium for lowest possible weight.
Each assembly on DECOLOCK DQ4 is made with 4 pcs. cones, pivot and pins, accessories for assembly included.
DECOLOCK DQ4 from Alutruss is assembled with cones that ensure a 100% accurate assembly for highest possible load.
The Quick-Lock system ensures fast, efficient and aesthetic assembly - also when assembled and disassembled daily.
Specifications of Alutruss DECOLOCK DQ4:
- Max. System length: 12 meter
- High-quality aluminium-tubes with 35 mm in diameter
- Easy installation due to Quick-Lock connectors
- Low weight
- For exhibition and shop installers, discotheques and theatres
- Main chords: 35 x 2 mm
- Braces: 10 x 2 mm
- Alloy: AlMgSi 0.5
- Welding material: AlMg 5
- Welding technique: TIG-welding

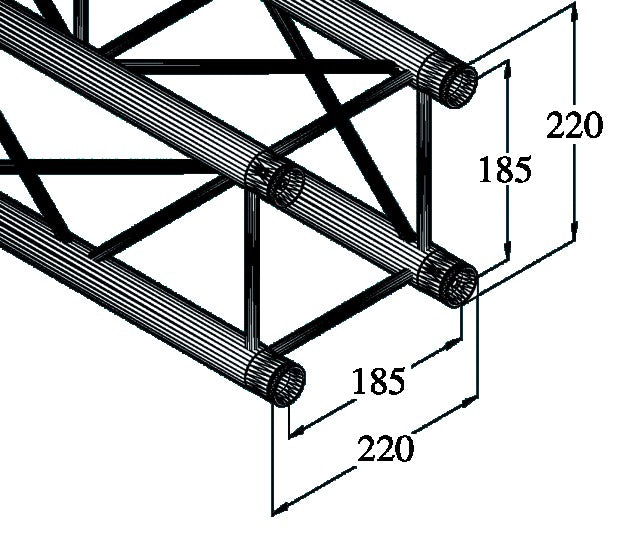

- Outer Dimensions: Width 220mm, Height 220mm
| Load table DECOLOCK DQ4: | ||
| Span (m) | Point load (kg) | UDL (kg/m) |
| 2 | 180 | 380 |
| 4 | 120 | 108 |
| 6 | 100 | 39 |
| 8 | 87 | 24 |
| 10 | 69 | 12 |
| 12 | 60 | 7 |
If you have questions about this product before placing an order, please contact our staff – we get back to you as quickly as possible, and always within 24 hours on weekdays.
I have a question about this product
