Alutruss QUADLOCK end plate QQGP
1
of
3
Loading...
€94,95
Unit price
/
Not available
Secure checkout

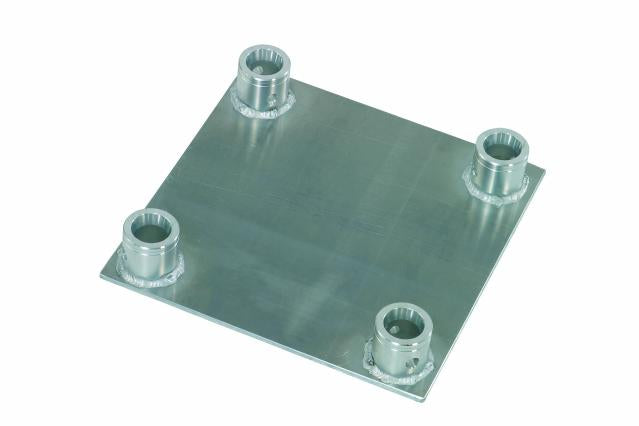

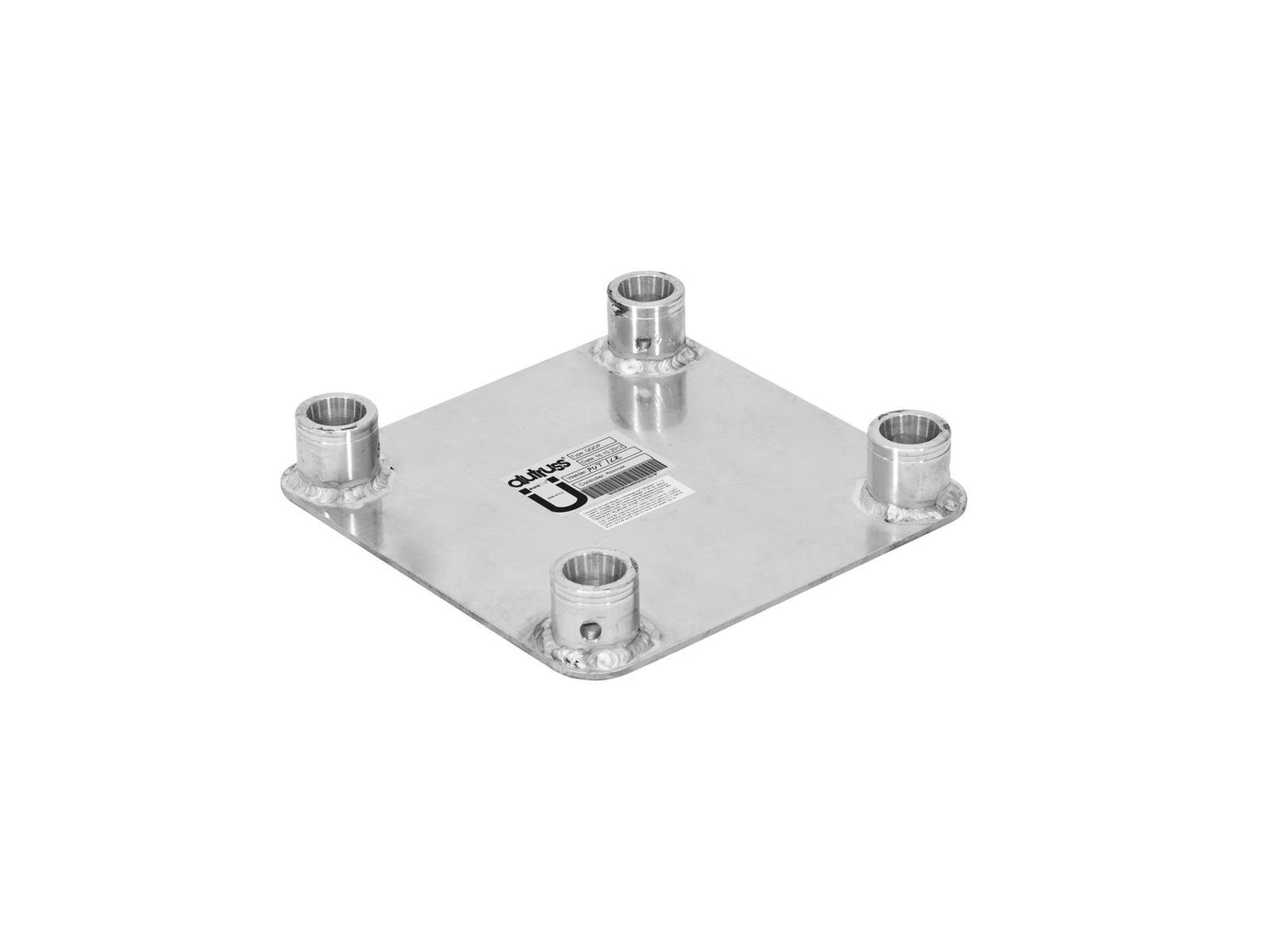

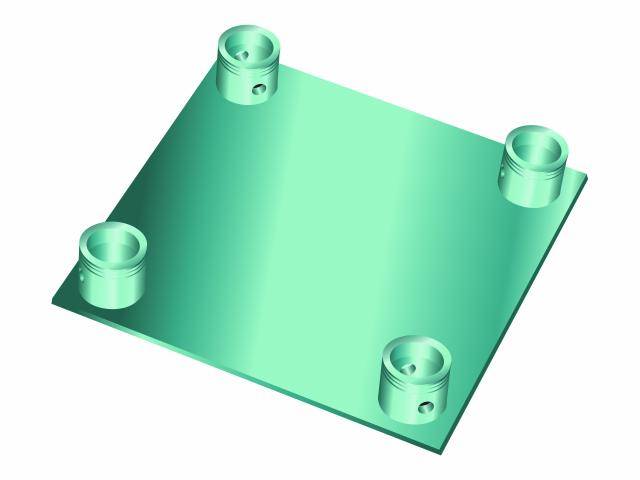

Alutruss end plate for QUADLOCK truss system, used if the truss is to be placed on the floor so that it does not damage the surface.
Specifications of Alutruss QUADLOCK 6082:
Specifications of Alutruss QUADLOCK 6082:
- Max. System length: 12 meter
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminium-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- Main chords: 50 x 2 mm
- Braces: 16 x 2 mm
- Alloy: EN-AW 6082 T6 (AlMgSi1 T6)
- Welding material: AlMg 5
- Welding technique: TIG-welding
- Outer dimensions: 290mm x 290mm
| Load table QUADLOCK 6082 | ||
| Span (m) | Point load (kg) | UDL (kg/m) |
| 1 | 1500 | 1500 |
| 2 | 1500 | 773 |
| 2,5 | 1500 | 699 |
| 3 | 1292 | 627 |
| 4 | 950 | 432 |
| 5 | 798 | 274 |
| 6 | 646 | 192 |
| 8 | 475 | 107 |
| 10 | 380 | 72 |
| 12 | 304 | 47 |
