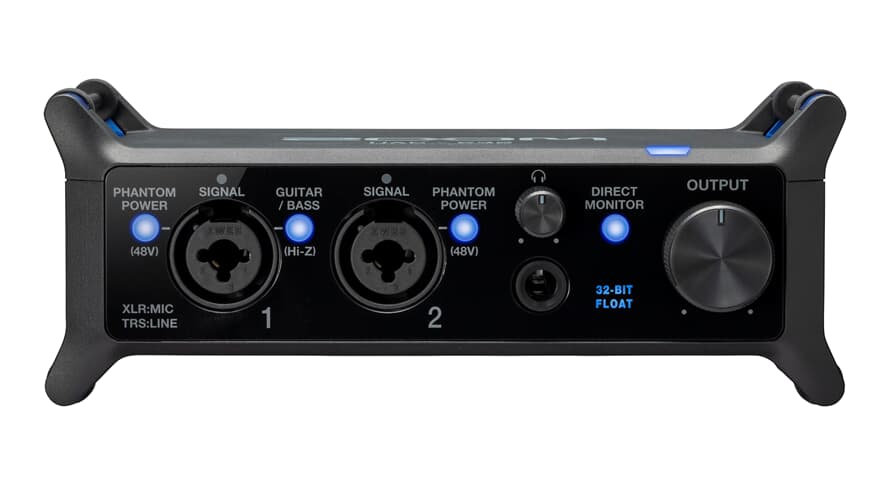

Zoom UAC-232 Sound card
1
of
9
Loading...
€220,95
Unit price
/
Not available
Secure checkout
- 32-bit sound card with a wealth of possibilities
- Experience professional quality where every detail has been thought of
- Easy to use with the device's many user-friendly features

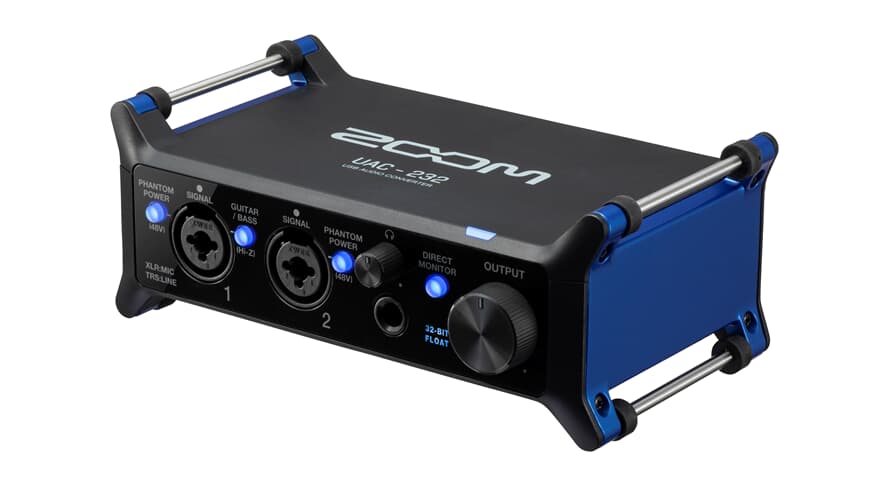

Zoom UAC-232 Sound Card
- Take your music productions to the next level with ZOOM UAC-232 USB Audio Converter!
- The dedicated 32-bit float audio interface allows you to record low-level audio recordings without having to adjust gain
- With the same clean and low noise amplifiers used in professional F-series recorders, the UAC-232 guarantees high quality recordings in any environment
- Mix Control software lets you adjust I/O routing, enable loopback, and control input and monitoring levels
- Music mode to route the music to your DAW or Streaming mode to combine all inputs into a single signal for streaming software

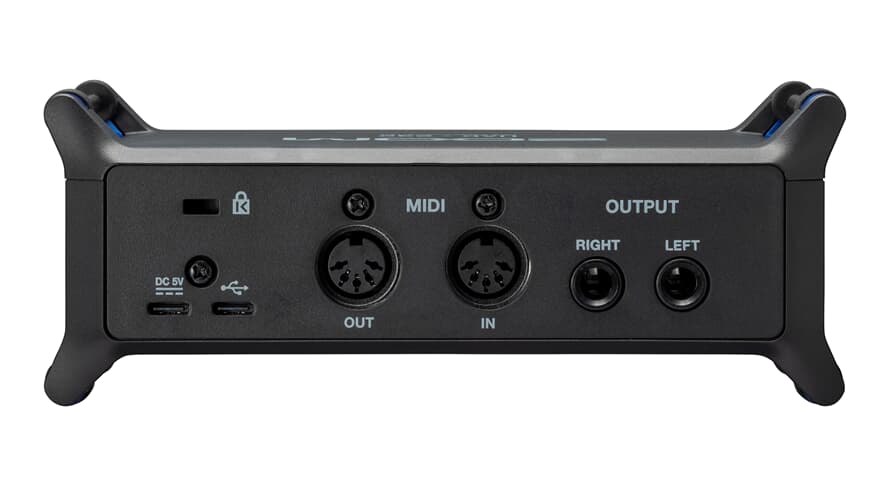

- Compatible with Windows, Mac and iOS devices and features MIDI IN/OUT for connecting external MIDI peripherals
- With the UAC-232, you can record and stream in 24-bit and get a powerful 100 milliwatts of headphone output
- Compact design with many user-friendly options
- Antal inputkanaler: Mono (MIC/LINE) 2
- Antal udgangskanaler: Stereo (TRS) 1, Stereo (TELEFON) 1 og Stik

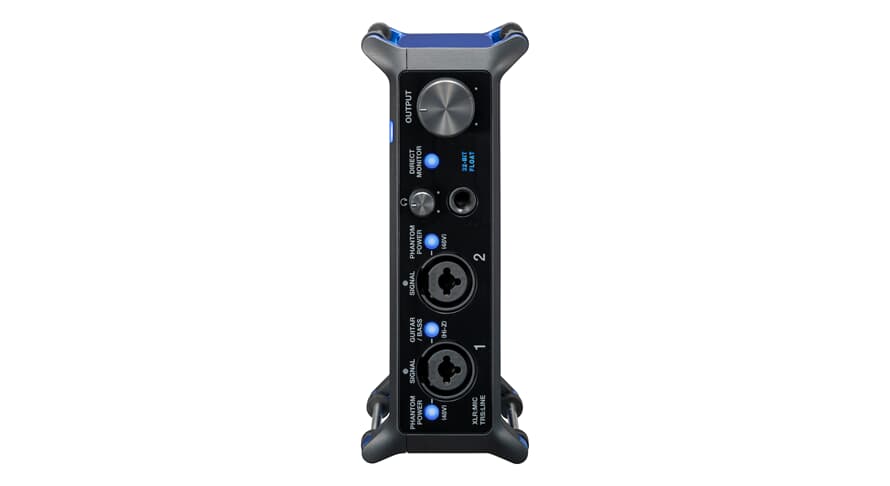

- Indgang 1–2: XLR/TRS combo-stik (XLR: 2 HOT, TRS: TIP HOT)
- Indgangsimpedans: XLR: 2,7 kΩ og TRS: 4 kΩ / 1 MΩ (når indstillet til Hi-Z)
- Maksimalt inputniveau: XLR: +6 dBu, TRS: +24 dBu / +11,5 dBu (når indstillet til Hi-Z)
- Fantomkraft:+48 V
- TRS telefonstik (balanceret)
- Maksimalt udgangsniveau: +18 dBu (ved 0 dBFS)
- Udgangsimpedans: 100 Ω
- Telefon: 3,5 mm stereo telefonstik , 100 mW + 100 mW (32 Ω belastning)
- Udgangsimpedans:12 Ω
- USB: USB Type-C (audio interface funktion)
- DC 5V
- USB Type-C (til strømforsyning)
- Frekvensrespons
- Indgange: 44,1 kHz: 20 Hz – 20 kHz, +0,1 dB / −0,2 dB, 192 kHz: 20 Hz – 80 kHz, +0,1 dB / -0,2 dB
- Udgange: 44,1 kHz: 20 Hz – 20 kHz, +0,0 dB / -0,1 dB, 192 kHz: 20 Hz – 80 kHz, +0,0 dB / −1,0 dB
- Hovedtelefoner: 44,1 kHz: 20 Hz – 20 kHz, +0,0 dB / -0,5 dB, 192 kHz: 20 Hz – 80 kHz, +0,0 dB / −1,0 dB
- Tilsvarende inputstøj: –127 dBu eller mindre (IHF-A)
- Lyd interface
- Input og output kanaler
- Optagelse: 2 kanaler
- Afspilning: 2 kanaler
- Sampling frekvenser: 192 kHz, 176,4 kHz, 96 kHz, 88,2 kHz, 48 kHz, 44,1 kHz
- 32-bit Float / 24-bit
- USB Audio Class 2.0
- Vekselstrømsadapter (ZOOM AD-17): DC 5 V/1 A
- USB bus strøm er understøttet.
- USB/AC-adapter (5 V): 293 mA
- Strømforbrug: 5 W maksimum
- Dimensioner: 164 mm (B) × 105,5 mm (D) × 65 mm (H)
- Vægt: 355 g
