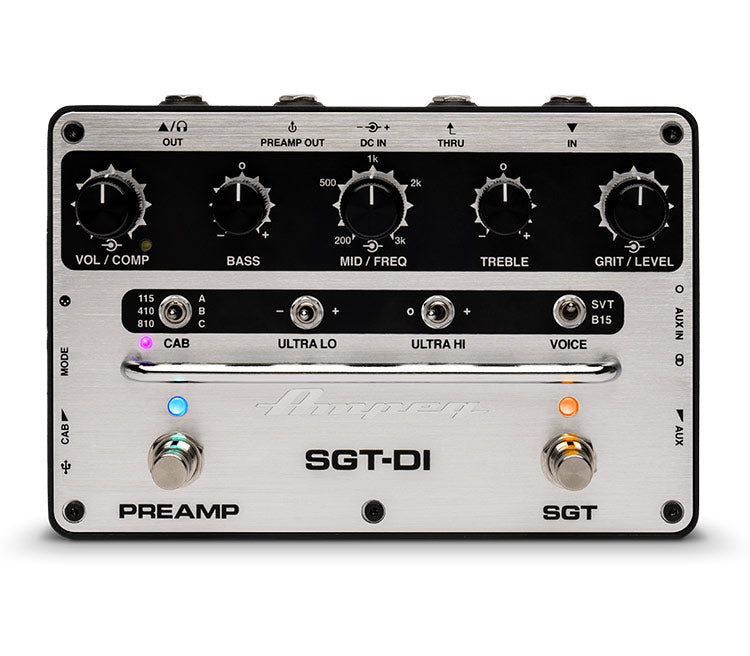

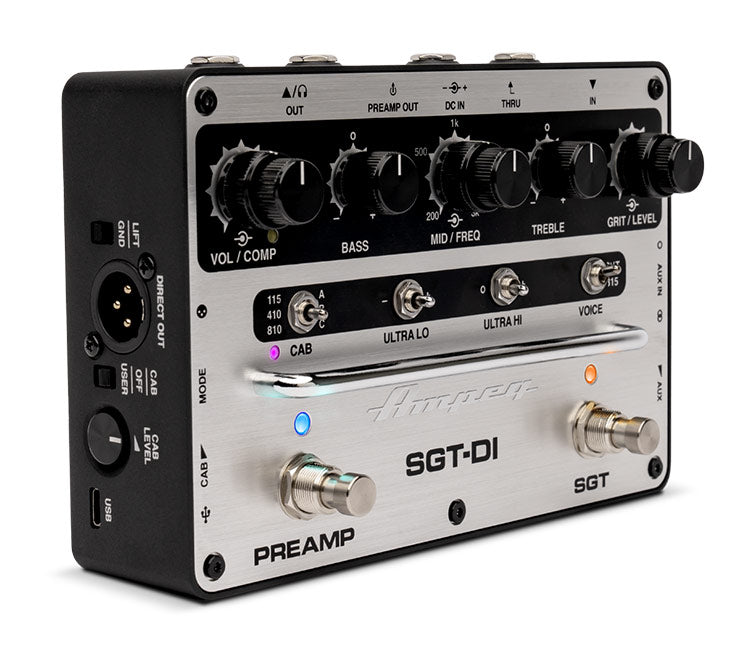

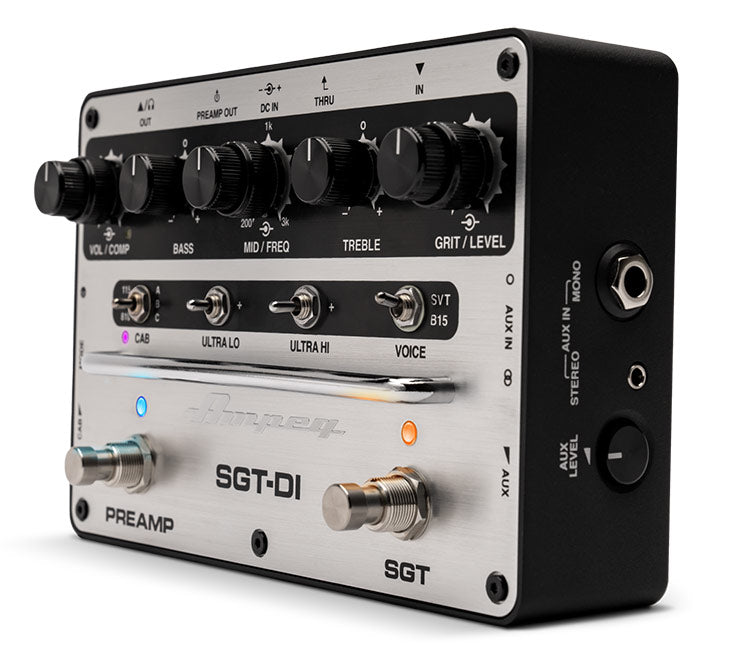

Ampeg SGT-DI
Description
Description
- All-in-one bass preamp and DI with Super Grit Technology overdrive circuit
- Compact size, big sound
- Legendary SVT and B15 voices with the touch of a single switch
- 3 band eq with midrange sweep
- IR Loader/Cab Simulator
- Ultra-Hi and 3-way Ultra-Lo switches
- Variable 10:1 compressor
- Free Ampeg IR Loader app
Ampeg SGT-DI
- All-in-one bass preamp and DI pedal with Super Grit Technology overdrive circuit.
- Compact size, big sound.
- Legendary SVT and B15 voices with the flick of a single switch.
- 3 band eq with midrange sweep.
- IR Loader/Cab Simulator.
- Ultra-Hi and 3-way Ultra-Lo switches.
- Variable 10:1 compressor.
- Free Ampeg IR Loader app.

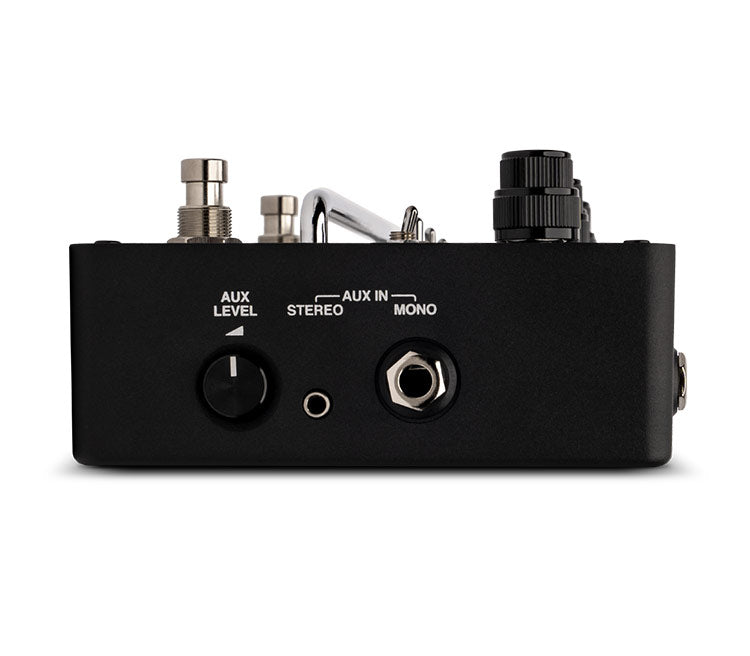

- Aux/headphone jack.

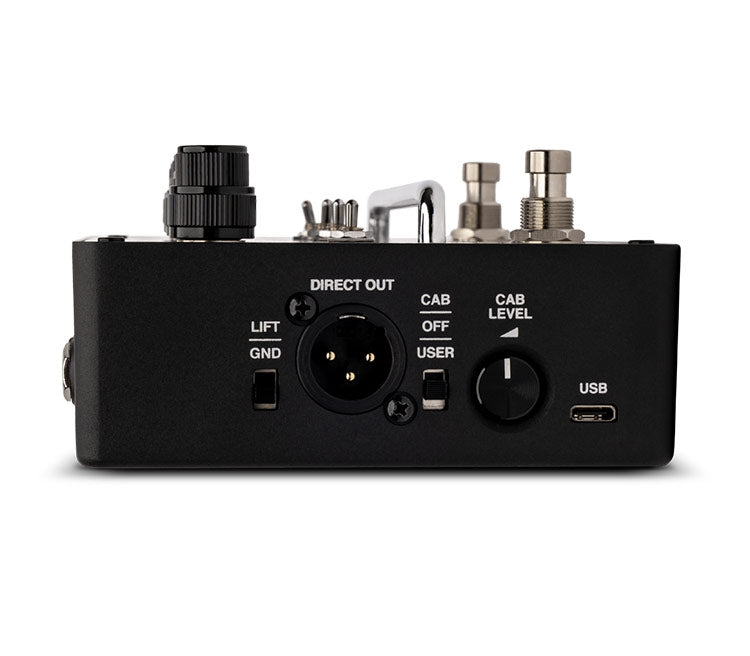

- Balanced XLR and 1/4" line outputs.
Technical specifications
Technical specifications
Signal-to-Noise Ratio:
Headphone Out: 106dB (20Hz-20 kHz A-Weighted, Preamp and SGT disabled)
Maximum Gain:
Preamp Out: 57dB (@ 1kHz, EQ flat, Pre-amp and SGT enabled, maximum Grit, maximum Volume).
Headphone Out: 57dB (@ 1kHz, EQ flat, Pre-amp and SGT enabled, maximum Grit, maximum Volume, Cab Mode disabled).
XLR Out: 37dB (@ 1kHz, EQ flat, Pre-amp and SGT enabled, maximum Grit, maximum Volume, Cab Mode disabled).
Power Requirements:

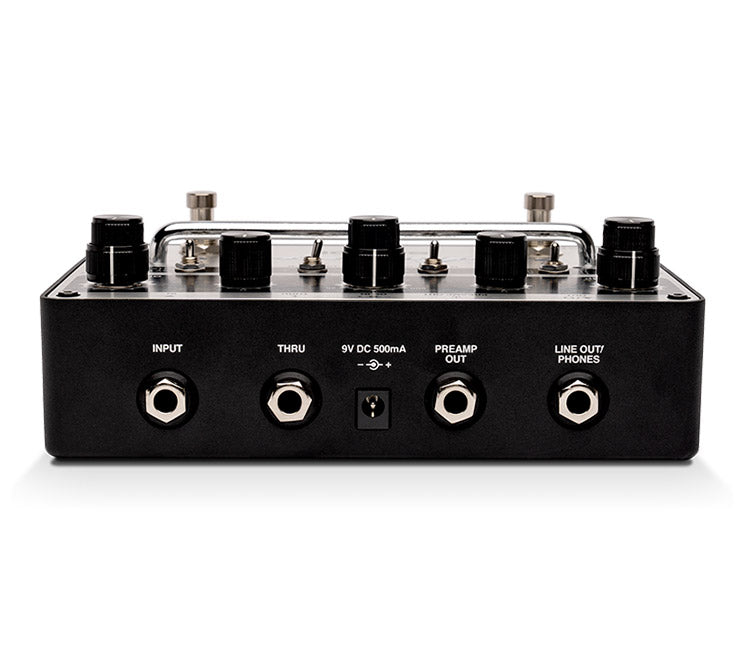

External: 9V DC @ 500mA (use the included adapter).
Tone Controls:
Bass: +15/-12dB at 40Hz Mid: +/-14dB at selected frequency Treble: +/-20dB at 8kHz Ultra Lo Boost: -10dB at 500Hz, +2dB at 40Hz Ultra Lo Cut: -17dB at 40Hz Ultra Hi: Ranges from +5dB to +11dB at 5kHz, depending on the position of the Volume knob. It peaks at 11dB at approximately 3 o’clock on the knob.
Size (H x W x D):
2.5 x 7.4 x 4.9 inches / 65 x 189 x 126 mm (with side panel knobs recessed, no rubber feet applied).
2.5 x 7.9 x 4.9 inches / 65 x 201 x 126 mm (with side panel knobs extended, no rubber feet applied).
Weight:
1.9 lbs / 0.85 kg
