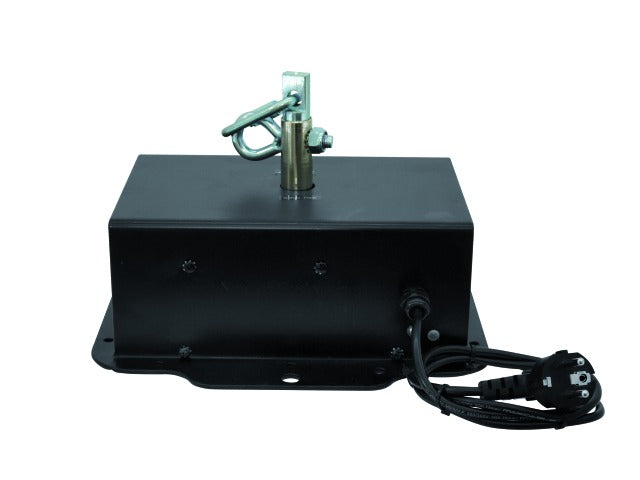

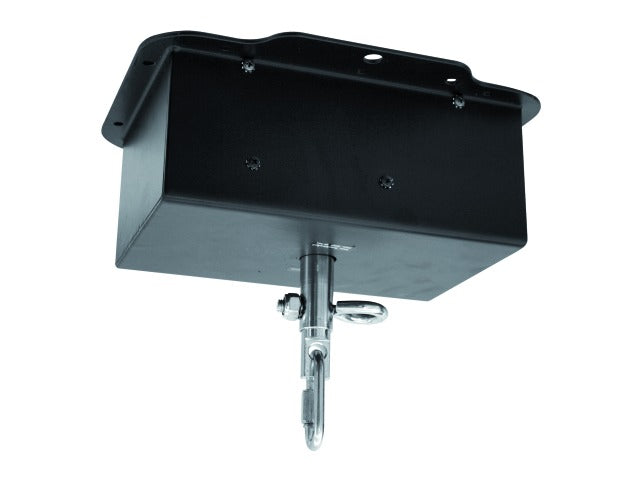

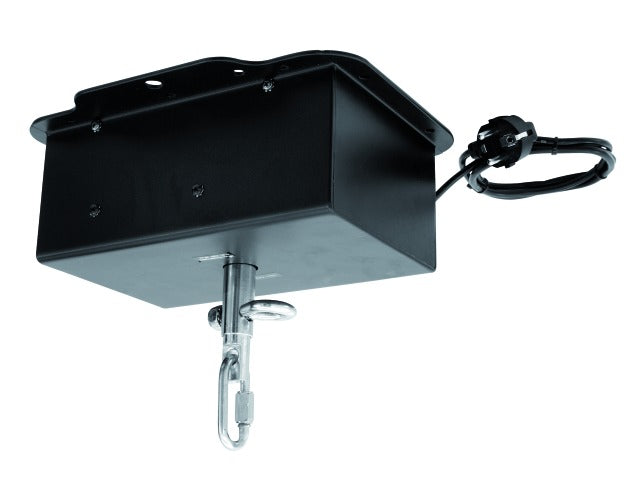

Eurolite MD-3010 Mirror ball motor (100cm)
1
of
4
Loading...
€155,95
Unit price
/
Not available
Secure checkout
- Safety rotary moto
- Suitable for driving mirror balls up to a maximum weight of 40 kg
- This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
Motor for mirror balls of max. 100cm or 40Kg, 1 rotation per minute.
Specifications:
- Suitable for driving mirror balls up to a maximum weight of 40 kg
- This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material (e.g. screw-on chain link)
- 1 rotation per minute
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Dimensions (LxWxH): 280 x 240 x 110 mm
- Weight: 5 kg
- Strømforsyning: 230 V AC, 50 Hz
- Strømforbrug: 7 W
- IP-klassifikation: IP20
- Beskyttelsesklasse: Beskyttelsesklasse I
- Strømforbindelse: Fast strømforsyningsledning med sikkerhedsstik
- Kabelkonstruktion: 3 x 0,75 mm² H05VV-F
- Kabellængde: Ca. 0,9 m
- Hastighed: 1 RPM, 360°
- Styring: Plug and play
- Maksimal belastning: 40 kg
- Maks. spejlkuglediameter: 100 cm (EUROLITE)
- Husfarve: Sort mat
- Diameter monteringshuller: 2 x Ø12mm; 4 x Ø7mm; 10 x Ø6mm
- Materiale: Metal, 3 mm
- Dimensioner:
- Længde: 28,5 cm
- Bredde: 23,5 cm
- Højde: 18,5 cm
- Vægt: 5,60 kg
