Description
Description

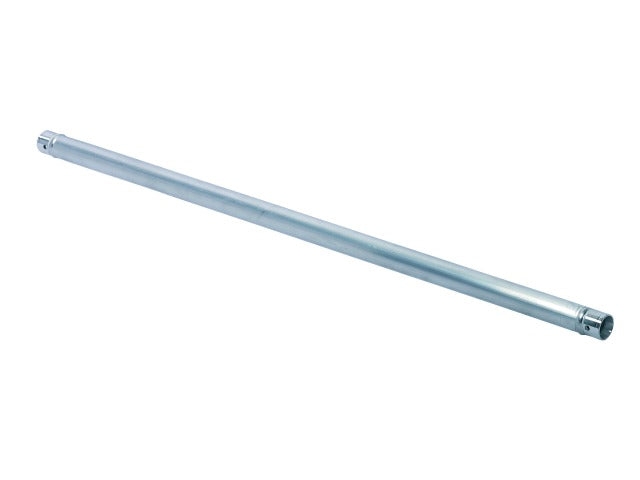

Alutruss DECOLOCK DQ1 truss with 1 crossbar made of aluminium for lowest possible weight.
Each assembly on DECOLOCK DQ1 is made with 1 pcs. cones, pivot and pin, accessories for assembly included.
DECOLOCK DQ1 from Alutruss is assembled with cones that ensure a 100% accurate assembly for highest possible load.
The Quick-Lock system ensures fast, efficient and aesthetic assembly - also when assembled and disassembled daily.

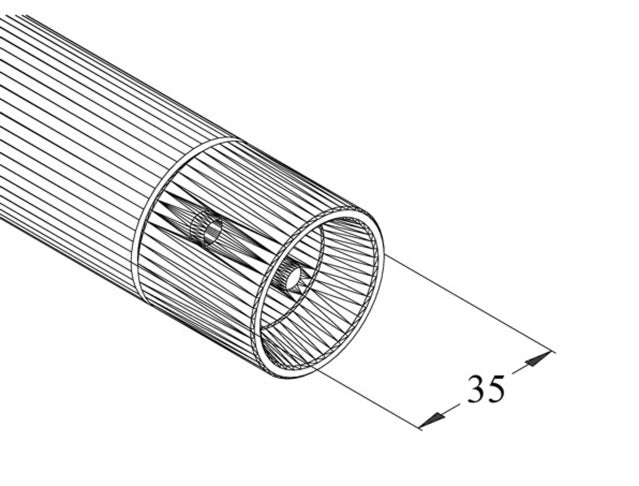

- High quality aluminium tube with a diameter of 35 mm
- Easy to install
- Lightweight
- For decorations or frame constructions for projection foils
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
- Max. system length: 3 meter
- Main chords: 35 x 2 mm
- Alloy: EN-AW 6082 T6 (AlMgSi1 T6)
- Welding material: AlMg 5
- Welding technique: TIG-welding
Load table DQ1: | ||
Span (m) | Point load (kg) | UDL (kg/m) |
1,0 | 78 | 155,0 |
1,5 | 52 | 69,0 |
2,0 | 39 | 39,0 |
2,5 | 31 | 25,0 |
3,0 | 26 | 17,0 |
System components (straights): | ||
Designation | No. | Weight (kg) |
DQ1-500 | 60301480 | 0,4 |
DQ1-1000 | 60301482 | 0,7 |
DQ1-1500 | 60301484 | 1,0 |
DQ1-2000 | 60301486 | 1,4 |
DQ1-2500 | 60301488 | 2,0 |
DQ1-3000 | 60301489 | 2,5 |
