LD Systems The DP1600 is a Class H amplifier of 2 x 450 Watt RMS in 8 Ohm, and with the possibility of 2 Ohm function as well as bridge coupling it is an extremely popular amplifier for the price.

The DP1600 from LD Systems has Clip Limiter for overload protection, all the connectivity you need, robust steel cabinet, minimal depth of only 35cm and a very clear sound.

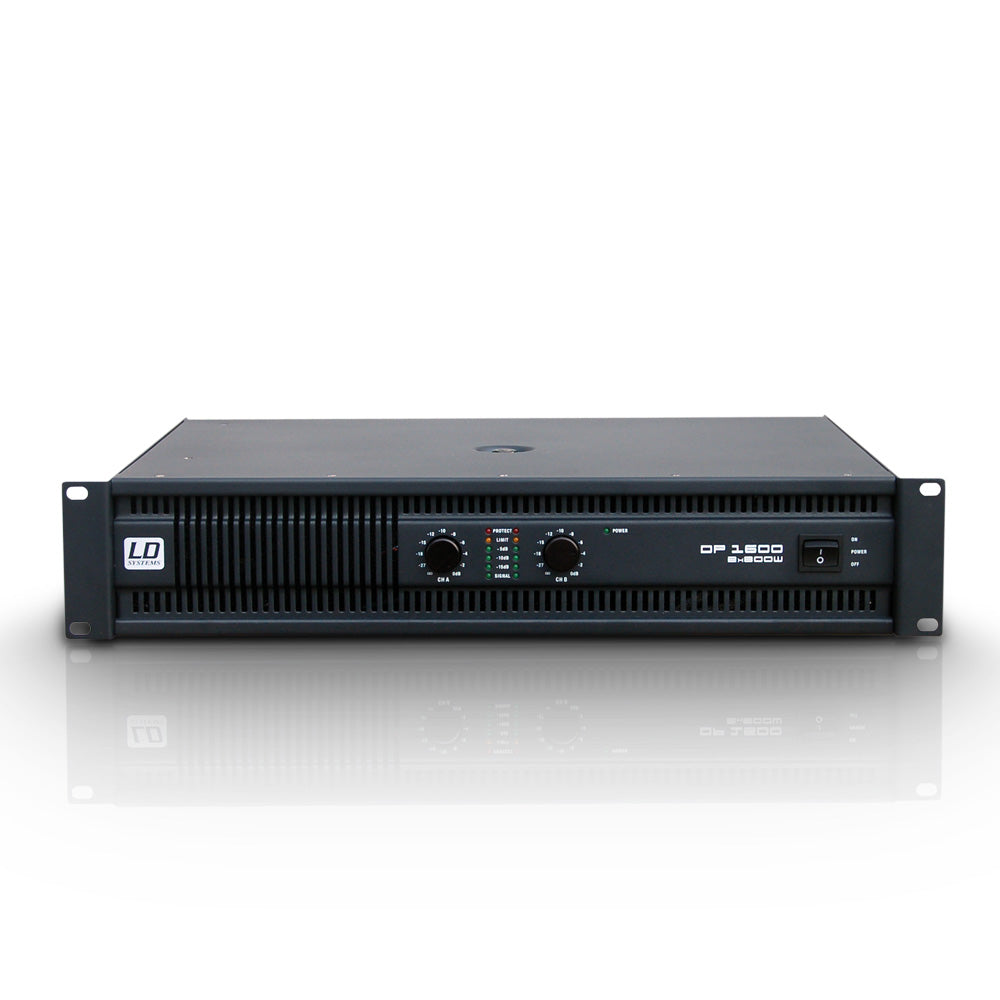

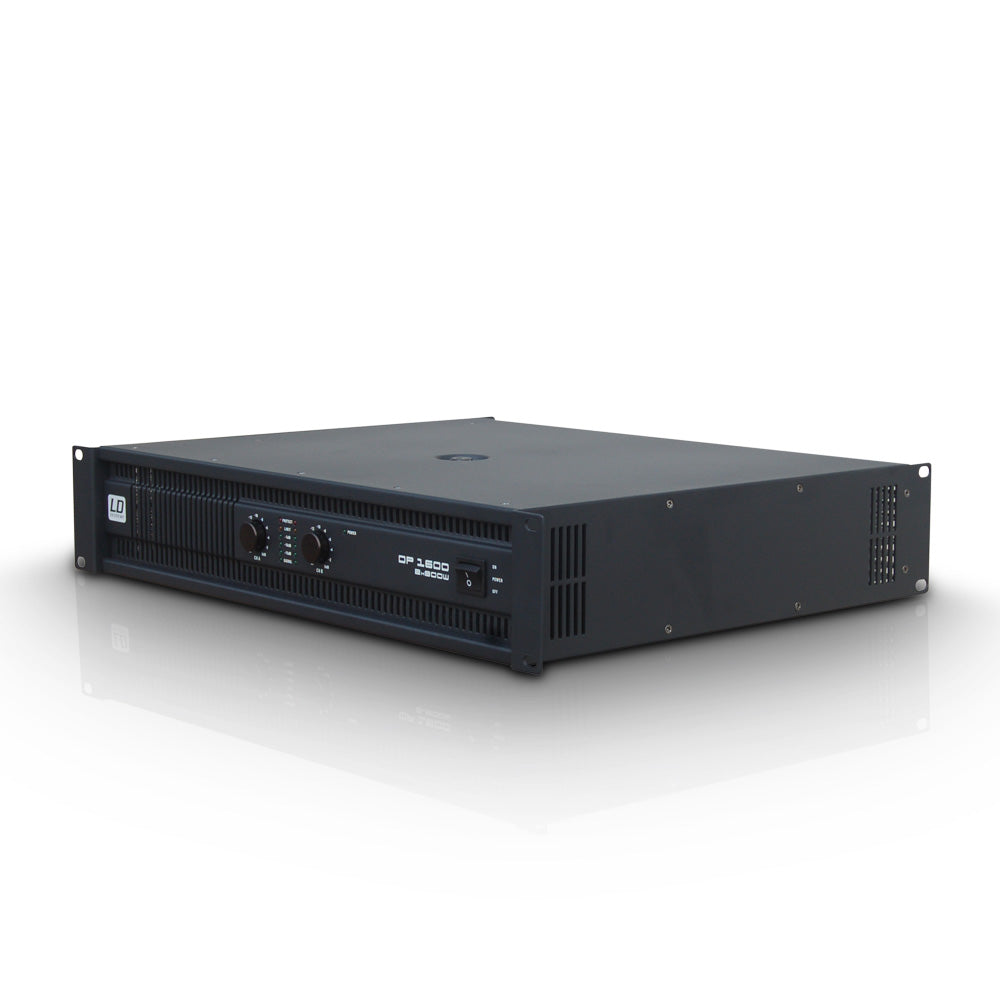

LD Systems DEEP2 1600 Amplifier 2 x 450W 8 Ohm

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

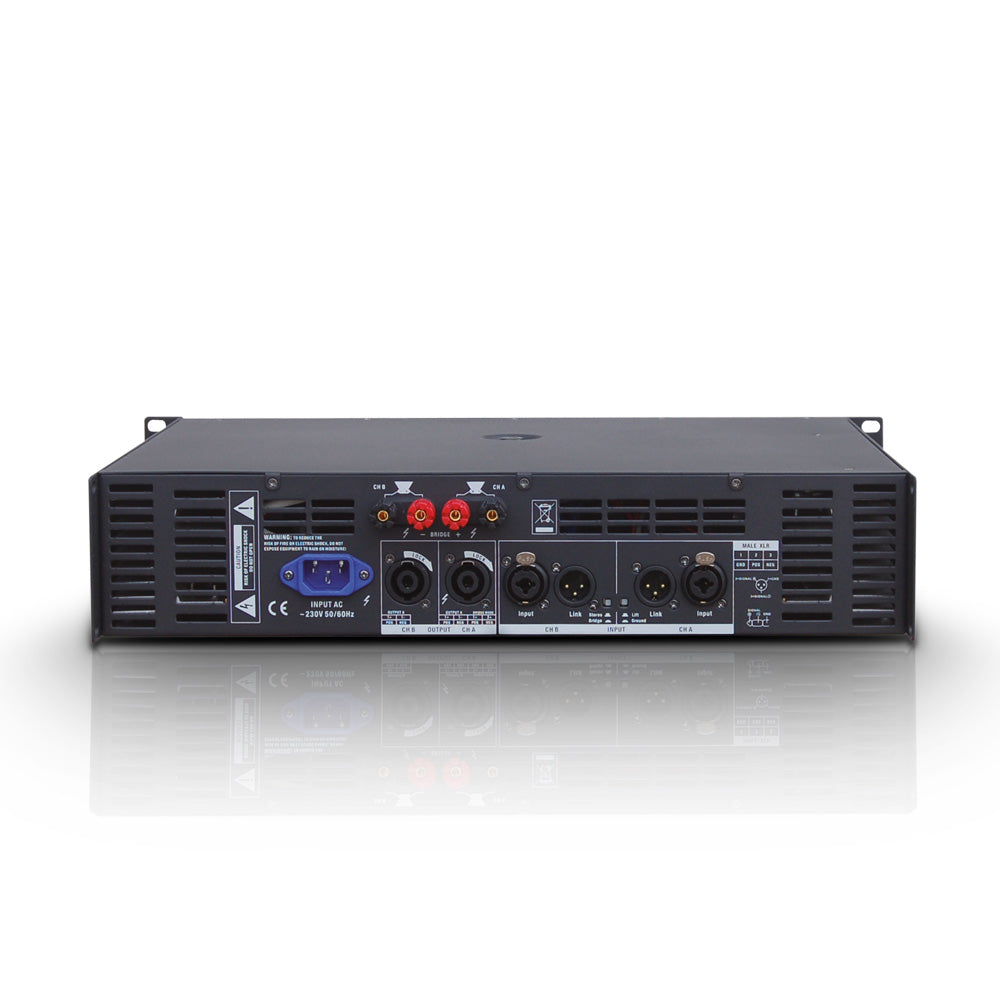

The DEEP2 series features a Clip Limiter as well as every common protection circuits. These amps are 2 Ohm and 4 Ohm (bridge) stable in continuous operation. On the rear panel you will find all the common In- and Outputs.

The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.

The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.

Also known as: DP 1600, DP-1600

Product number:	LDDP1600
Product type:	power amplifier
Type:	2-channel
Rated output power (1kHz @ 2 Ohms):	2 x 800W
Rated ouput power (1kHz @ 4 Ohms):	2 x 650W
Rated ouput power (1kHz @ 8 Ohms):	2 x 450W
Rated output power (1kHz @ 4 Ohms, bridged):	1600W
Rated output power (1kHz @ 8 Ohms, bridged):	1300W
Output circuitry:	Class H
Frequency response:	20 - 20000Hz
THD:	< 0,1 %
Signal-to-noise ratio:	106dB
Damping factor:	> 400
Crosstalk:	>80dB
Gain:	39dB
Input sensitivity:	0,775
Protection circuits:	clip limiter, short circuit, DC protection, thermal overload
Controls:	bridge/stereo mode selector, mains switch (on/off), 2 x volume, ground lift
Display:	limit, signal, protect (protection circuit engaged), level, Power
Loudspeaker outputs:	2
Speaker output connections:	Terminal posts, Speakon compatible
Cooling:	highly efficient, automatic
Operating voltage:	transformer, 230 V AC / 50-60 Hz
Weight:	15,9kg
Features:	Volex mains socket
