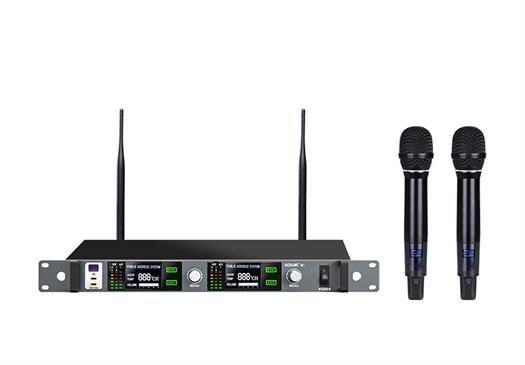

Acemic G4 - A UHF True Diversity Wireless Microphone
Designed for professional stage performance on large stages where long range is required.
FEATURES
UHF 610-698 MHz frequency range, 60 MHz bandwidth.
True diversity for maximum range and drop-out protection.
PLL synthesised circuitry, preset 6000 selectable frequencies.
ID identification can quickly distinguish the corresponding RX and TX.
The frequency spectrum selection function monitors the stage wireless signal.
Supports the antenna signal bridge function between receivers.
RX provides a TYPE-C charging interface to charge the transmitters.
Excellent anti-interference performance, supports simultaneous use of 40 units.
Up to 300 m range
SPECIFICATION Receive Frequency Range: 610-698MHz Frequency Band Width: 42M/60M Maximum Number of Channels: 6000 Frequency Stability: +-10PPM Dynamic Range: 118dB Frequency Response: 35Hz-20KHz Total Harmonic Distortion: <0.5% at 1KHz Signal/Noise Ratio: ≥105dB Image Reject: >100dB Receiving Sensitivity: -105dBm (signal ≥12dB) Power Supply: DC12V-18V / 500mA Handheld Frequency Range: 610-698MHz Frequency Band Width: 88M RF Power: 15/30mW Max Frequency Deviation: 65KHz Microphone Type: Dynamic Directivity: Cardioid Power Requirements: 1*14500Lithium Battery or 1*1.5V AA Battery Continuous Using: 10 hours Body-pack Frequency Range: 610-698MHz Frequency Band Width: 88M RF Power: 15/30mW Max Frequency Deviation: 65KHz Microphone Type: Dynamic Directivity: Cardioid Power Requirements: 1*14500Lithium Battery or 1*1.5V AA Battery Continuous Using: 10 hours
