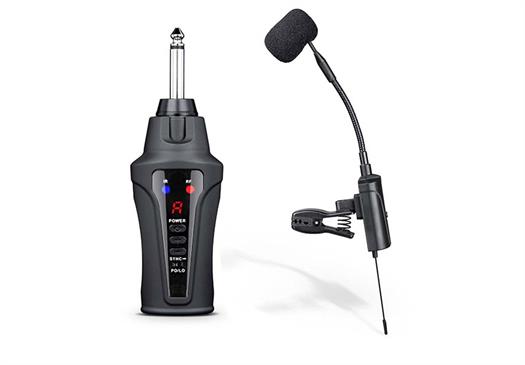

Acemic ST-5
Suitable for saxophone concerts, stage performances, street performances, etc.
Wireless microphone for saxophone
SPECIFICATIONS
UHF 600-952MHz frequency range (region-dependent)
Digital wireless audio transmission
48KHz audio sampling mode
Preset 16 selectable frequencies
Digital ID code, completely eliminates frequency interference
IR synchronisation downloads the frequency from the receiver
Lithium battery power supply
Portable plug-on receiver, connect directly to a mixer or active speaker
Up to 60 m range in a straight line.
RECEIVER Frequency range: 660-690MHz (region dependent) Frequency: Pre-set 16 selectable channels Modulation mode: pi/4 DQPSK Latency: <6ms Sampling: 48KHz Frequency response: 60Hz - 15KHz ± 2dB Total Harmonic Distortion: <0.8%(1KHz) Signal/noise ratio: >92dB Receiving sensitivity: -92dBm Output: 6.35mm plug Power supply: 3.7V Lithium battery Power consumption: >6 hours continuously using Dimensions: 185*20*10mm TRANSMITTER Frequency range:660-690MHz (region dependent) Modulation mode: pi/4 DQPSK Transmitter power: 10mW Sensitivity: -47 db±2dB Frequency change: IR synch Microphone type: Condenser Microphone dimension: Φ14*5.0mm Power supply: 3.7V lithium battery Power consumption:>6 hours continuously using Dimension: 125*40*20mm Package Dimension: 280 x 140 x 65mm
