Adam Hall Cables 5 STAR ECON CAT6 RR 10 m – Data Cables | Cat.6a (S/FTP) Neutrik etherCON®, retractable | 10 m
Description
Description
5 STAR ECON CAT6 RR – robust network connection with smart connector system
5 STAR ECON CAT6 RR is a professional network cable for demanding applications in live events, broadcasting or AV installations. Made in the EU, it combines high-quality components with well-thought-out functionality.

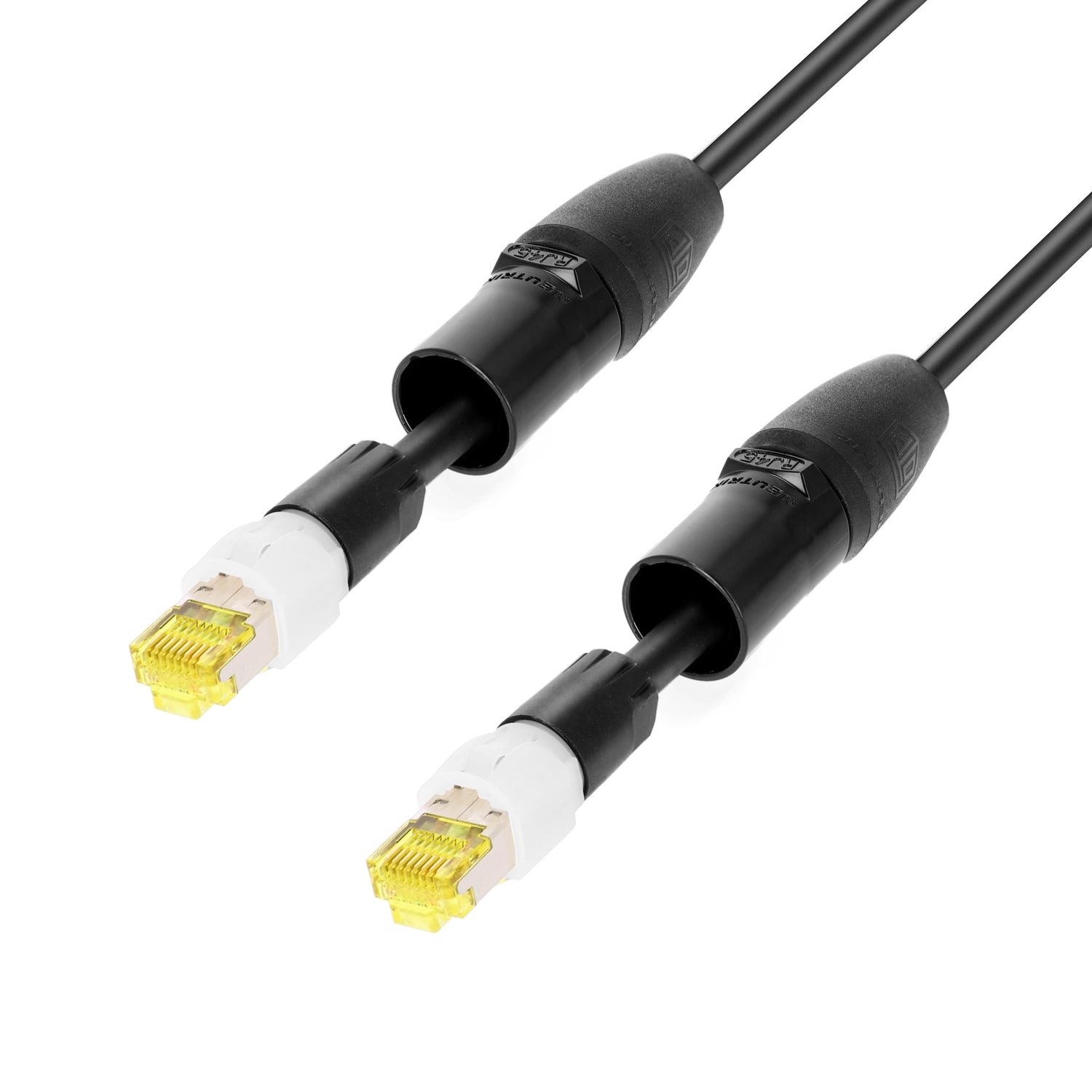

The original Neutrik etherCON® connector features a sliding housing that can be pulled back onto the cable when required, making it ideal if the RJ45 connector needs to be used briefly without the housing. The housing remains attached to the cable and cannot be lost or misplaced.
Inside, a high-quality Draka® Cat.7a cable with four individually shielded, twisted pair conductor pairs (S/FTP) ensures reliable data transmission with high resistance to interference.
Technical specifications
Technical specifications
- Professional network cable from the 5 STAR SERIES
- Made in the EU
- Original Neutrik etherCON® connector with sliding housing – for the temporary use of the RJ45 connector without the housing
- Integrated housing guide prevents loss of the etherCON housing
- High-quality Draka® Cat.7a cable for reliable high-speed transmission
- Four individually shielded, twisted wire pairs (S/FTP) for maximum interference resistance
General
| Cable length | 10 m |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 6.4 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | RJ-45 with housing & etherCON® |
| Model name plug 1 | Neutrik NE8MXR-B-TOP |
| Protection class plug 1 | IP65 |
| Connector type plug 2 | RJ-45 with housing & etherCON® |
| Model name plug 2 | Neutrik NE8MXR-B-TOP |
| Protection class plug 2 | IP65 |
Line
| Cat. standard | Cat.6a |
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 8 x 0,14 mm² |
| Shielding structure | S/FTP |
Environmental
| Ambient temperature | -40 - 70 °C |
Dimensions & weight
| Weight | 715 g |
