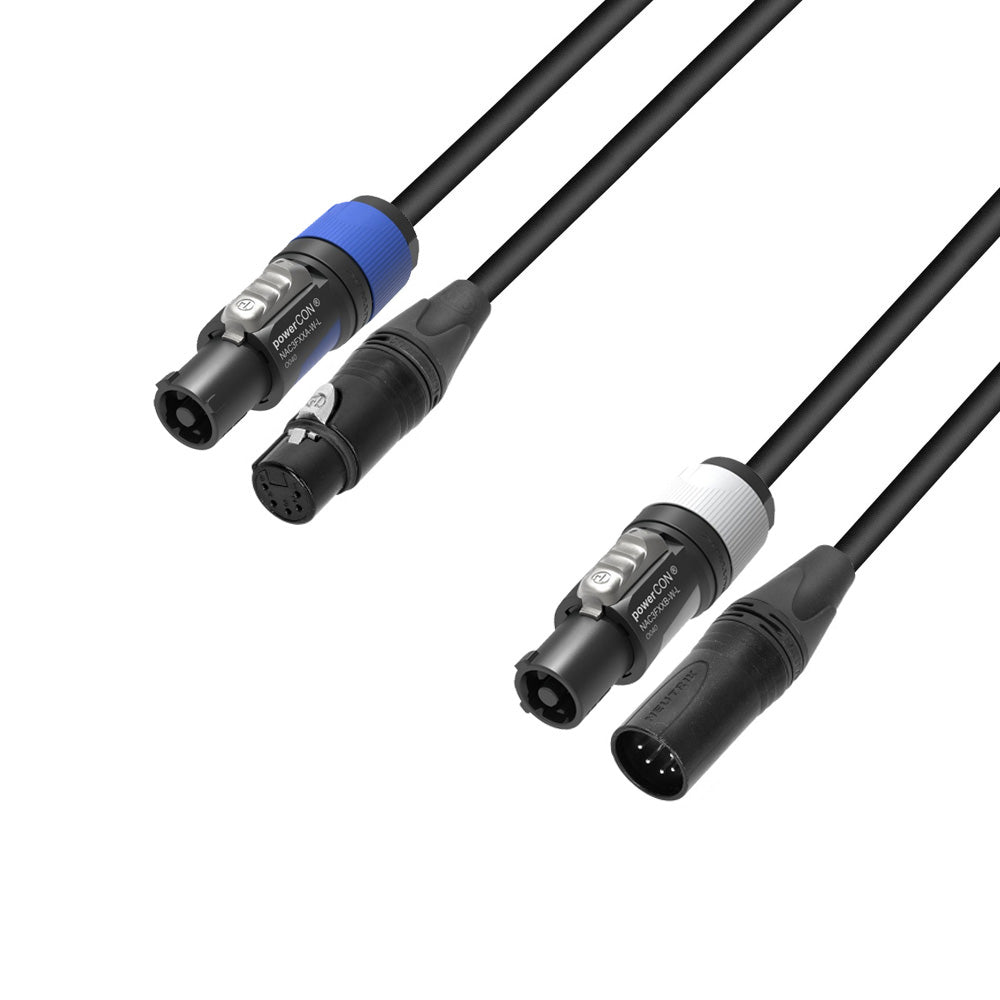

Adam Hall Cables 5 STAR H PCON 5D 0300 - Hybrid Cable | Power and DMX | Neutrik® 5-pole XLR x powerCON® | 3 m
Description
Description
Upgrade your lighting setup with our cutting-edge Hybrid DMX & power cable from our 5 STAR SERIES. This versatile cable is designed for professional lighting engineers and enables simultaneous transmission of DMX signals and power, streamlining your rig and ensuring a flawless performance.
Efficient and tidy setups call for this smart cable, which is perfect for connecting two Cameo AURO® SPOT Z300 for example. Equipped with genuine Neutrik® premium connectors, known for their durability and superior signal transmission values, minimizing signal loss and voltage drop.
Whether you're setting up for a concert, a theatre production, or an event that requires advanced lighting control, our Hybrid DMX and power transmission cable is the ultimate solution for efficiency and reliability. Rely on its European craftsmanship and quality to keep your show running smoothly.
Technical specifications
Technical specifications
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use NC5FXX-BAG & NC5MXX-BAG for the DMX line and the power line will be provided by the Neutrik powerCON® connectors NAC3FXXA-W & NAC3FXXB-W
- The powerCON® connectors are pluggable under load, and are therefore compliant to the highest standards
- The line with 0.22 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 3 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 5-pole female |
| Model name plug 1 | Neutrik NC5FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 5-pole male |
| Model name plug 2 | NC5MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,22 mm² |
| AWG | 24 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug indoor power in female & powerCON® |
| Model name connector 1 | Neutrik NAC3FXXA-W-L |
| Plug type connector 2 | Mains plug indoor power out female & powerCON® |
| Model name connector 2 | Neutrik NAC3FXXB-W-L |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 830 g |
