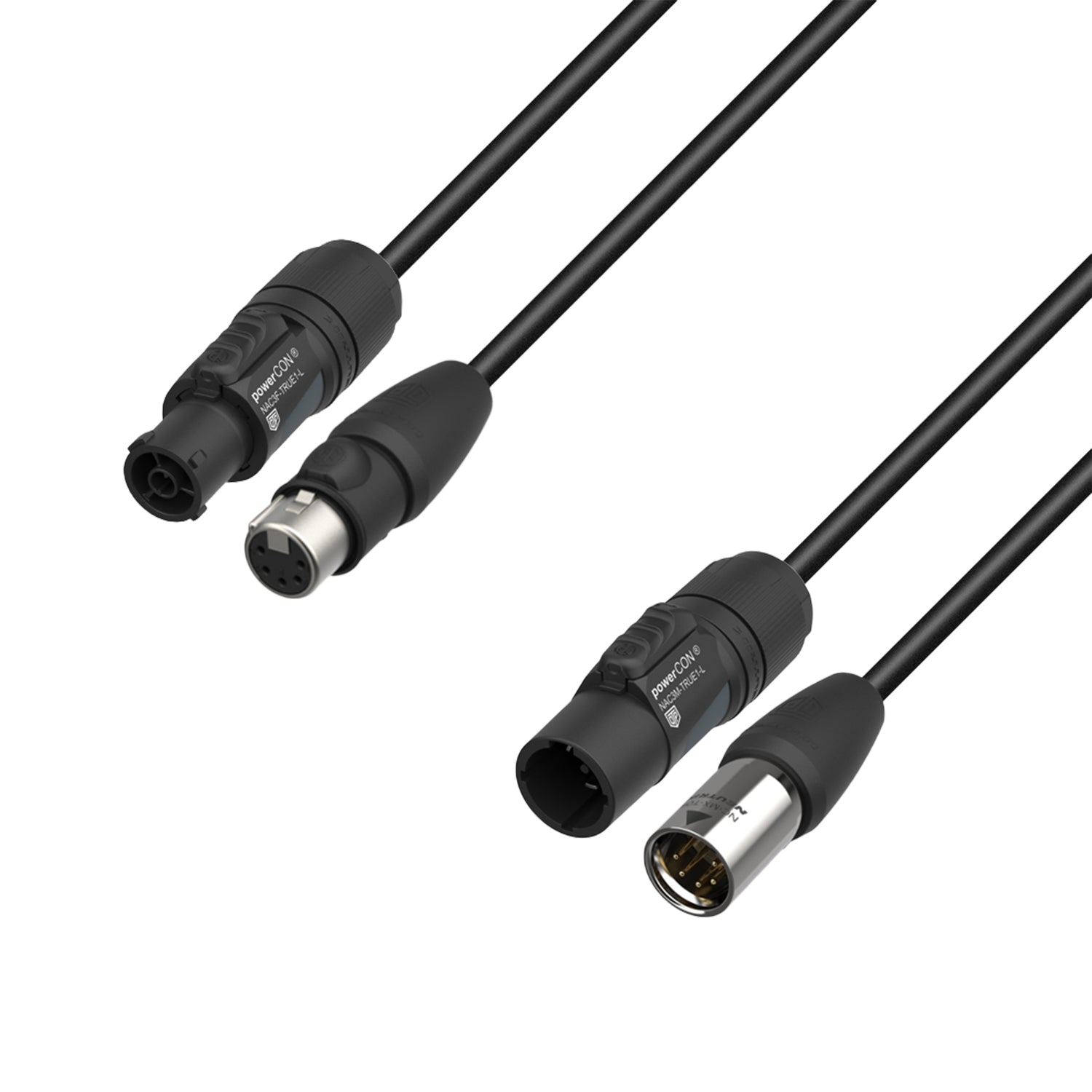

Adam Hall Cables 5 STAR H TCON 5D 1000 IP65 - Hybrid Cable | Power & DMX | Neutrik® XLR 5-pole IP65 x TRUE1® | 10 m
Upgrade your lighting setup with our state-of-the-art hybrid DMX and power cable from our 5 STAR SERIES. This versatile cable is designed for professional lighting technicians and enables simultaneous transmission of DMX signals and power, streamlining your rig and ensuring a smooth show.
Efficient and tidy setups call for this smart cable, which is perfect for connecting two Cameo OTOS H5 for example. Equipped with genuine Neutrik® premium connectors, renowned for their durability and outstanding signal transmission performance, it minimises signal loss and voltage drop.
Whether you are setting up for a concert, theatre production or any event that requires advanced lighting control, our hybrid DMX and power cable for transmission is the ultimate solution for efficiency and reliability. Rely on its European craftsmanship and quality to keep your show running smoothly.
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use the IP rated XLR plugs for the DMX line and the power will be provided by the NeutrikTRUE1® connectors
- The XLR connectors such as the TRUE1 connectors are IP65 rated. The TRUE1 is pluggable under load. Furthermore, they are compliant to the highest standards
- The line with 0.34 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 10 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 5-pole female |
| Model name plug 1 | Neutrik NC5FX-TOP |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 5-pole male |
| Model name plug 2 | Neutrik NC5MX-TOP |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Wave impedance | 120 Ω |
| Shielding | Braided copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1 |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1 |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Protection class | IP65 |
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 1.4 kg |
