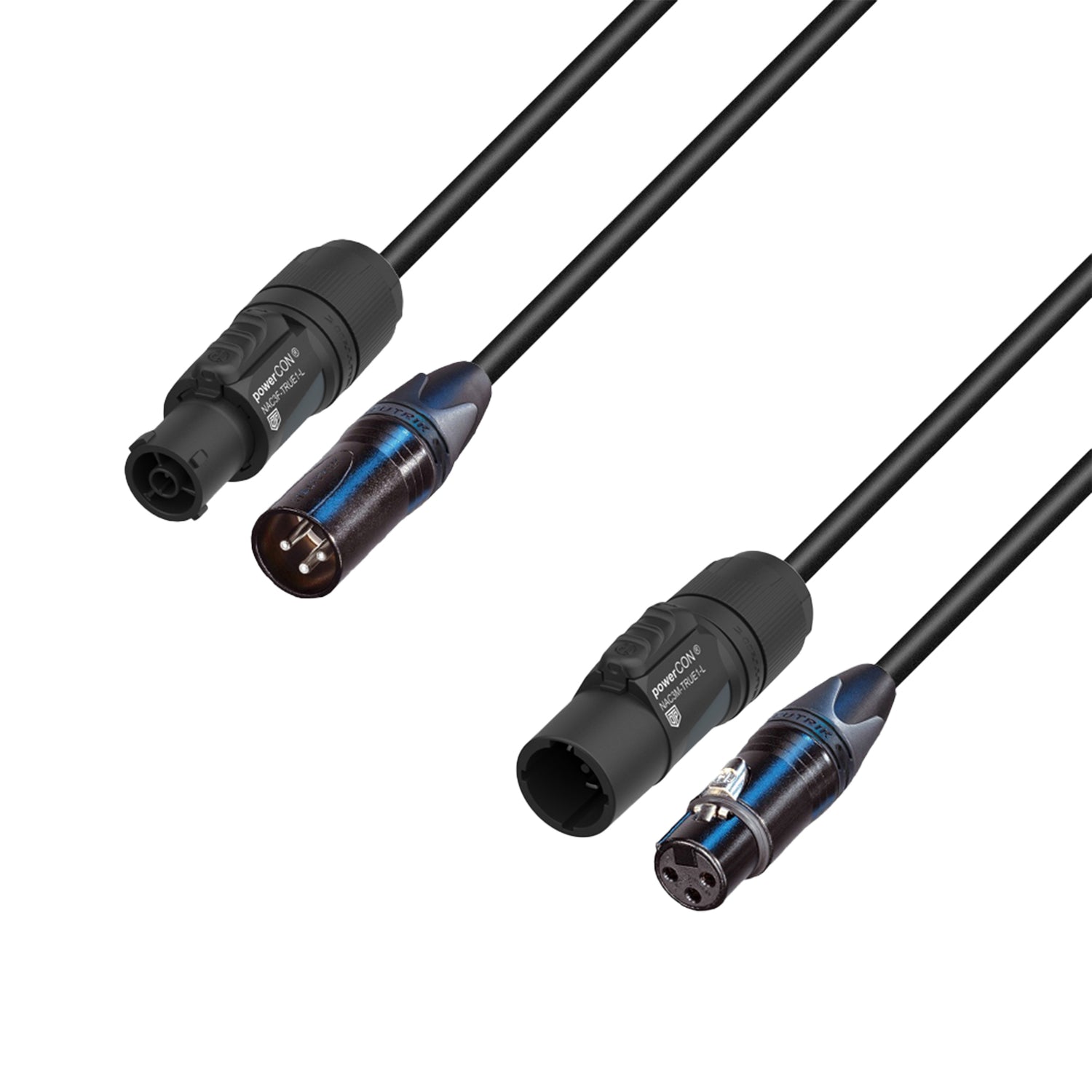

Adam Hall Cables 5 STAR H TCON A 0300 - Hybrid cable audio | Neutrik® XLR x TRUE1® | 3 m
Description
Description
5 STAR H TCON A is a premium hybrid cable from the Adam Hall 5 STAR SERIES, developed for professional applications where first-class quality and reliability are essential. By transmitting audio and power signals simultaneously, it enables efficient cable routing and reduces cable clutter – perfect for live events, theatre productions and permanent installations.
5 STAR H TCON A is built with high-quality components to ensure optimum signal transmission and long-term durability. It is equipped with genuine Neutrik® connectors, known for outstanding reliability and long service life. The XLR connectors feature silver-plated contacts, ensuring excellent signal quality and minimising losses. For power transmission, a Neutrik TRUE1® connector is used, which can be connected under load, is standard-compliant and IP67-certified for protection against dust and water.
The cable has a conductor cross-section of 0.34 mm² for audio and 2.5 mm² for power, making it ideal for professional use. Its flexible PVC jacket, made from a special soft-PVC compound, offers high durability while remaining easy to handle. The package also includes a hook-and-loop cable tie as well as two transparent heat-shrink tubes for individual labelling.
Whether for a concert, a theatre production or an event with demanding audio management, 5 STAR H TCON A ensures minimal signal loss and reduced voltage drop for reliable performance. Developed in Germany and produced in the EU, it meets the highest standards and guarantees an uncompromising show.
Technical specifications
Technical specifications
- Hybrid cable for simultaneous audio and power transmission from our 5 STAR SERIES
- Original Neutrik® connectors for maximum quality and reliability
- XLR connectors with silver-plated contacts for optimal signal transmission
- Neutrik TRUE1® power connector – pluggable under load, standard-compliant, IP67-certified
- Conductor cross-sections: 0.34 mm² for audio, 2.5 mm² for power
- Flexible PVC jacket made from a special soft-PVC compound
- Includes accessories: Velcro cable tie and two transparent heat-shrink tubes for labelling
- Ideal for professional audio setups (e.g. connecting LD Systems MAILA systems)
- Developed by the Adam Hall Cables® crew in Germany, manufactured in the EU
General
| Cable length | 3 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole male |
| Model name plug 1 | Neutrik NC3MXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole female |
| Model name plug 2 | Neutrik NC3FXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1-L |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1-L |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Dimensions & weight
| Weight | 997 g |
