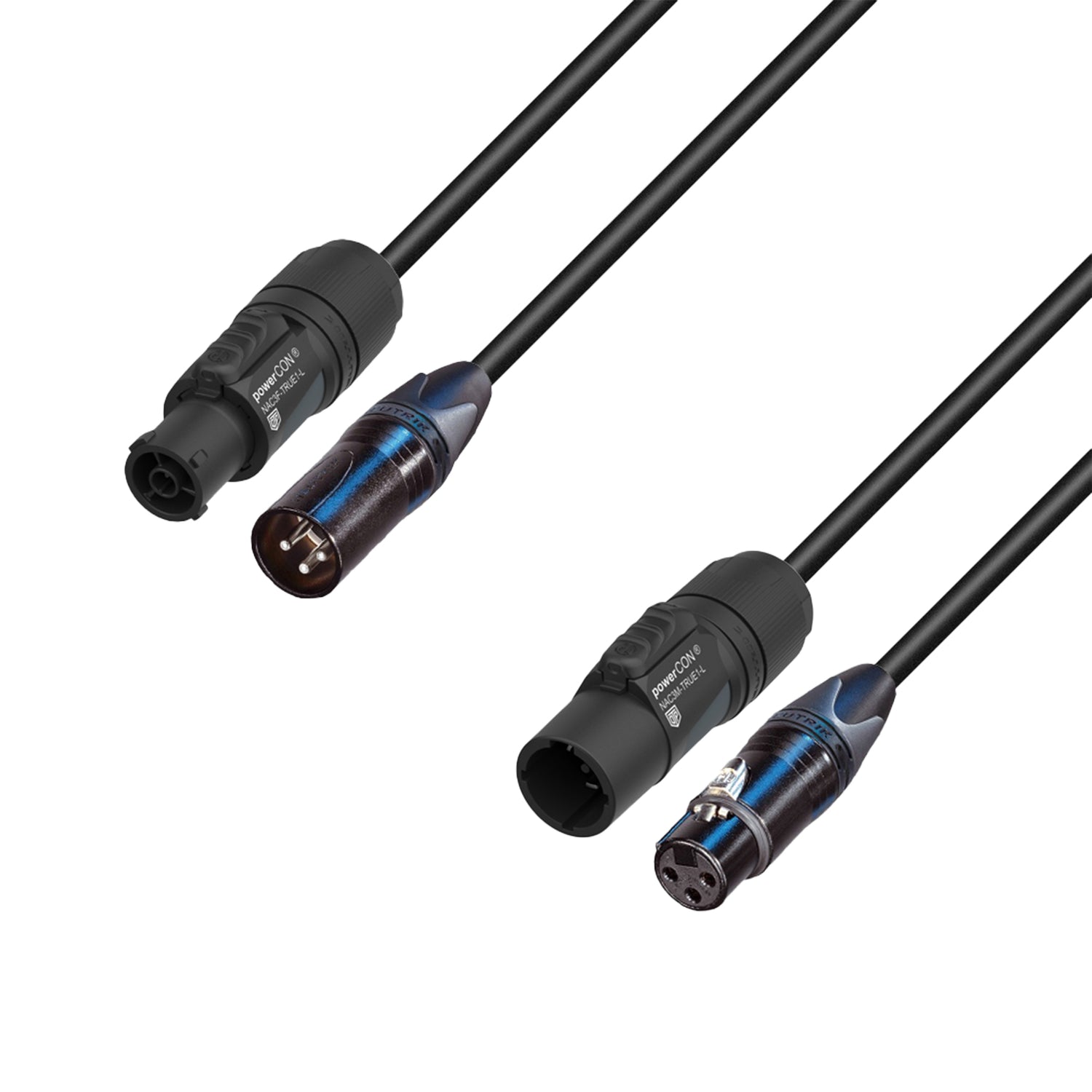

Adam Hall Cables 5 STAR H TCON A 1000 - Hybrid cable audio | Neutrik® XLR x TRUE1® | 10 m
Description
Description
5 STAR H TCON A is a premium hybrid cable from the Adam Hall 5 STAR SERIES, designed for professional applications where top-tier quality and reliability are essential. By transmitting audio and power signals simultaneously, it enables efficient cabling and reduces cable clutter – perfect for live events, theatre productions and permanent installations.
5 STAR H TCON A is built with premium components to ensure optimal signal transmission and long-lasting durability. It is equipped with genuine Neutrik® connectors, known for their outstanding reliability and long service life. The XLR connectors feature silver-plated contacts to ensure excellent signal quality and minimise losses. For power transmission, a Neutrik TRUE1® connector is used, which can be connected under load, is standard-compliant and IP67-certified for protection against dust and water.
The cable has a conductor cross-section of 0,34 mm² for audio and 2,5 mm² for power, making it ideal for professional use. Its flexible PVC jacket, made from a special soft-PVC compound, provides high durability while remaining easy to handle. The package also includes a hook-and-loop cable tie and two transparent heat-shrink tubes for individual labelling.
Whether for a concert, a theatre production or an event with demanding audio routing, 5 STAR H TCON A ensures minimal signal loss and reduced voltage drop for reliable performance. Developed in Germany and manufactured in the EU, it meets the highest standards and guarantees a smooth show without compromise.
Technical specifications
Technical specifications
- Hybrid cable for simultaneous audio and power transmission from our 5 STAR SERIES
- Original Neutrik® connectors for maximum quality and reliability
- XLR connectors with silver-plated contacts for optimal signal transmission
- Neutrik TRUE1® power connector – pluggable under load, standard-compliant, IP67-certified
- Conductor cross-sections: 0.34 mm² for audio, 2.5 mm² for power
- Flexible PVC jacket made from a special soft-PVC compound
- Includes accessories: Velcro cable tie and two transparent heat-shrink tubes for labelling
- Ideal for professional audio setups (e.g. connecting LD Systems MAILA systems)
- Developed by the Adam Hall Cables® crew in Germany, manufactured in the EU
General
| Cable length | 10 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole male |
| Model name plug 1 | NC3MXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole female |
| Model name plug 2 | NC3FXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1-L |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1-L |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Dimensions & weight
| Weight | 3.01 kg |
