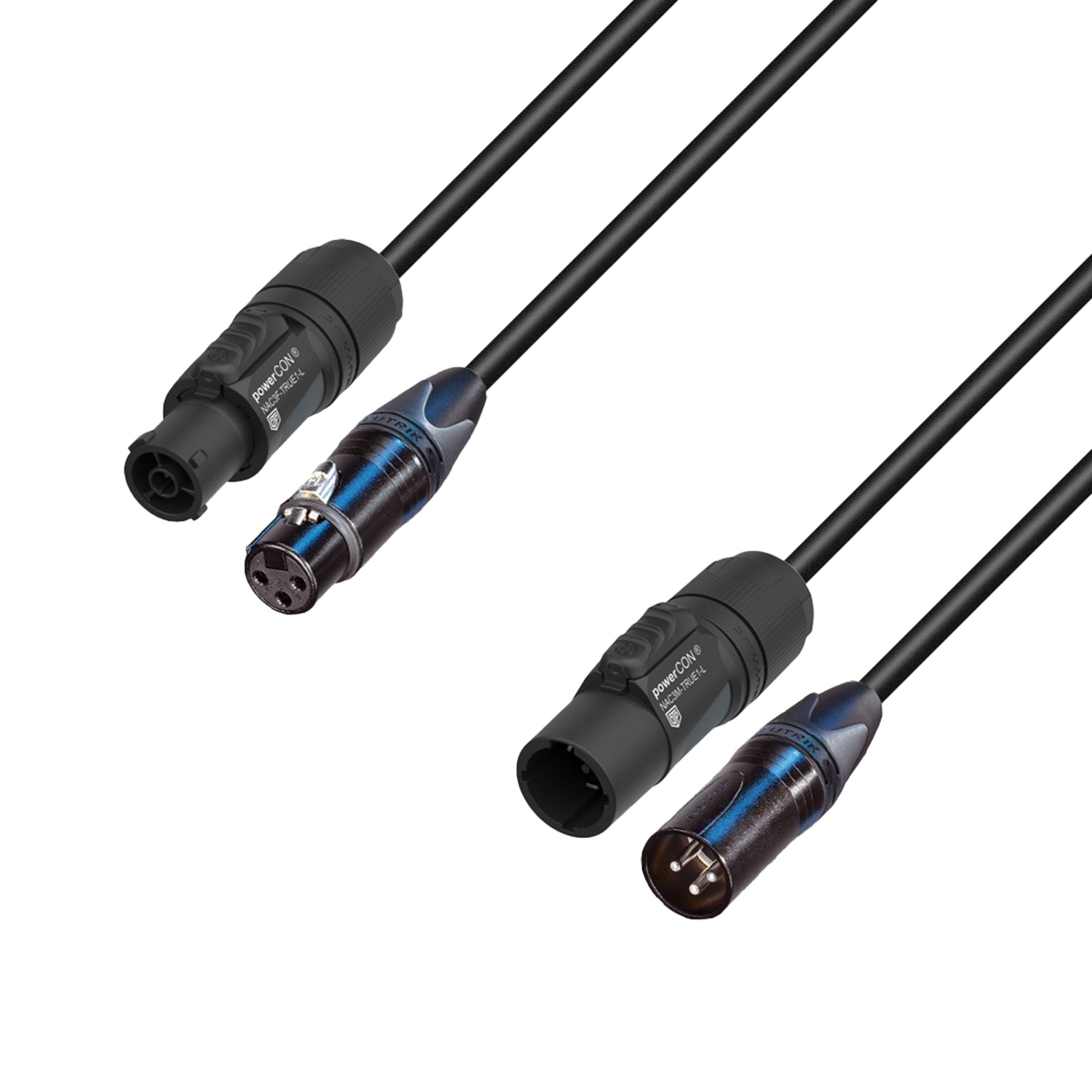

Adam Hall-kabler 5 STAR H TCON D 0150 - Hybrid Cable | Power and DMX | Neutrik® XLR 3-pole x TRUE1® | 1,5 m
Description
Description
Upgrade your lighting setup with our cutting-edge Hybrid DMX & power cable from our 5 STAR SERIES. This versatile cable is designed for professional lighting technicians and enables simultaneous transmission of DMX signals and power, allowing you to streamline your setup and ensure smooth operation.
Efficient, tidy setups call for this smart cable, which is perfect for connecting two Cameo OTOS® S5 units, for example. Fitted with original Neutrik® premium connectors, renowned for their durability and excellent signal transmission, helping to minimise signal loss and voltage drop.
Whether you're setting up for a concert, theatre production or an event requiring advanced lighting control, our hybrid cable for DMX and power transmission is the ultimate solution for efficiency and reliability. Rely on its European craftsmanship and quality to keep your show running smoothly.
Technical specifications
Technical specifications
- This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use 3-pole XLR for the DMX line and the power line will be provided by the Neutrik TRUE1® connectors
- The TRUE1 connectors are IP rated and pluggable under load. Furthermore, they are compliant to the highest standards
- The line with 0.34 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany and is made in the EU
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 1.5 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole female |
| Model name plug 1 | Neutrik NC3FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole male |
| Model name plug 2 | Neutrik NC3MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,34 mm² |
| AWG | 22 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug device outdoor female & TRUE1® |
| Model name connector 1 | Neutrik NAC3F-TRUE1 |
| Plug type connector 2 | Mains plug device outdoor male & TRUE1® |
| Model name connector 2 | Neutrik NAC3M-TRUE1 |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 430 g |
