Superior quality with high-level performance

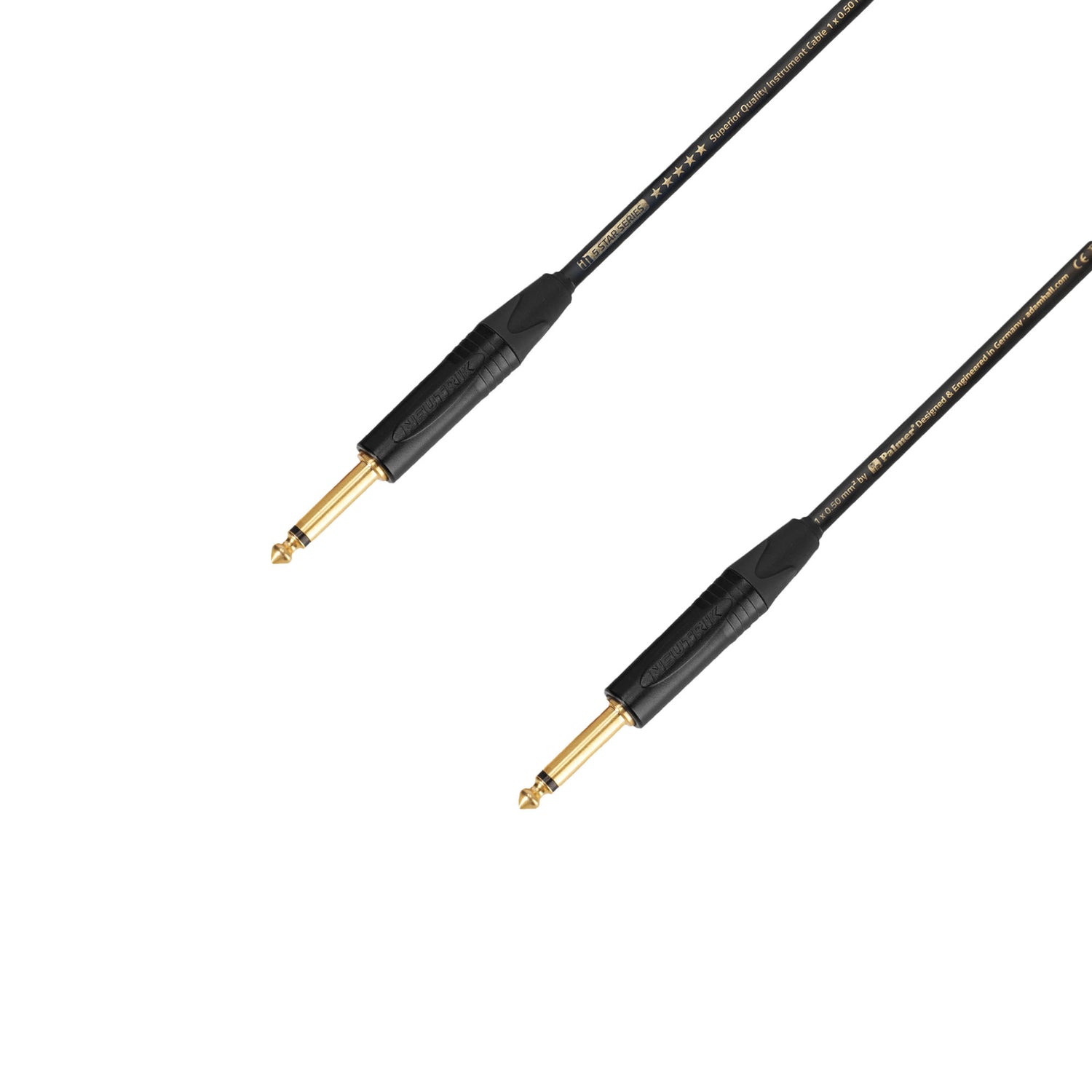

This "Adam Hall Cables" 5 STAR product is a professional cable that delivers outstanding sound quality for the most demanding musicians.
With a focus on musicians seeking the full sound spectrum from their beloved instruments, our team at Palmer® developed this cable with ultra-low resistance and low capacitance, as well as a braided shield that avoids magnetic interference by almost 100%. The result of this collaboration between Adam Hall Cables and Palmer® is an uncoloured and balanced sound!
To achieve this superior quality, we use only original Neutrik® connectors with gold-plated contacts. Palmer® products as well as Adam Hall Cables are engineered in Germany.
Technical specifications
Technical specifications
- Made in EU
- Engineered in Germany by our Palmer® crew
- Extra large conductor cross-section of 0.50 mm² (AWG20) for max capacitance values
- No signal transmission interferences thanks to its tin-plated copper braided shielding, with 100% shielding factor
- The original Neutrik® connectors with gold-plated contacts for ensuring long-life plugging cycles
- Conductive PE insulation of 2.40 mm
- Additional protective insulation
- Very robust soft-PVC jacket
General
| Cable length | 4.5 m |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 7 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | 6.3 mm Jack TS |
| Model name plug 1 | Neutrik NP2X-B |
| Contact material plug 1 | Gold plated |
| Connector type plug 2 | 6.3 mm Jack TS |
| Model name plug 2 | Neutrik NP2X-B |
| Contact material plug 2 | Gold plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 1 x 0,50 mm² |
| Capacity/m | 78 pF |
| Conductor impedance/km | 39 Ohm |
| Shielding | Braided copper shielding |
Environmental
| Ambient temperature | -20 - 70 °C |
Dimensions & weight
| Weight | 246 g |
