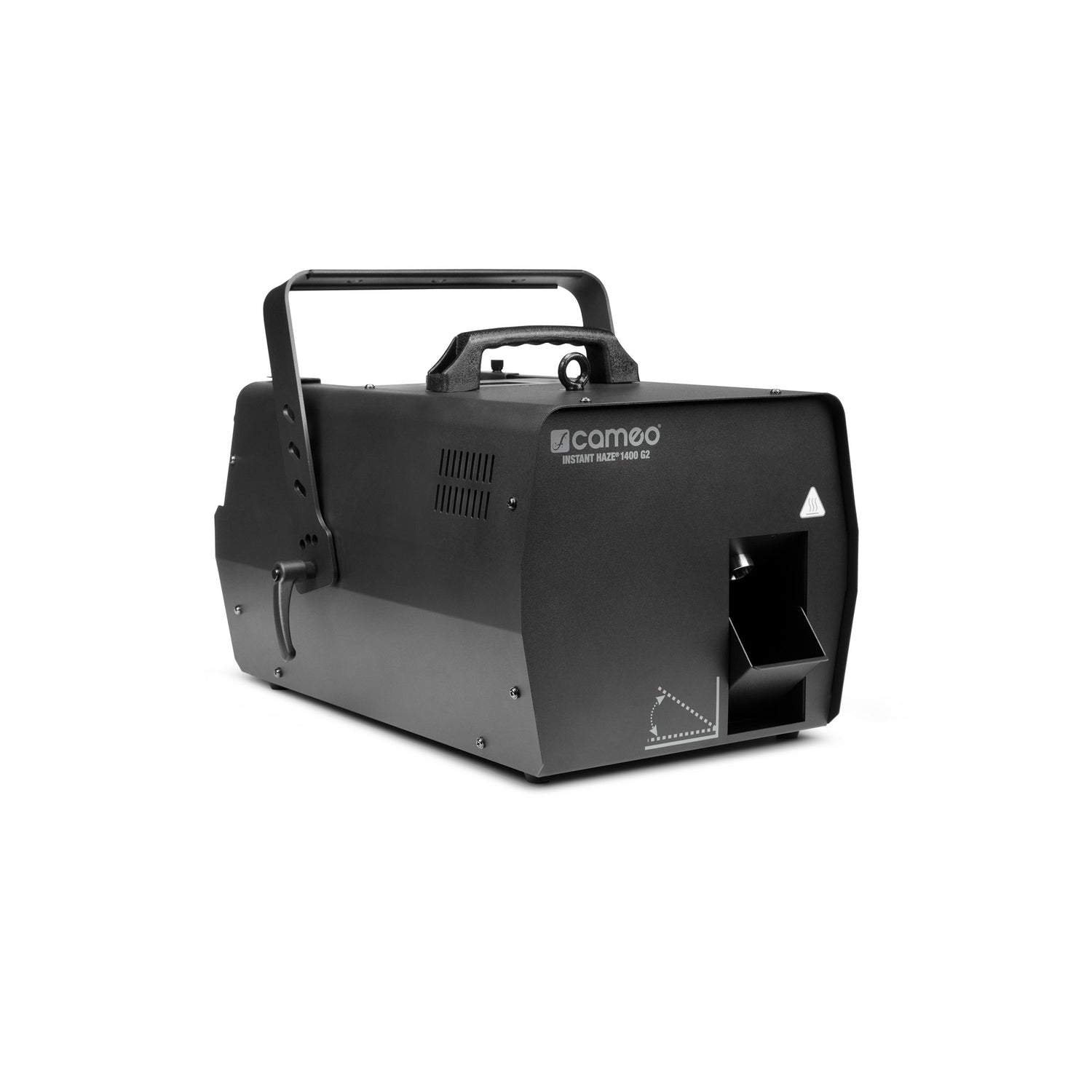

With a maximum fluid consumption of only 9 ml per minute, an extremely short warm-up time of under one minute and ultra-quiet operation, the INSTANT HAZE 1400 G2 from Cameo’s Instant series is ideal for discos, live events, theatre, TV and film.
The highly efficient, microprocessor-controlled hazer features a durable vaporiser tube made of austenitic stainless steel and an automatic self-cleaning system that prevents deposits and minimises maintenance. The haze output can be adjusted continuously without reheating and – like the fan speed – in 1% increments, making it suitable for stages and rooms of all sizes.
In addition to its proven performance, the INSTANT HAZE 1400 G2 has been optimised for even greater ease of use: the intuitive touch display enables particularly fast and easy operation directly on the unit. The removable powerCON TRUE1 connection is also integrated for a secure power connection and flexible handling.

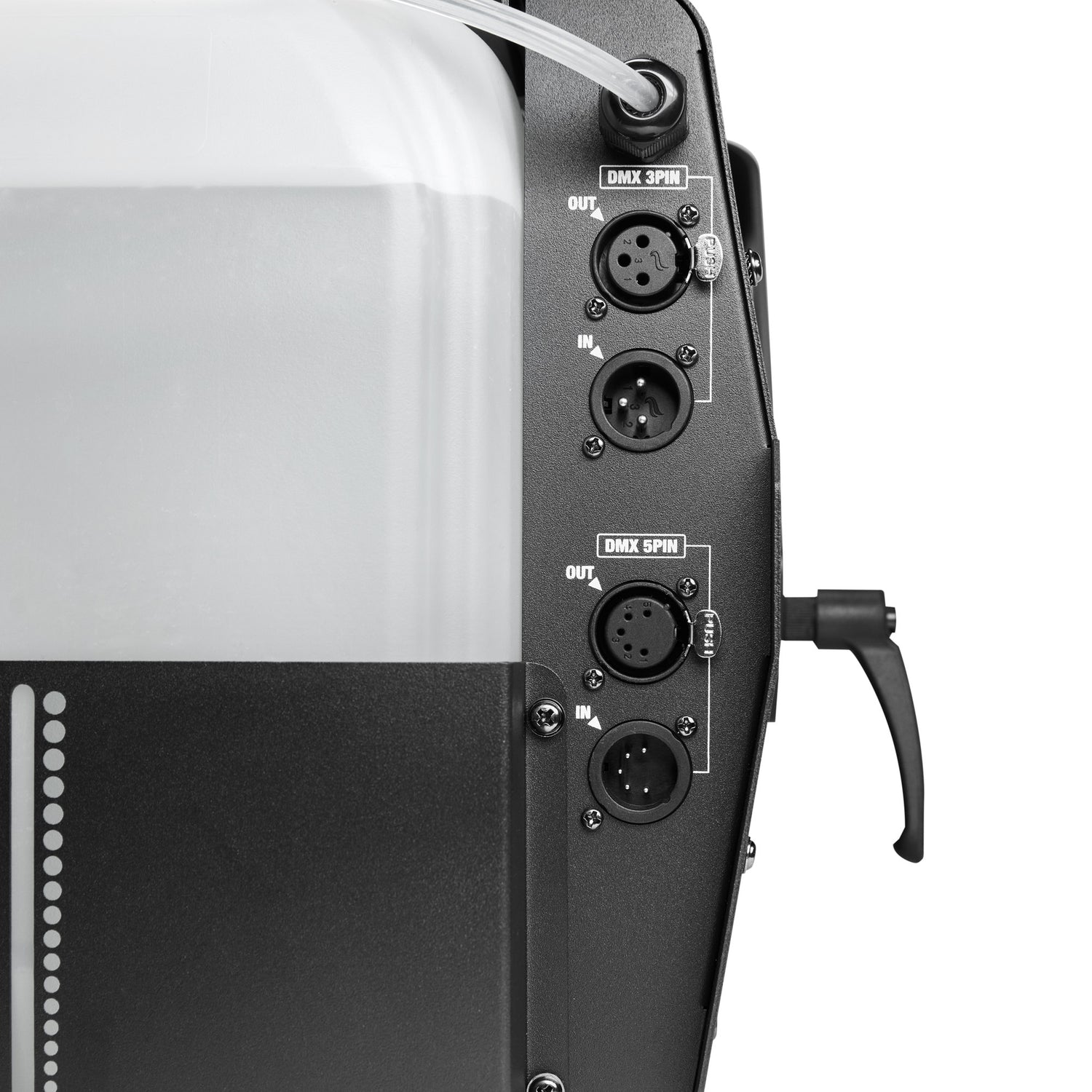

The INSTANT HAZE 1400 G2 can be controlled via DMX in 2-channel mode and can be used as a standalone unit. It is equipped with 3- and 5-pin DMX inputs and outputs and features a robust design with an opening for fluid canisters up to 5 litres. The unit is protected against overheating.
For optimum results, use Cameo Instant Haze Fluid, which has been developed specifically for Cameo hazers. Using other fluids will void the warranty and may damage the unit.
- Microprocessor-controlled 1,500-watt hazer

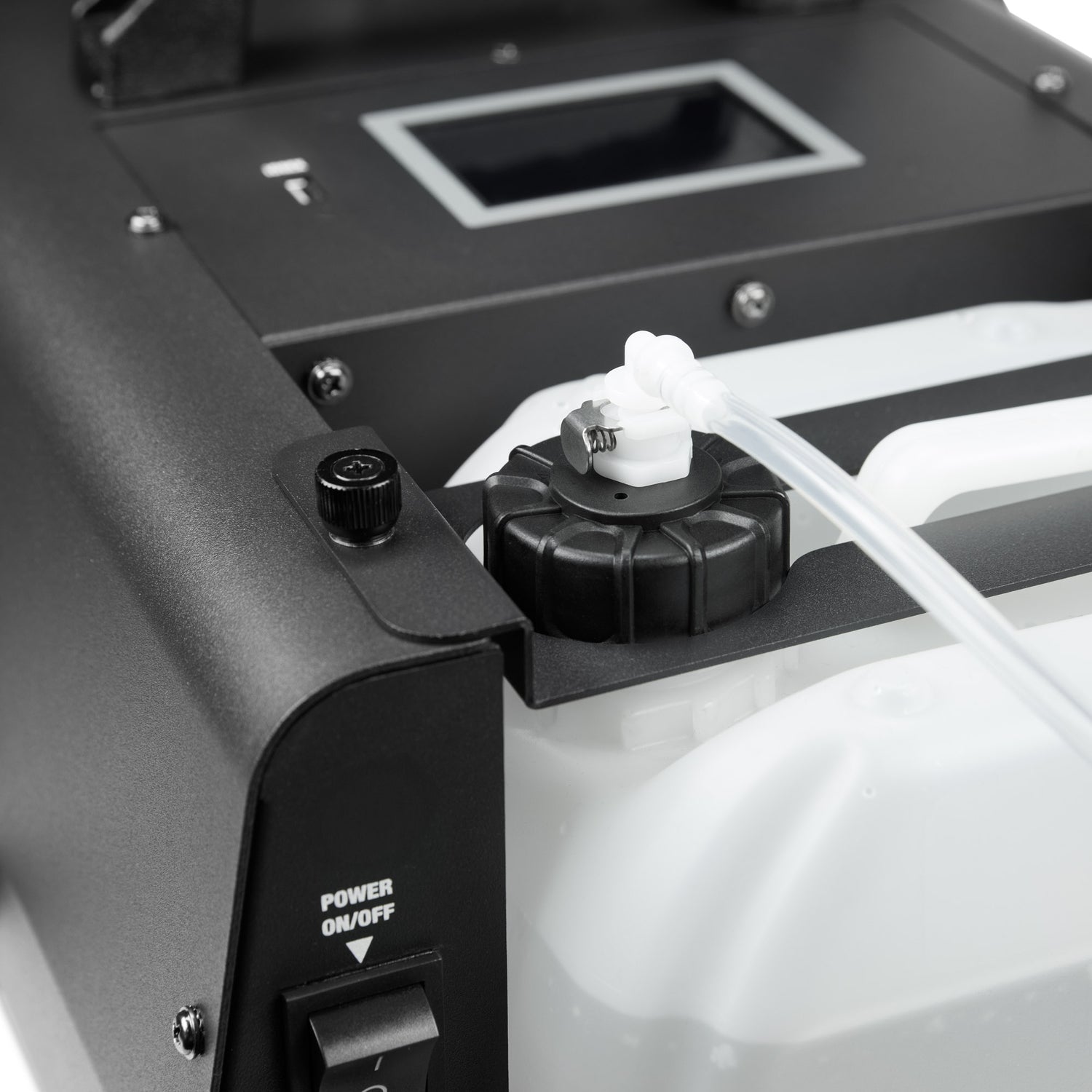

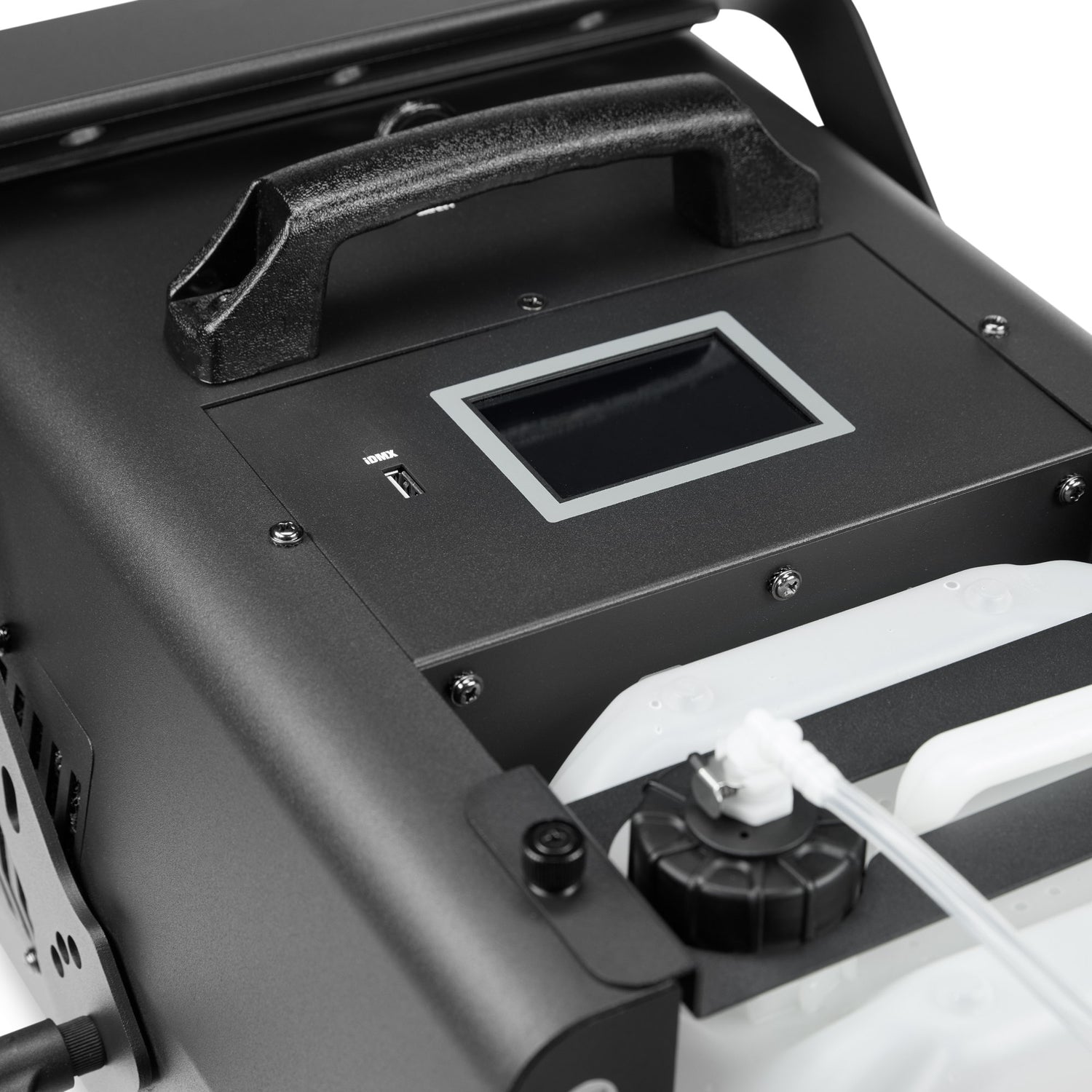

- Intuitive touch display for particularly easy operation
- Detachable powerCON TRUE1 connection for flexible and secure power connection
- Durable stainless steel evaporation tube
- Automatic self-cleaning to prevent deposits
- Output and fan individually adjustable at 1% levels
- 2-channel DMX control and stand-alone function

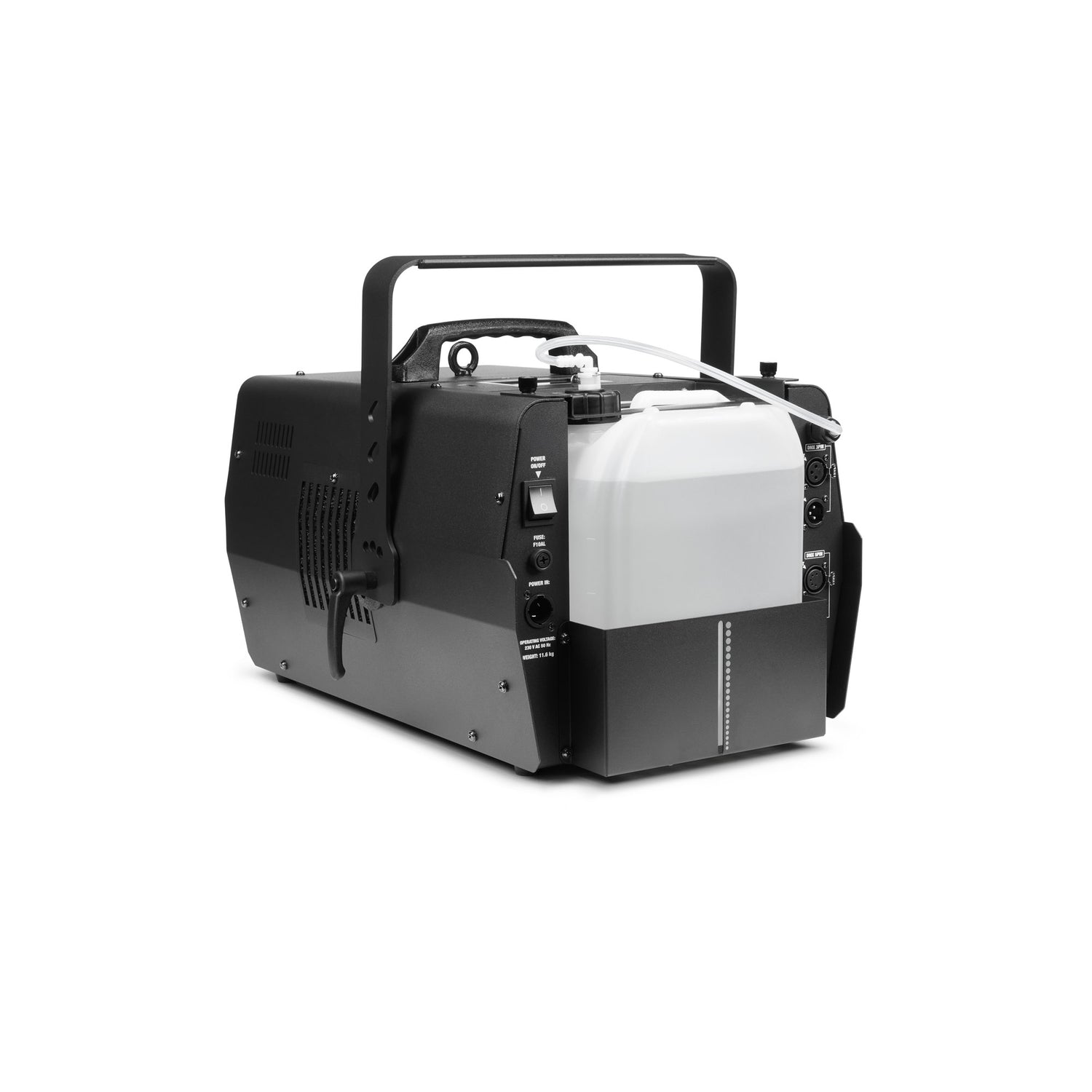

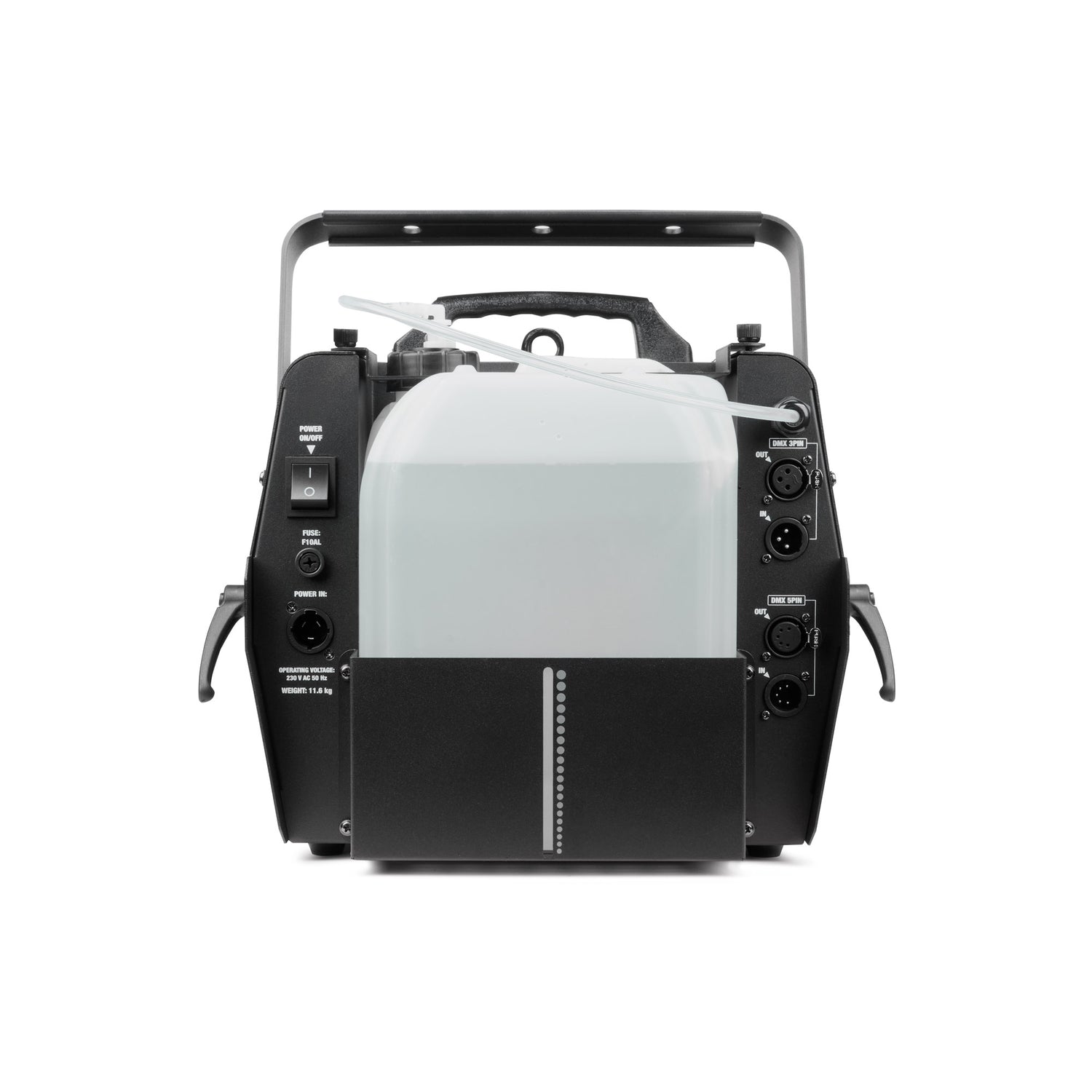

- Integrated slot for fluid canisters up to 5 l
- Ultra-silent operation – ideal for noise-sensitive applications
- Perfect for TV, film, theatre, discos and live events
- Enhances the effect of any light show with a fine, long-lasting haze
General
| Colour | Black |
Control
| Operating modes | DMX512 |
| Number of DMX control modes | 2 |
| Stand alone operating modes | Stand-alone |
| Stand alone operating modes | Timer function |

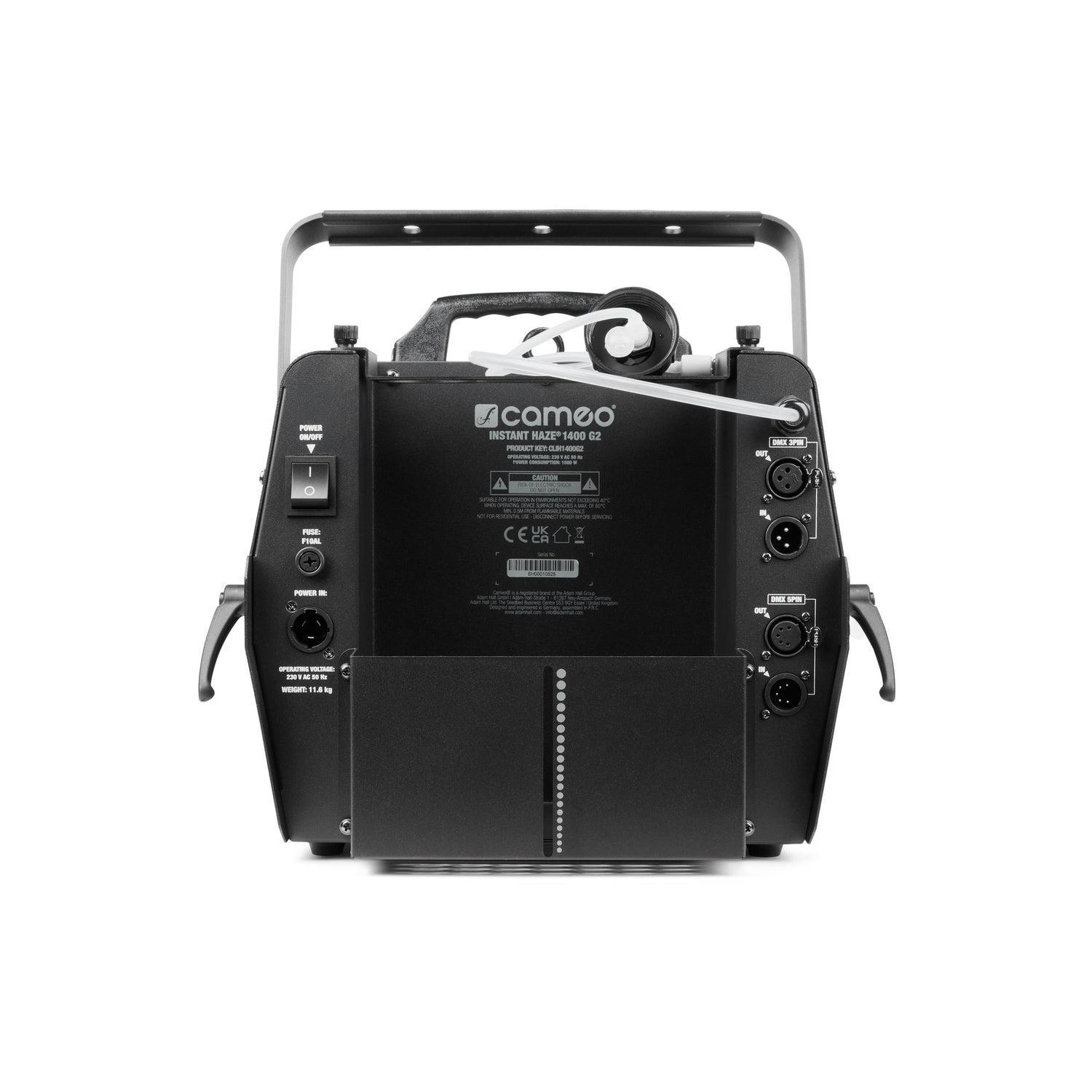

| Data in connector | XLR 3-pole male |
| Data in connector | XLR 5-pole male |
| Data out connector | XLR 3-pole female |
| Data out connector | XLR 5-pole female |
Mains operation
| Operation voltage | 230 V AC / 50 Hz |
| Rated power | 1,500 W |
| Inrush current | 32 A / 0.03 ms @230 V (first half cycle) |

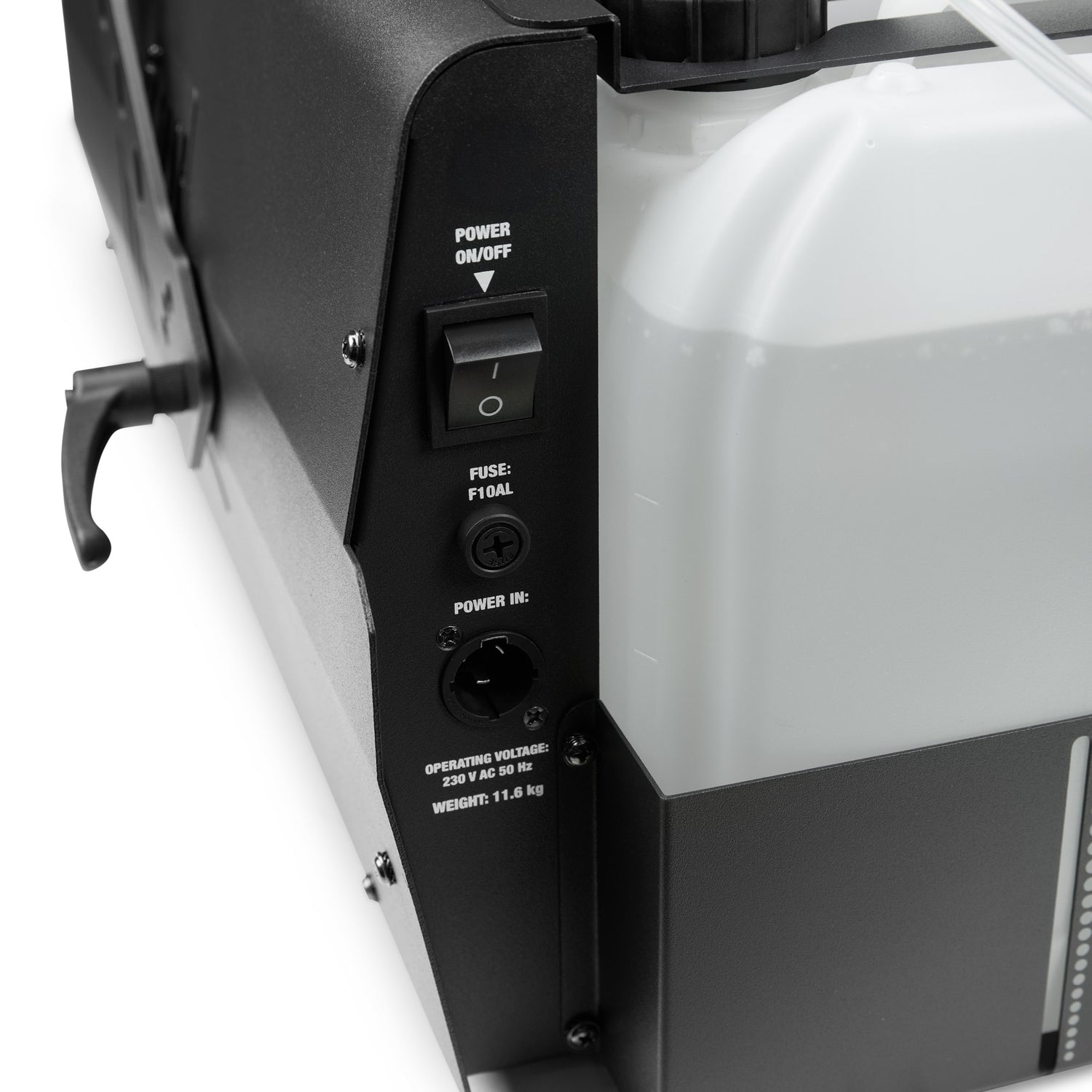

| Mains connector | Mains plug device outdoor male & TRUE1® |
| Mains fuse | F10AL/250 V |
| Fuse replacement | Possible from the outside without opening |
| Power out connector | Mains plug device outdoor female & TRUE1® |
Housing
| Chassis material | Metal |
Environmental
| Protection class | IP20 |
| Ambient temperature | 5 - 45 °C |
Dimensions & weight
| Width | 400 mm |
| Height | 358 mm |
| Depth | 520 mm |
| Weight | 11.6 kg |
Other properties
| Included Accessories | Mains cable |
| Included Accessories | Mounting bracket |
