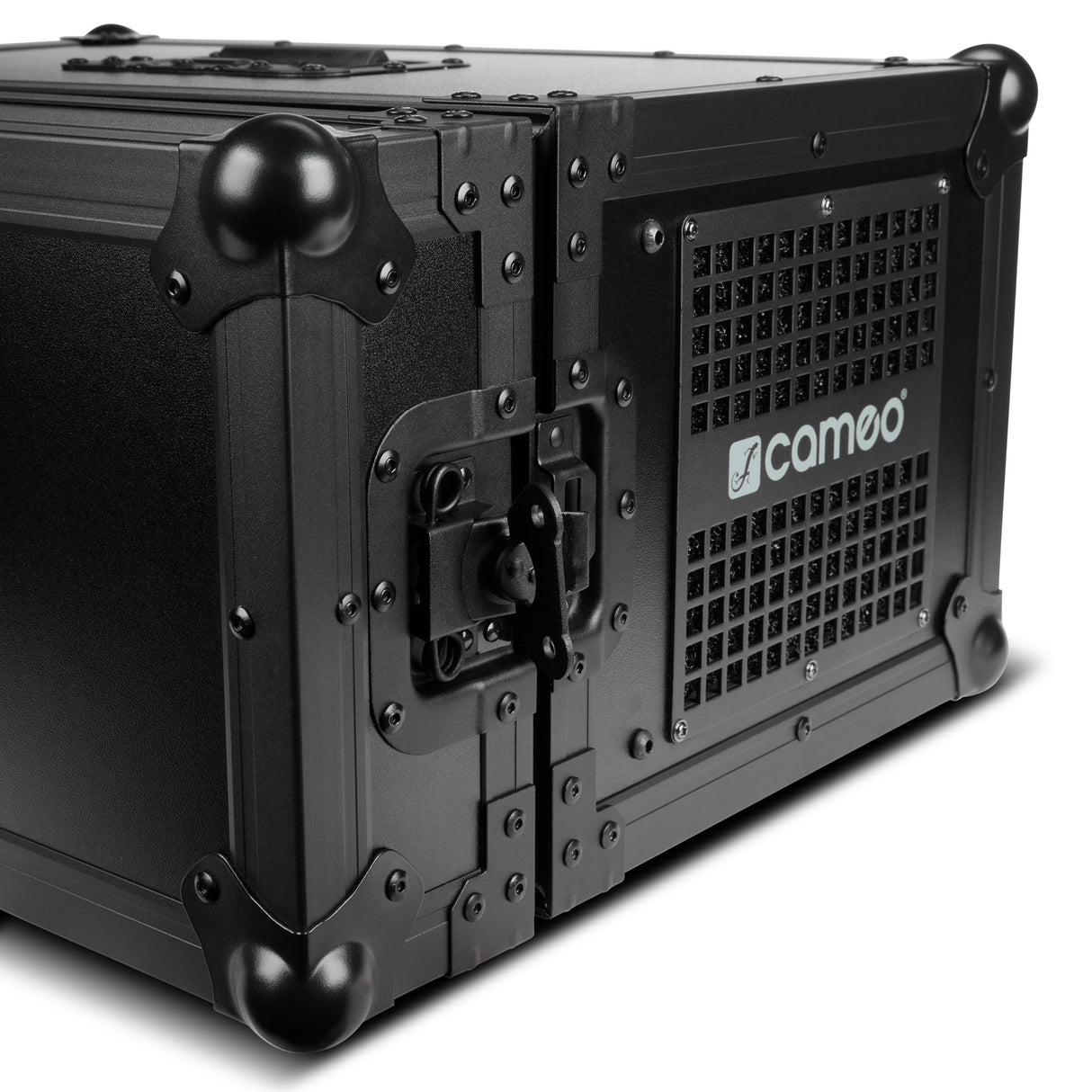

Cameo INSTANT HAZE 1500 T G2 - Touring hazer with microprocessor control
1
of
10
Loading...
€1.107,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Antari Z-350 Fazer
€440,95
-
LIGHT4ME 1200 Fazer
€245,95
-
LIGHT4ME FAZE 500W
€168,95
-
EUROLITE NH-110 Tour Hazer
€582,95
-
Eurolite N-130 Tour Fogger
€774,95
Cameo INSTANT HAZE 1500 T G2 - Touring hazer with microprocessor co...
€1.107,95
Unit price
/
Not available
Description
Description

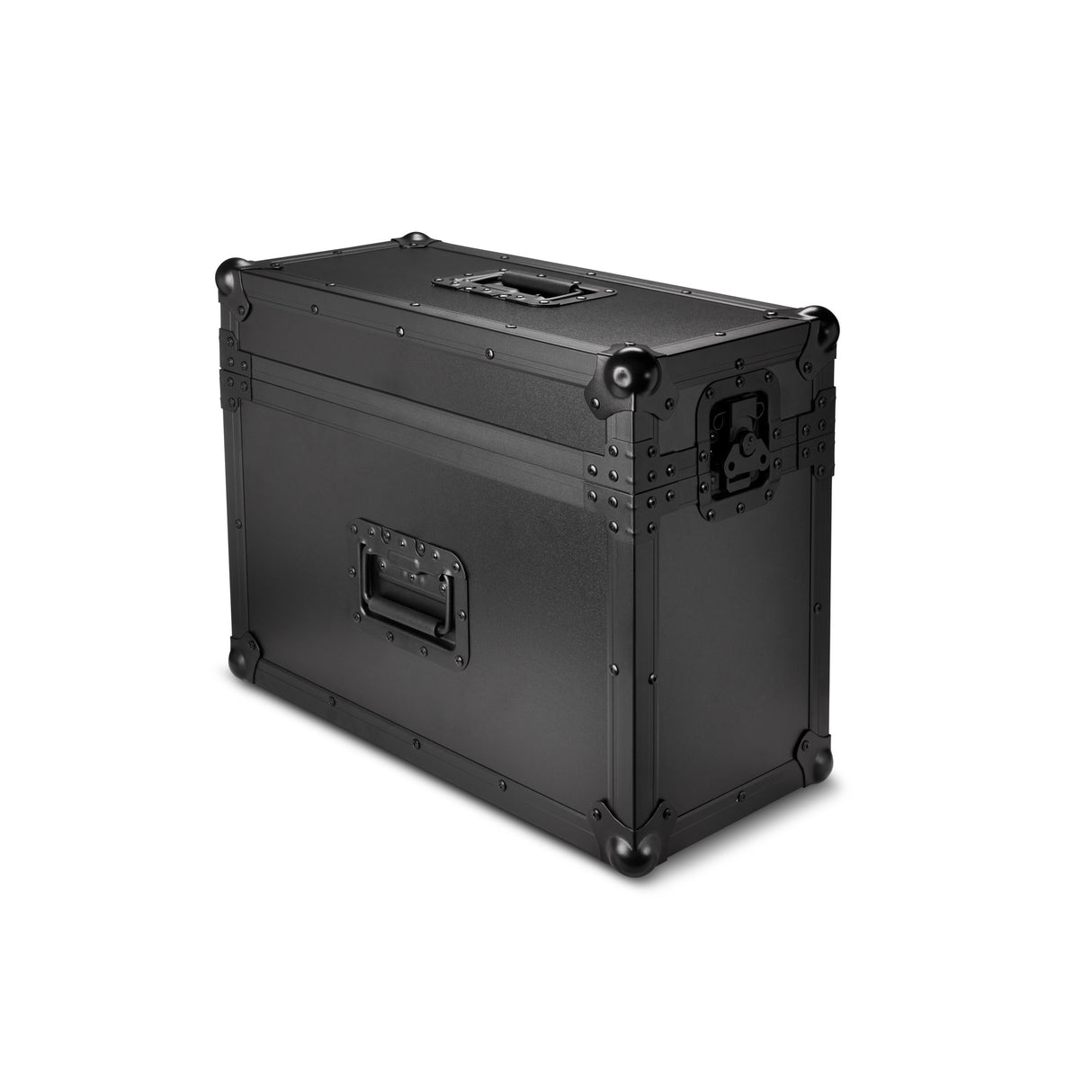

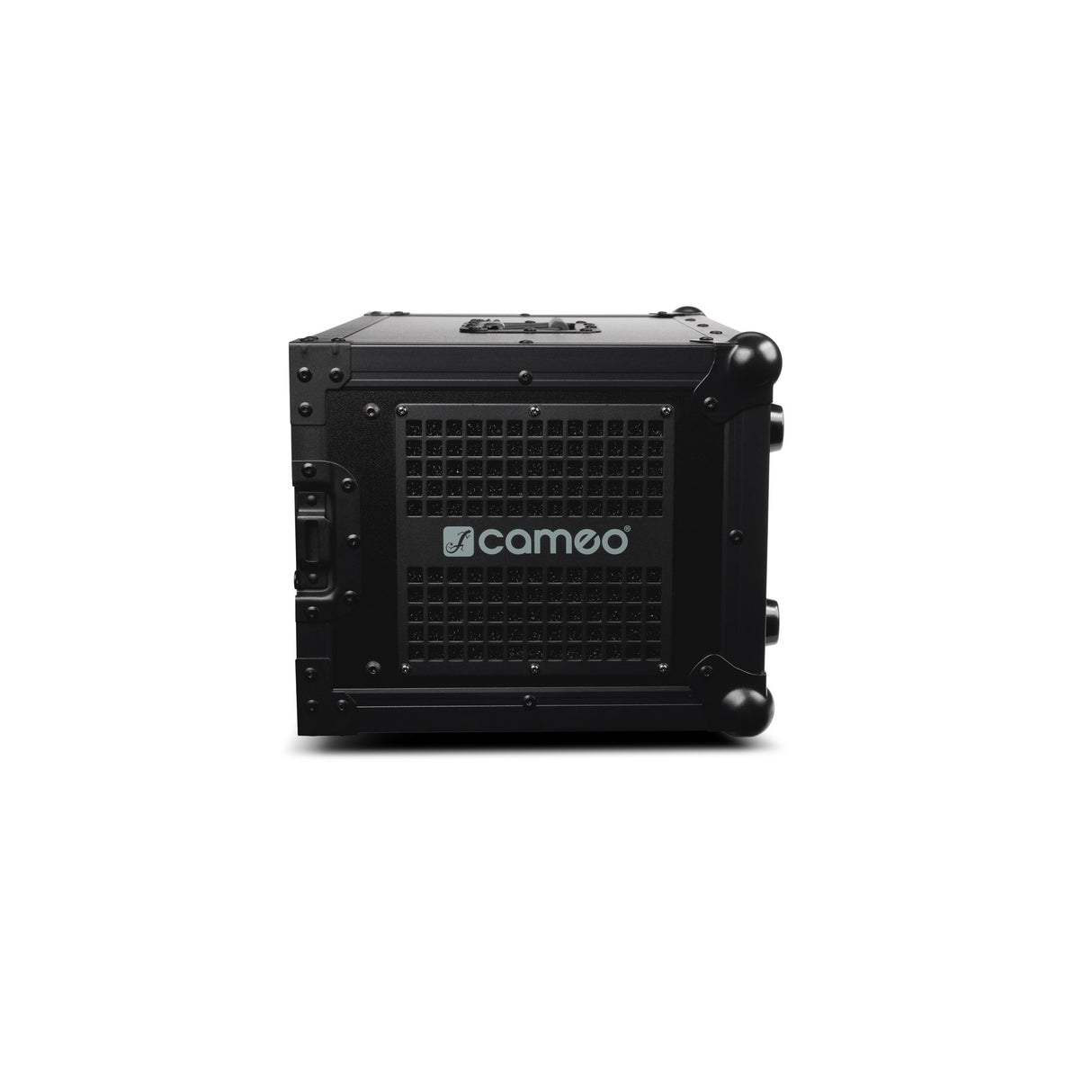

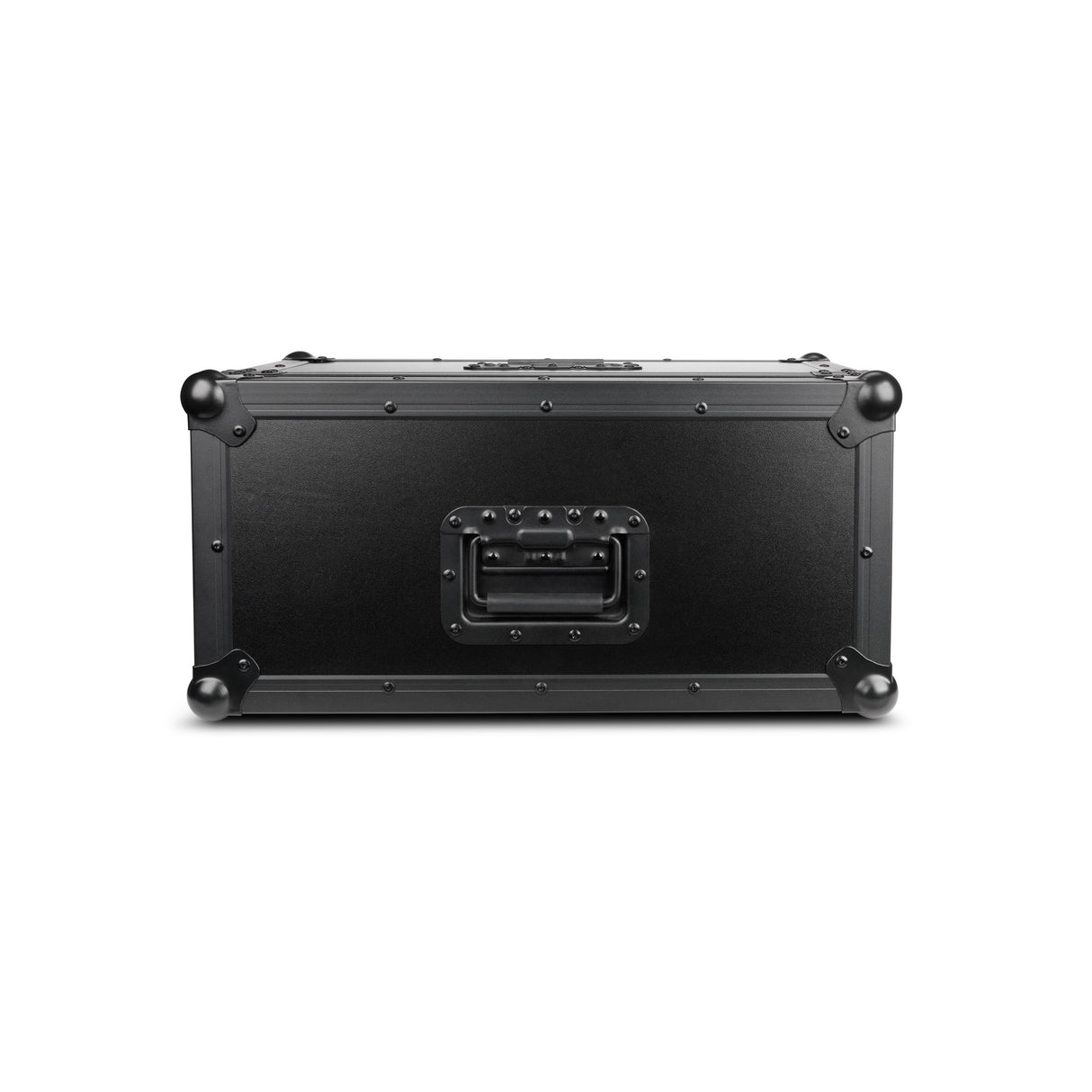

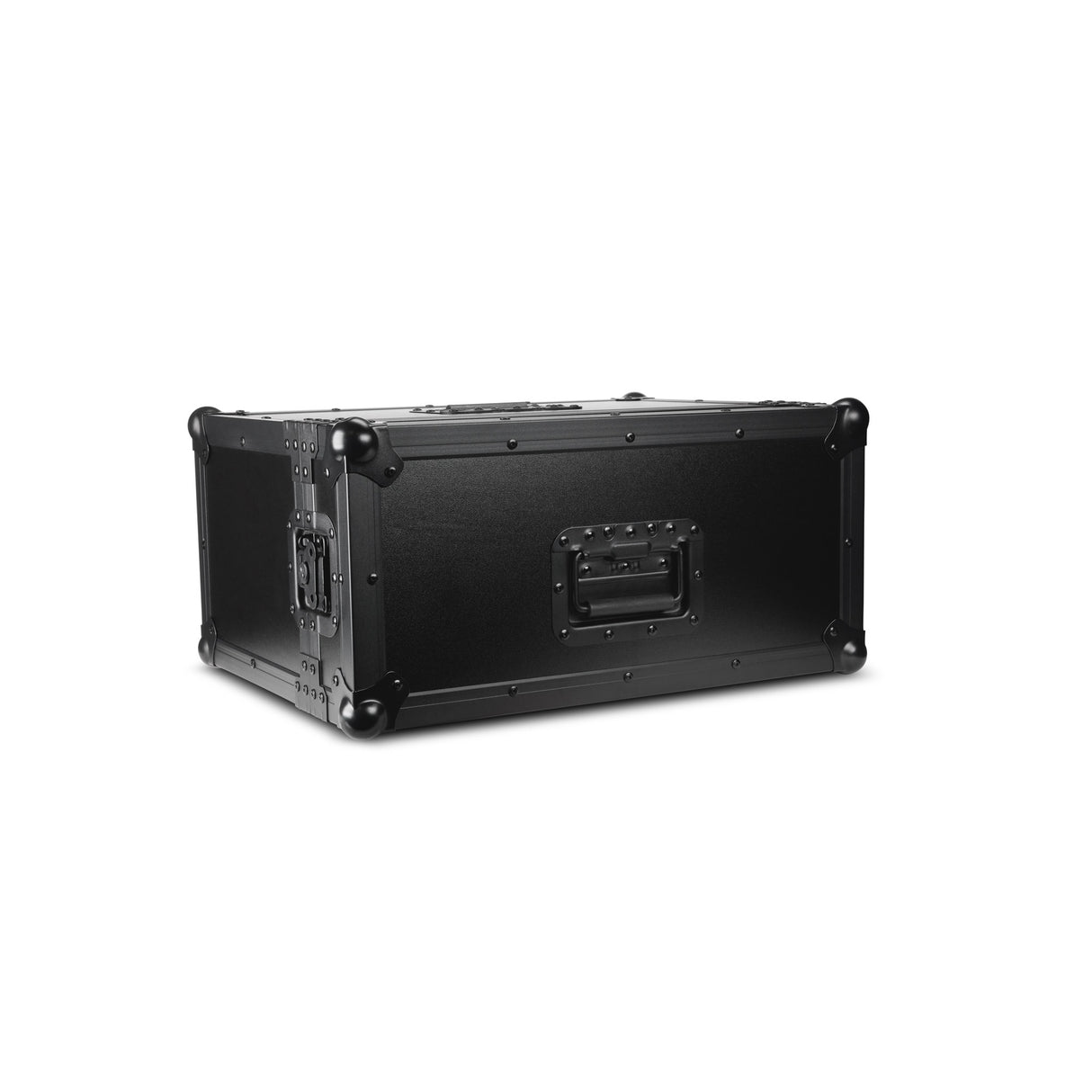

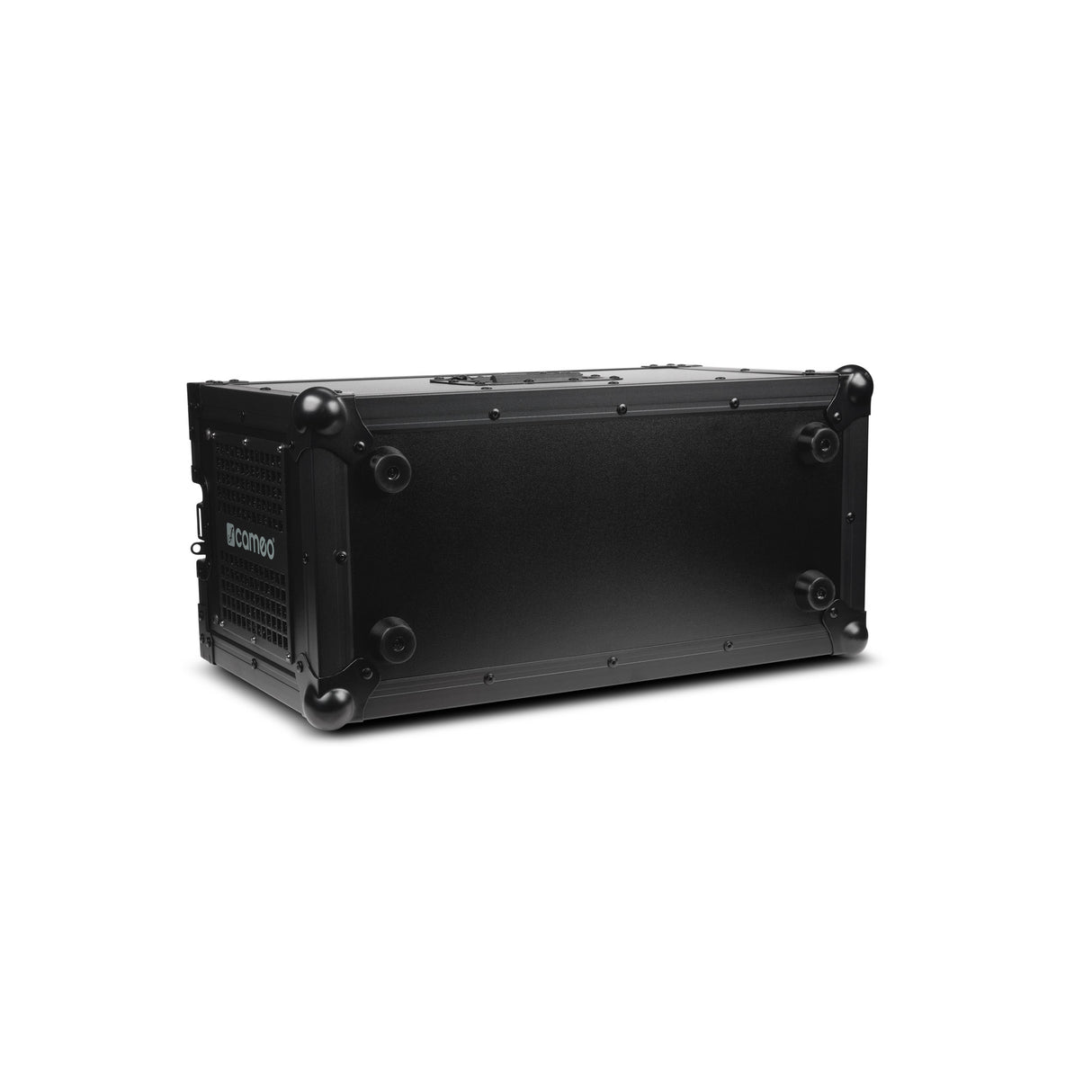

Thanks to its rugged tour case housing, the INSTANT HAZE 1500 G2 from Cameo’s Instant series is designed for demanding touring use. With a maximum fluid consumption of just 9 ml per minute, an extremely short warm-up time of under one minute, and ultra-quiet operation, it is ideal for TV and film productions, fashion shows, live events and mobile discos.
The highly efficient, microprocessor-controlled hazer features a durable vaporiser tube made of austenitic stainless steel and automatic self-cleaning to prevent clogging and minimise maintenance. Haze output can be continuously adjusted without reheating and, like the fan speed, in 1% increments for stages and rooms of any size.
The second generation of the INSTANT HAZE 1500 G2 has been optimised for even more convenient handling: Thanks to the additional handle on the top, transporting and positioning the unit is even easier. The modern touch display ensures particularly intuitive operation directly on the unit. In addition, the hazer now features a removable powerCON TRUE1 connection for maximum flexibility and safety in the power supply.

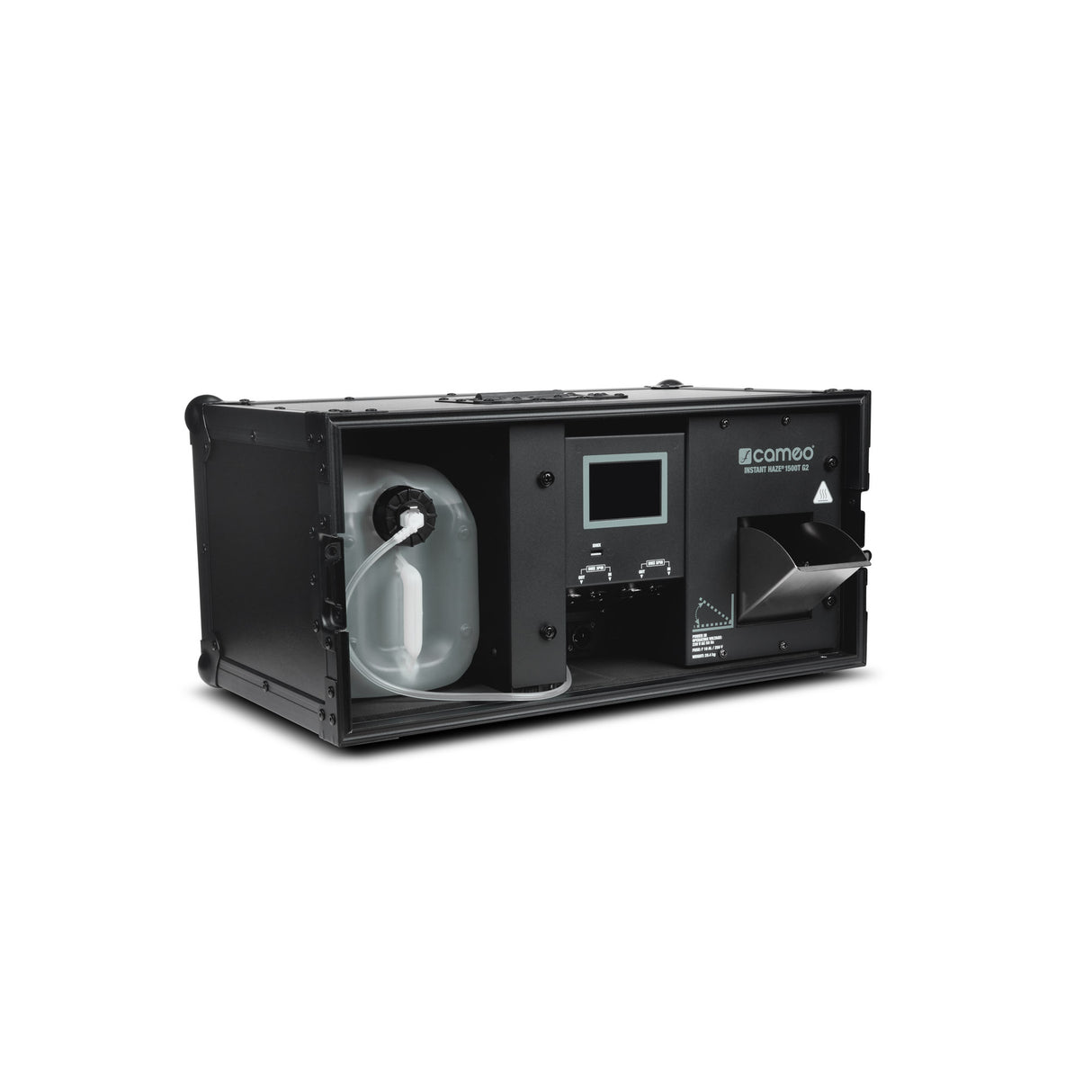

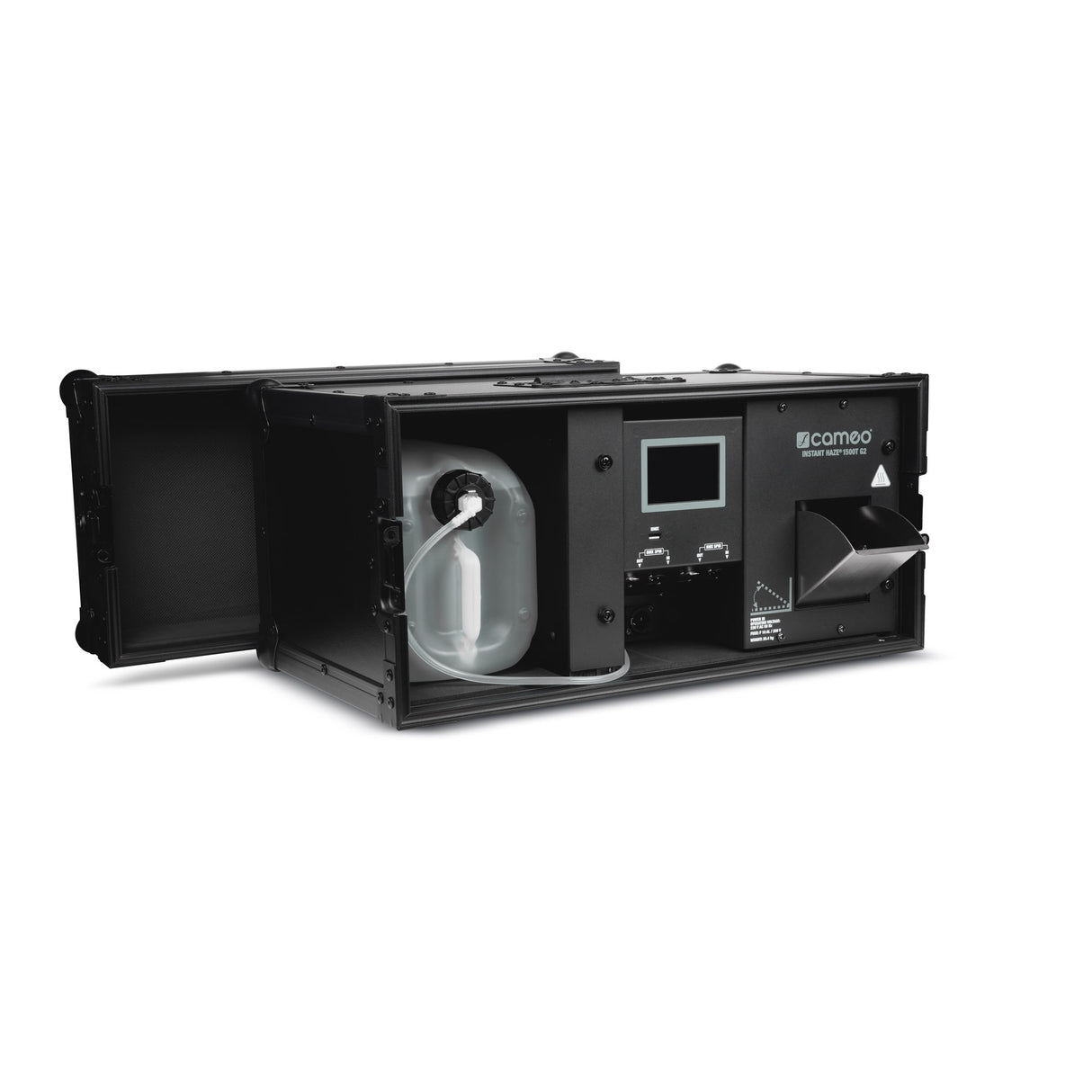

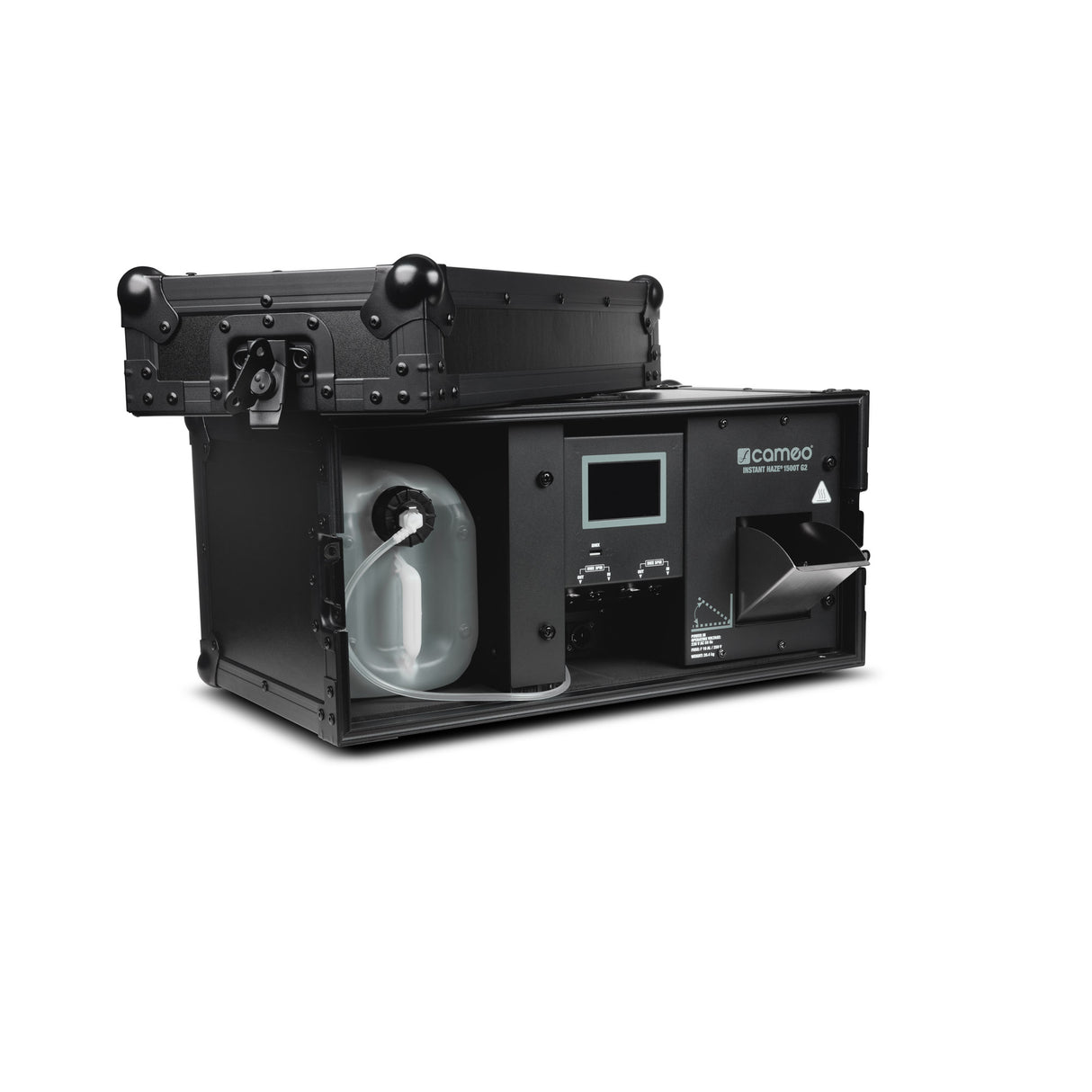

The INSTANT HAZE 1500 G2 can be controlled in 2-channel mode via DMX and used as a standalone unit. It is equipped with 3- and 5-pin DMX inputs and outputs and has a rugged design with a holder for fluid canisters up to 5 litres. The unit is protected against overheating.
For optimal results, use Cameo Instant Haze Fluid, which has been specially developed for Cameo hazers. Using other fluids will void the warranty and may damage the unit.
Technical specifications
Technical specifications
- 1,500-watt touring hazer with microprocessor-controlled control unit
- Robust road case construction for demanding touring operations
- Additional handle on the top for easier transport and handling
- Intuitive touch display for particularly easy operation
- Detachable powerCON TRUE1 connection for flexible and secure power connection
- Durable stainless steel evaporation tube
- Automatic self-cleaning to prevent deposits
- Output and fan individually adjustable at 1 % levels
- 2-channel DMX control and stand-alone function
- Integrated slot for fluid canisters up to 5 l
- Ultra-silent operation – ideal for noise-sensitive applications
- Perfect for TV, film, fashion shows, live events and mobile discos
- Enhances the effect of any light show with a fine, long-lasting haze
General
| Colour | Black |
Control
| Controller protocols | DMX512 |
| Controller protocols | iDMX® (Transceiver) |
| Operating modes | DMX512 |
| Number of DMX control modes | 2 |
| Stand alone operating modes | Stand-alone |
| Stand alone operating modes | Timer function |
| Data in connector | XLR 3-pole male |
| Data in connector | XLR 5-pole male |
| Data out connector | XLR 3-pole female |
| Data out connector | XLR 5-pole female |
Mains operation
| Operation voltage | 230 V AC / 50 Hz |
| Rated power | 1,500 W |
| Inrush current | 32 A / 0.03 ms @230 V (first half cycle) |
| Mains connector | Mains plug device outdoor male & TRUE1® |
| Mains fuse | F10AL/250 V |
| Fuse replacement | Possible from the outside without opening |
| Power out connector | Mains plug device outdoor female & TRUE1® |
Housing
| Chassis material | Metal |
Environmental
| Protection class | IP20 |
| Ambient temperature | 5 - 45 °C |
Dimensions & weight
| Width | 450 mm |
| Height | 273 mm |
| Depth | 585 mm |
| Weight | 20.4 kg |
Other properties
| Included Accessories | Mains cable |
