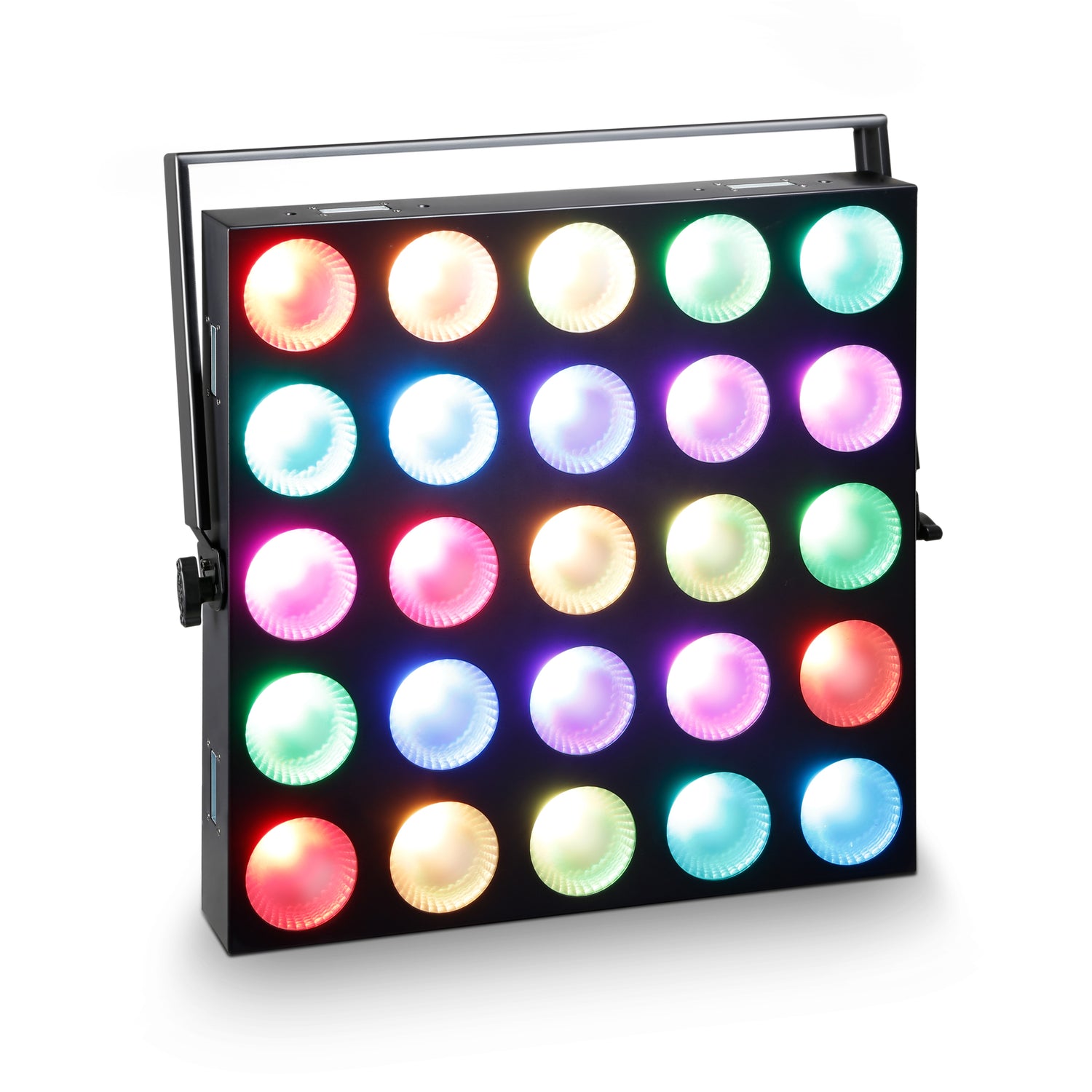

Cameo MATRIX PANEL 10 W RGB - 5 x 5 RGB LED matrix panel with individual pixel control

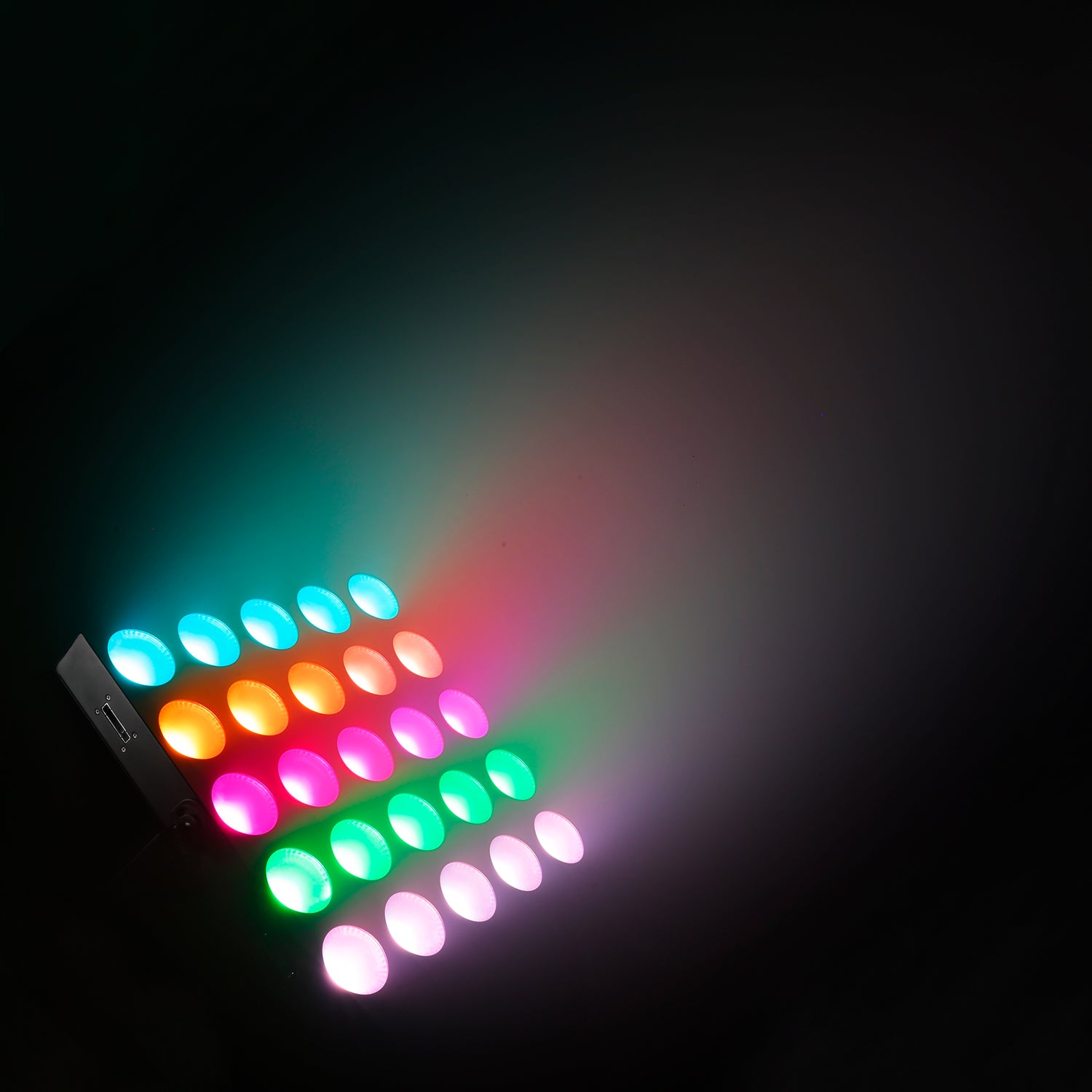

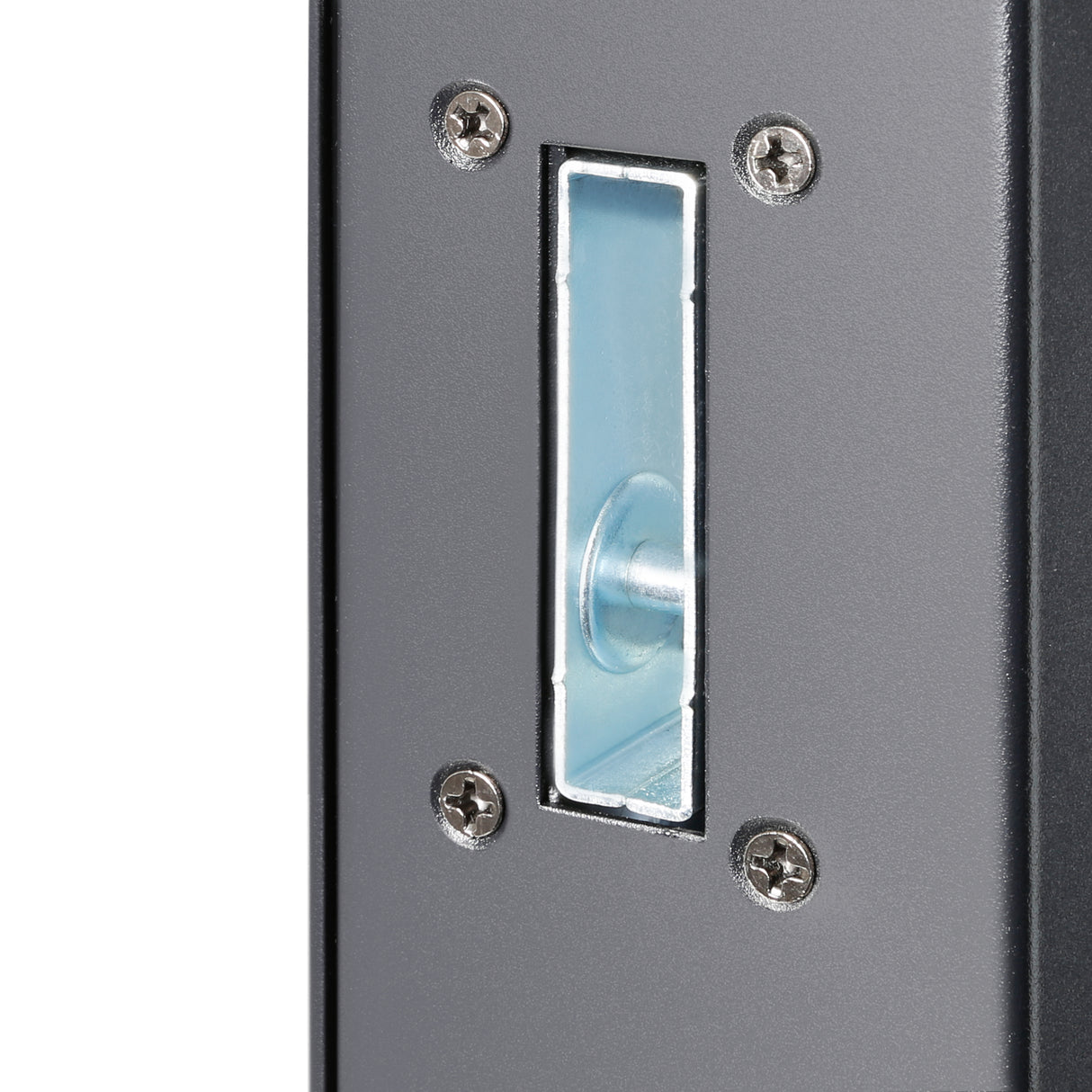

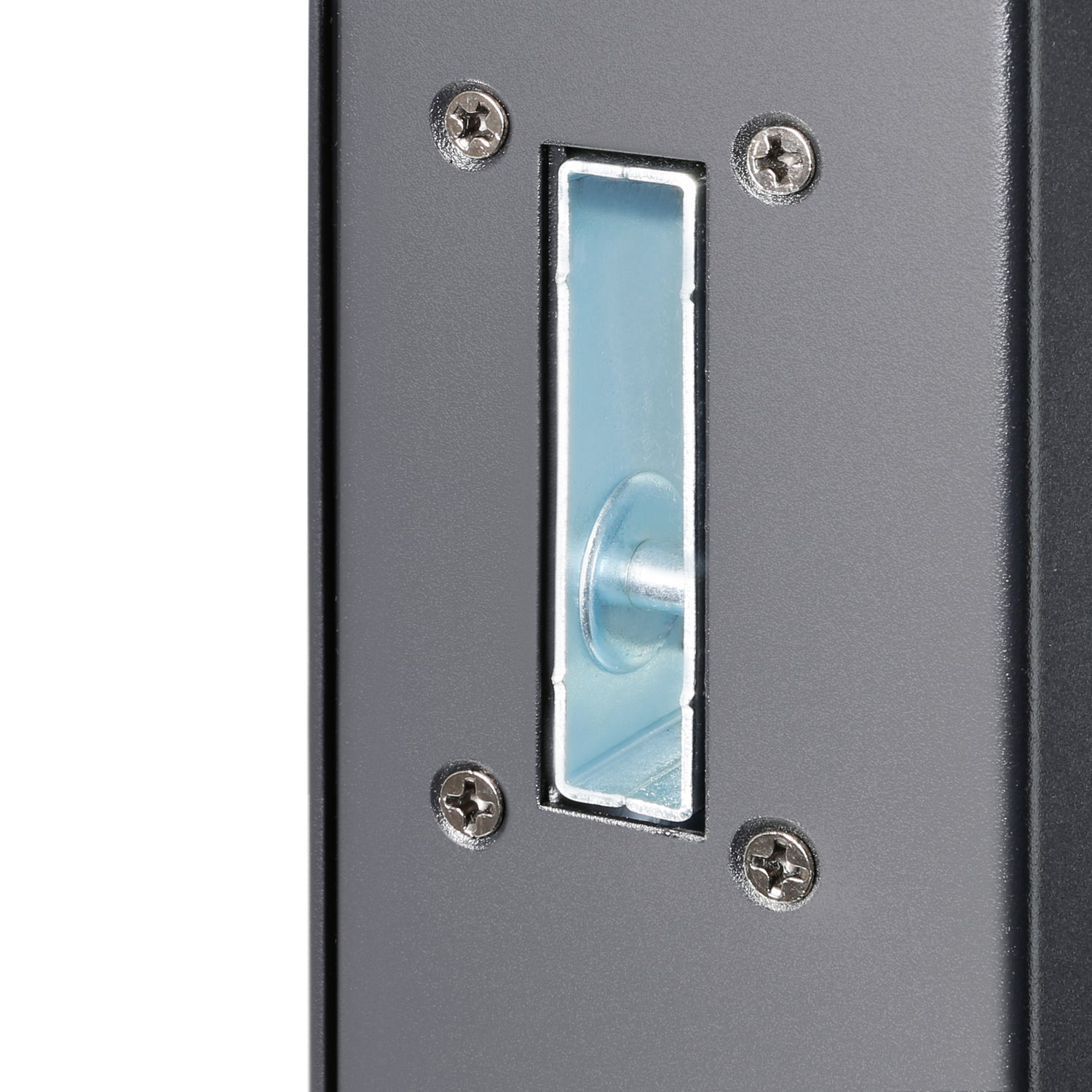

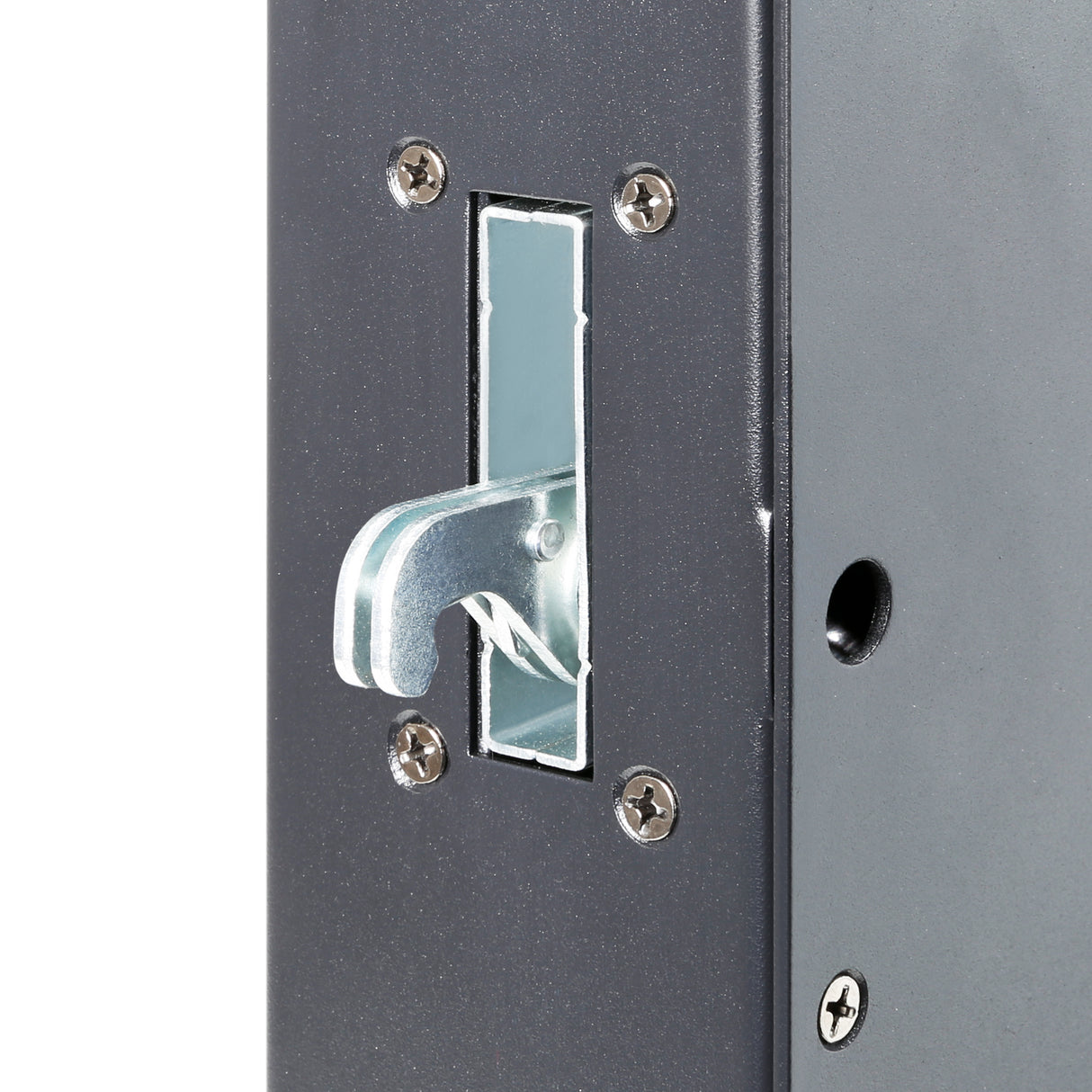

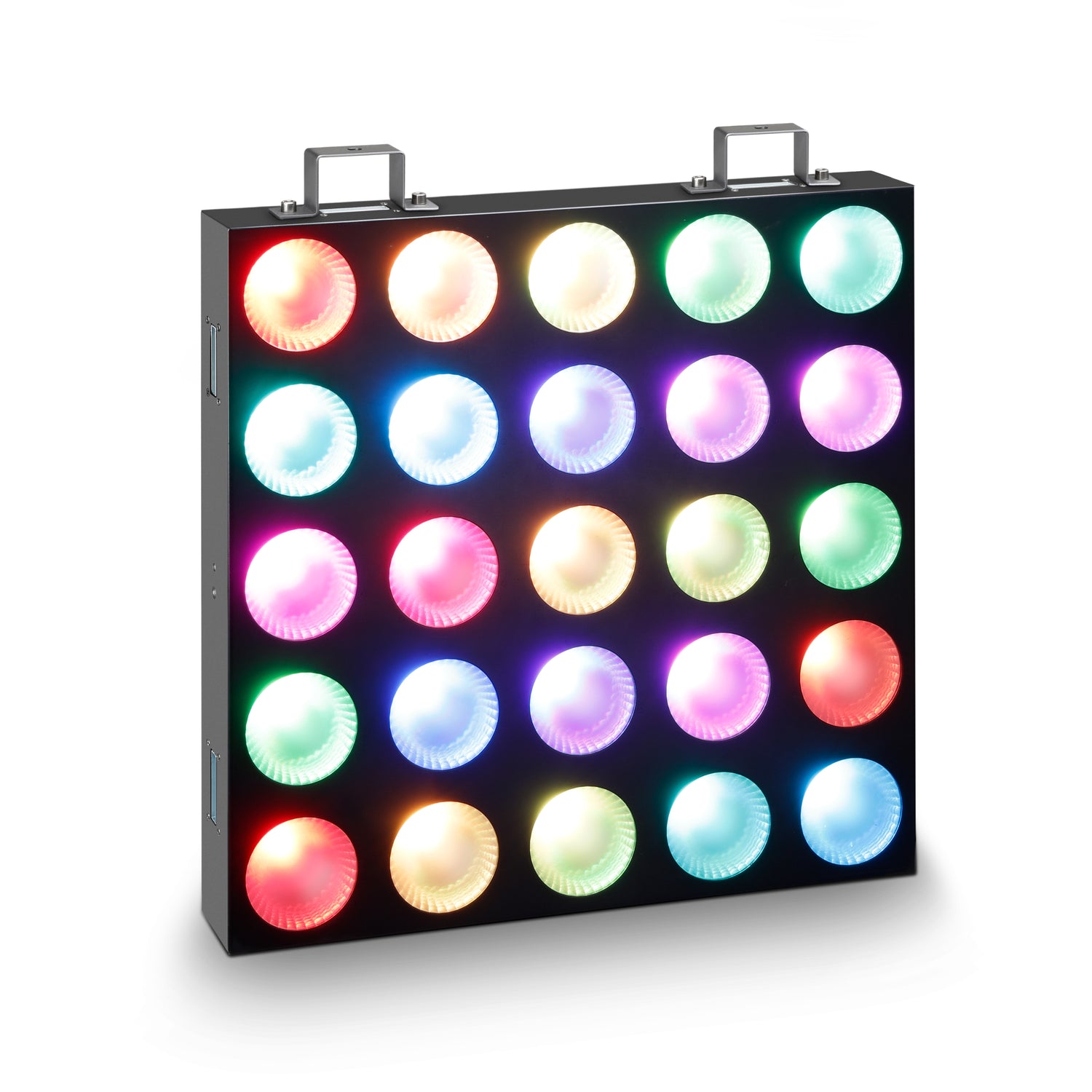

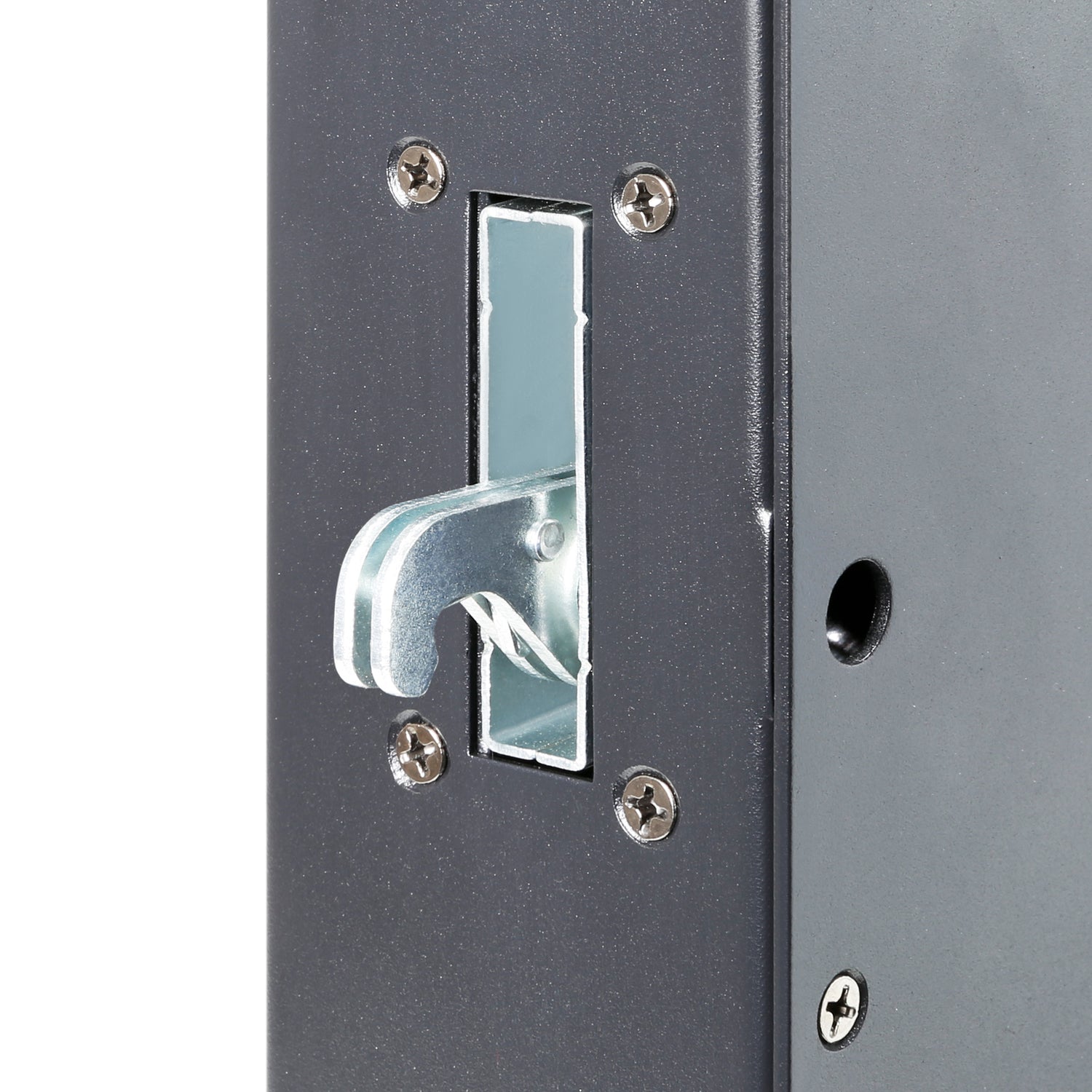

With a 5 x 5 array of 10-watt RGB LEDs, a 40° beam angle and flicker-free performance, the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. With powerful individual pixel control, it is the perfect choice for mapping alphabetical characters, numbers and complete messages. Recessed locks on all sides make it possible to connect multiple panels together to form large, impressive backdrops.

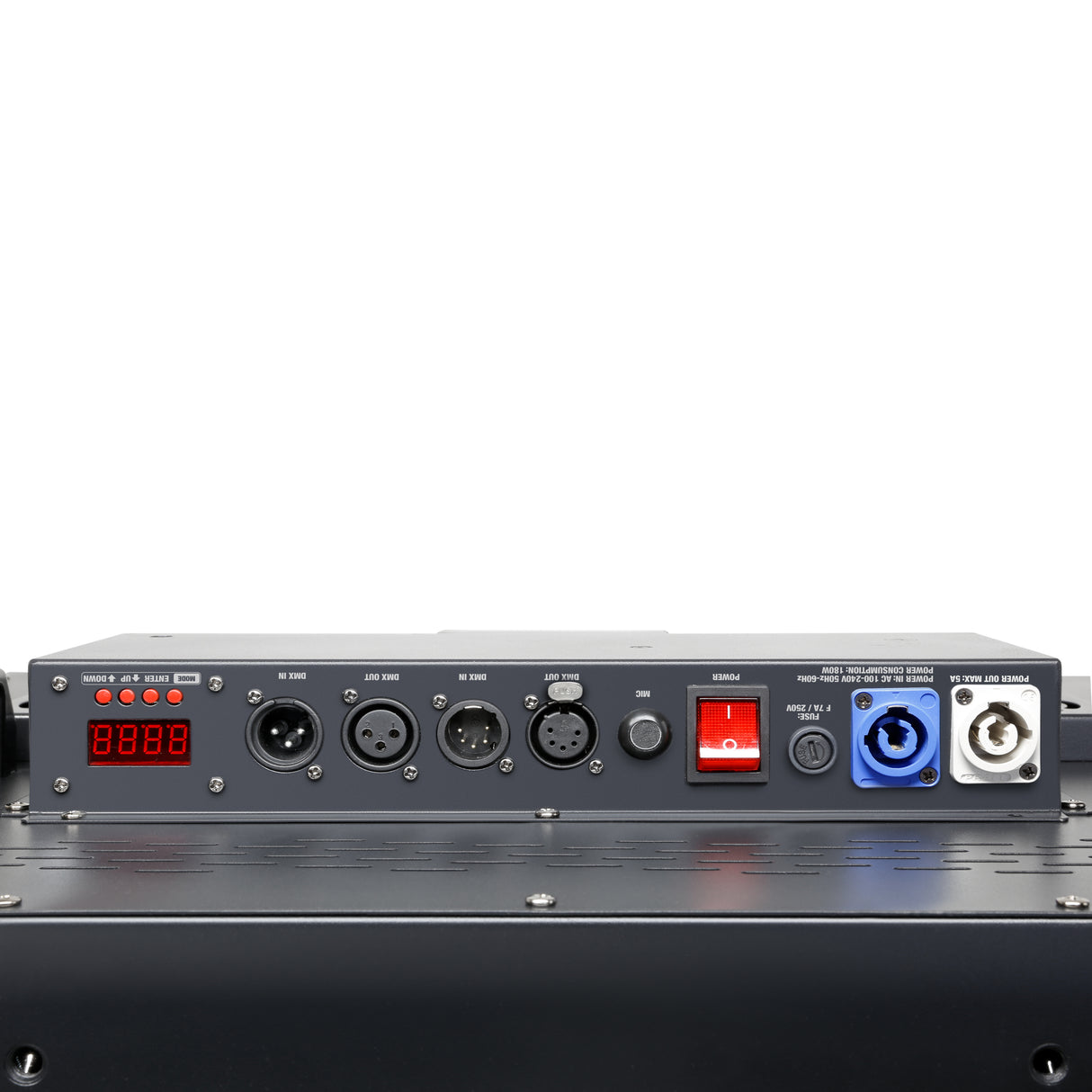

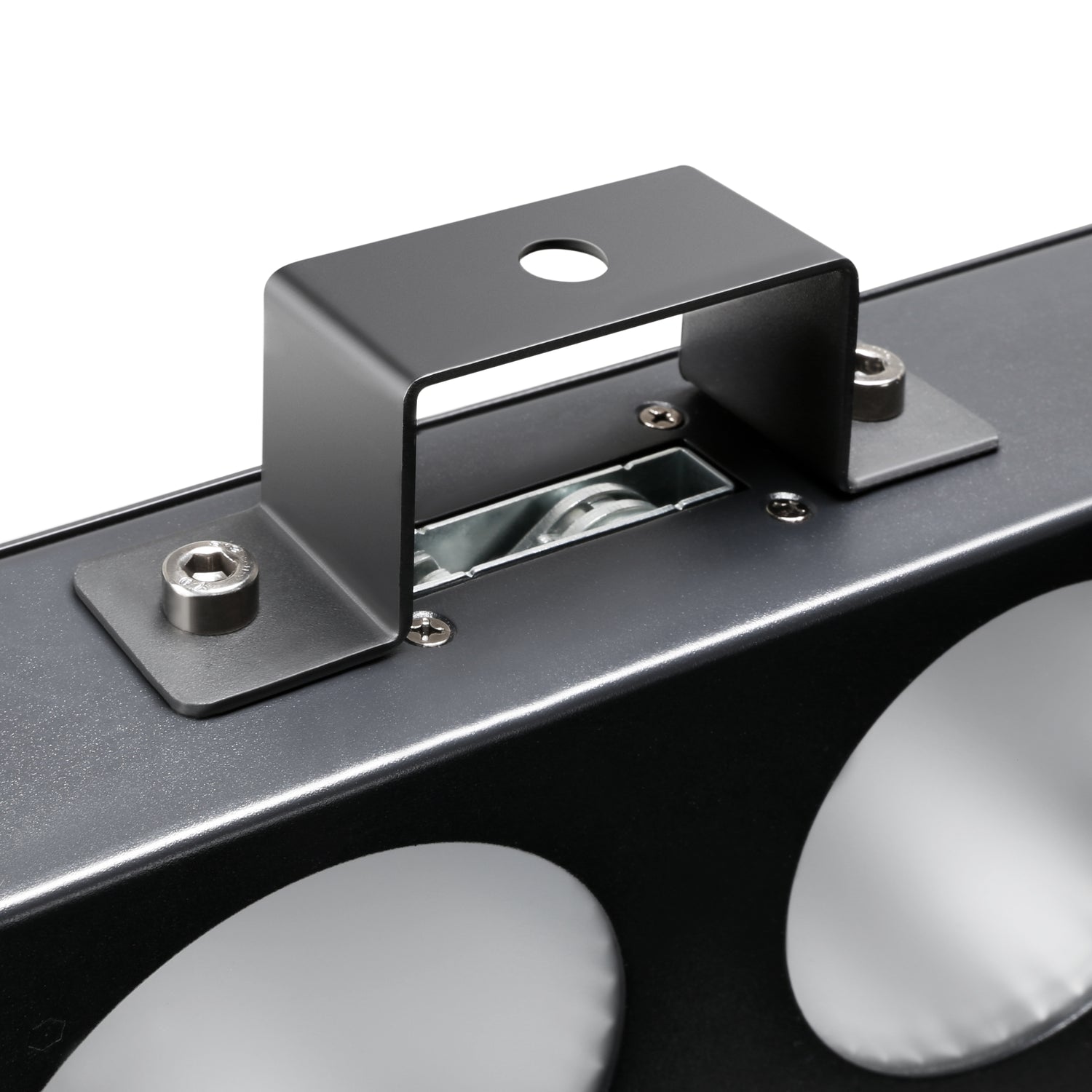

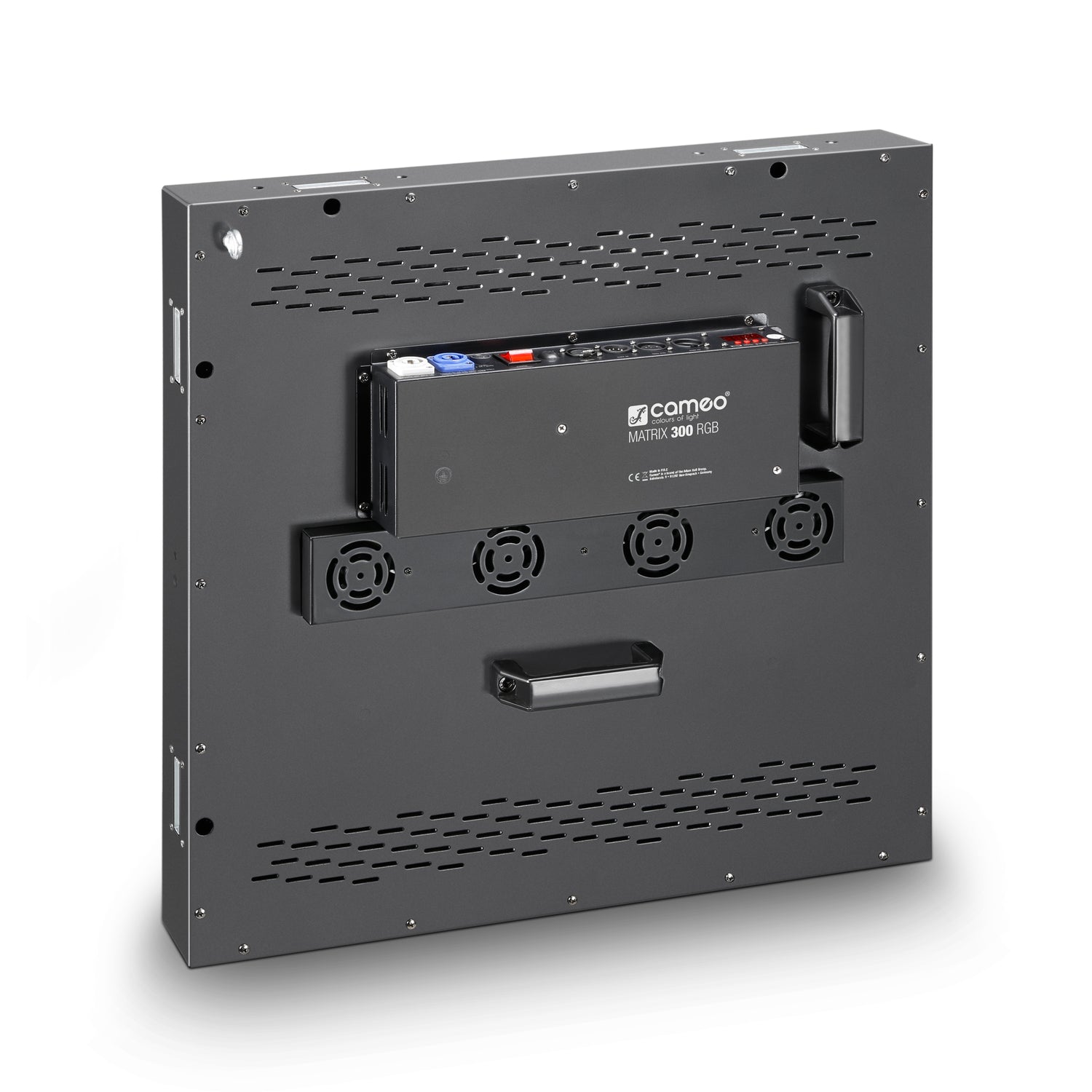

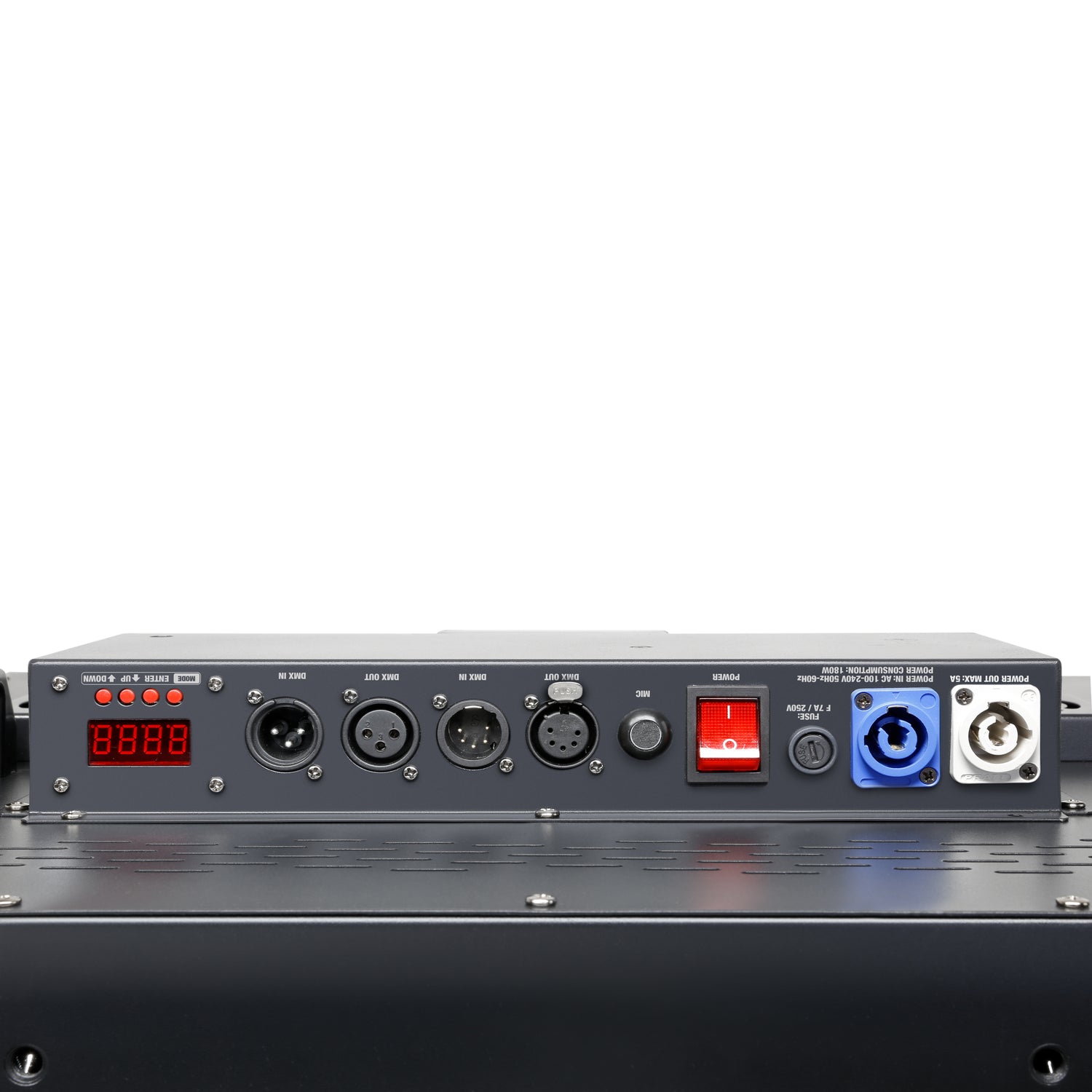

Matrix Panel 10 RGB includes five DMX control modes, sound activation, built-in autorun programmes and 4 selectable dimming curves. It supports master, slave and standalone operation, features a clear 4-button display and a low-noise fan for cool and quiet operation. The ultra-slim all-metal housing has 3- and 5-pin DMX inputs and outputs, as well as Power Twist connectors for easy daisy-chaining. The Matrix Panel is supplied with a safety eye, a swivel bracket and two omega brackets, and can run on any voltage from 100 - 240 volts AC.
- 5 x 5 Matrix Panel with single pixel control
- 25 x 10 W RGB LEDs
- 5 DMX modes, sound activation and built-in auto run programs
- Master, slave and standalone capability
- Blinder, chase and strobe effects
- Alphabetic character and numeral mapping
- 4 selectable dimming curves
- Flicker-free operation

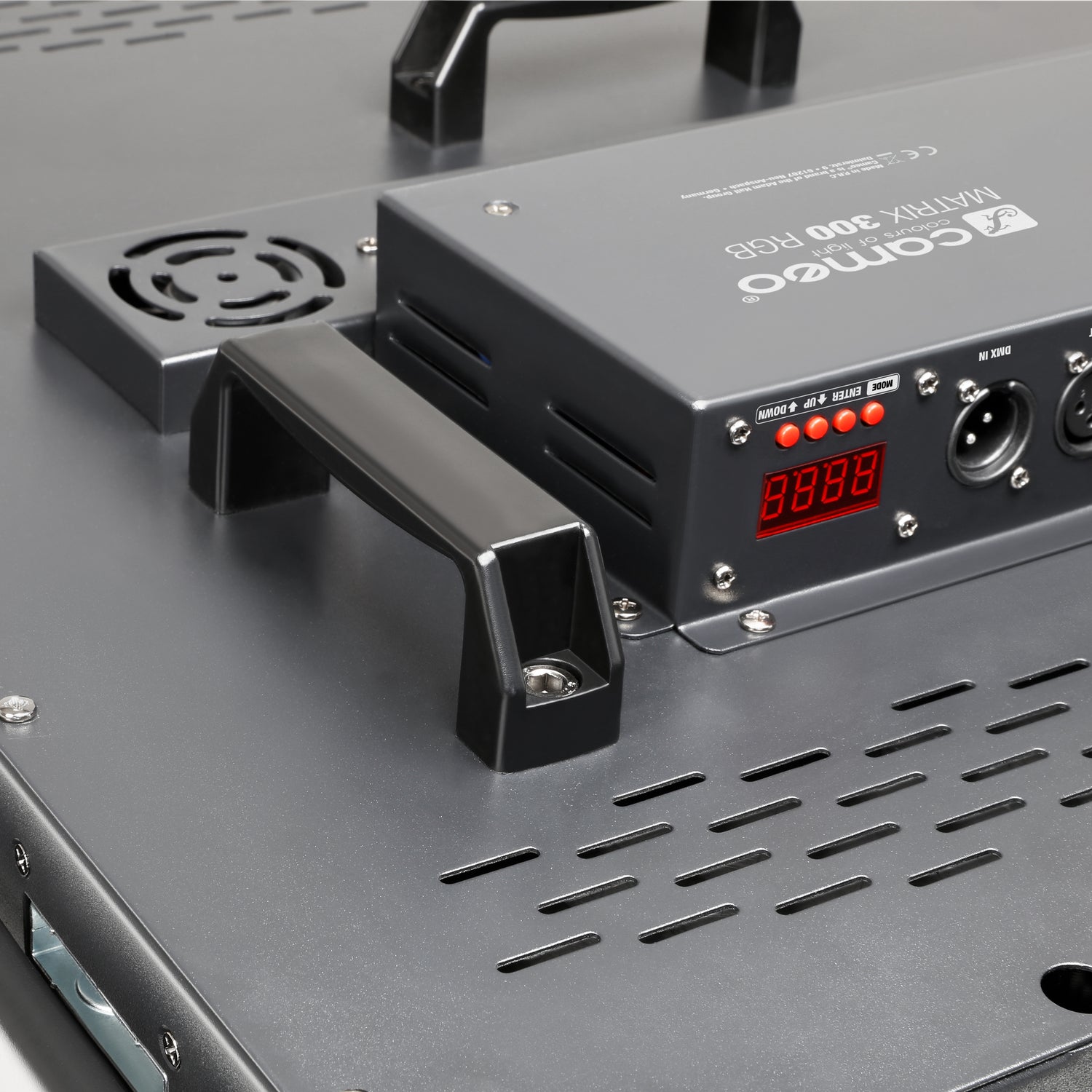

- Ultra flat housing with low-noise fan
- Even more impressive in multiples
| Product type | LED MATRIX PANEL |
| Type | 5 X 5 Matrix |
| Colour spectrum | RGB |
| Number of LEDs | 25 |
| LED type | 10 W RGB |
| Dispersion | 40 ° |
| Refresh rate | 8000 Hz |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 19-channel |
| DMX mode | 28-channel |
| DMX mode | 3-channel |
| DMX mode | 5-channel |
| DMX mode | 78-channel |
| DMX Functions | Auto programs |
| DMX Functions | Dimmer Fine |
| DMX Functions | Stroboscope |
| DMX Functions | master dimmer |
| DMX Functions | sound programs |
| Standalone modes | Master / Slave mode |
| Standalone modes | Music control |
| Controls | Down |
| Controls | Enter |
| Controls | Mode |
| Controls | Up |
| Indicators | 4-digit LED display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 180 W |
| Power supply connector | Blue and white power I/O |
| Housing material | Metal |
| Cabinet colour | Black |
| Cooling | fan |
| Fuse | F3AL / 250 V |
| Illuminance | 6950lx @ 1m |
| Width | 580 mm |
| Height | 580 mm |
| Depth | 125 mm |
| Weight | 13,7 kg |
| Accessories (included) | swivel bracket |
| Accessories (included) | 2x Omega Mounting Bracket |
| Accessories (included) | LED MATRIX PANEL |
| Accessories (included) | safety eyelet |
