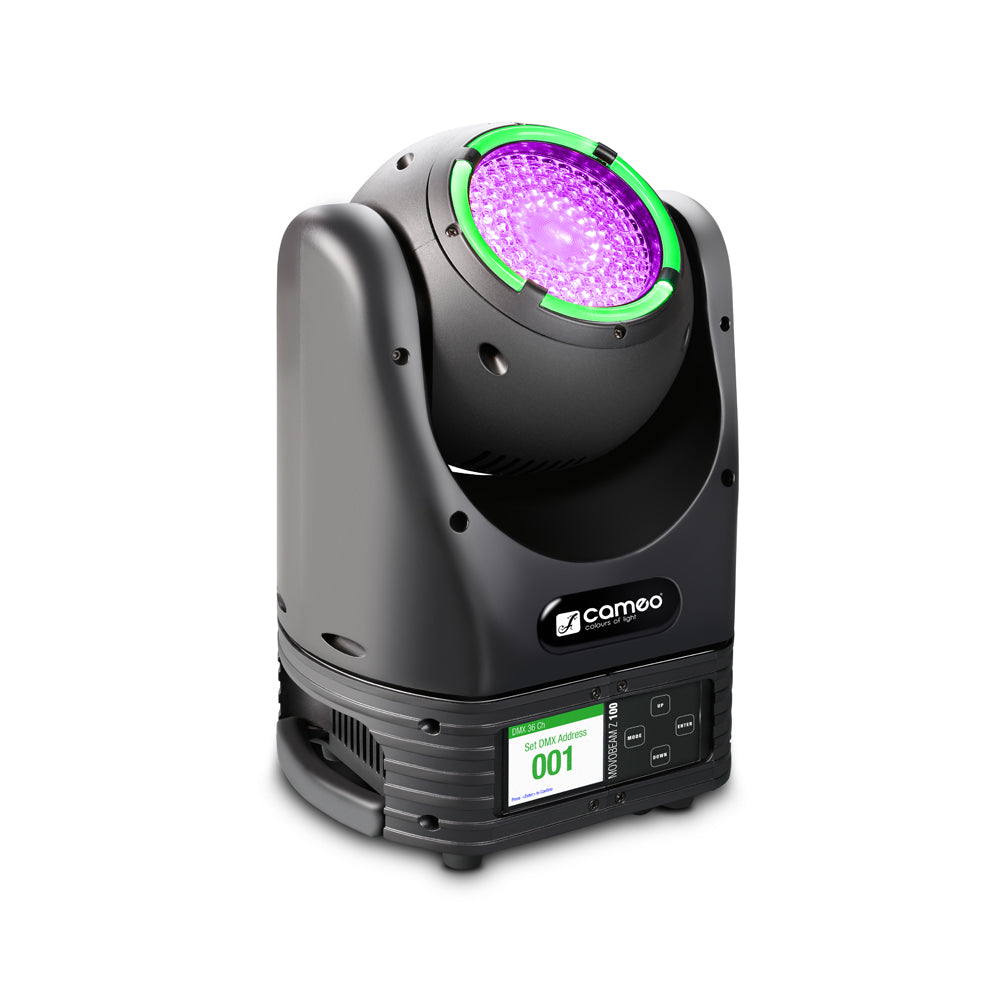

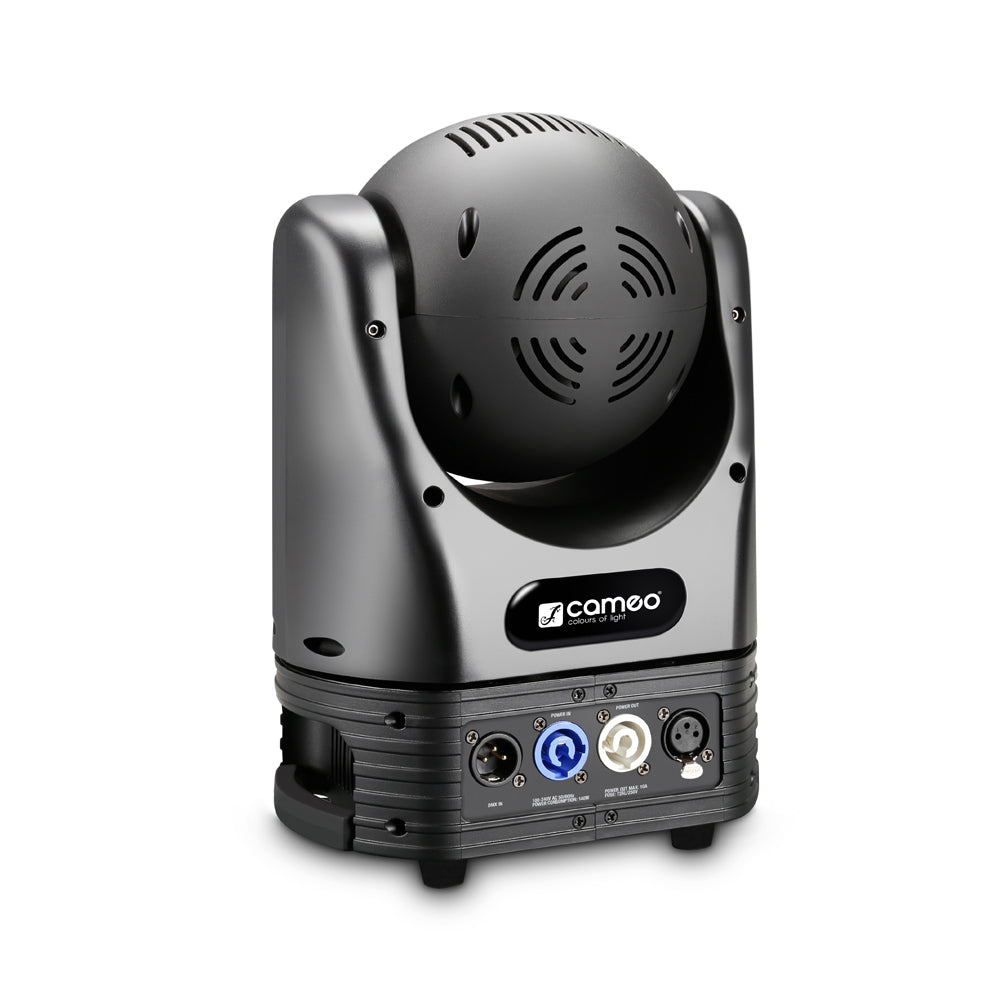

Cameo MOVO BEAM Z100 - Beam moving head with unlimited rotation, LED ring and zoom
Description
Description
Building on the success of the MOVO®Beam 100 and taking it a step further, the Movo® Beam Z 100 is an ultra-fast moving head with a powerful motorised zoom. With a zoom range of 4 to 30 degrees, it delivers tightly focused beams, beautiful wash and impressive zoom effects. A central, high-performance 60-watt OSRAM LED with a 50,000-hour lifespan produces rich RGBW mixes with saturated primary colours, fine pastel hues and natural white tones. It is surrounded by an RGB LED ring with 4 individually controllable segments, enabling a spectacular lighting performance.
Powered by two high-speed, high-torque motors, the MOVO® BEAM Z 100 provides infinite pan and tilt rotation with smooth precision. It features a clear 2.5" TFT display with touch-sensitive buttons for easy configuration, 3 DMX control modes and spectacular automated modes. Seamless dimming with 4 selectable curves and a fast strobe contribute to a brilliant, exciting performance.

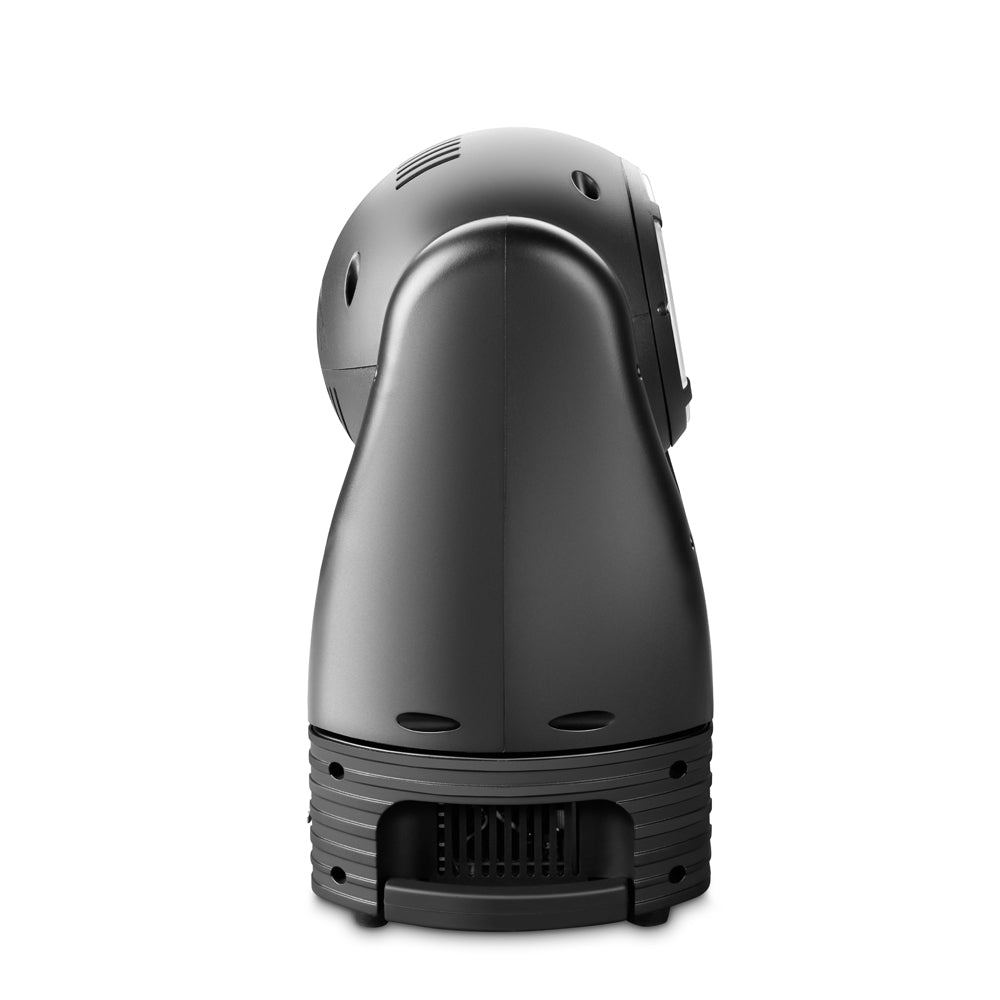

The MOVO® BEAM Z 100’s compact ABS and metal housing has temperature-controlled fan cooling to ensure reliable operation and extended LED lifespan. It is supplied with an omega bracket for a variety of mounting options.
Technical specifications
Technical specifications
- Ultra-bright 60 W OSRAM RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white

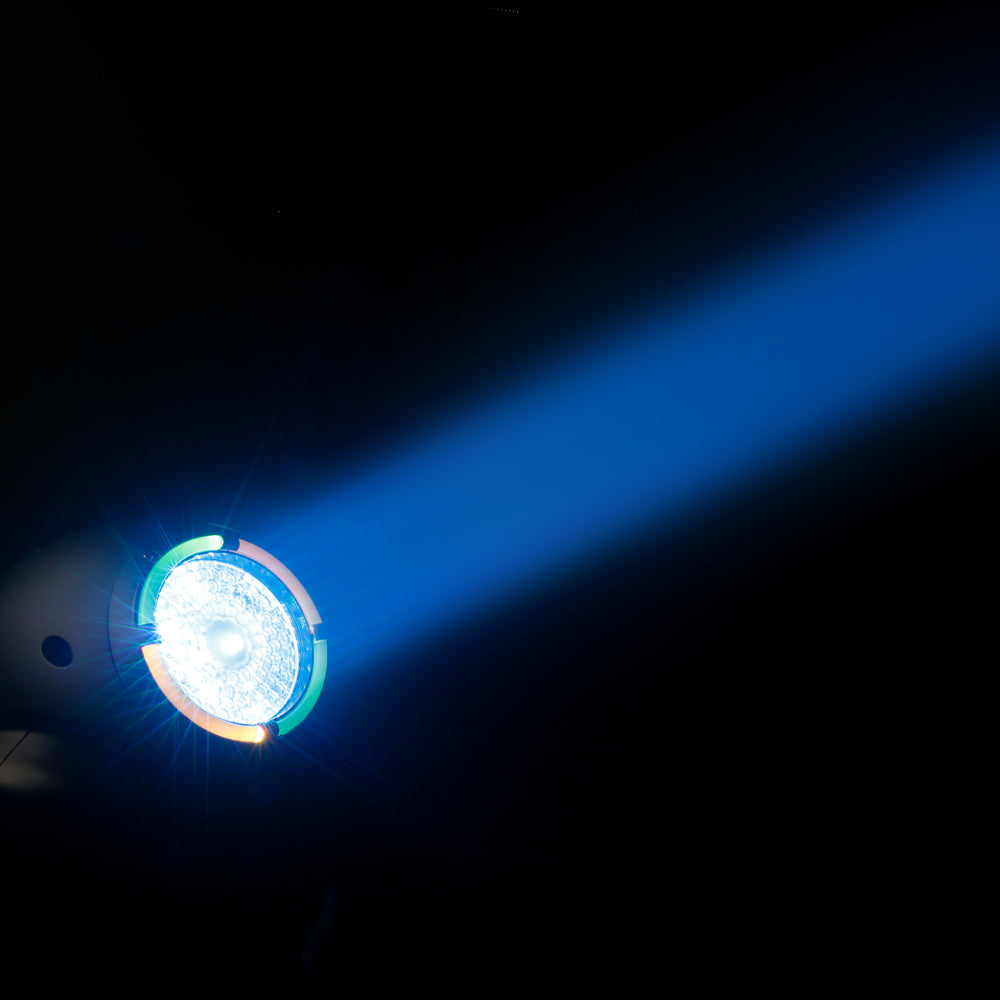

- Individually controllable 4-segment RGB LED ring with single pixel control

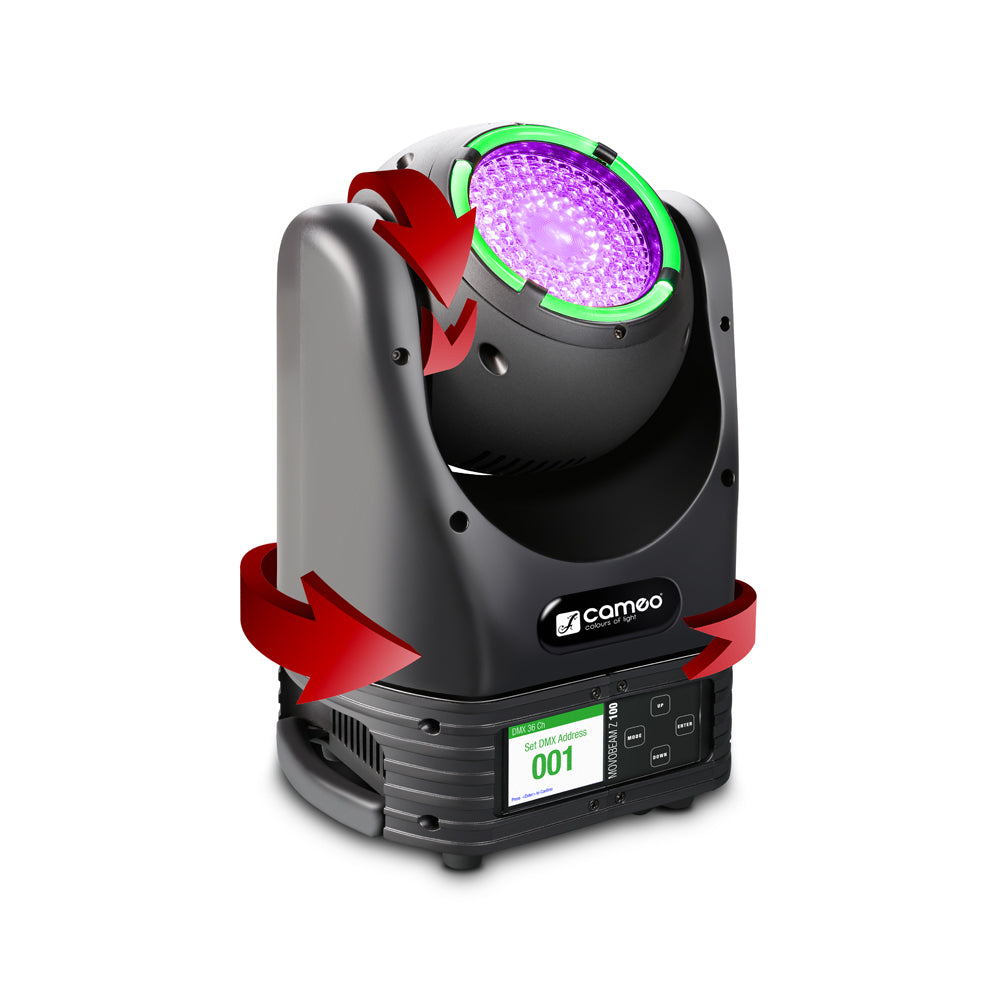

- 2 high-speed, high torque motors for ultra-fast unlimited pan and tilt
- Motor zoom with 4° to 30° range
- Spectacular automated modes
- 4 selectable dimming curves
- 4 DMX modes, standalone or master/slave operation

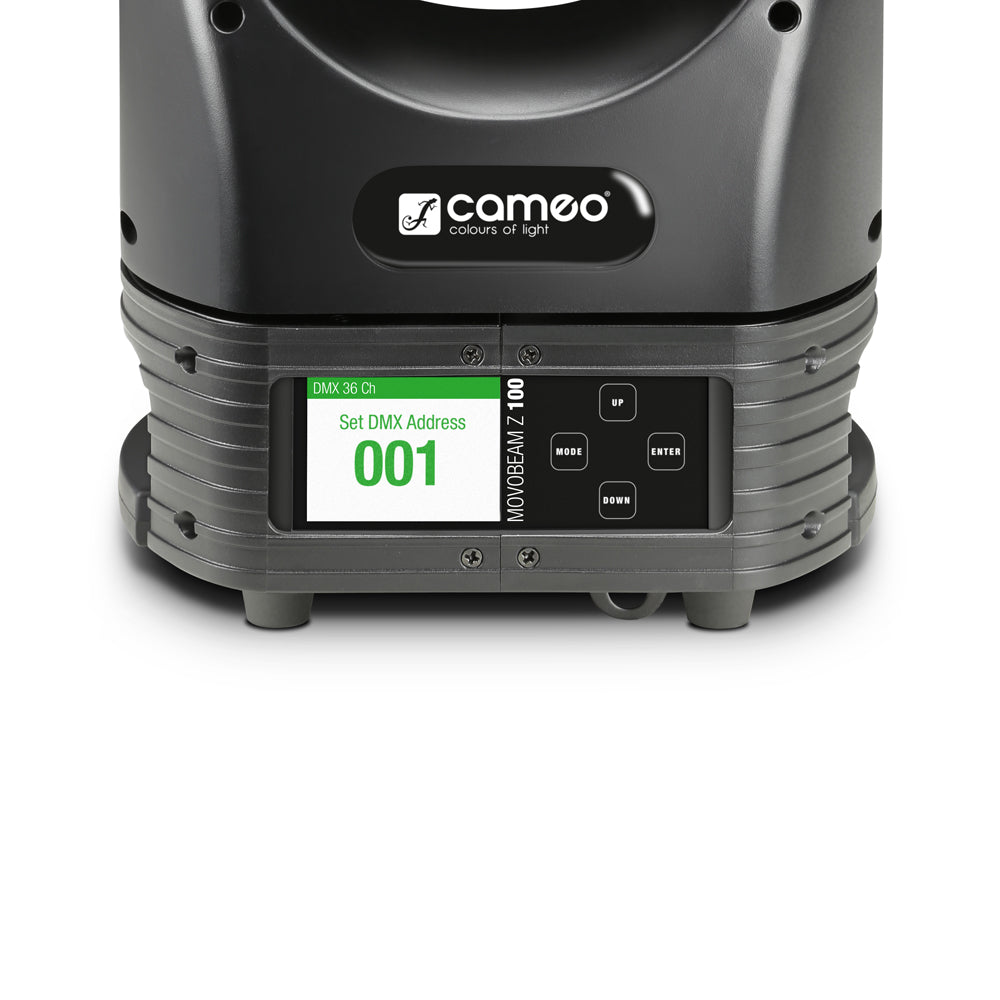

- 2.5" TFT display and touch panel for intuitive configuration

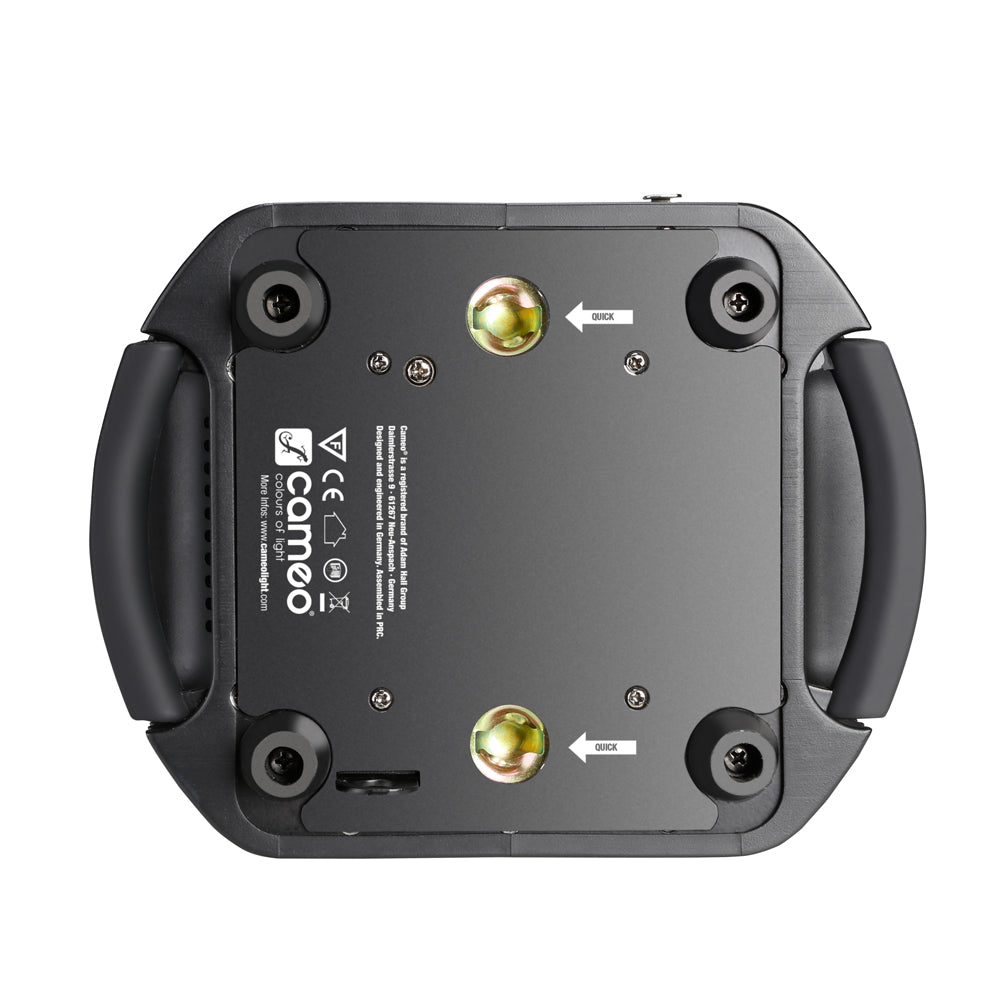

- Omega mounting bracket included
| Product type | LED Moving Lights |
| Type | LED Moving Effects |
| Colour spectrum | RGBW |
| Number of LEDs | 1 |
| LED type | 60W OSRAM (approx. 50.000 operating hours) |
| Refresh rate | 1000 Hz |
| Dispersion | 4 - 30 ° |

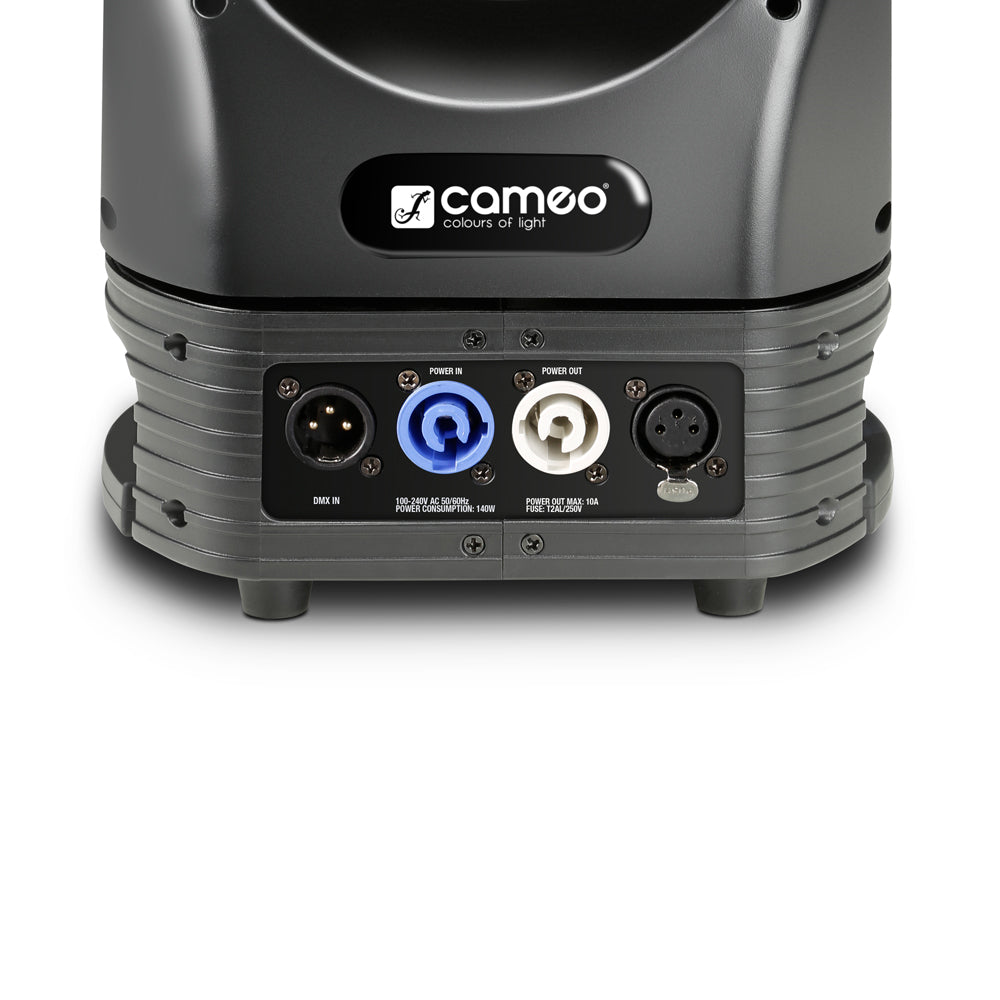

| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 16-channel |
| DMX mode | 36-channel |
| DMX mode | 5-channel |
| DMX Functions | Auto programs |
| DMX Functions | Colour Ring Macro |
| DMX Functions | Colour Ring Macro Speed |
| DMX Functions | Dimmer Colour Ring |
| DMX Functions | Dimmer Curve |
| DMX Functions | Dimmer Fine |
| DMX Functions | PAN |
| DMX Functions | PAN UNLIMITED ROTATION |
| DMX Functions | Pan/Tilt Macros |
| DMX Functions | Pan/Tilt Speed |
| DMX Functions | Pan/Tilt fine |
| DMX Functions | RGB Ring 1-4 |
| DMX Functions | RGBW |
| DMX Functions | Strobe Colour Ring |
| DMX Functions | Stroboscope |
| DMX Functions | TILT |
| DMX Functions | TILT UNLIMITED ROTATION |
| DMX Functions | Zoom |
| DMX Functions | colour fade |
| DMX Functions | colour jump |
| DMX Functions | colour macro |
| PAN movement | unlimited |
| TILT movement | unlimited |
| Standalone modes | Auto programs |
| Standalone modes | Static Mode |
| Controls | Enter |
| Controls | Mode |
| Controls | Value Down |
| Controls | Value Up |
| Indicators | 2,5” TFT Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 140 W |
| Power supply connector | Blue and white power I/O |
| Housing material | ABS plastic |
| Housing material | Metal |
| Cabinet colour | Black |
| Cooling | fan |
| Illuminance | 8500lx @ 3m |
| Luminous flux | 1220 lm |
| Width | 210 mm |
| Height | 299 mm |
| Depth | 210 mm |
| Weight | 6,5 kg |
