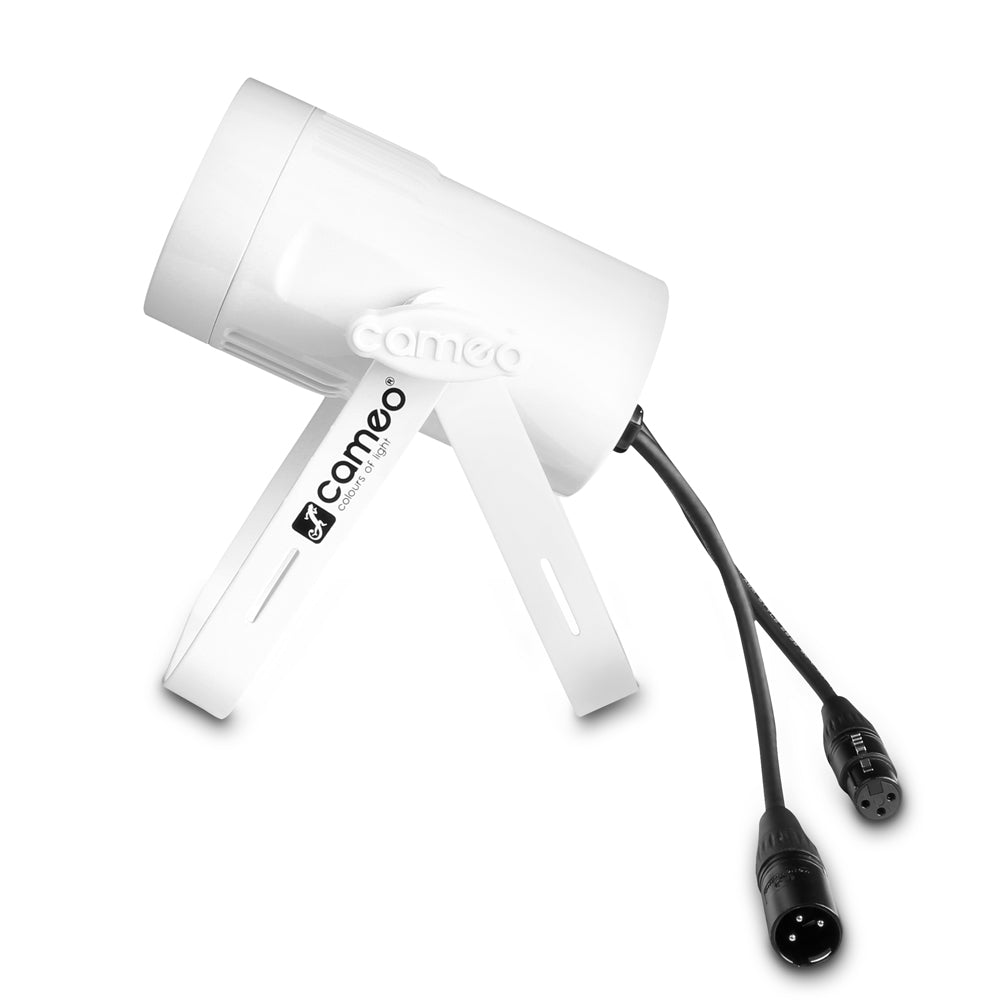

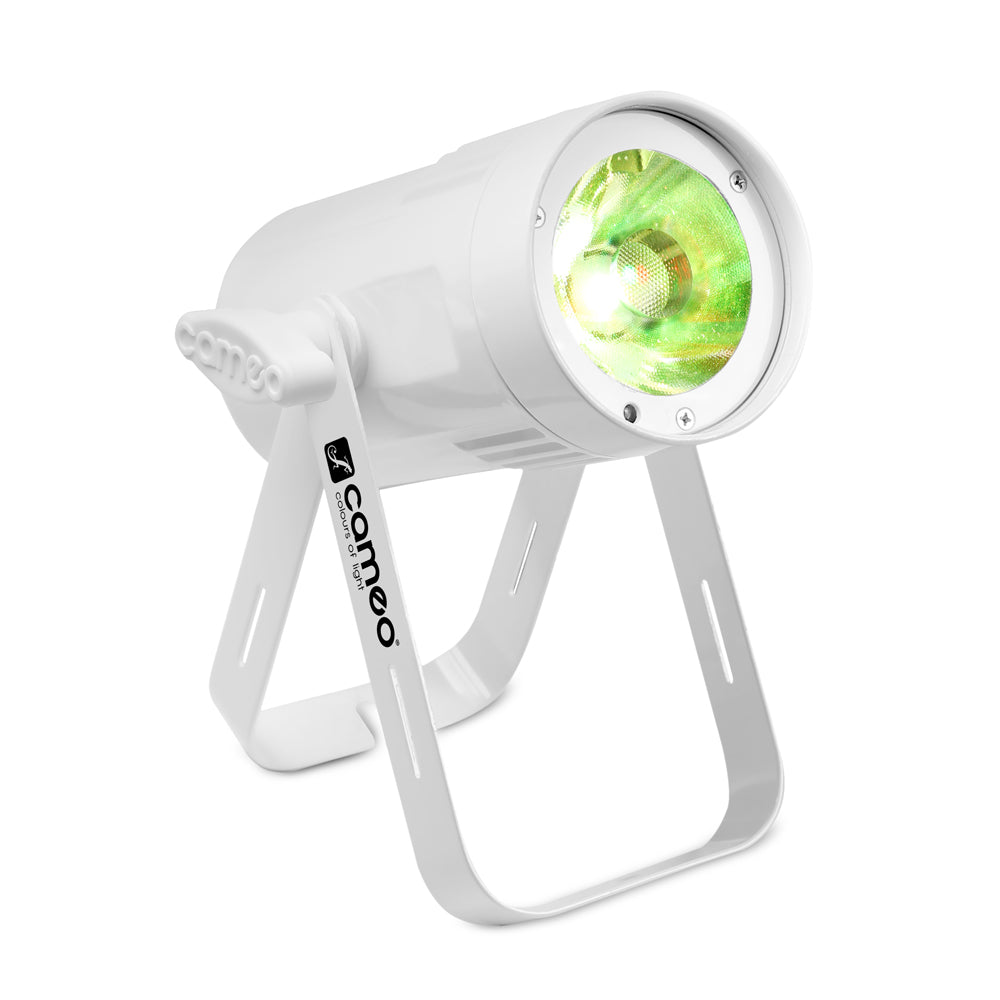

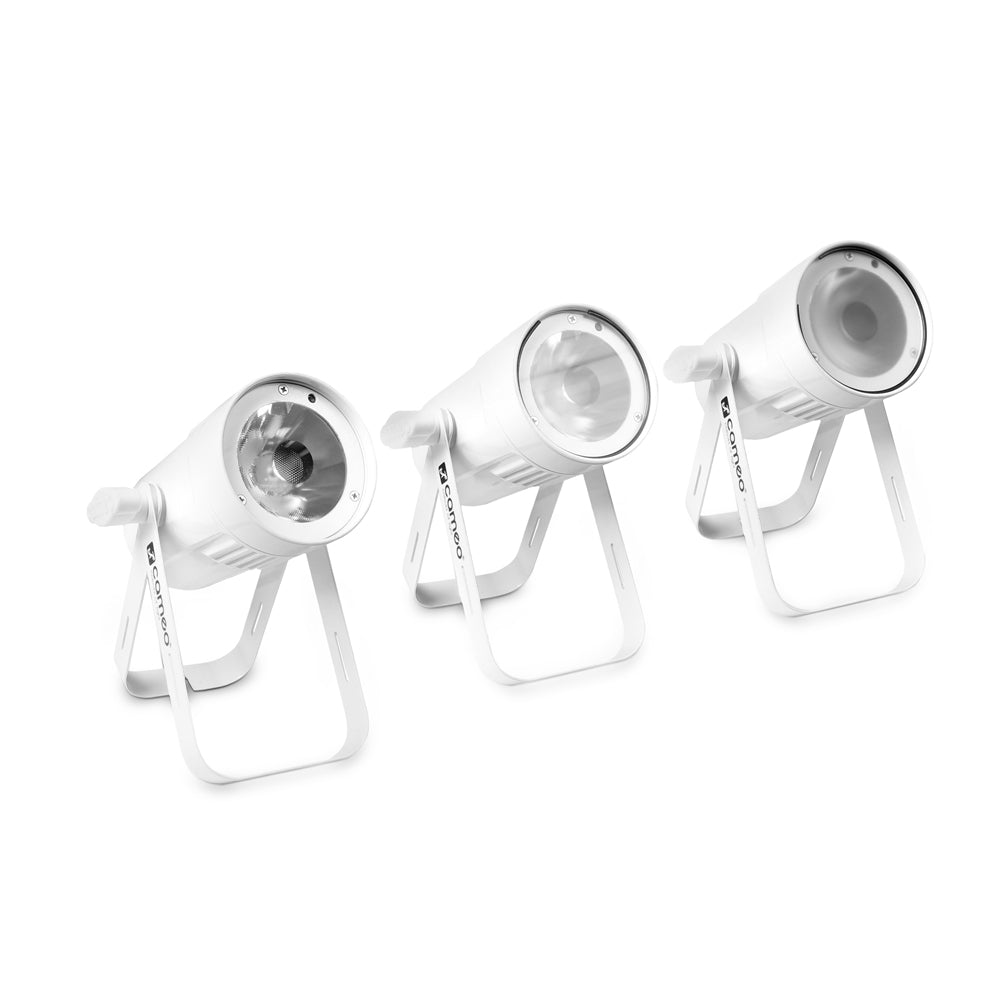

Cameo Q-SPOT 15 RGBW WH - Compact spotlight with 15W RGBW LED in a white housing
Available in black or white finish. Cameo Q-Spot 15 is a compact, RDM-compatible fixture supplied with 2 additional lenses, allowing you to choose between beam angles of 4.5°, 10° and 25°. It is equipped with a powerful 15-watt quad LED for rich RGBW mixes, colour temperature correction and 16-bit technology for high-resolution colours and ultra-smooth dimming. With a refresh rate of 3,600 Hz and flicker-free performance, the Q-Spot is ideal for film and TV productions, while highly efficient convection cooling ensures silent operation.

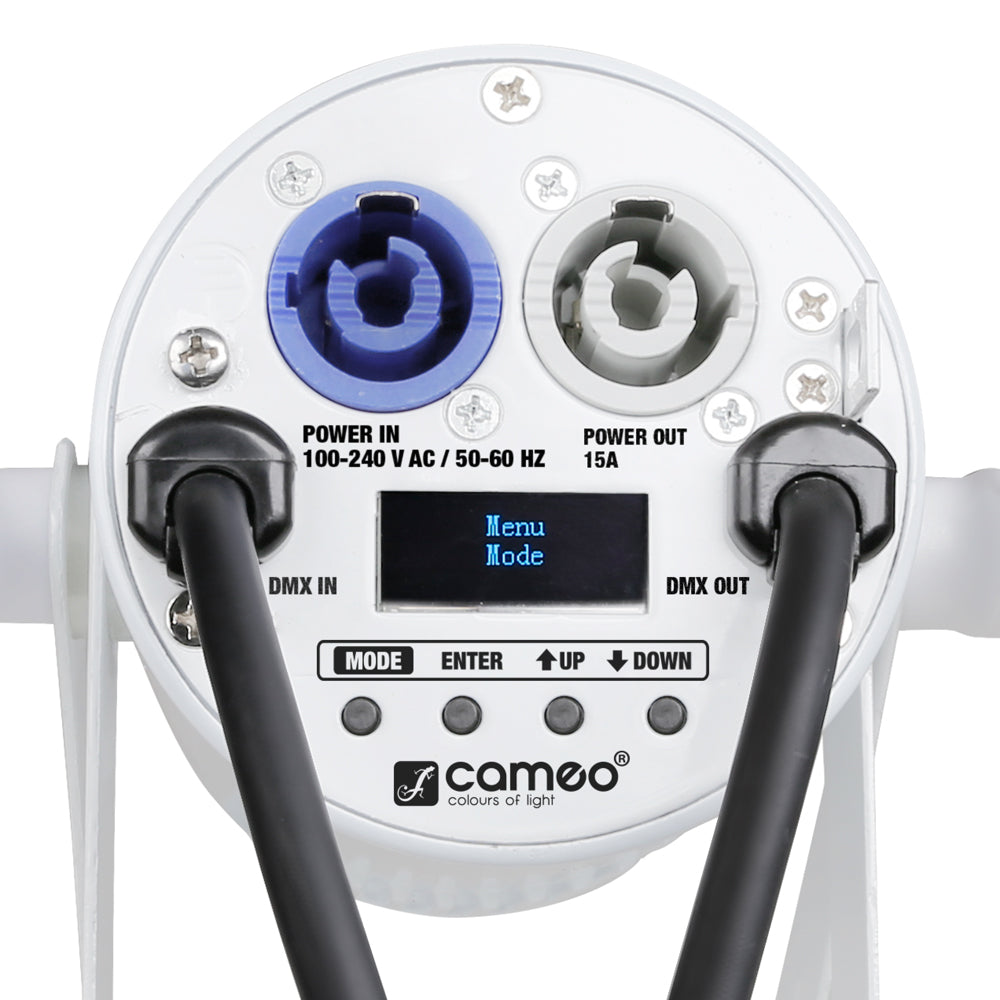

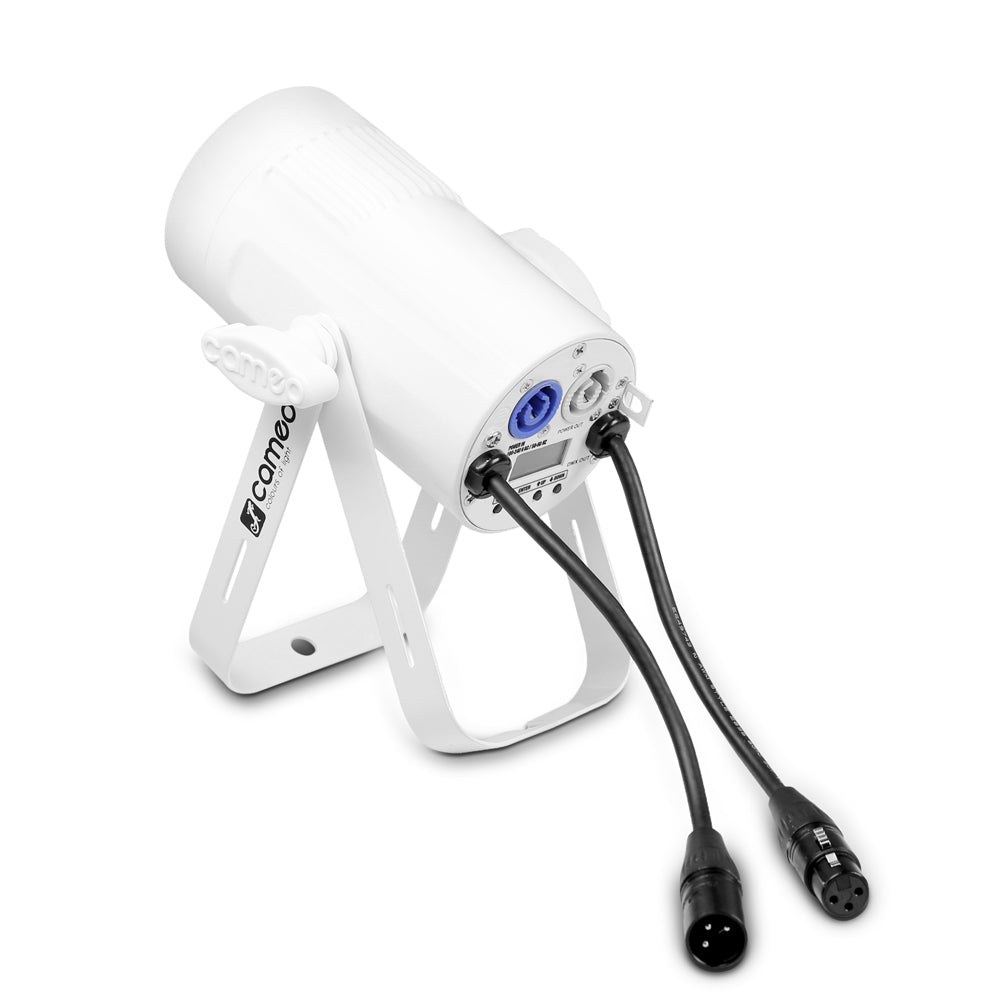

Q-Spot 15 features 5 DMX control modes, sound activation, master, slave and standalone functionality, and is supplied with a convenient infrared remote control. It has 4 ultra-smooth dimming curves with adjustable response, a high-speed strobe and a 4-button display for intuitive configuration. The rugged metal housing has 3-pin DMX as well as blue and white power inputs and outputs for easy daisy chaining.
- Compact LED spot light with single 15 watt quad LED

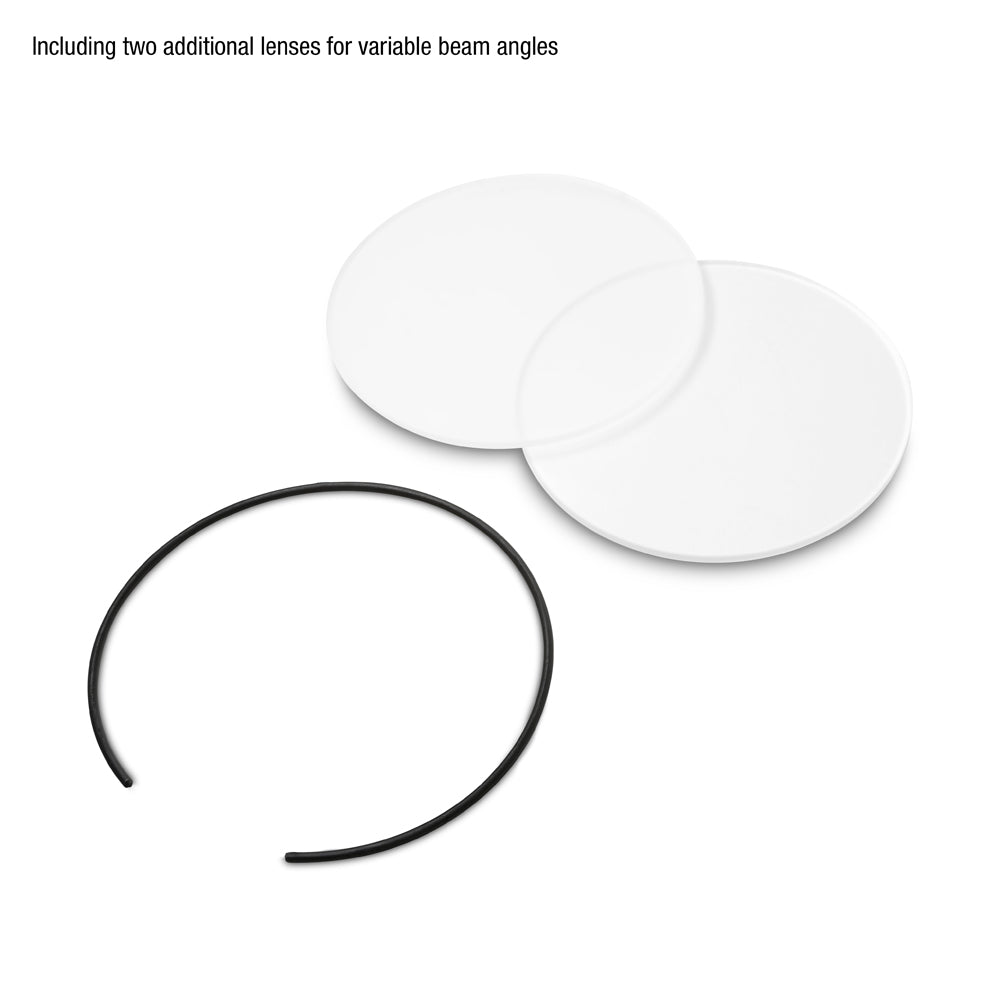

- 2 additional lenses for beam angles of 4.5°, 10° or 25°
- RDM capable
- 16-bit technology for high definition colours and ultra smooth dimming
- Flicker free, ideal for motion picture and TV applications
- Colour temperature correction
- 4 high resolution dimming curves with adjustable response
- 5 modes of DMX control, sound activation plus master, slave and standalone capability

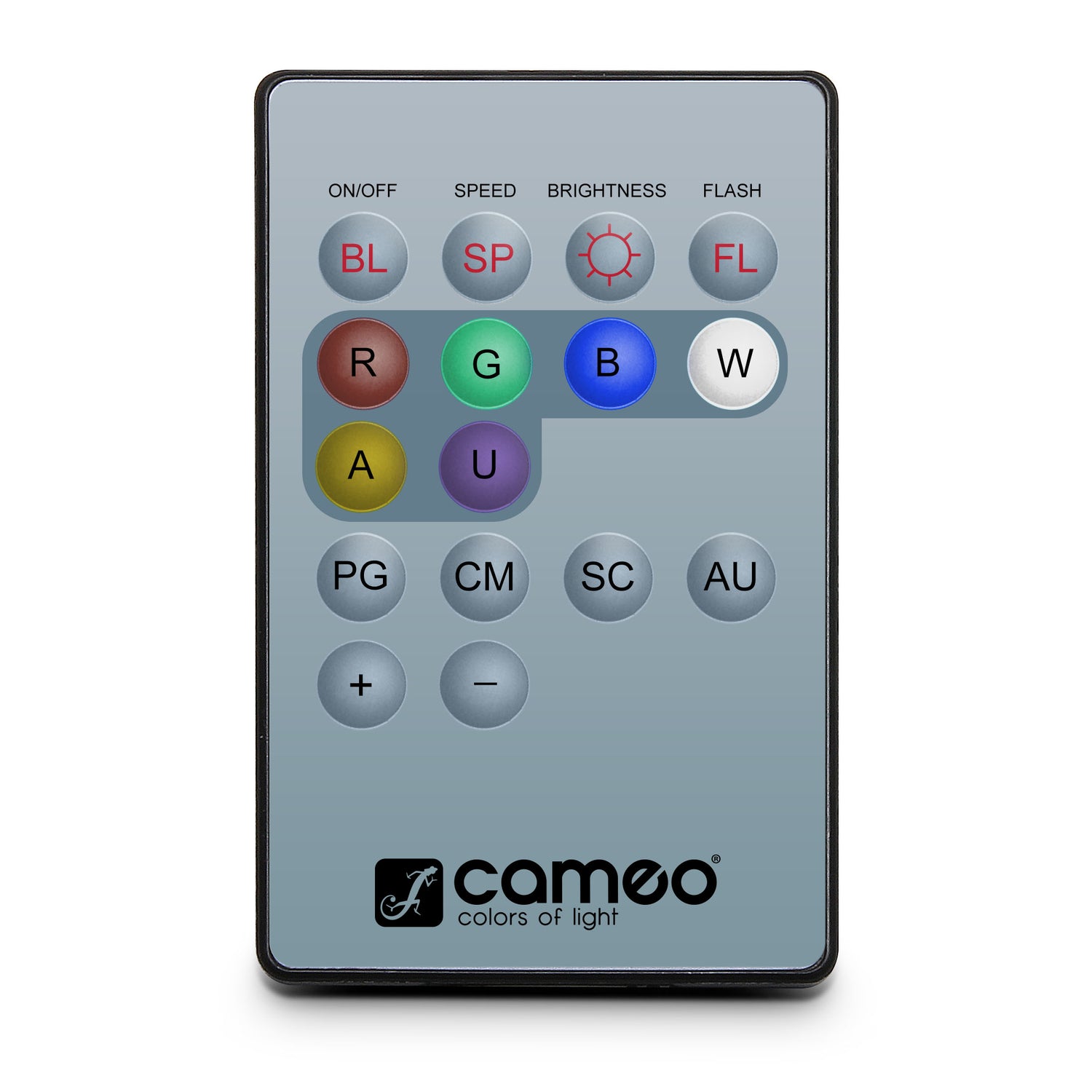

- Infrared remote control included
- 4-button OLED display for easy configuration
- Convection cooling for noise-free performance
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | RGBW |
| Number of LEDs | 1 |
| Average LED lifetime | 30000 hours |
| LED type | 15 W RGBW |
| Refresh rate | 3600 Hz |
| Dispersion | 10 ° |
| Dispersion | 25 ° |
| Dispersion | 4.5 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| DMX mode | 2-channel |
| DMX mode | 3-channel 1 |
| DMX mode | 3-channel 2 |
| DMX mode | 4-channel |
| DMX mode | 9-channel |
| DMX Functions | RGBW |
| DMX Functions | Strobe |
| DMX Functions | colour jump |
| DMX Functions | colour macro |
| DMX Functions | master dimmer |
| DMX Functions | sound control |
| High Speed Strobe | 20 Hz |
| Standalone modes | Auto run |
| Standalone modes | colour fade |
| Standalone modes | colour jump |
| Standalone modes | colour macro |
| Standalone modes | slave mode |
| Standalone modes | sound control |
| Controls | Down |
| Controls | Enter |
| Controls | Mode |
| Controls | Up |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 18 W |
| Power supply connector | Blue and white power I/O |
| Housing material | Metal |
| Cabinet colour | white |
| Cooling | Convection |
| Illuminance | 24000lx @ 1m |
| Width | 89 mm |
| Height | 89 mm |
| Depth | 172 mm |
| Weight | 1,2 kg |
