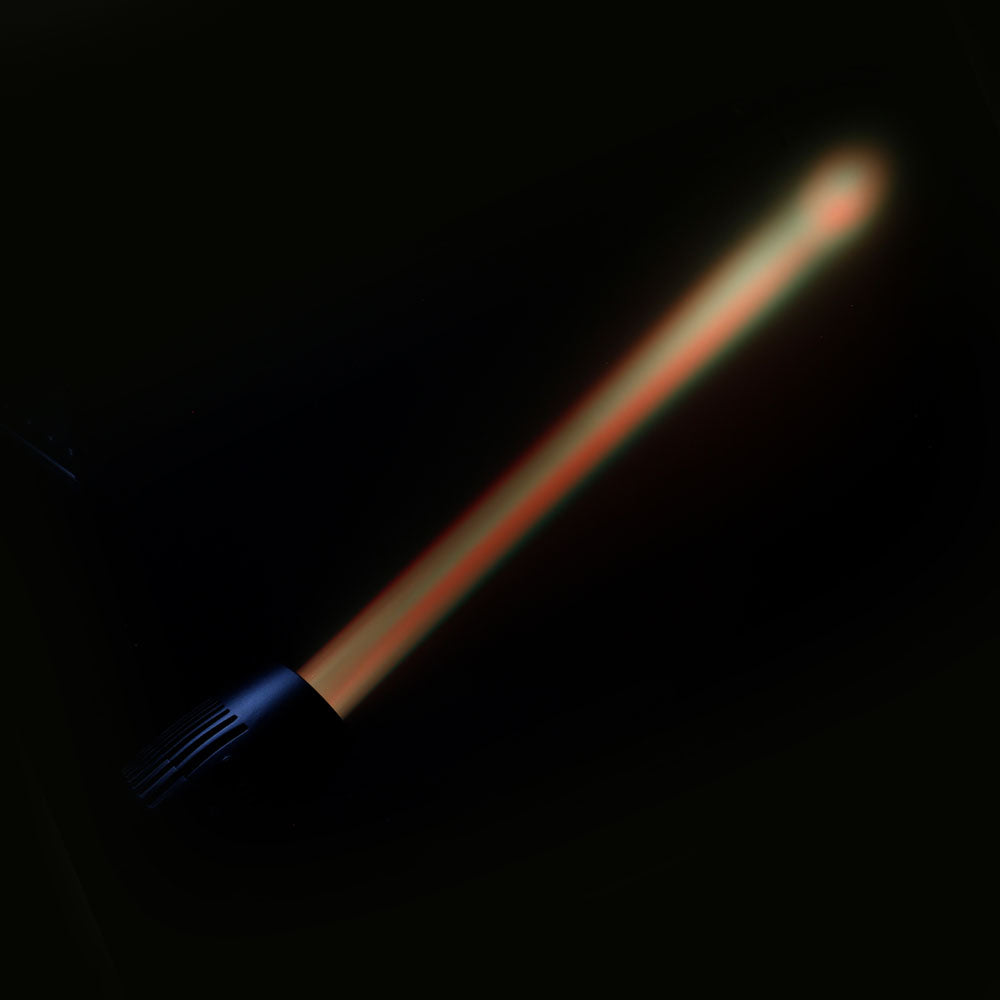

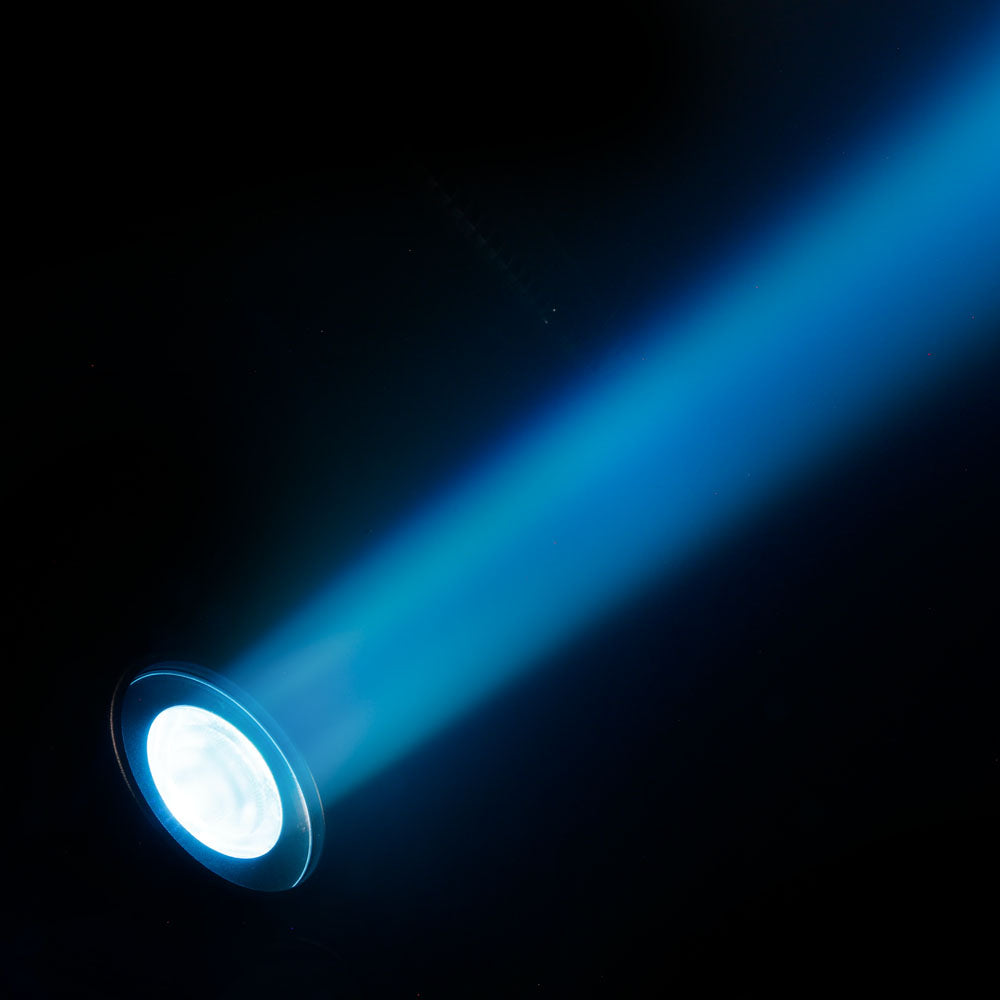

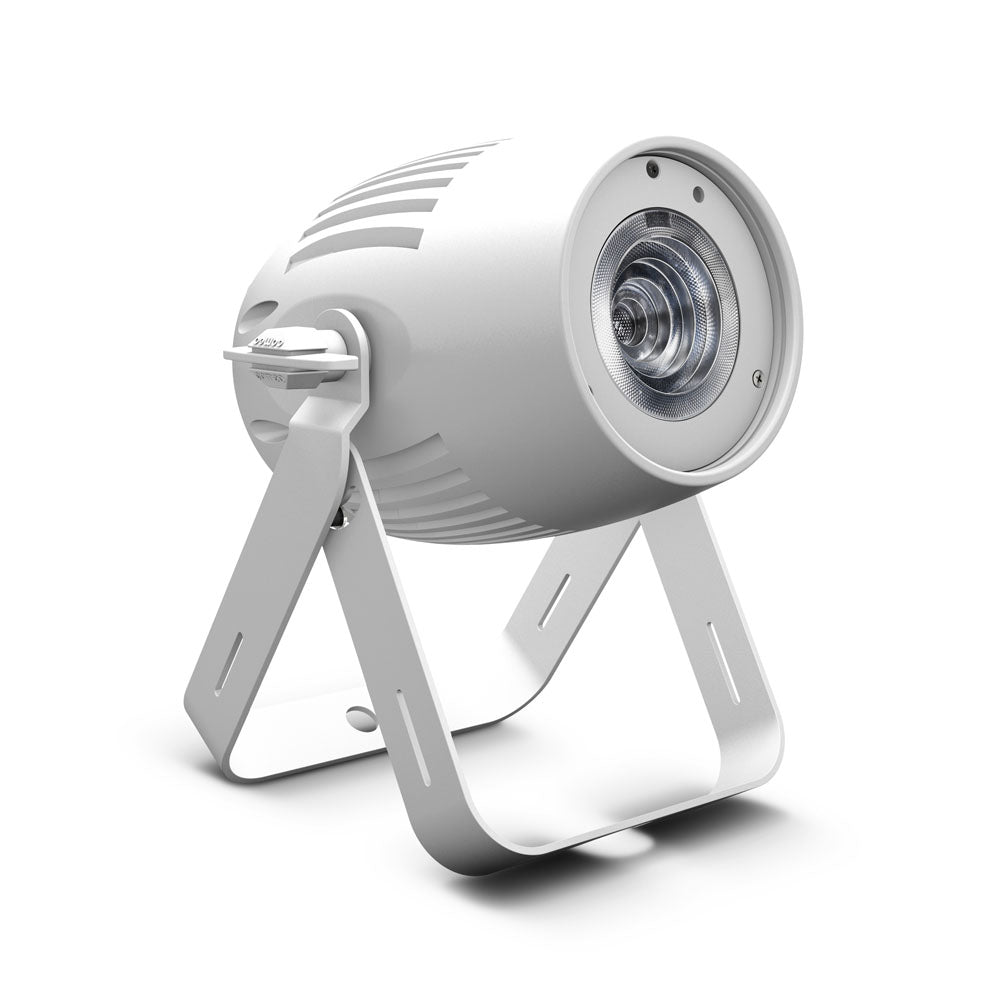

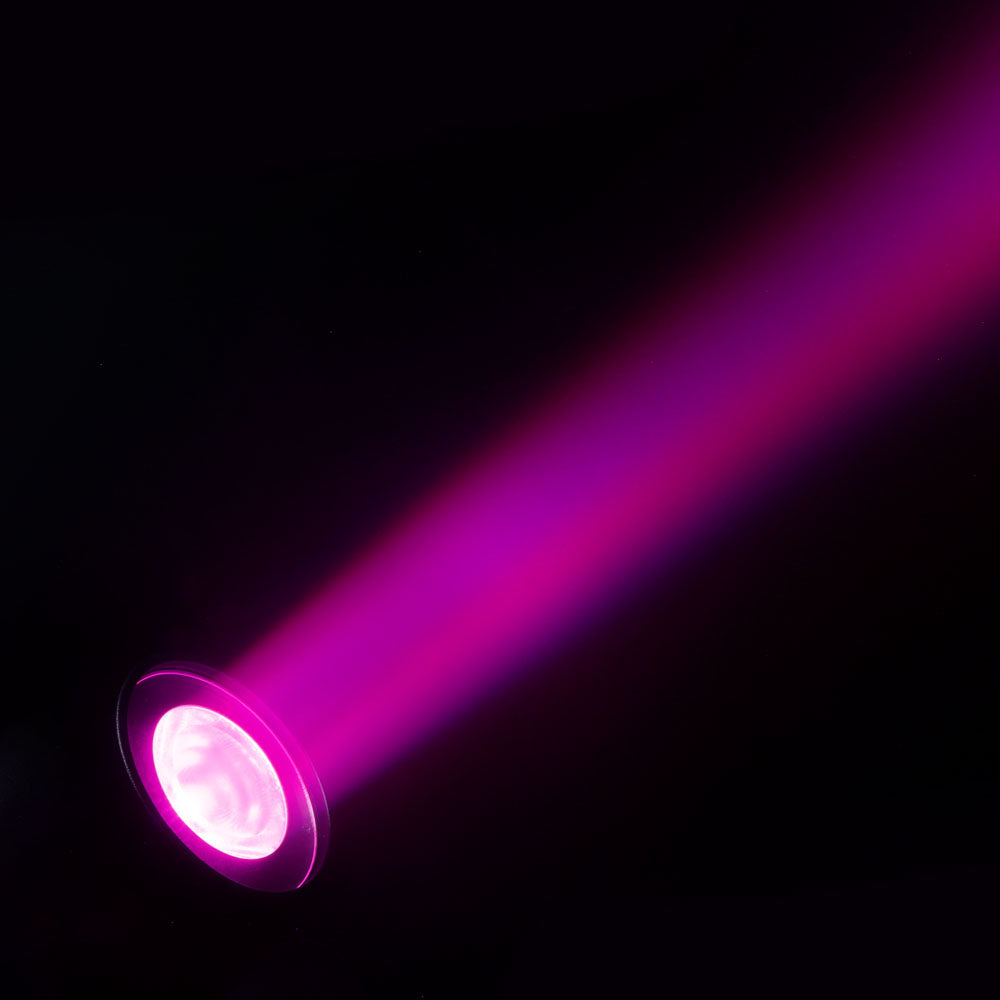

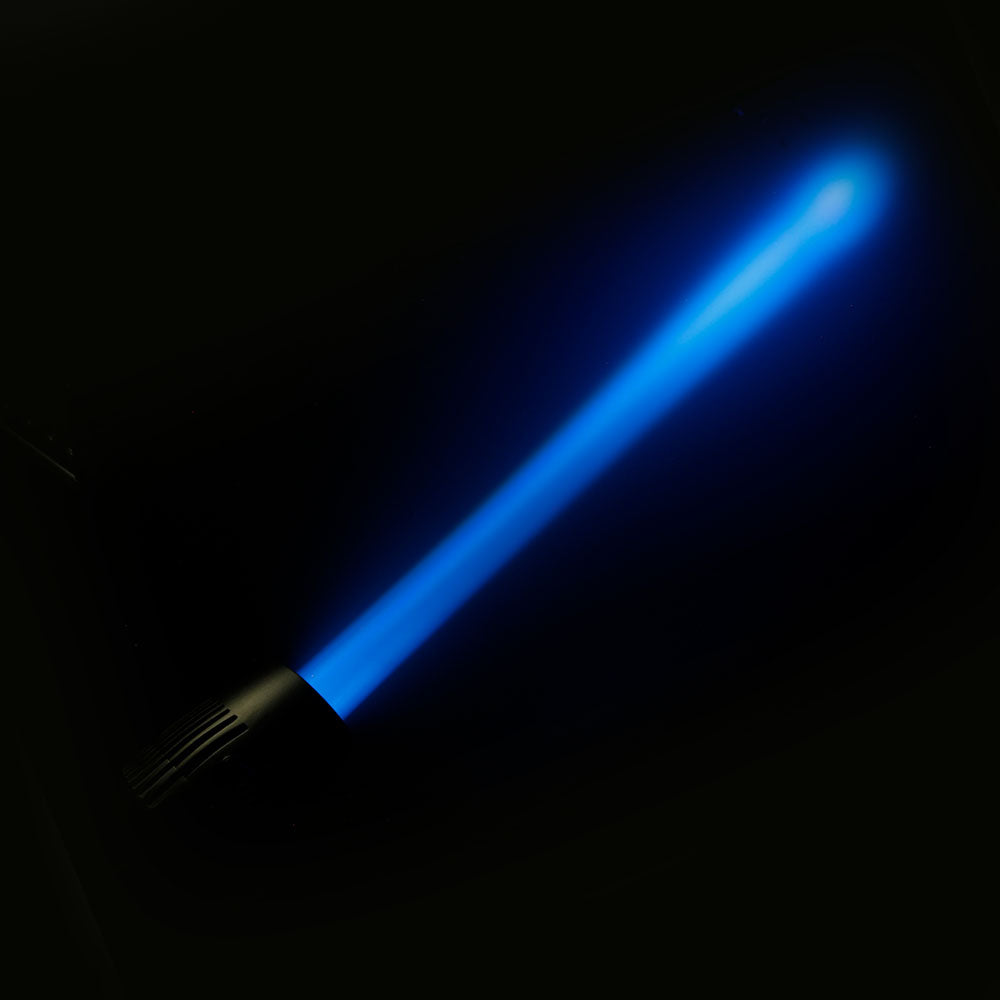

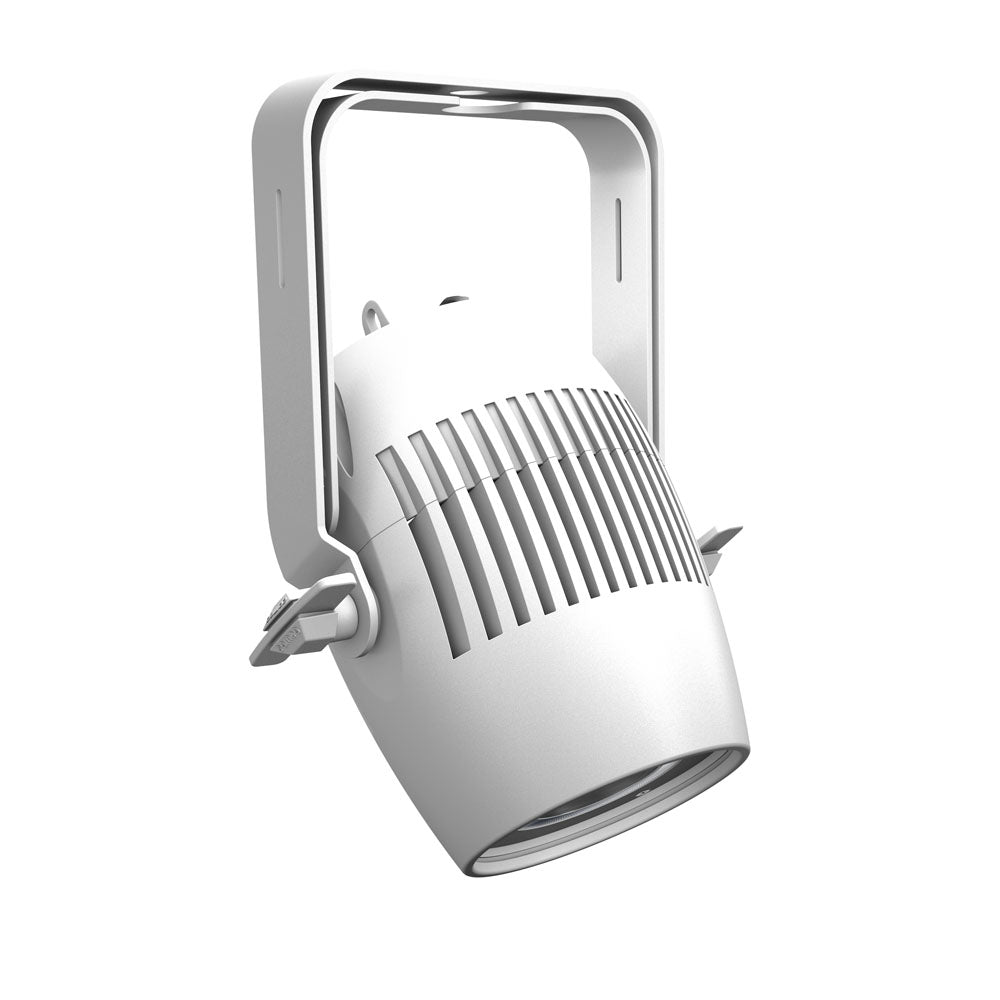

The compact Cameo Q-Spot 40 is equipped with a powerful 40-watt Osram quad LED with an expected lifespan of 50,000 hours. The RDM-enabled spot features a specially designed lens for a tightly focused 4.5° beam angle. It comes with two interchangeable lenses, offering versatility and allowing you to choose between 10° and 25° angles. Using 16-bit technology, the Q-Spot 40 delivers intense high-resolution RGBW colour mixing and ultra-smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the fixture’s 3,600 Hz refresh rate plus flicker-free performance make it ideal for film and TV applications.

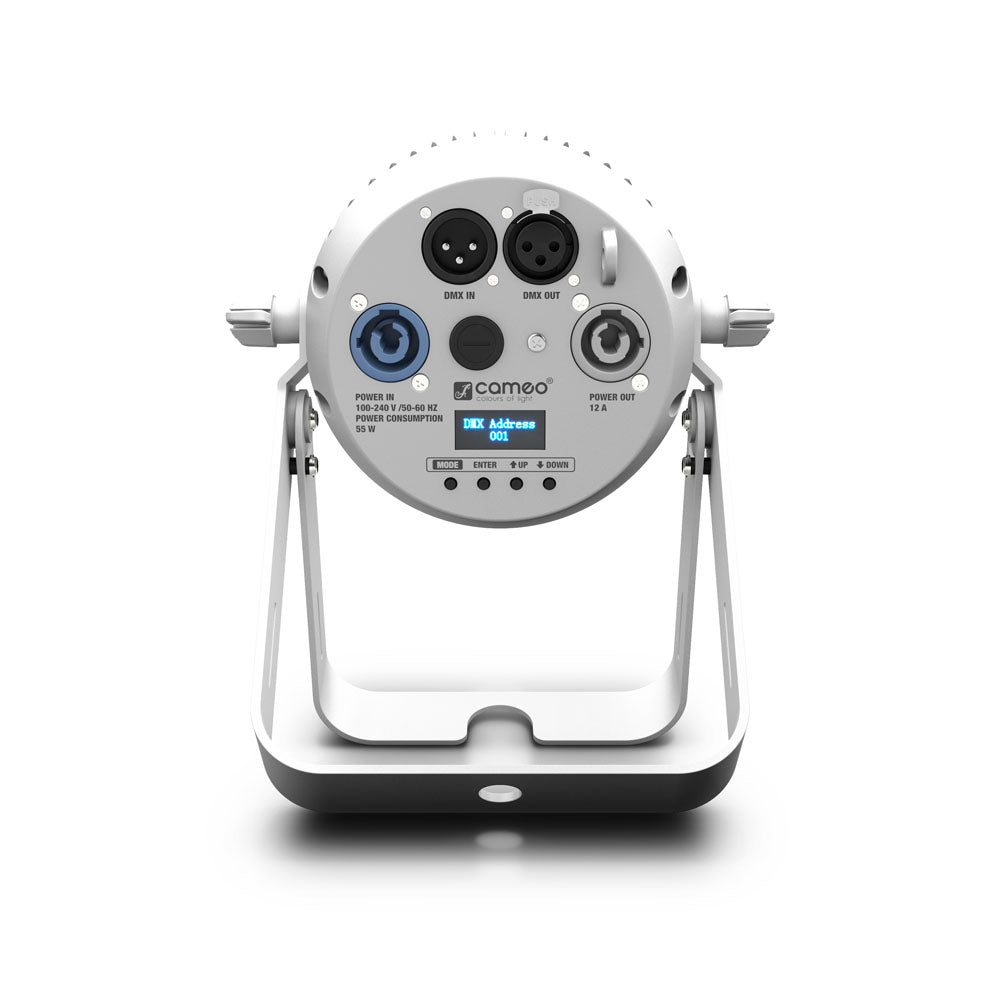

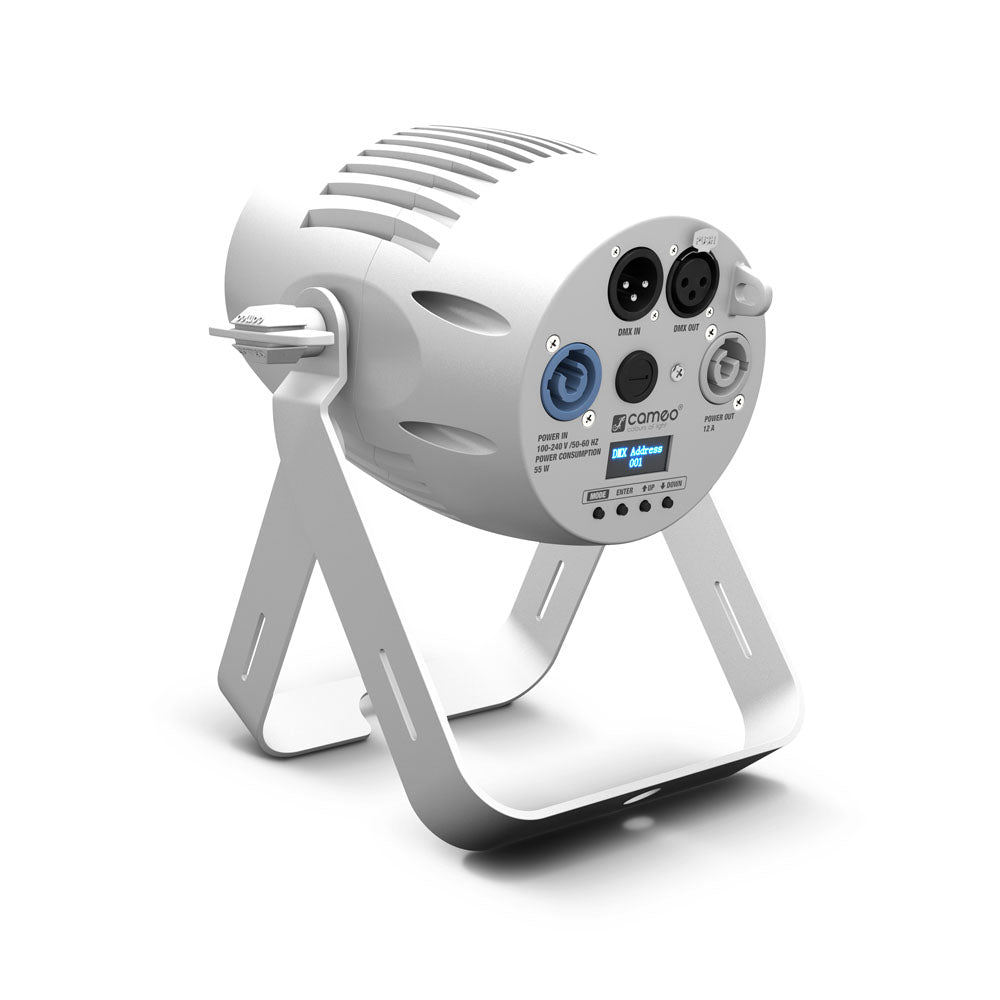

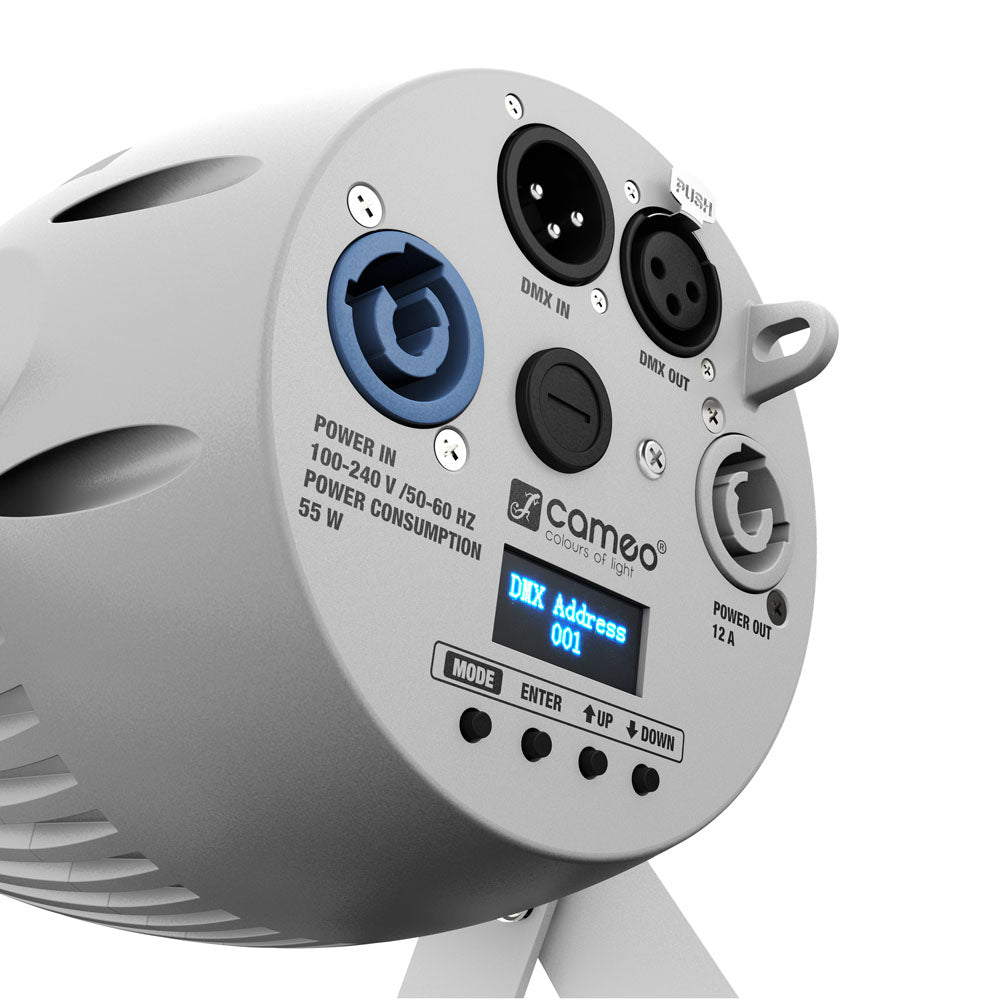

The Q-Spot 40 offers 5 DMX control modes, sound activation, as well as master, slave and standalone functionality. A handy infrared remote control is available as an accessory. The spot features a high-speed strobe function, colour temperature correction and a 4-button OLED display for easy configuration. The rugged all-metal housing has 3-pin DMX inputs and outputs, plus blue and grey Power Twist connectors for seamless daisy-chaining and power linking. The Q-Spot 40 is available with a black housing (item no. CLQS40RGBW) or a white housing (item no. CLQS40RGBWWH).
- Compact spotlight with single 40W Osram quad LED

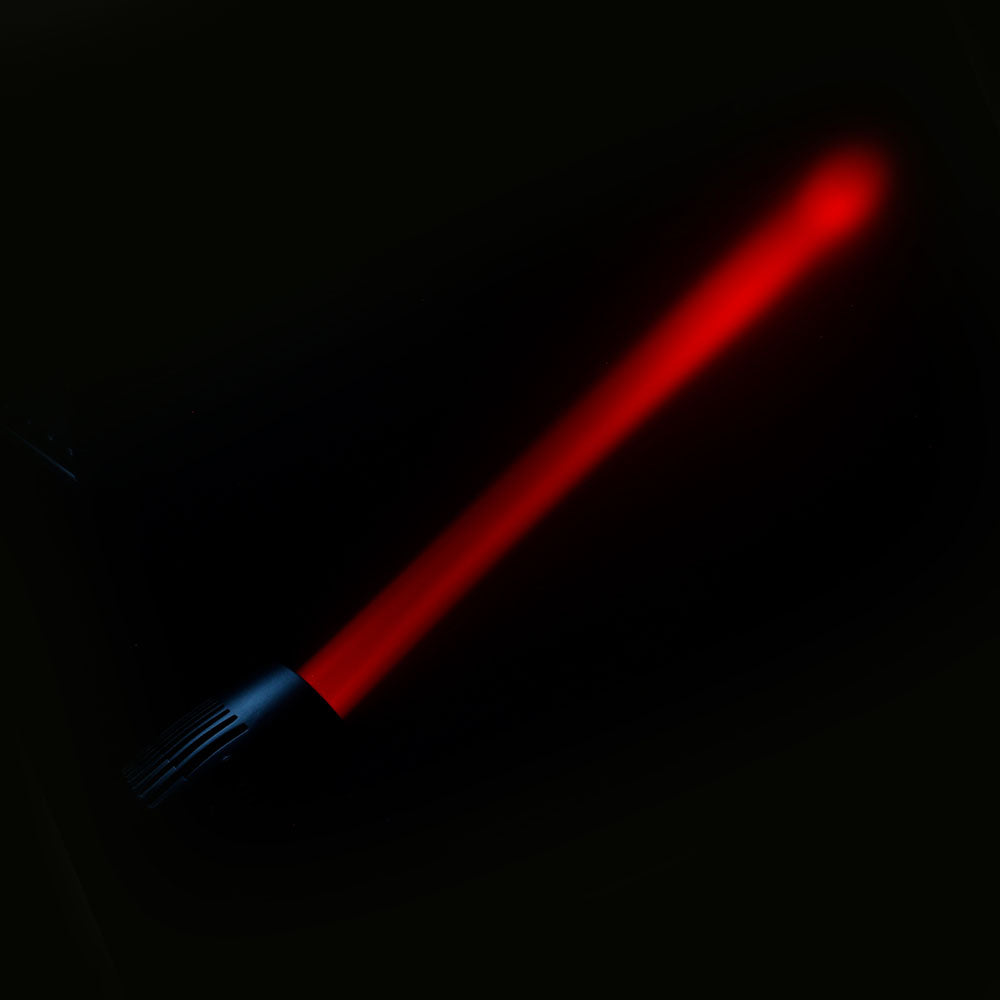

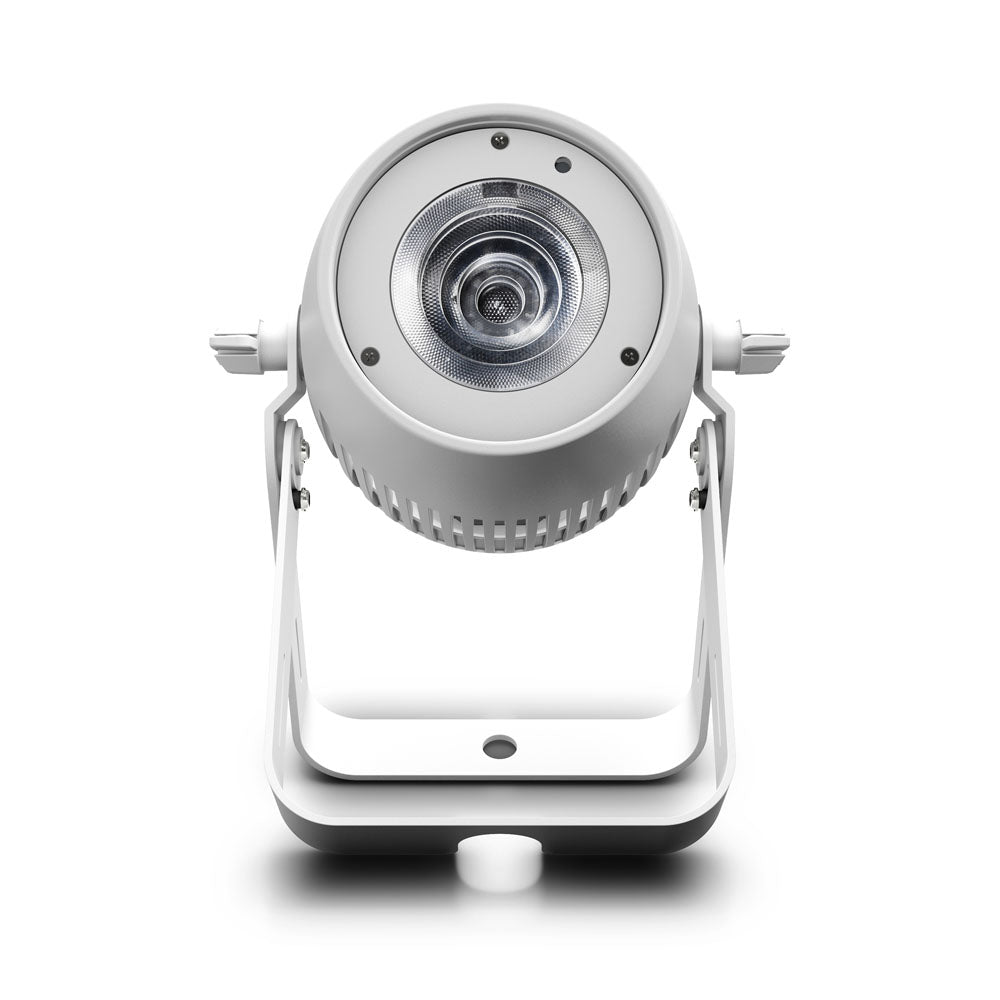

- Custom lens with 4.5° beam spread for uniform light intensity

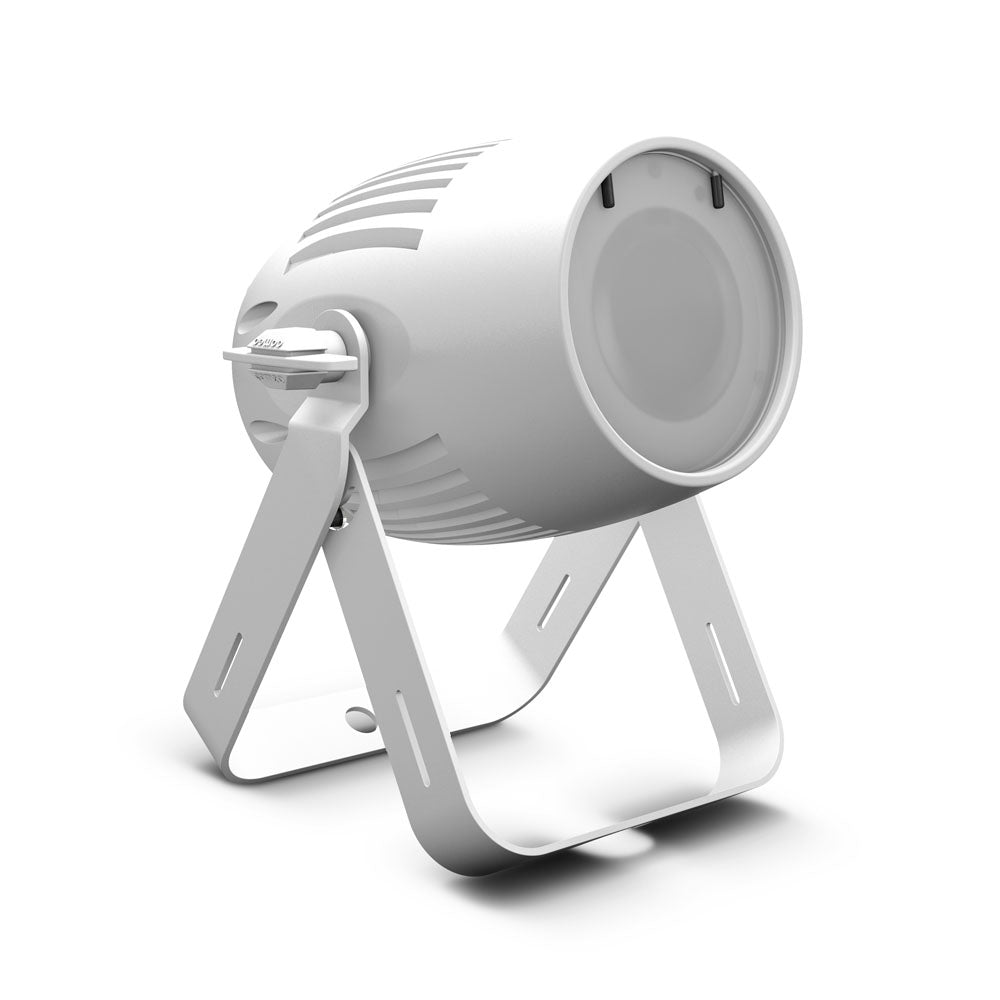

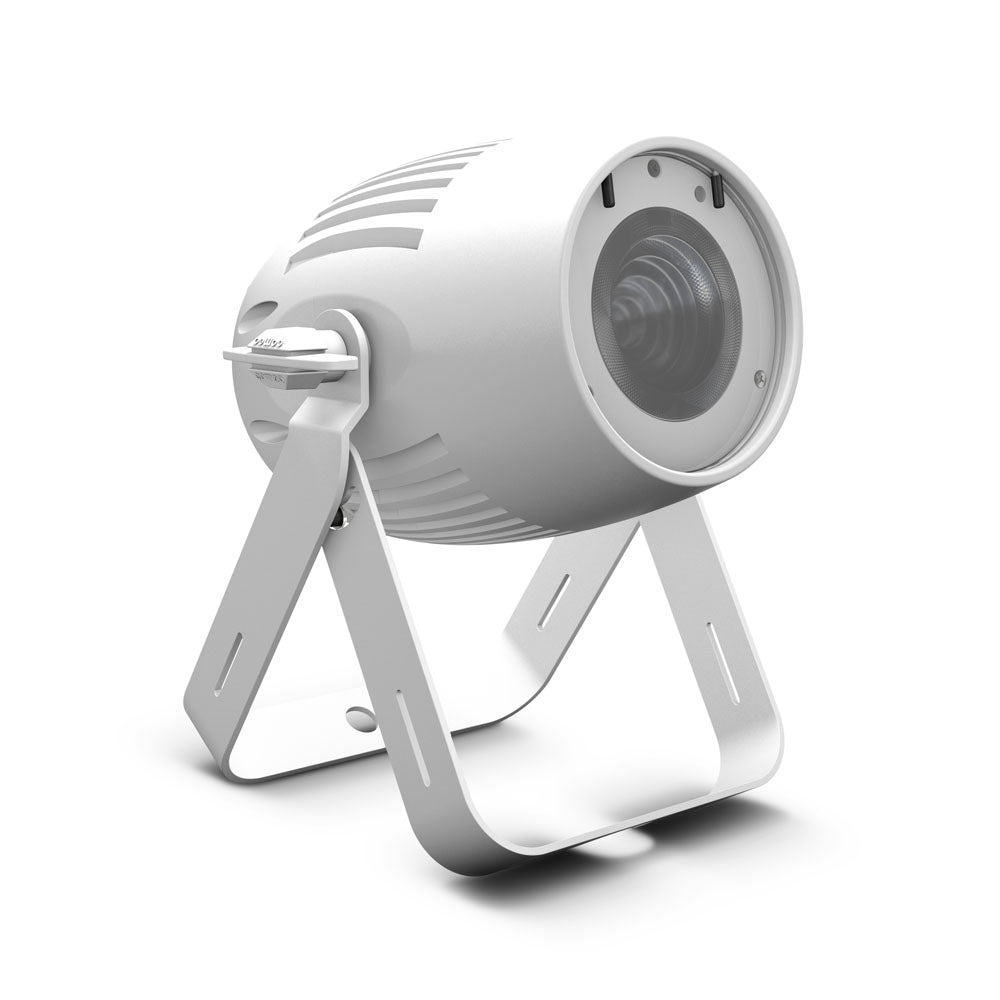

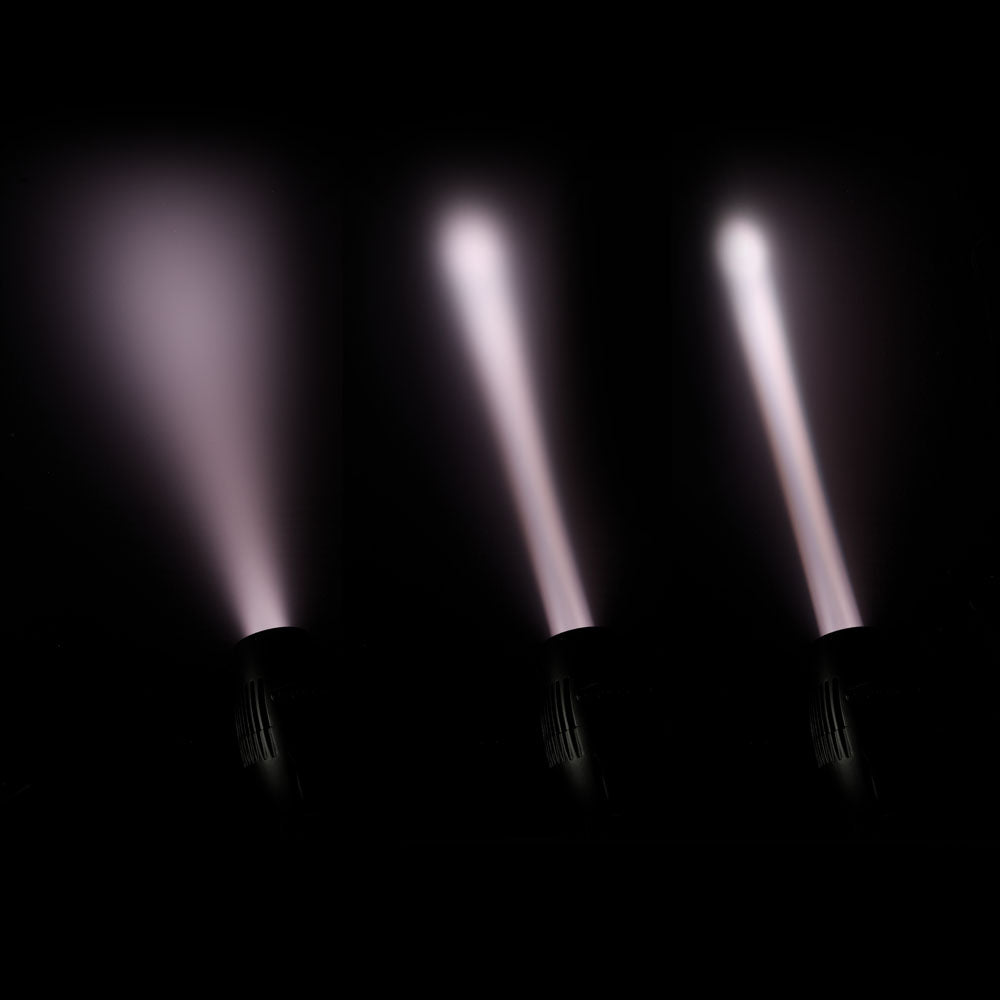

- Includes 2 replacement lenses for 10° or 25° beam angles
- RDM enabled
- 16-bit technology for high definition colours and ultra smooth dimming
- Flicker free, ideal for motion picture and TV applications
- Colour temperature correction
- 4 high resolution dimming curves with adjustable response
- 5 modes of DMX control, sound activation plus master, slave and standalone capability
- Infrared remote control available as accessory
- 4-button OLED display for easy configuration
- Convection cooling for noiseless performance
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | RGBW |
| Number of LEDs | 1 |
| Average LED lifetime | 50000 hrs. |
| LED type | 40 W |
| Refresh rate | 3600 Hz |
| Dispersion | 10 ° |
| Dispersion | 25 ° |
| Dispersion | 4.5 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| RDM | Yes |
| Protocols | USITT DMX-512 |
| DMX mode | 2-channel |
| DMX mode | 3-channel 1 |
| DMX mode | 3-channel 2 |
| DMX mode | 4-channel |
| DMX mode | 9-channel |
| DMX Functions | RGBW |
| DMX Functions | Strobe |
| DMX Functions | colour jump |
| DMX Functions | colour macro |
| DMX Functions | master dimmer |
| DMX Functions | sound control |
| Wireless DMX | No |
| High Speed Strobe | 1 - 20 Hz |
| Standalone modes | Auto run |
| Standalone modes | colour fade |
| Standalone modes | colour jump |
| Standalone modes | colour macro |
| Standalone modes | slave mode |
| Standalone modes | sound control |
| Controls | Enter |
| Controls | Grey Power Twist, female |
| Controls | Mode |
| Controls | Value Down |
| Controls | Value Up |
| Indicators | OLED Display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 55 W |
| How many devices can be connected (110 V) | 5 |
| How many devices can be connected (240 V) | 5 |
| Power supply connector | Blue Power Twist, male |
| Power supply connection | Grey Power Twist, female |
| Max. output current | 12 A A |

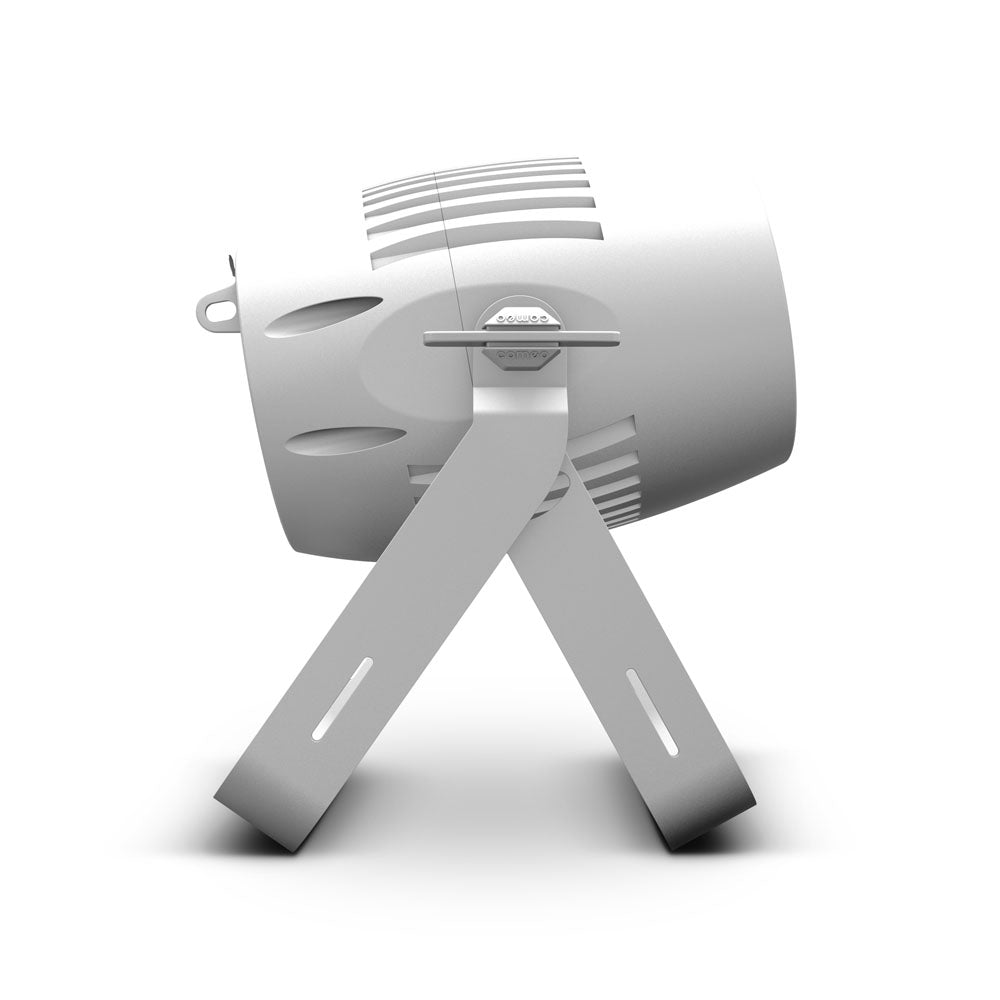

| Housing material | Metal |
| Cabinet colour | white |
| Protection class IP | IP20 |
| Cooling | Convection |
| Maximum Ambient Temperature | 0 - 40° C °C |
| Illuminance | 58,000 lx @ 1 m |
| Illuminance | 8900lx @ 3m |
| Luminous flux | 780 lm |
| Width | 220 mm |
| Height | 230 mm |
| Depth | 220 mm |
| Weight | 2,75 kg |
