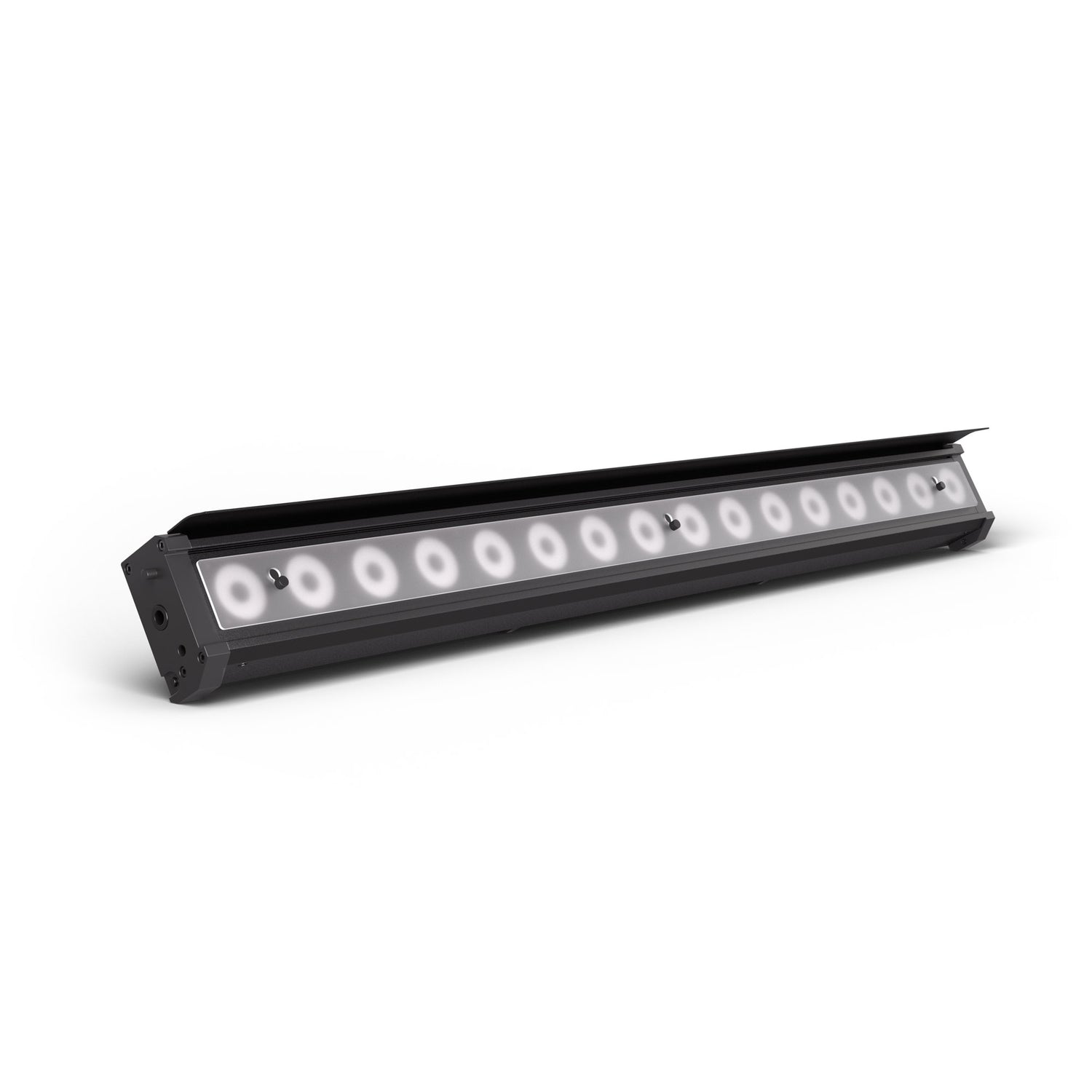

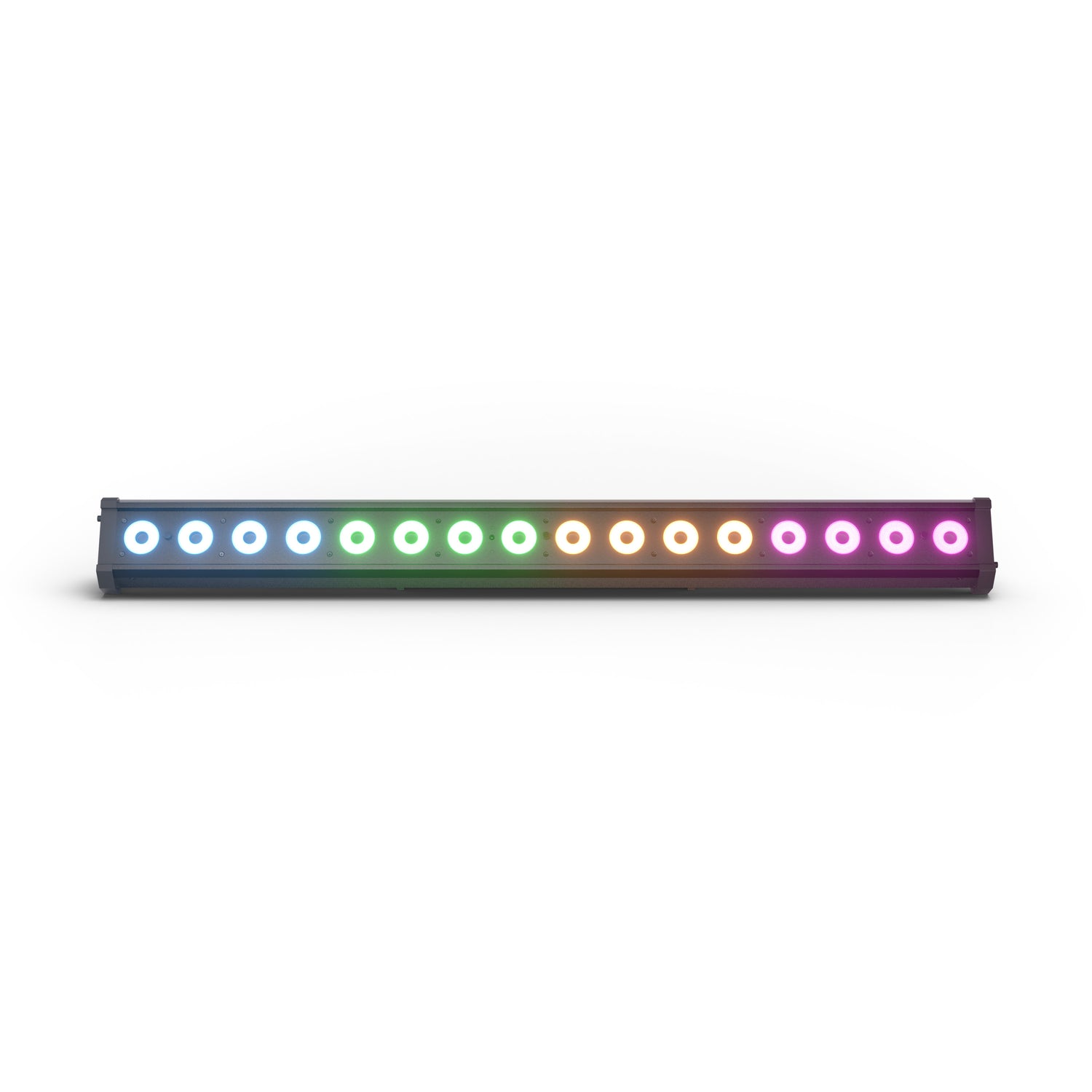

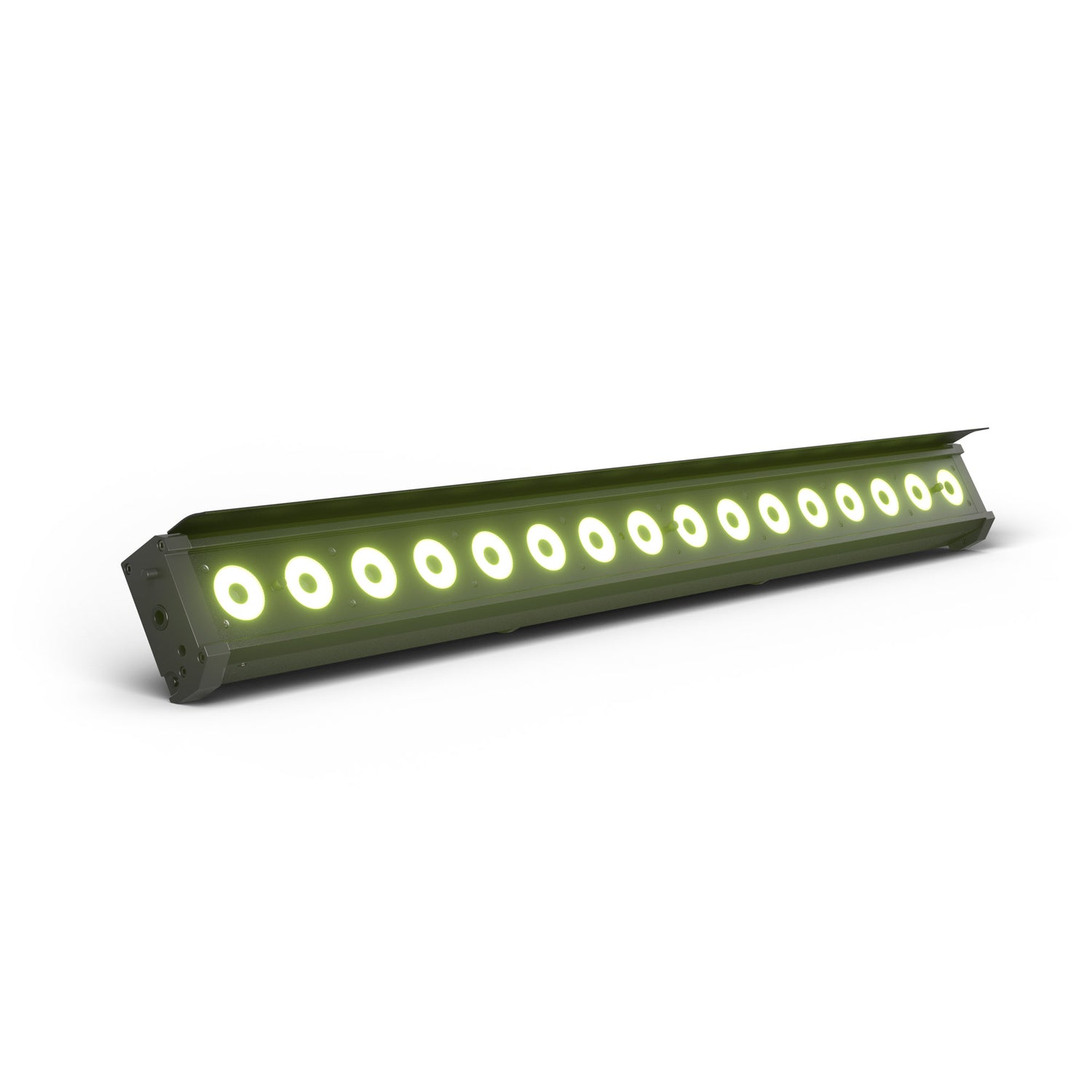

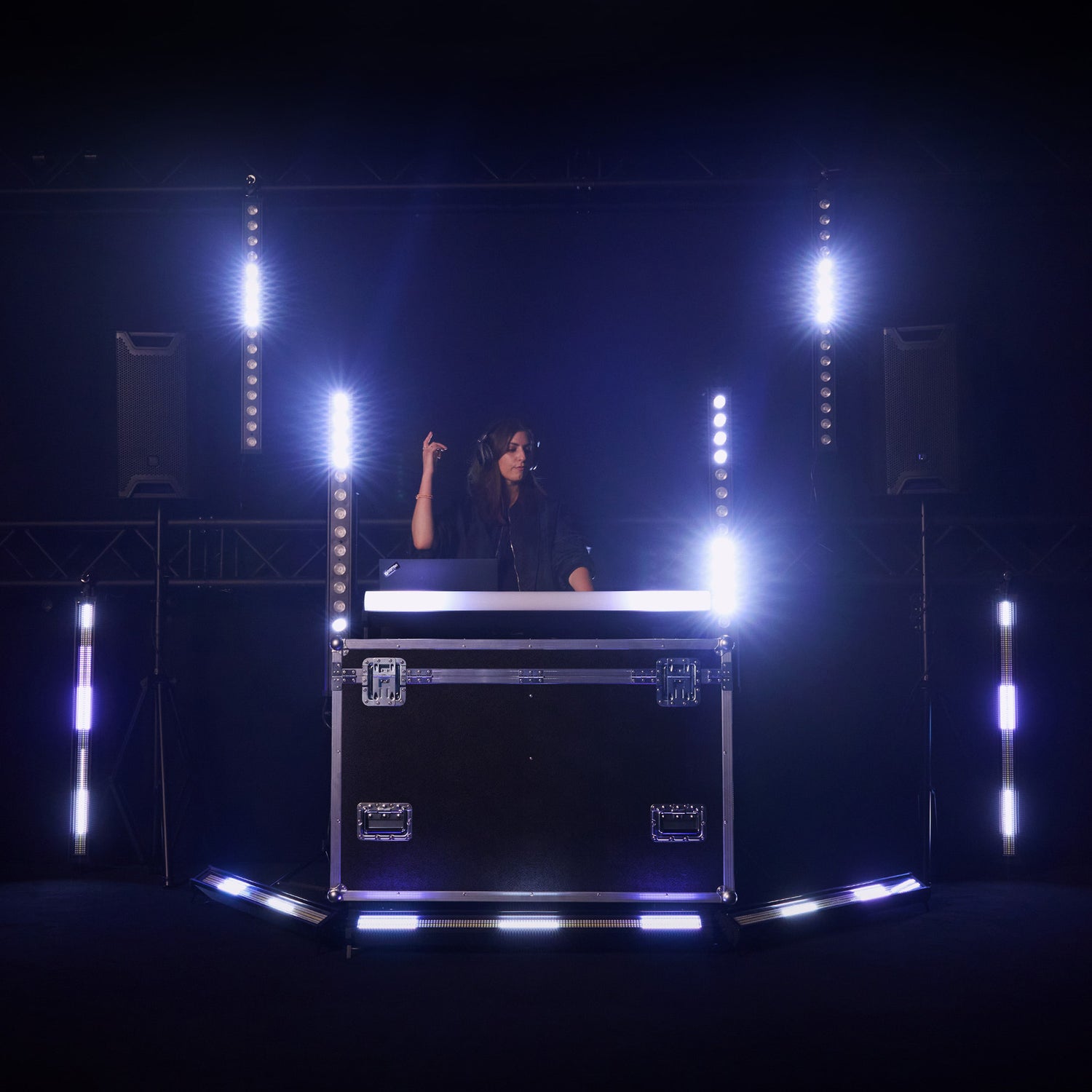

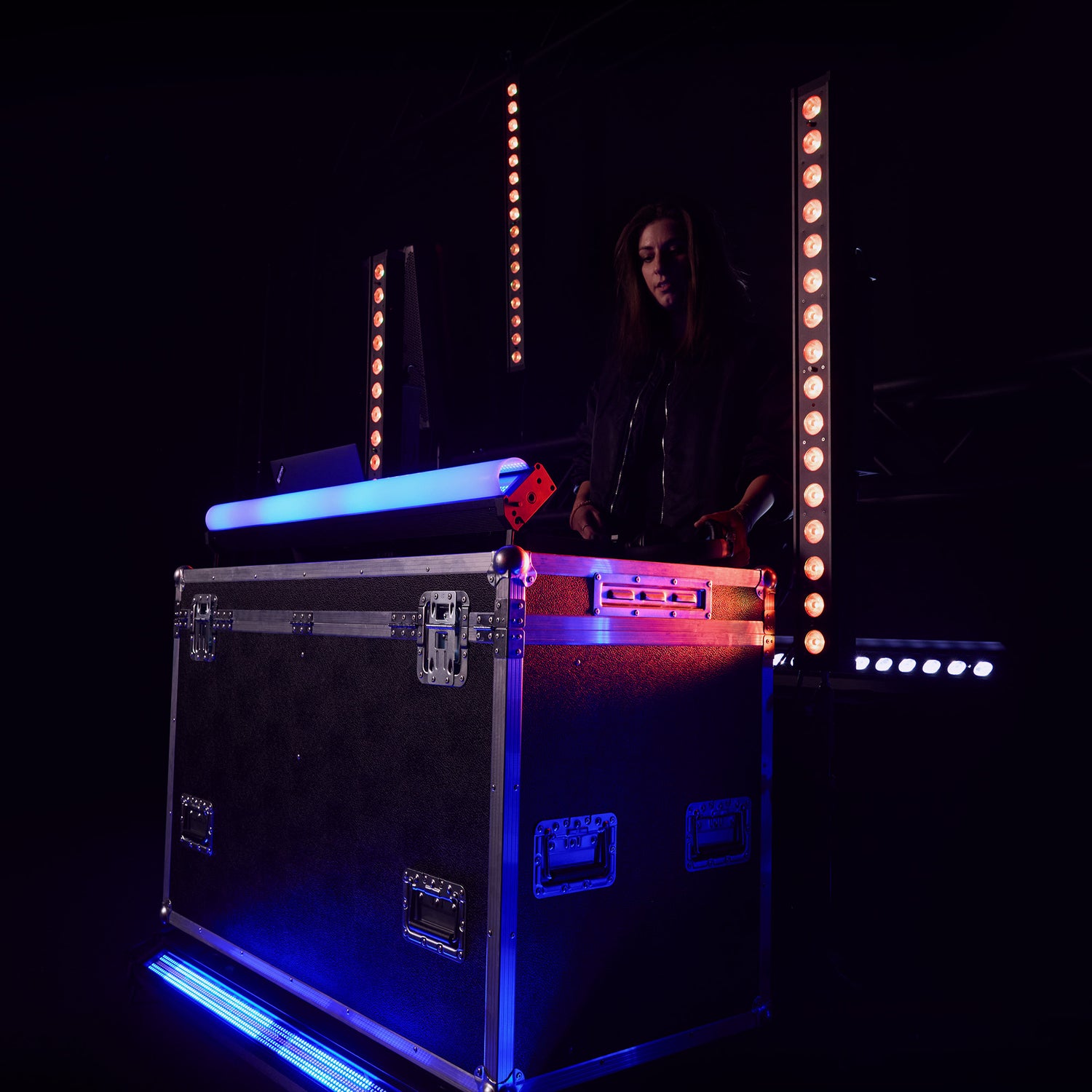

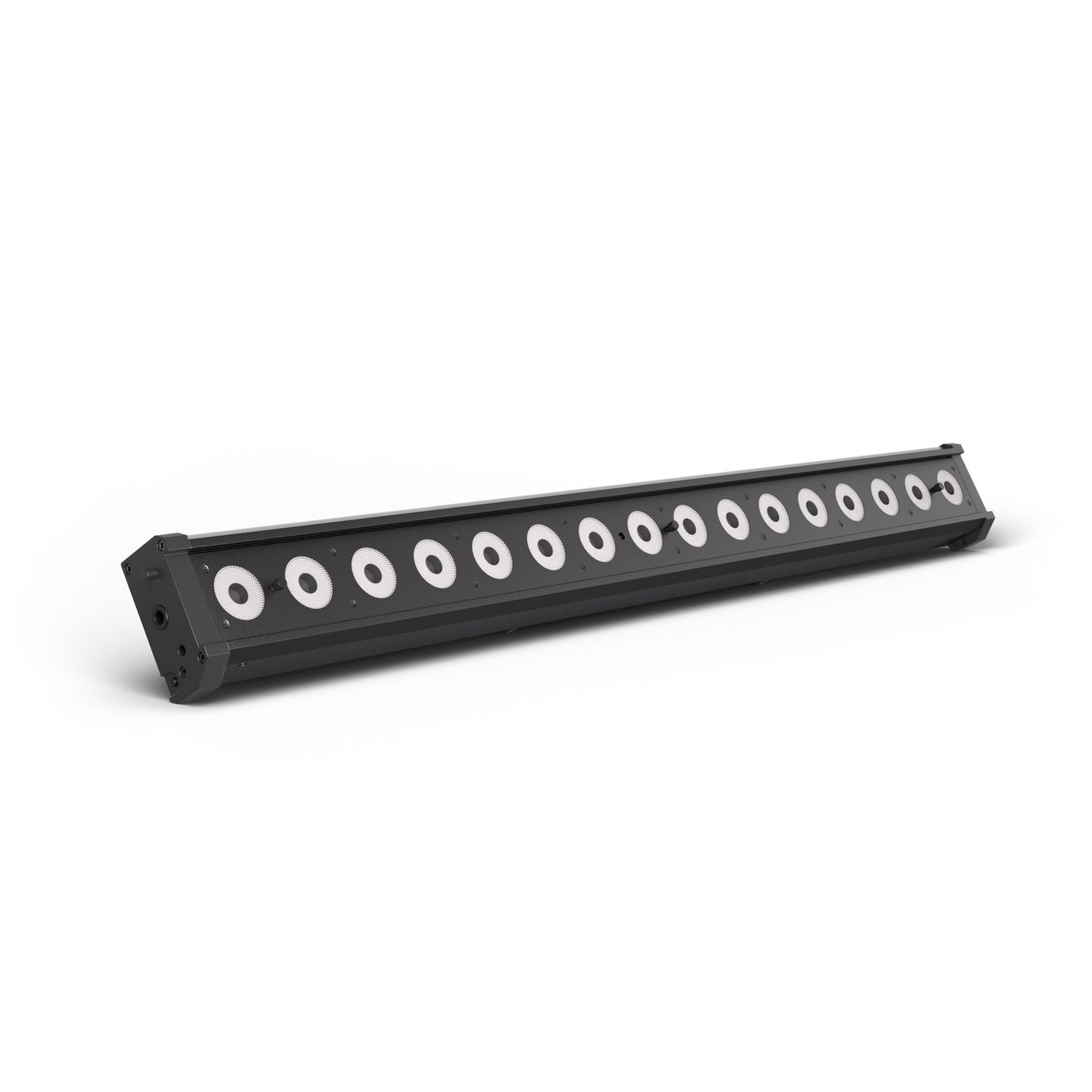

The Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars, or exclusive events, delivering fantastic lighting effects in any setting.

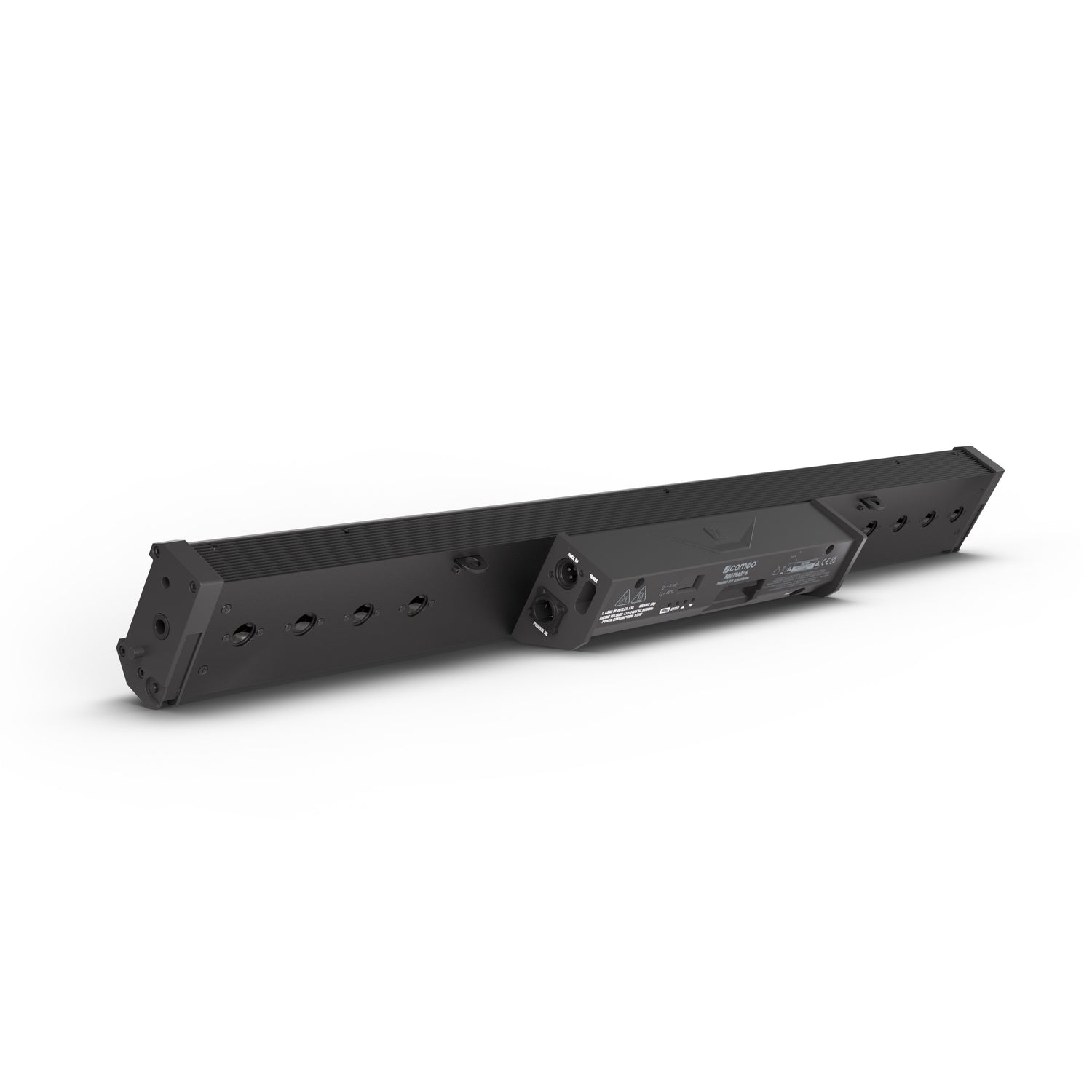

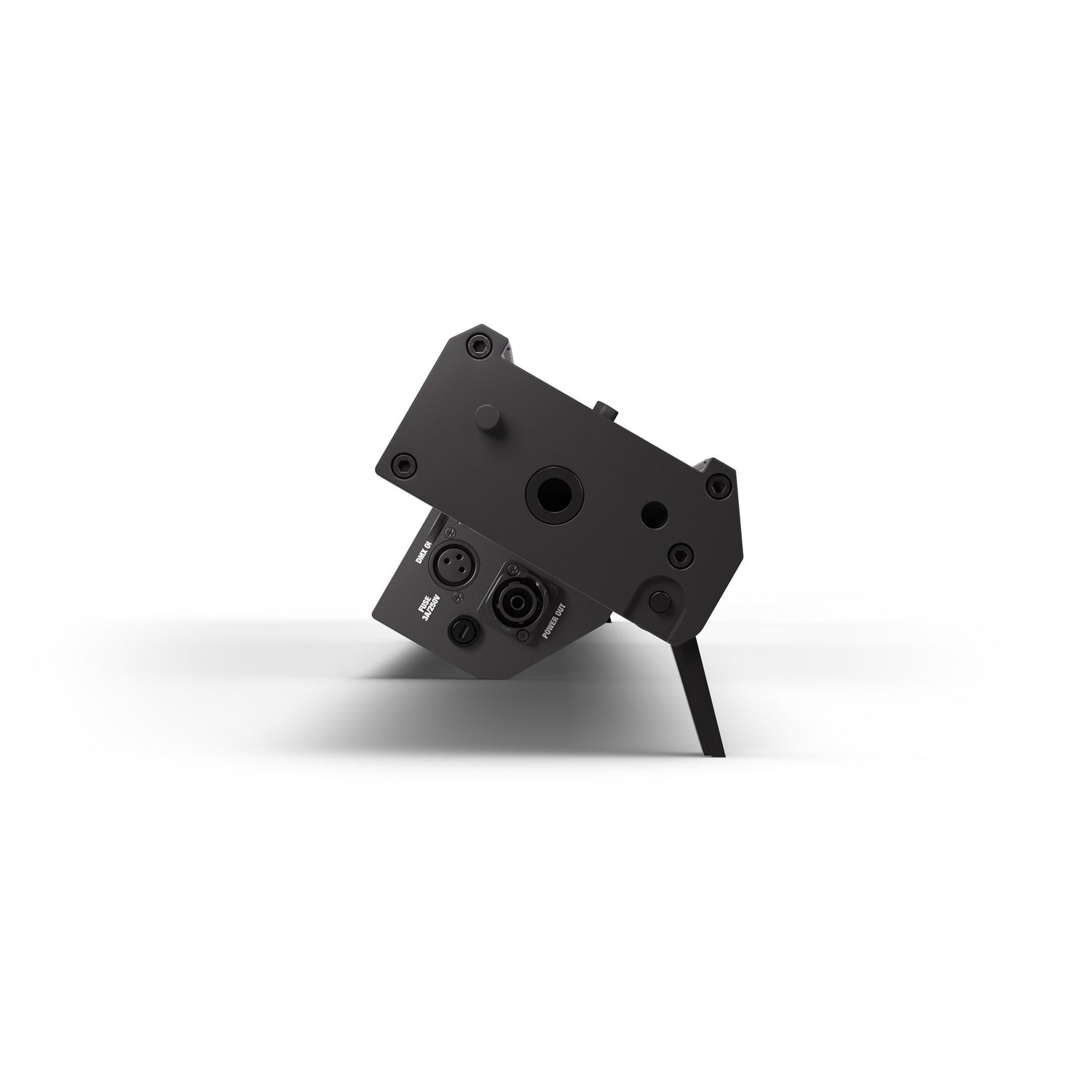

The intelligent design allows for flexible placement at different angles without the included feet. The practical threaded bracket supports both suspended and standing use, making it adaptable to various environments.

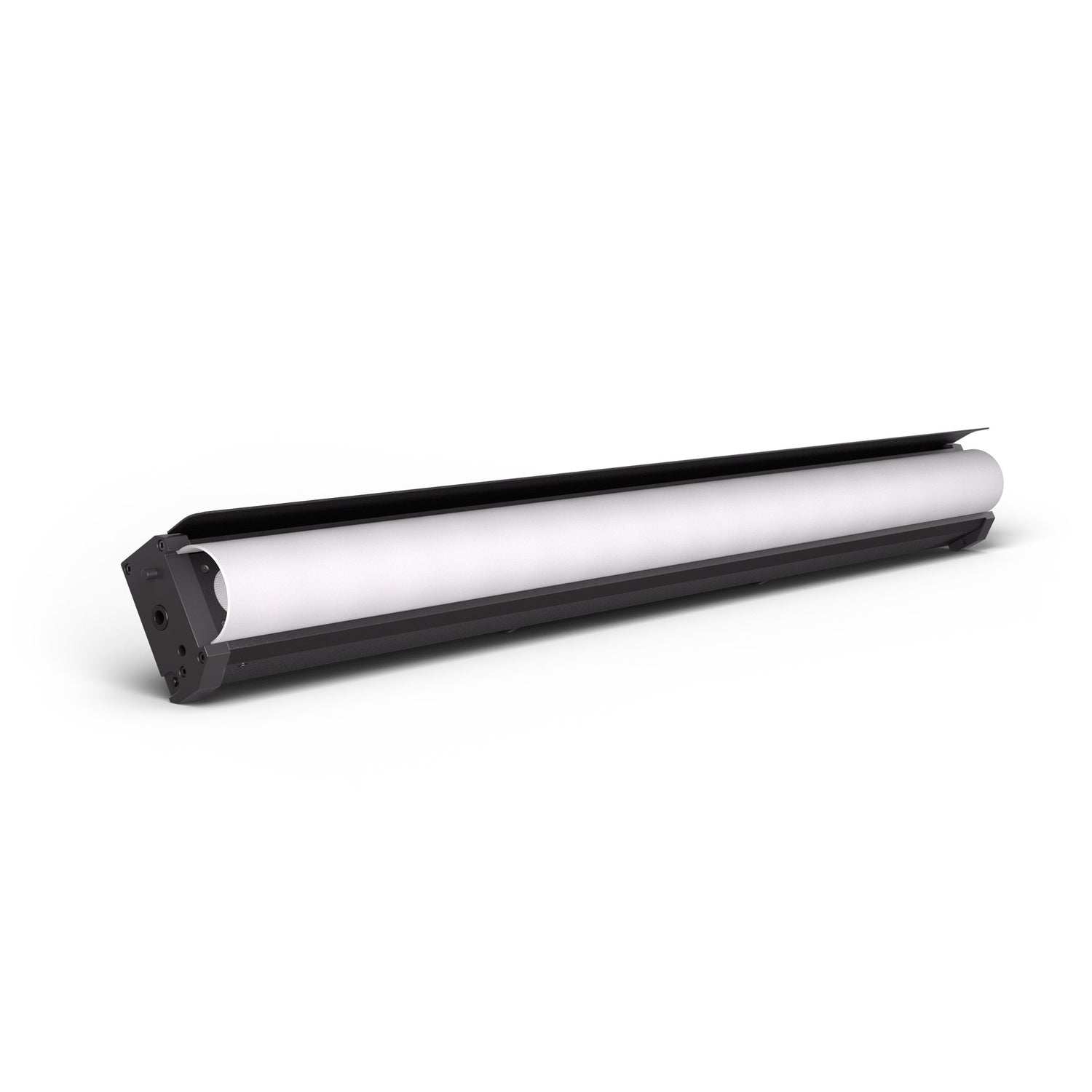

The magnetic Quick Alignment System, combined with various Quick Lock options, enables quick and precise alignment of multiple LED bars, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter, and glare shield offer many creative possibilities and add impressive visual accents.
In addition to control via DMX protocol, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Furthermore, the unique patented EZchase® DMX delay function allows for captivating chase patterns and color transitions with minimal programming effort.
The Cameo ROOT® BAR stands for high quality, reliability, and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.
- Compact LED bar available in three versions

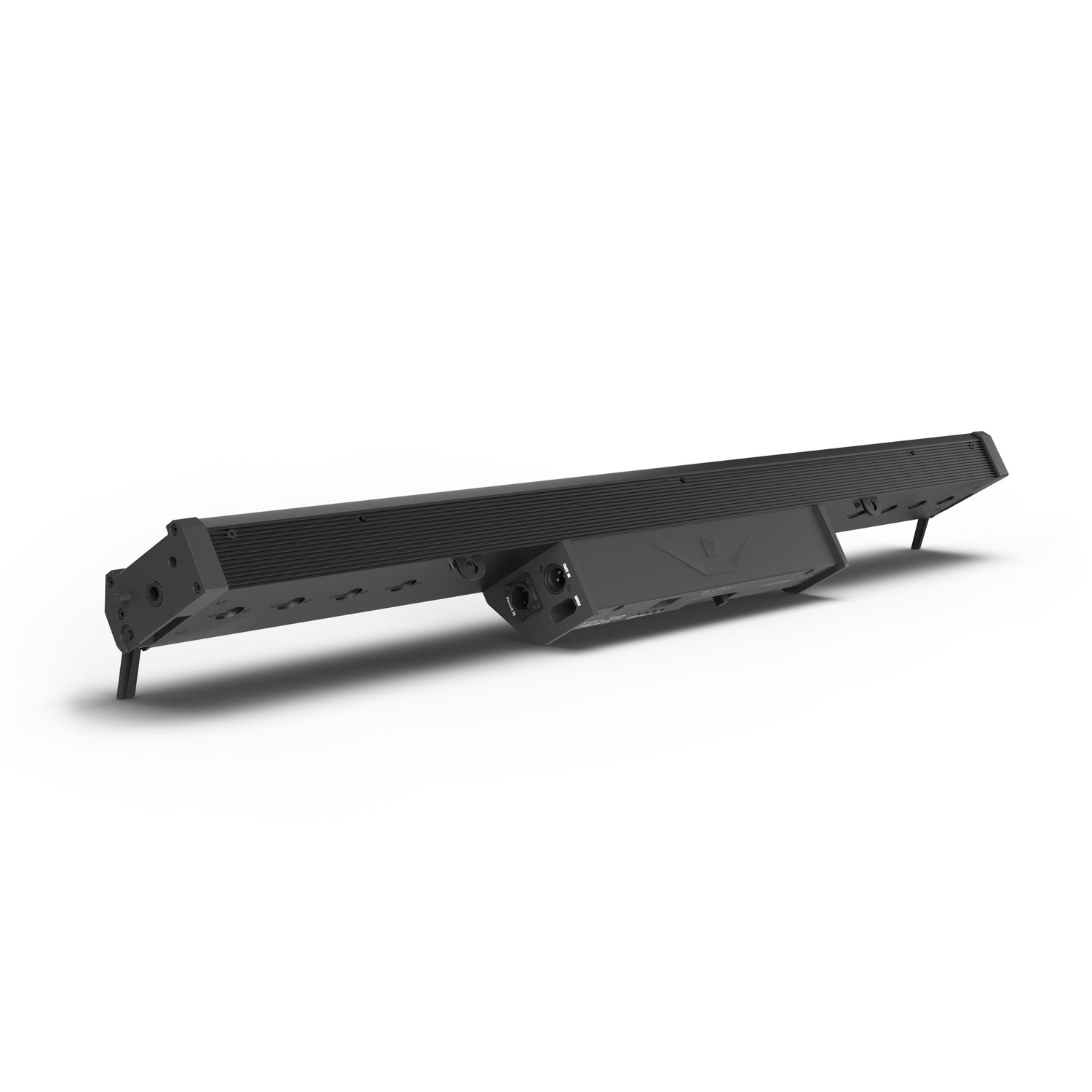

- Flexible positioning at various angles, with or without feet
- Magnetic Quick Alignment System for precise alignment of multiple units

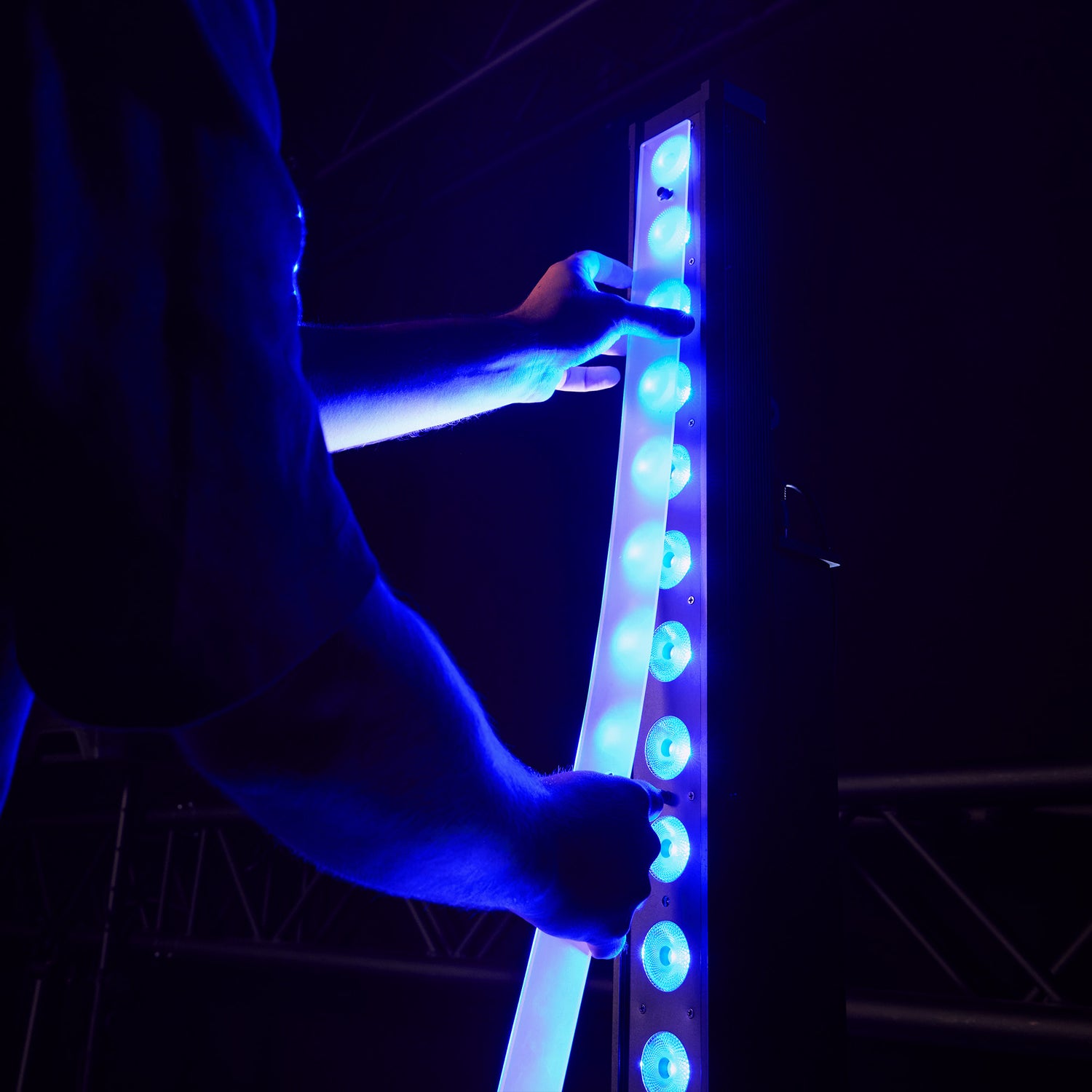

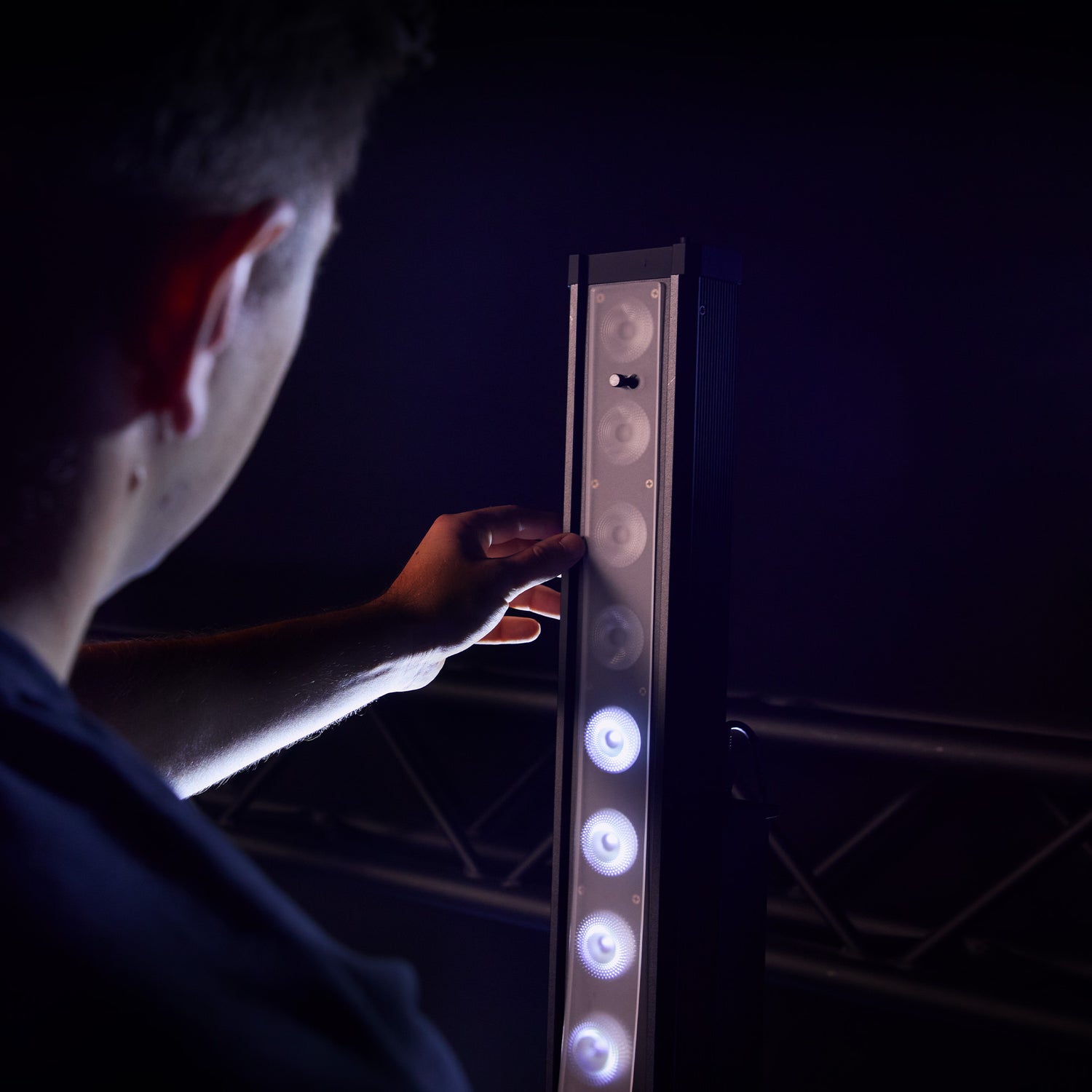

- Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
- Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
- Patented EZchase® DMX delay function for chase effects
- 16-bit resolution for smooth dimming and high-performance RGBWA-UV LEDs

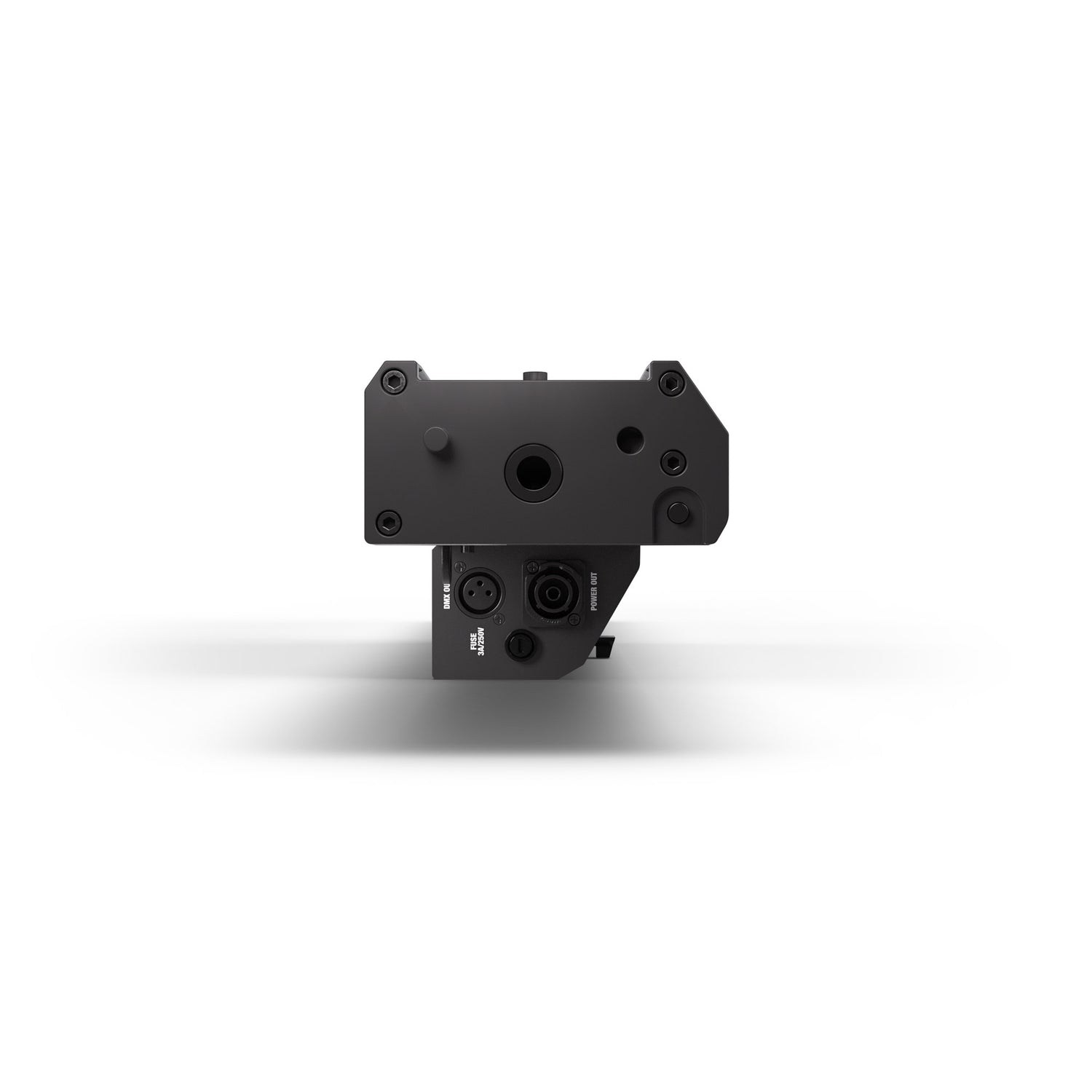

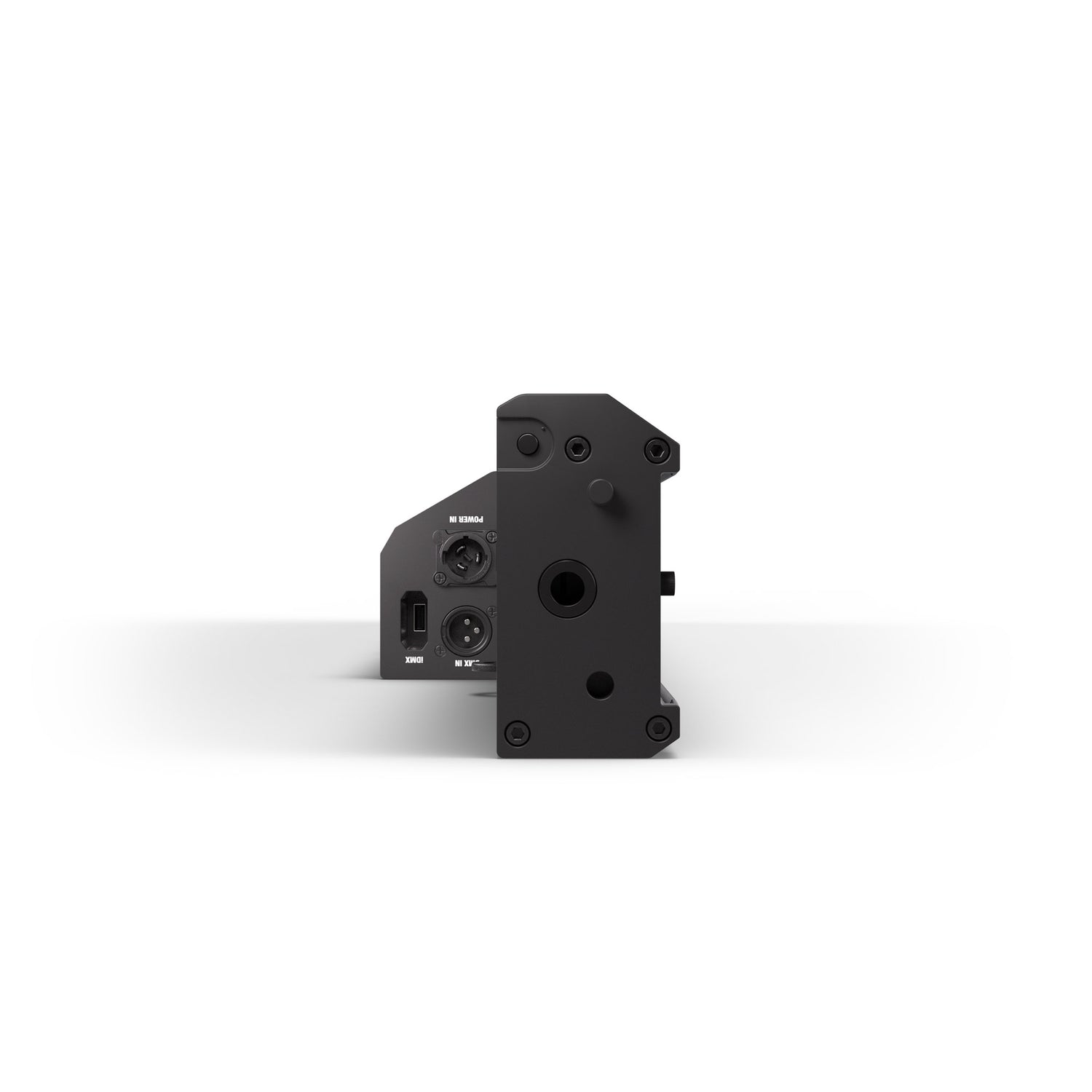

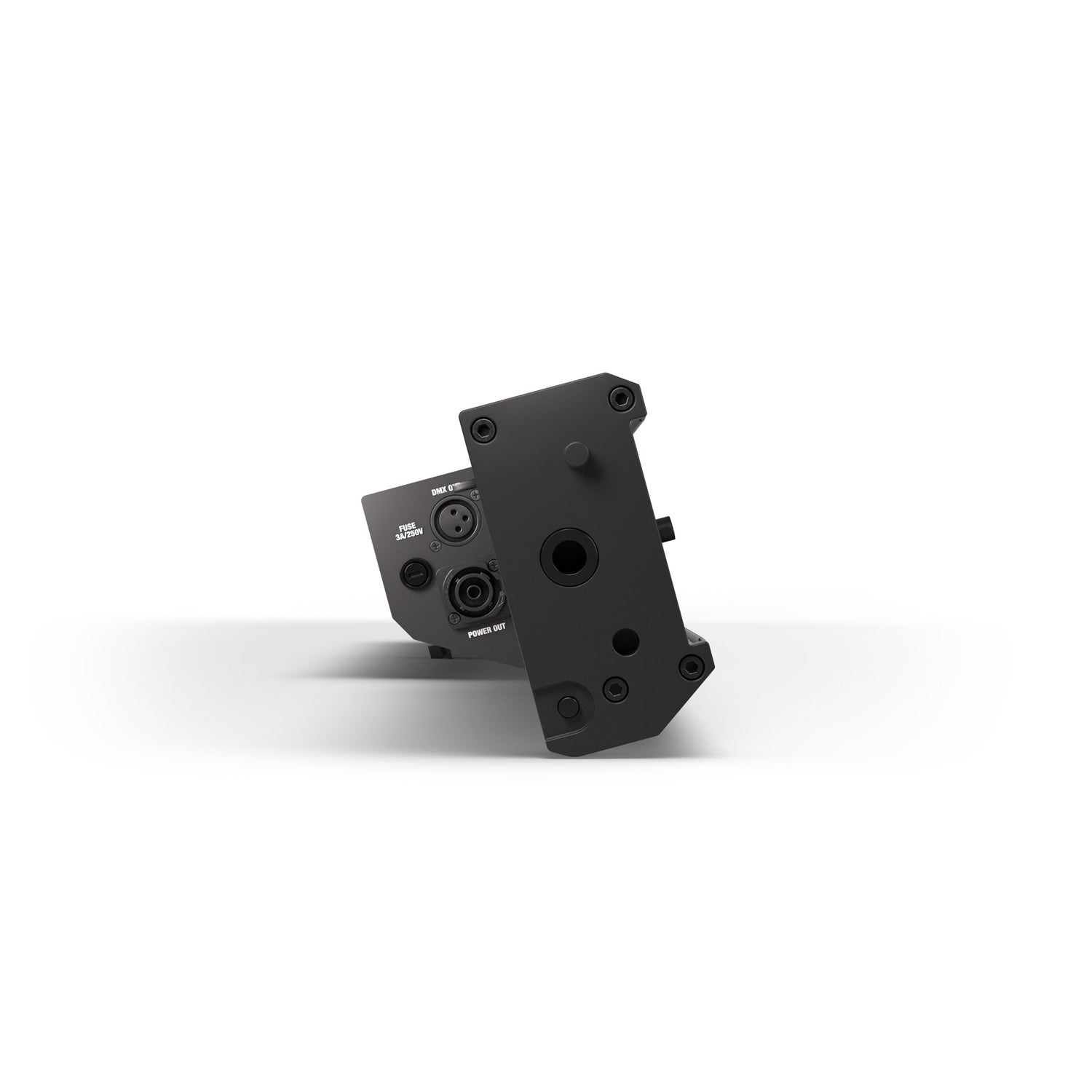

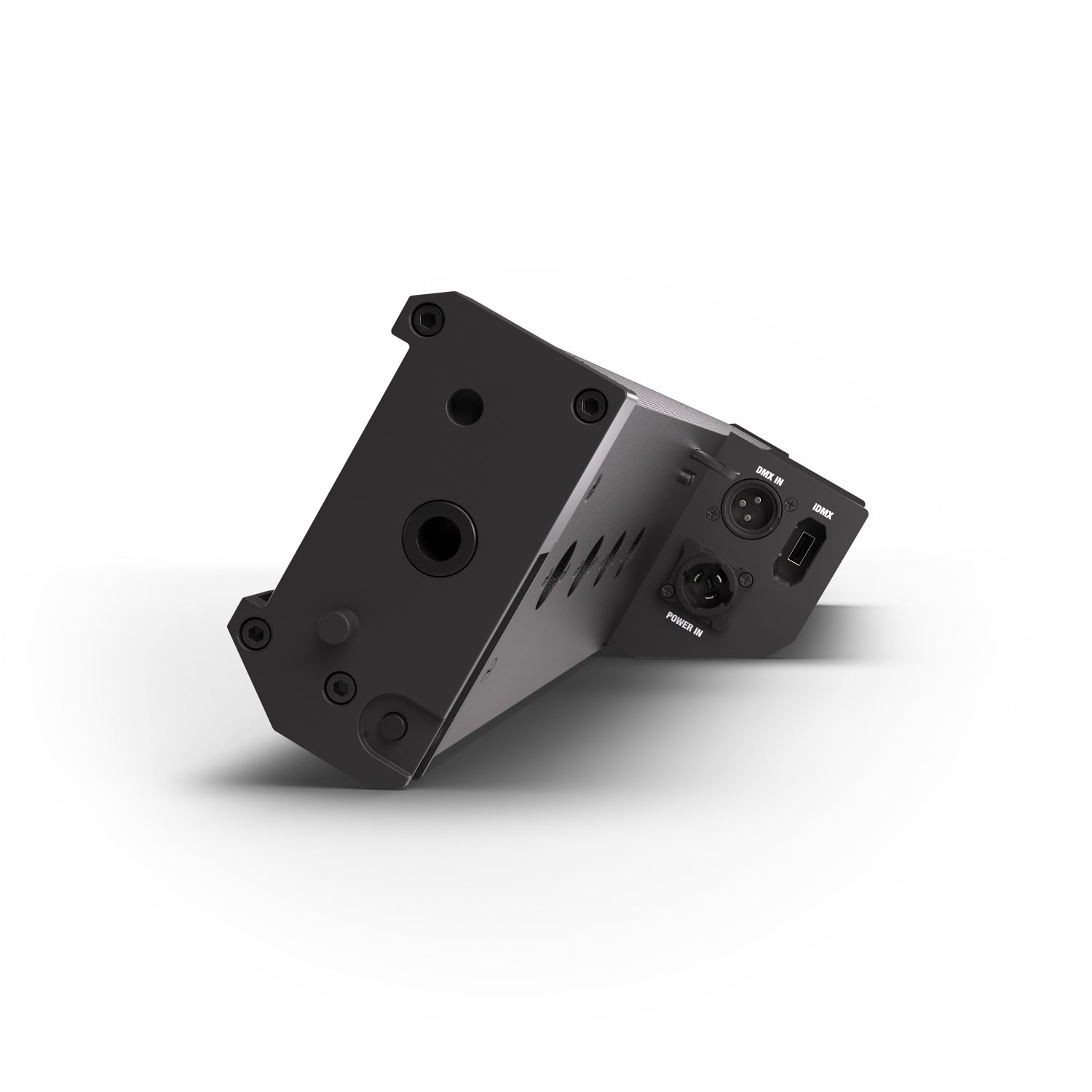

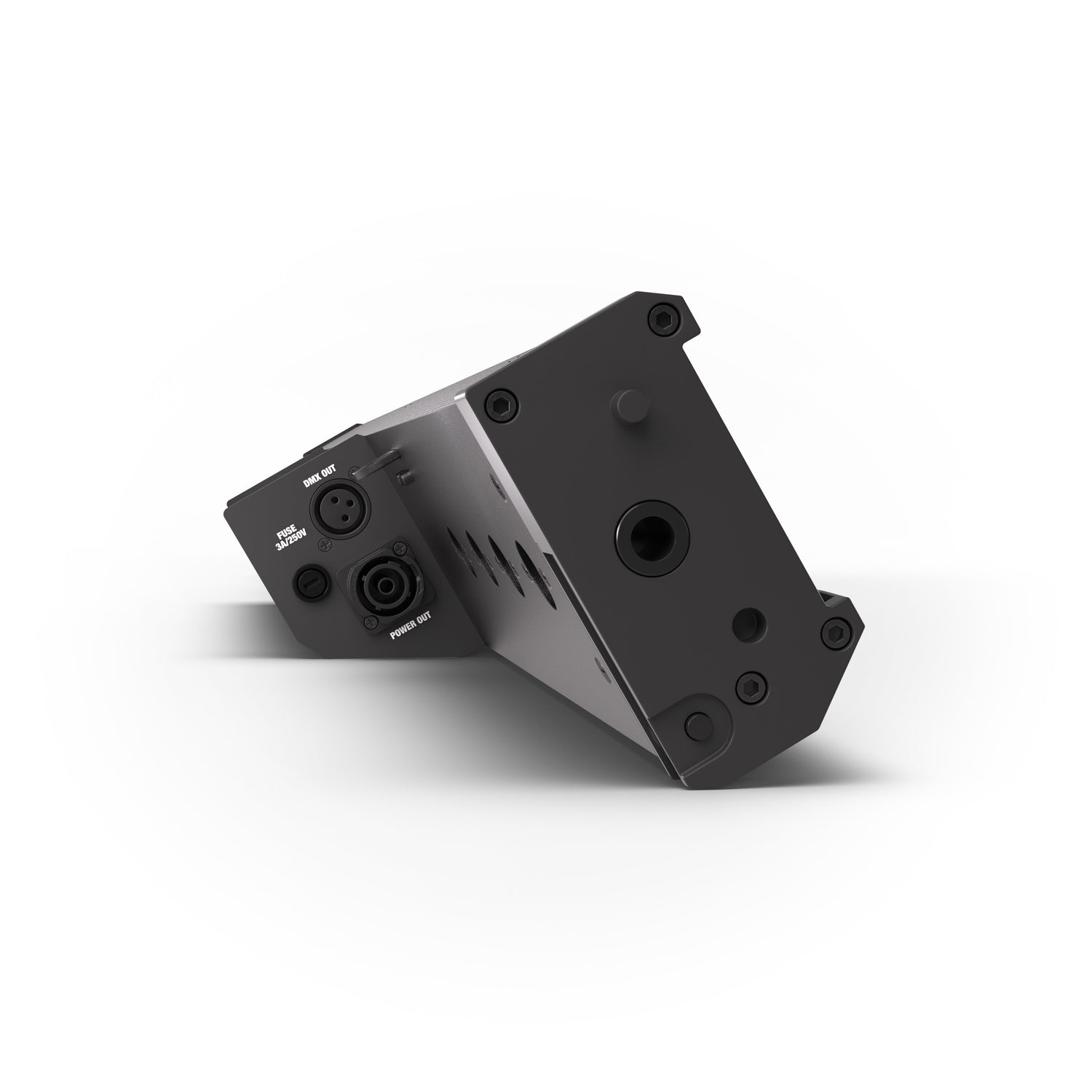

- Power input via Seetronic and DMX connectors for daisy-chaining multiple units
- Silent, fanless cooling design ideal for noise-sensitive environments
Photometric values
| Illuminant type | RGBWA+UV LED |
| LED data | 16 x 12 W RGBWA+UV LED (4 x 4) |
| Luminous flux | 6,000 lm |
| Beam/Field angle | Beam: 19° / Field: 36° |
| LED PWM frequency | 1,530 Hz |
| LED PWM frequency | 2,000 Hz |
| LED PWM frequency | 4,000 Hz |
| LED PWM frequency | 650 Hz |
| Dimmer resolution | 16 Bit |
Colours
| Colour mix functions | RGB |
| LED colours | Amber |
| LED colours | Blue |
| LED colours | Green |
| LED colours | Red |
| LED colours | Ultra violet |
| LED colours | White |
Effects
| Strobe | 0 - 20 Hz |
| Framing blades | No |
Control
| Controller protocols | DMX512 |
| Additional DMX features | DMX delay |
| Additional DMX features | LED segment dimmer |
| Additional DMX features | System settings |
| Stand alone operating modes | Autorun |
| Stand alone operating modes | Endless loop |
| Stand alone operating modes | Master/slave |
| Stand alone operating modes | Sound controlled |
| Stand alone operating modes | Static |
| Data in connector | XLR 3-pole male |
| Data out connector | XLR 3-pole female |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 133 W |
| Mains connector | Mains plug device outdoor male & TRUE1® |
| Mains fuse | F3AL/250 V |
| Power out connector | Mains plug device outdoor female & TRUE1® |
Housing
| Chassis material | Aluminium |
| Chassis material | Plastic |
| Colour | Black |
Cooling
| Cooling system | Convection cooling |
Environmental
| Protection class | IP20 |
| Noise level in operation | 0 dB |
| Ambient temperature | 0 - 40 °C |
Dimensions & weight
| Width | 1,026 mm |
| Height | 157 mm |
| Depth | 105 mm |
| Weight | 5 kg |
