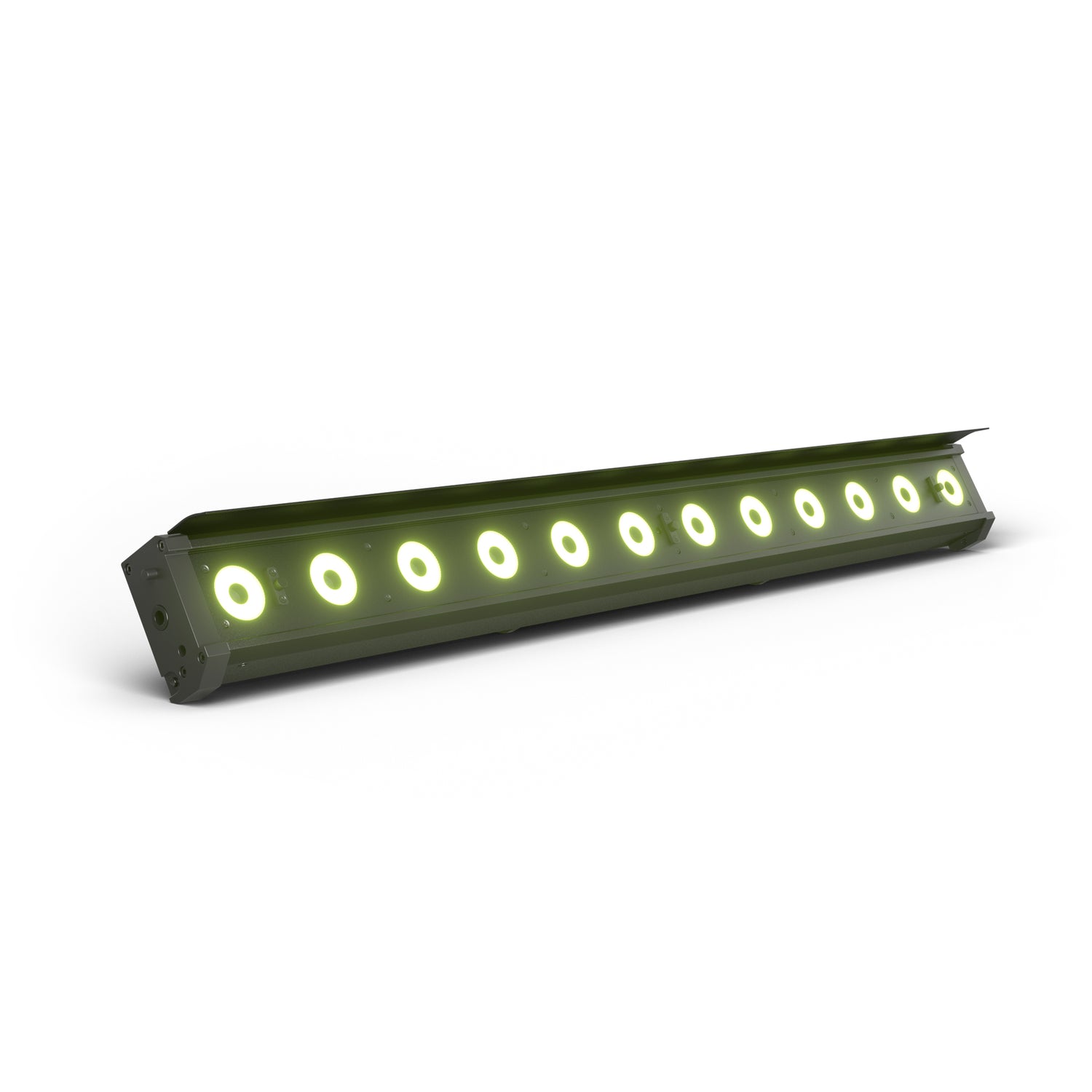

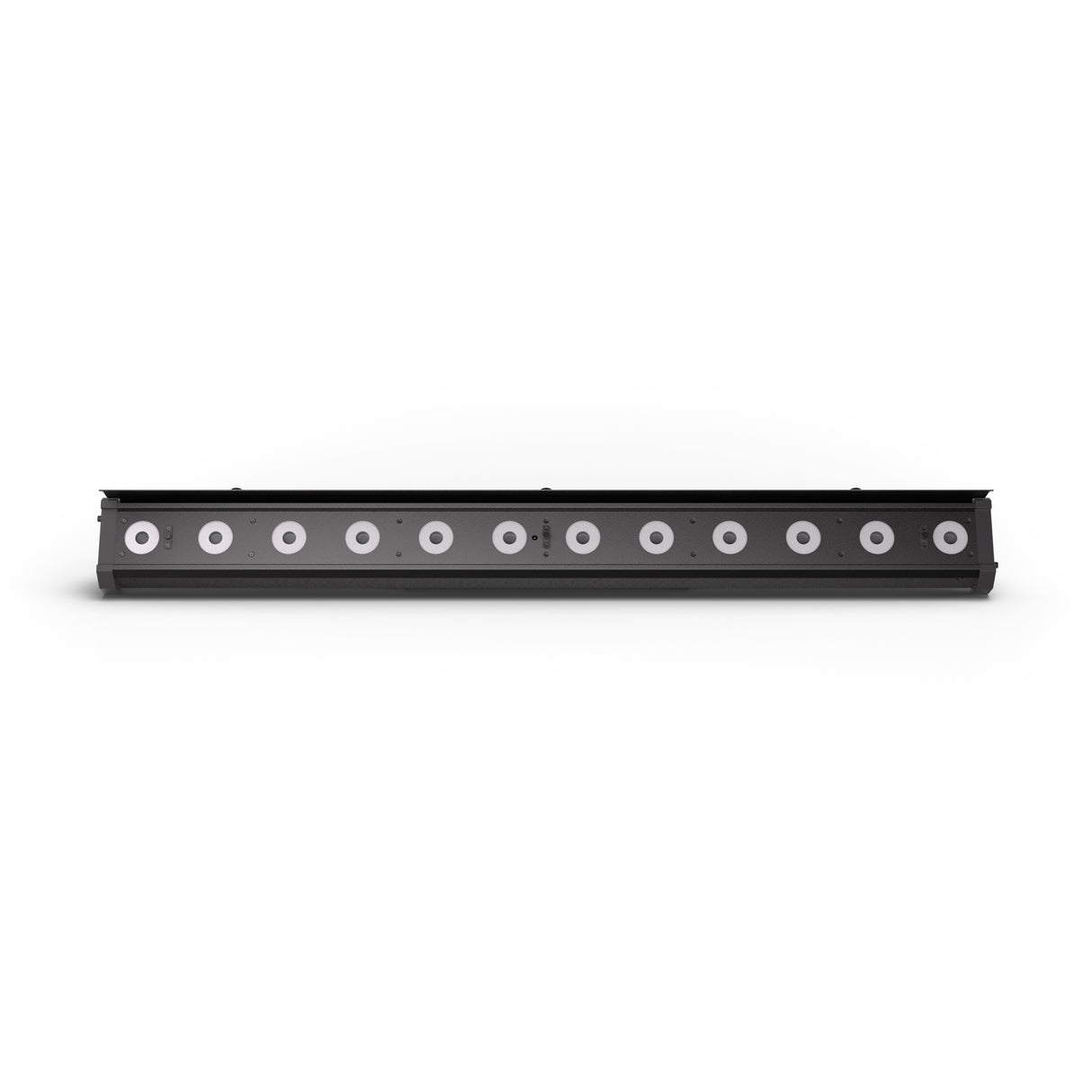

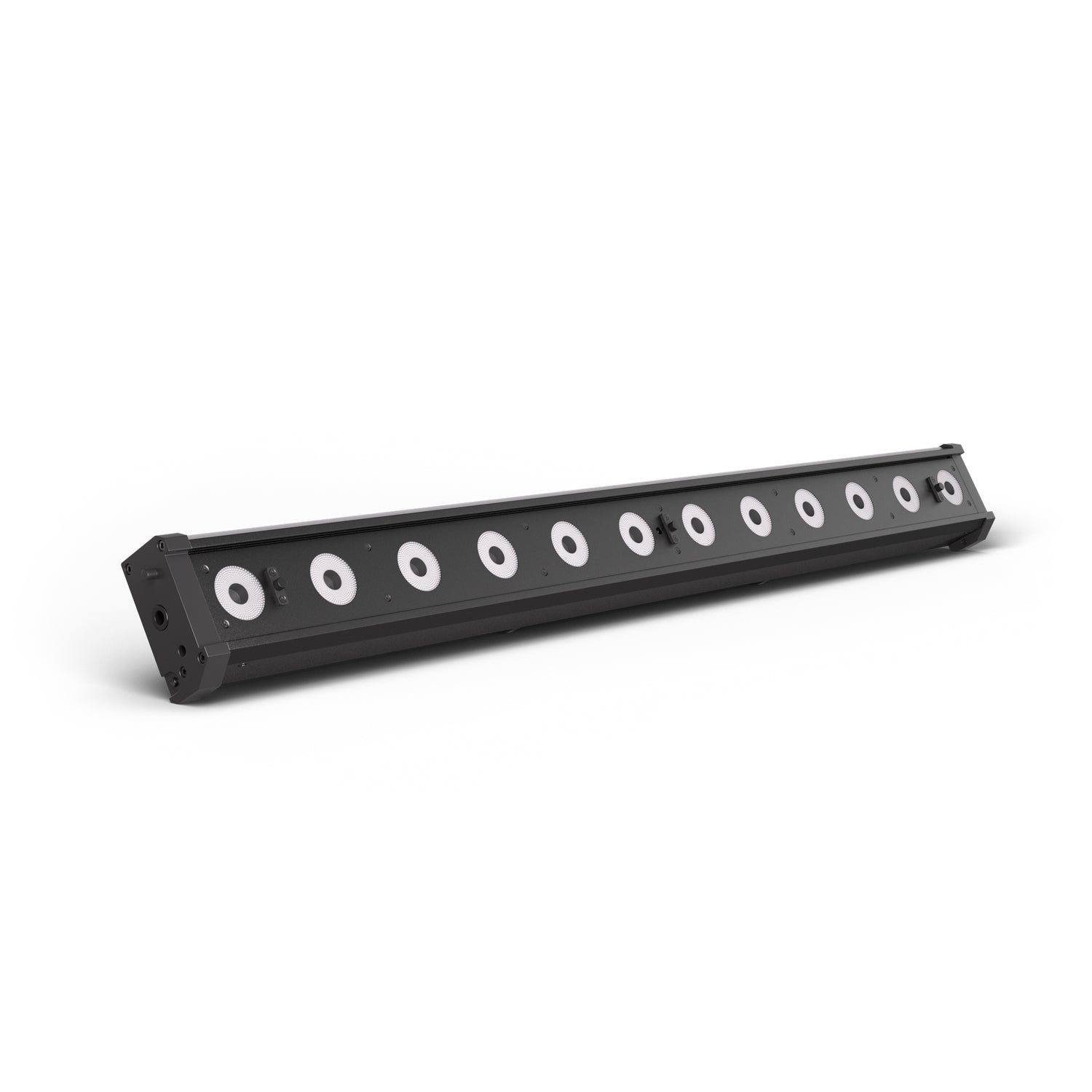

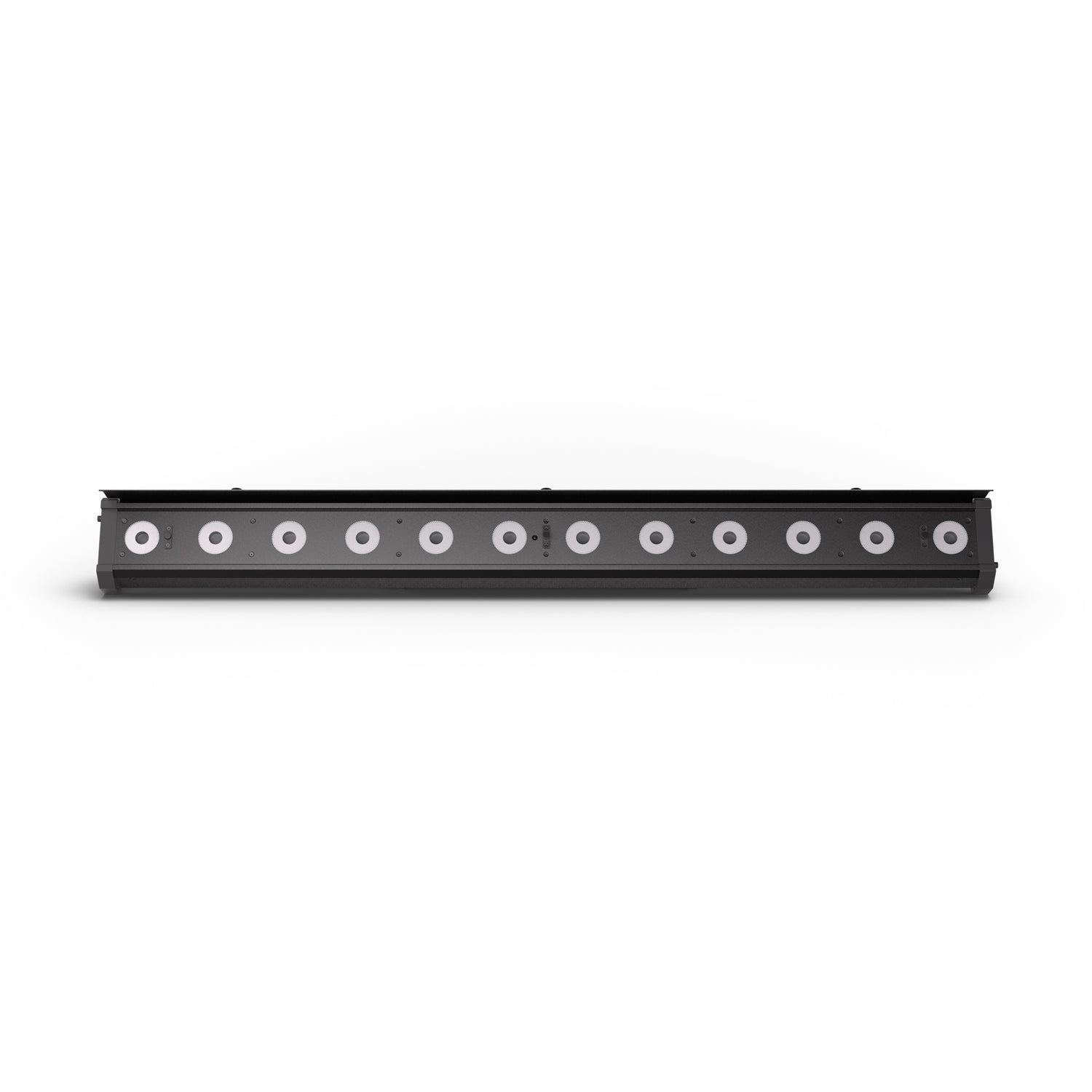

Cameo ROOT® BAR BATTERY - 12 x 4 W RGBW LED battery bar
Description
Description
Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars or exclusive events, delivering spectacular lighting effects in any setting.
The intelligent design allows flexible positioning at different angles without the included feet. The practical threaded mount supports both suspended and free-standing use, making it adaptable to different environments.
The magnetic Quick Alignment System, combined with various Quick Lock options, enables fast and precise alignment of multiple LED bars, creating seamless transitions and spectacular lighting installations. The included frost filters, neon tube filter and glare shield offer many creative possibilities and add impressive visual accents.
In addition to control via the DMX protocol, ROOT® BAR can be controlled remotely with the optional IR remote control. For a wireless DMX connection via W-DMX™, ROOT® BAR is equipped with a USB port for connecting the Cameo iDMX® Stick. In addition, the unique patented EZchase® DMX delay function makes it possible to create captivating chase patterns and colour transitions with minimal programming effort.
Cameo ROOT® BAR stands for high quality, reliability and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.
Technical specifications
Technical specifications
- Compact LED bar available in three versions

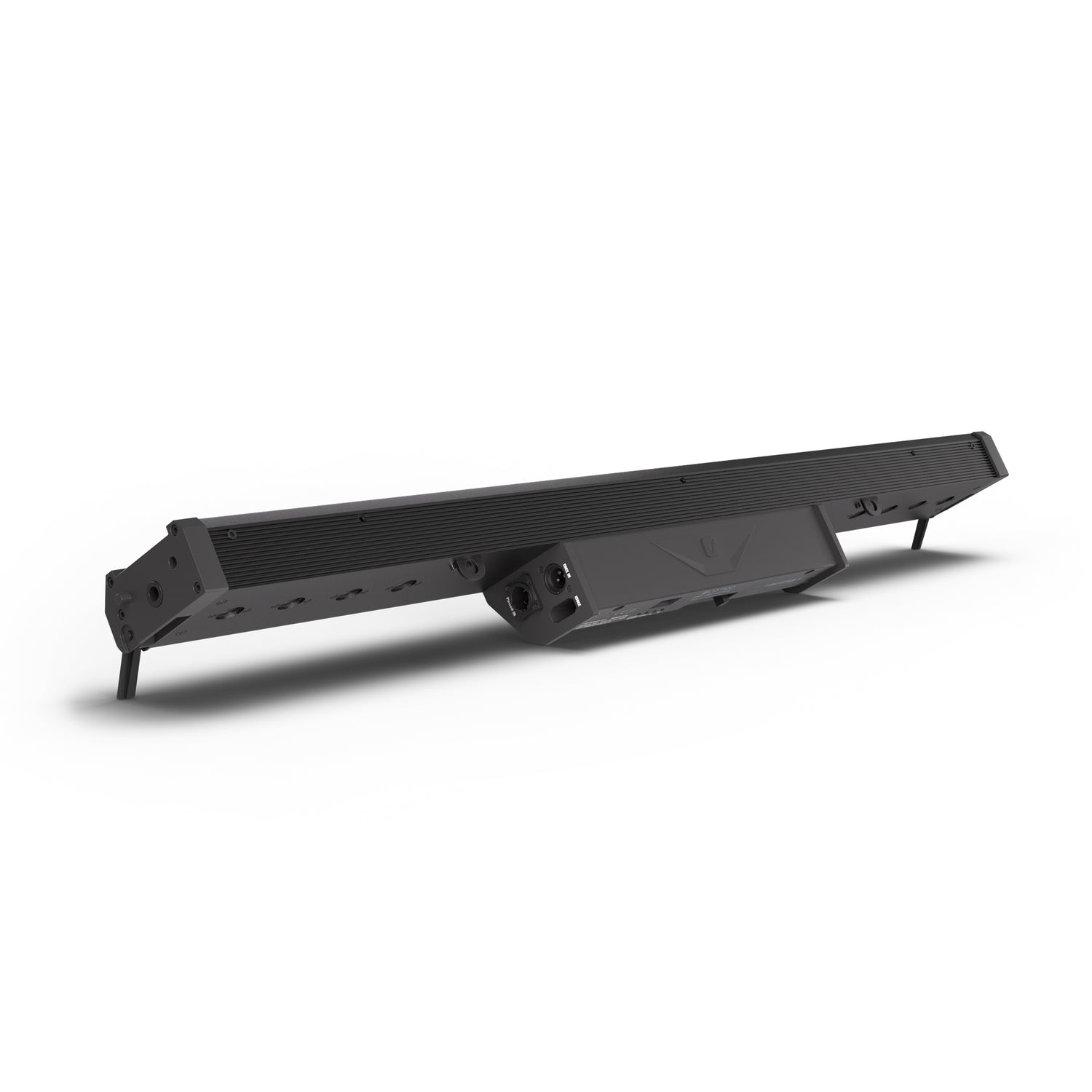

- Flexible positioning at various angles, with or without feet
- Magnetic Quick Alignment System for precise alignment of multiple units

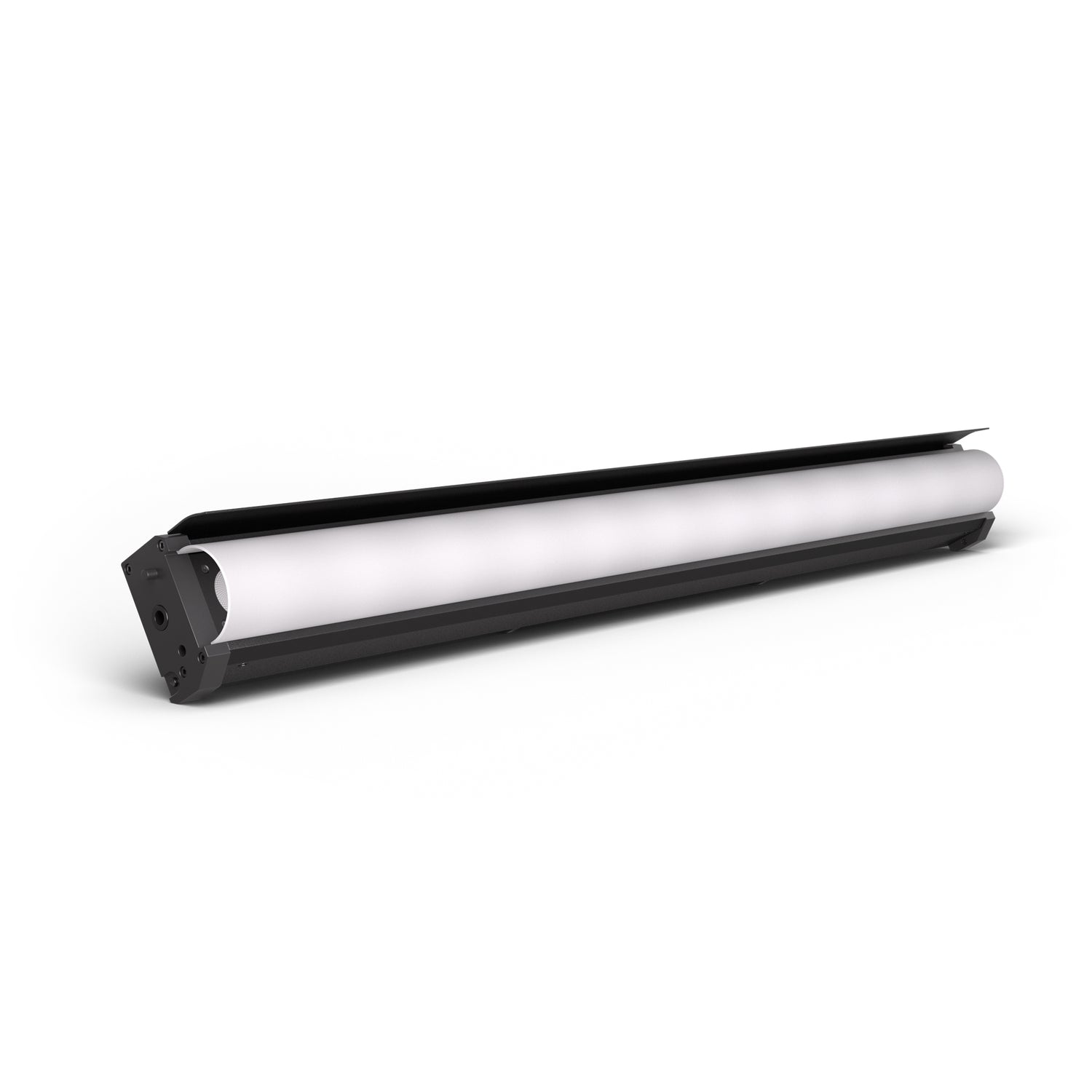

- Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
- Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
- Patented EZchase® DMX delay function for chase effects
- 16-bit resolution for smooth dimming and high-performance RGBW LEDs

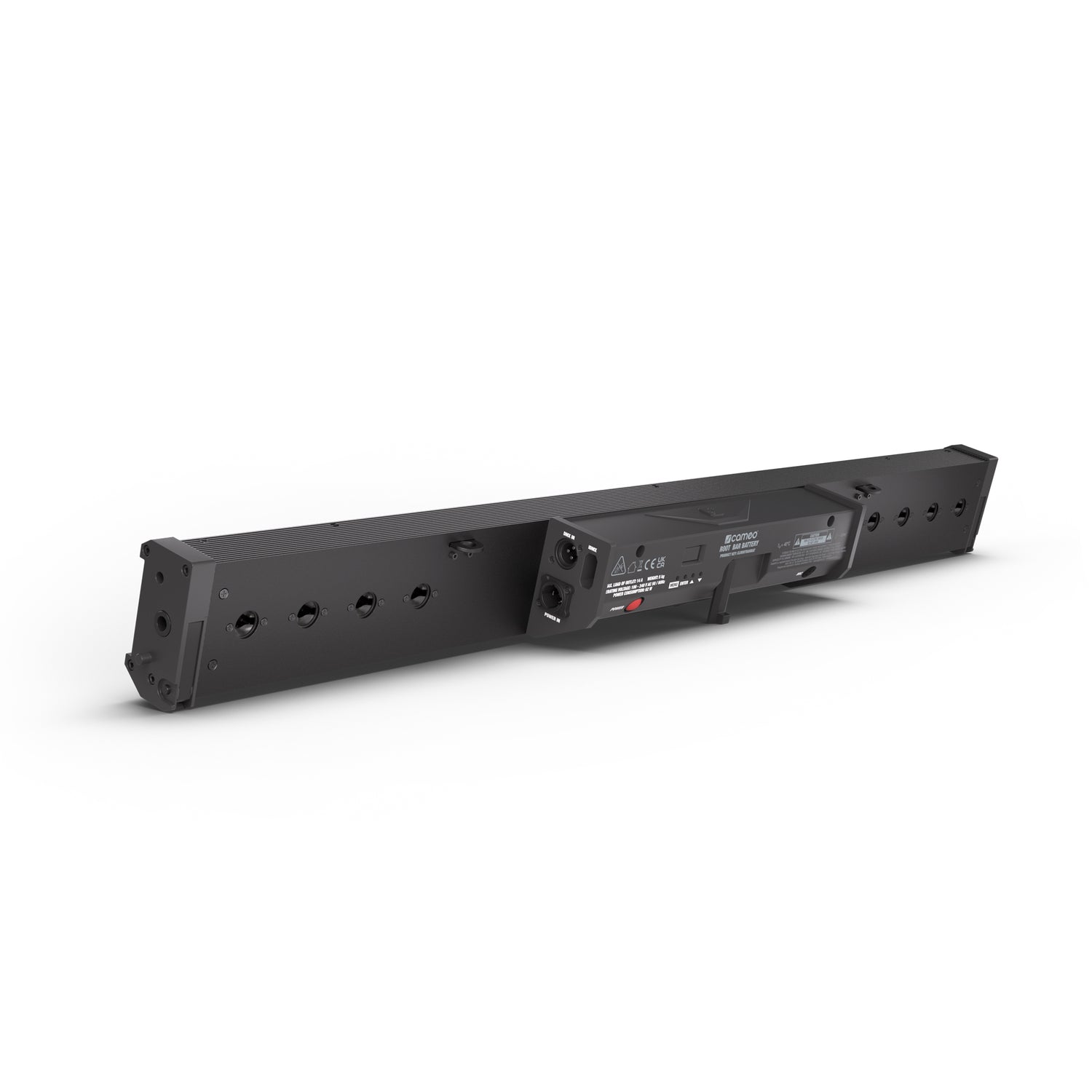

- Power input via Seetronic and DMX connectors for daisy-chaining multiple units
- Silent, fanless cooling design ideal for noise-sensitive environments
Photometric values
| Illuminant type | RGBW LED |
| Illuminant power | 48 W |
| LED data | 12 x 4 W RGBW LED |
| Luminous flux | 2,300 lm |
| Beam/Field angle | Beam: 20° / Field: 37° |
| LED PWM frequency | 1,530 Hz |
| LED PWM frequency | 2,000 Hz |
| LED PWM frequency | 4,000 Hz |
| LED PWM frequency | 650 Hz |
| Dimmer resolution | 16 Bit |

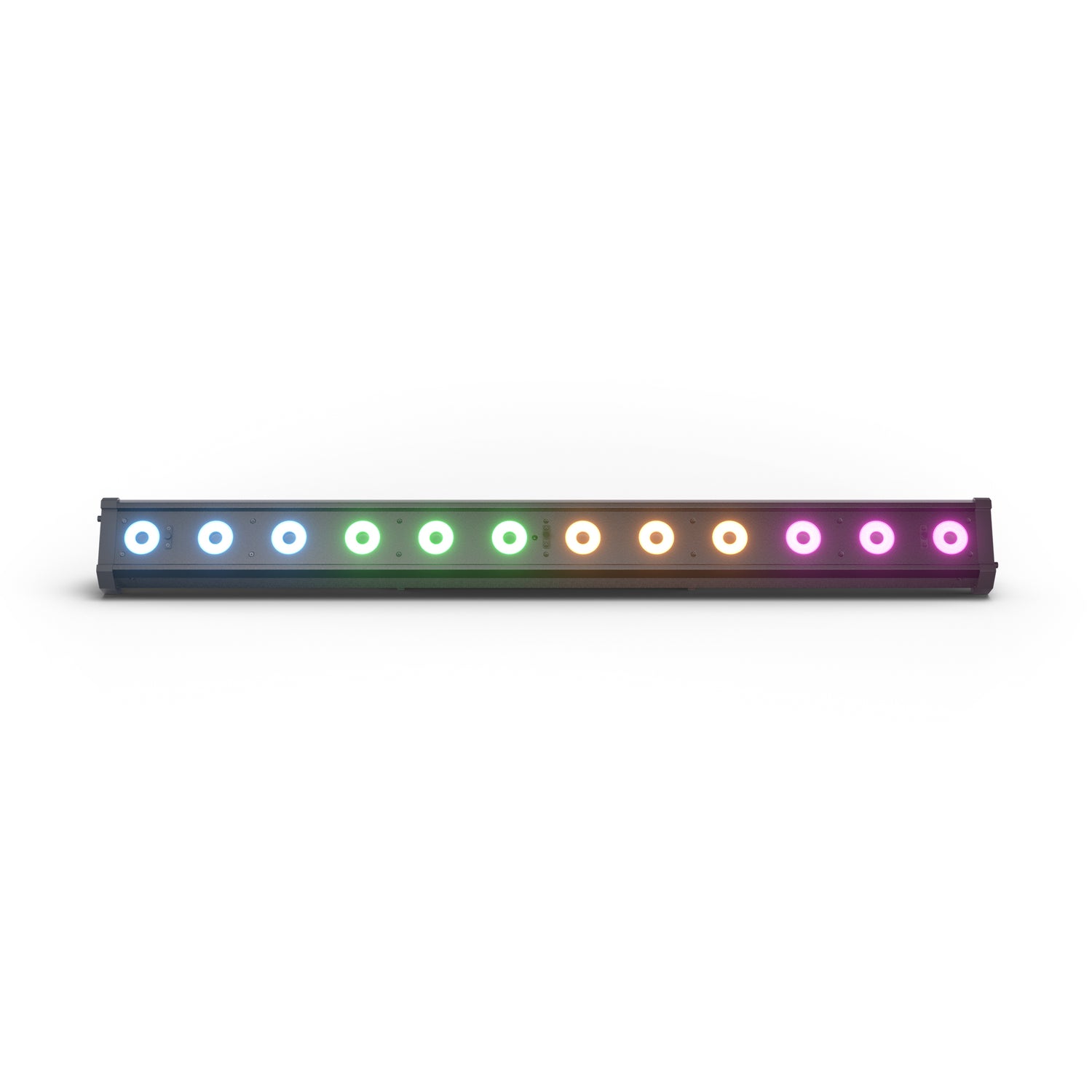

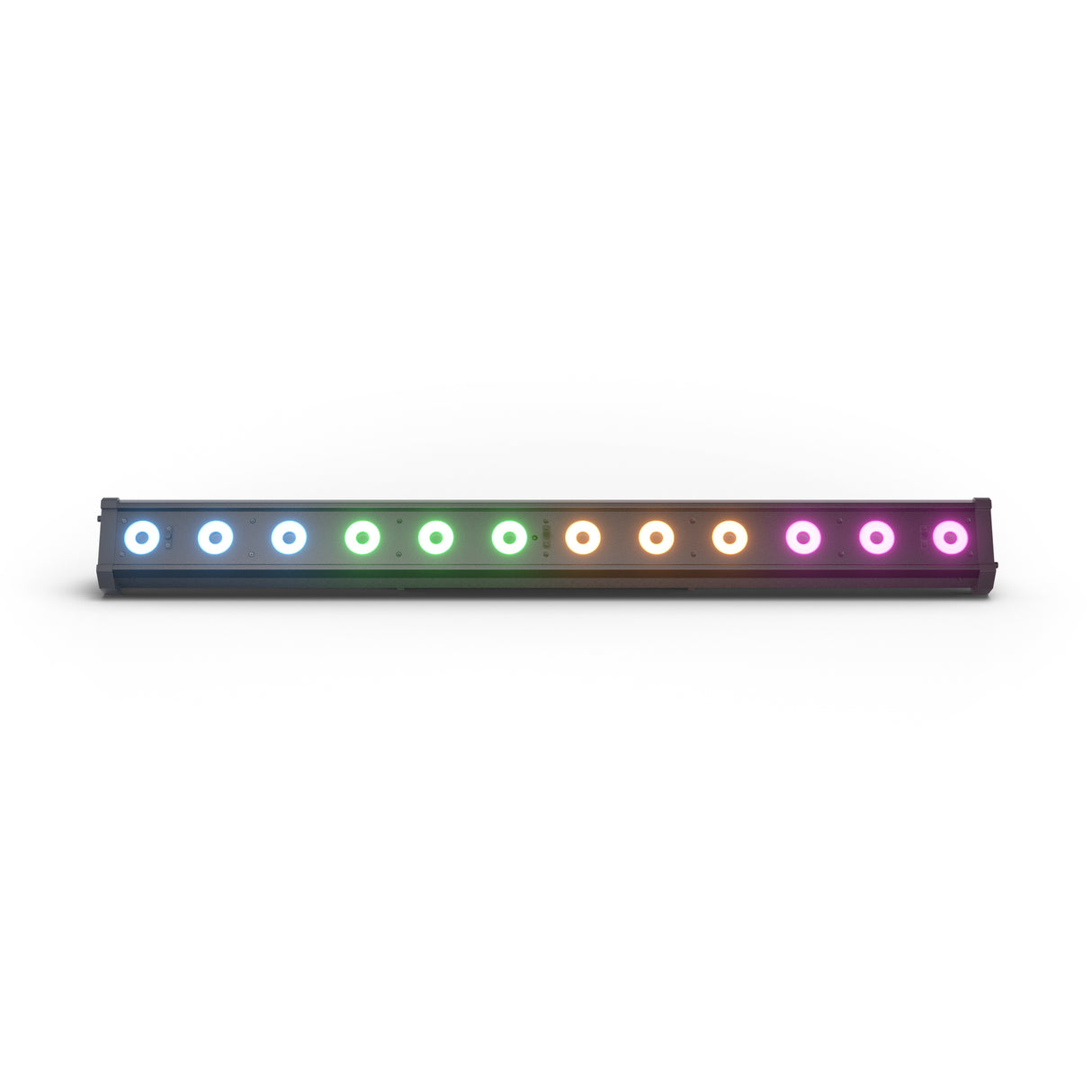

Colours
| Colour mix functions | RGB |
| LED colours | Blue |
| LED colours | Green |
| LED colours | Red |
| LED colours | White |
Effects
| Strobe | 0 - 20 Hz |
| Framing blades | No |
Control
| Controller protocols | DMX512 |
| Additional DMX features | DMX delay |
| Additional DMX features | LED segment dimmer |
| Additional DMX features | System settings |
| Stand alone operating modes | Autorun |
| Stand alone operating modes | Master/slave |
| Stand alone operating modes | Static |

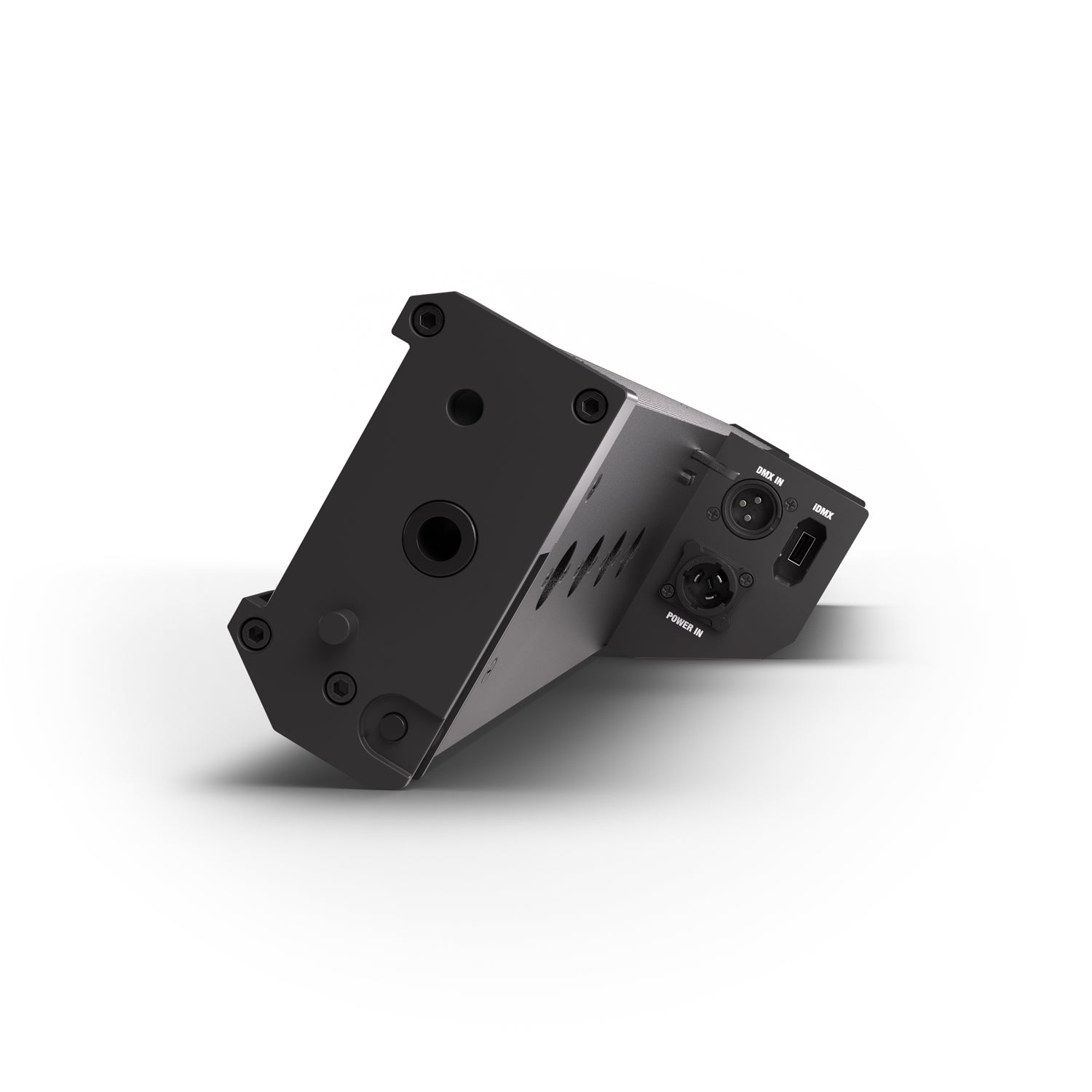

| Data in connector | XLR 3-pole male |

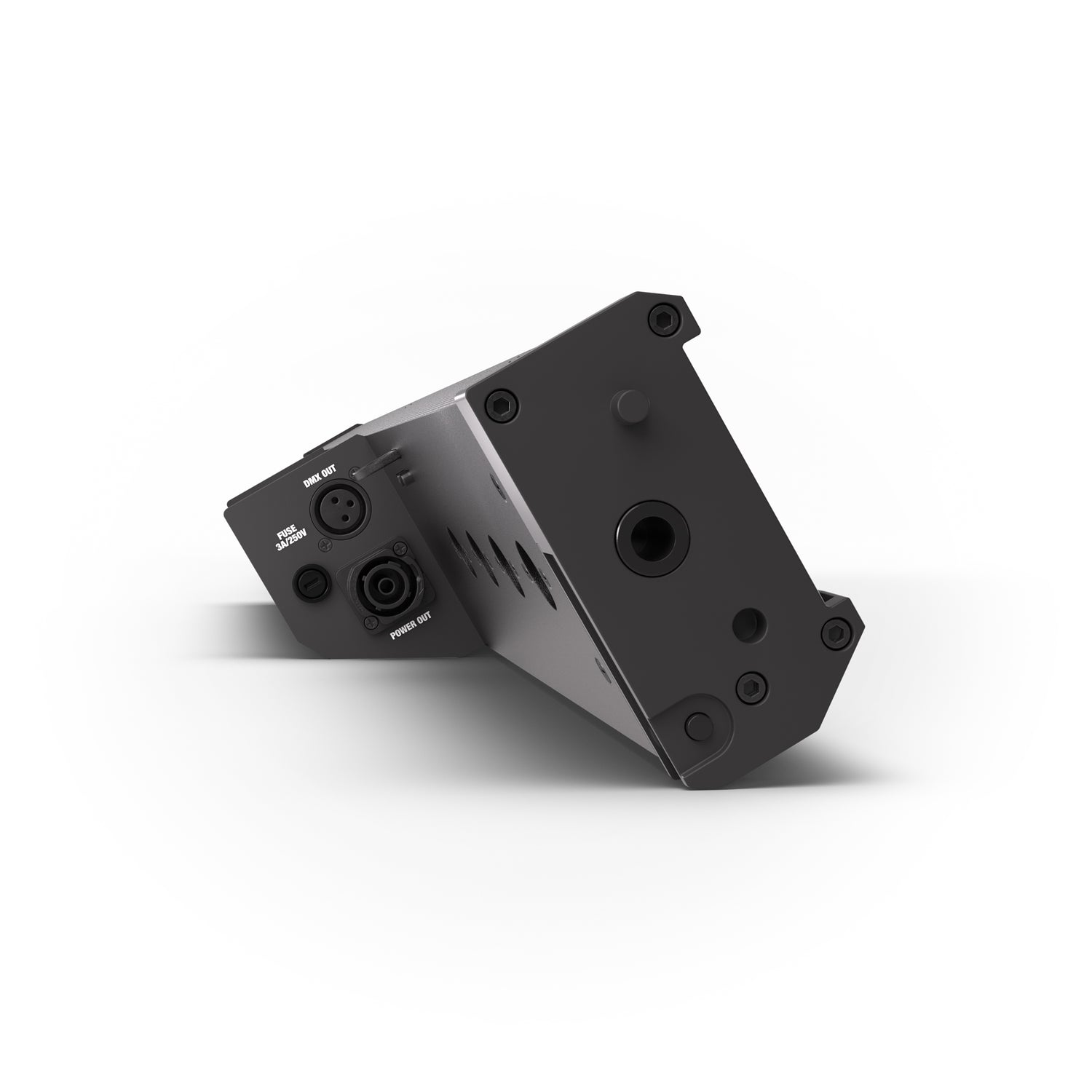

| Data out connector | XLR 3-pole female |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 62 W |
| Mains connector | Mains plug device outdoor male & TRUE1® |
| Power out connector | Mains plug device outdoor female & TRUE1® |
Accumulator data
| Cell technology | Lithium-ion |
| Battery capacity | 6.4 Ah |
| Battery life | 3 h (FULL) - 5.5 h (ECO) |
Housing
| Chassis material | Aluminium |
| Chassis material | Plastic |
| Colour | Black |
Cooling
| Cooling system | Convection cooling |
Environmental
| Protection class | IP20 |
| Noise level in operation | 0 dB |
| Ambient temperature | 0 - 40 °C |
Dimensions & weight
| Width | 1,042 mm |
| Height | 116 mm |
| Depth | 106 mm |
| Weight | 5 kg |
Other properties
| Included Accessories | Filter |
| Included Accessories | Mains cable |
| Included Accessories | Mounting bracket |
