Cameo ROOT® BAR SMD - SMD LED bar
1
of
19
Loading...
€597,95
Unit price
/
Not available
Secure checkout

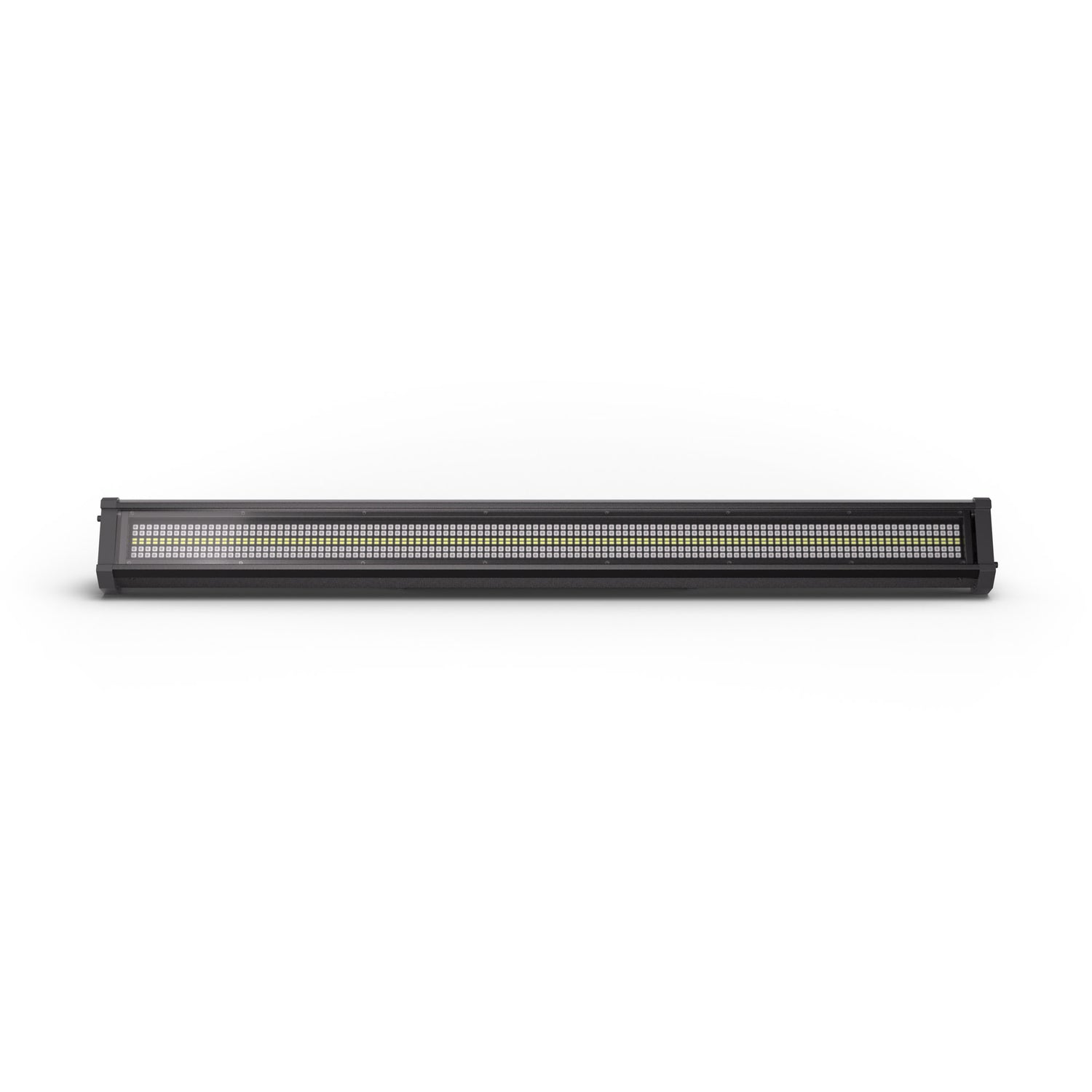

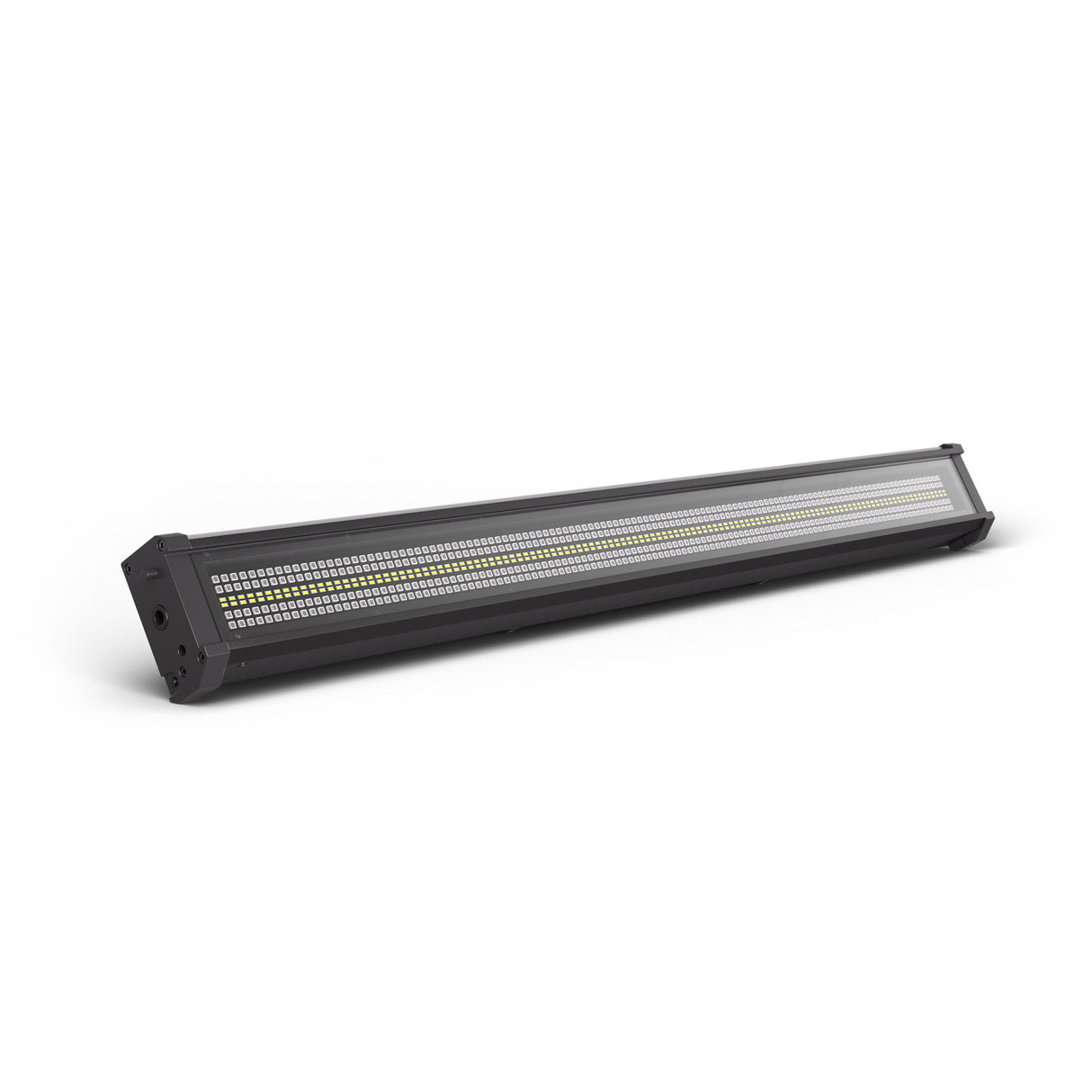

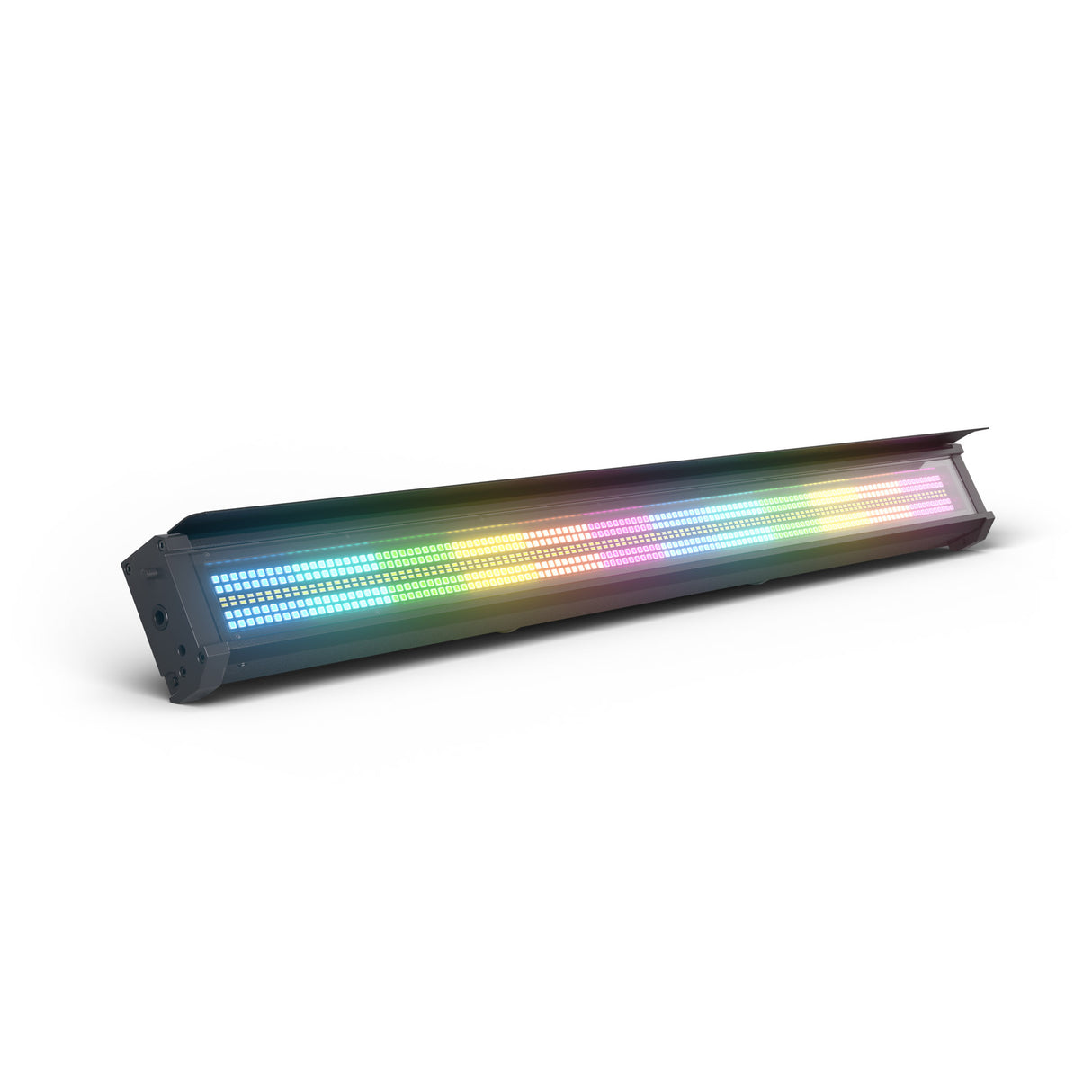

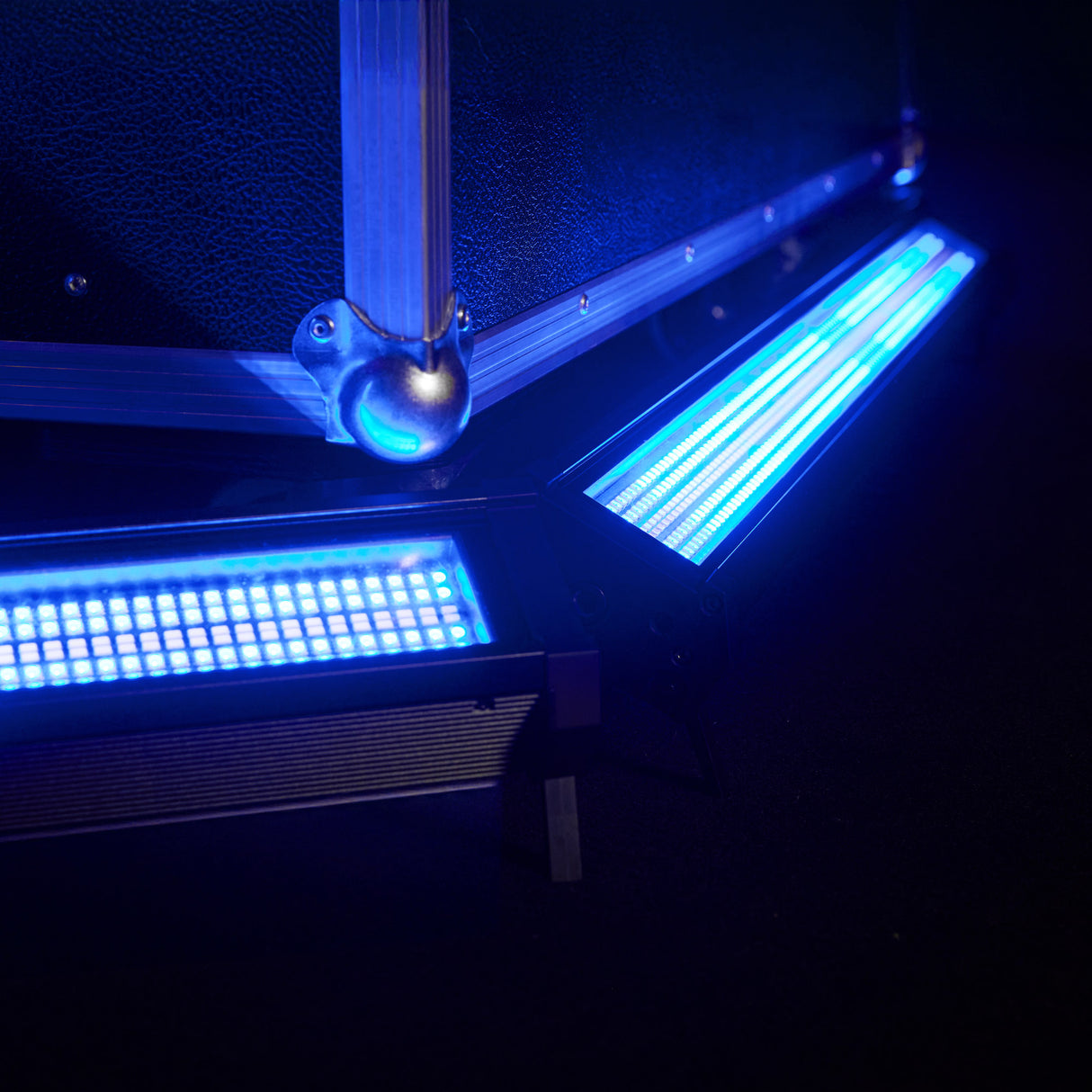

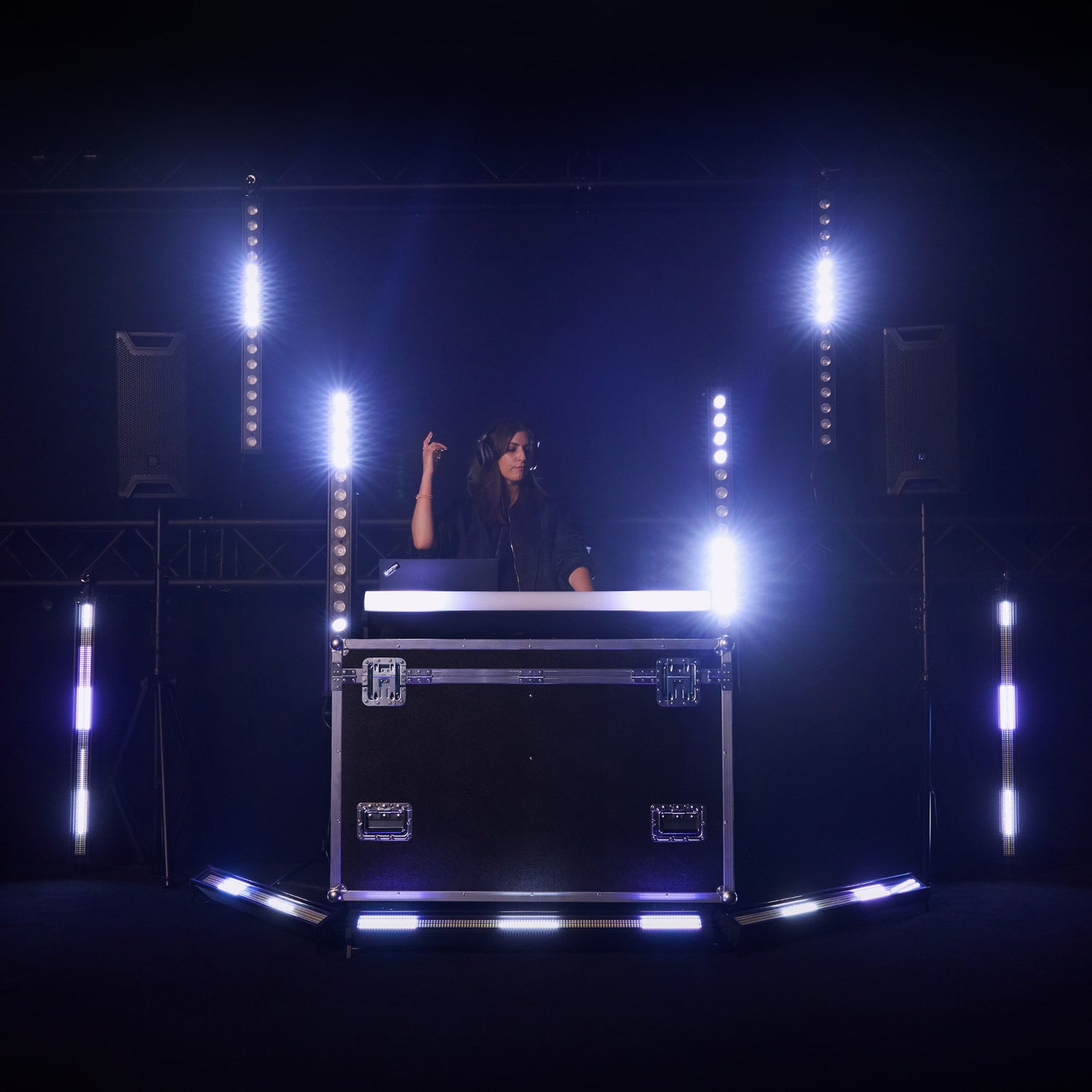

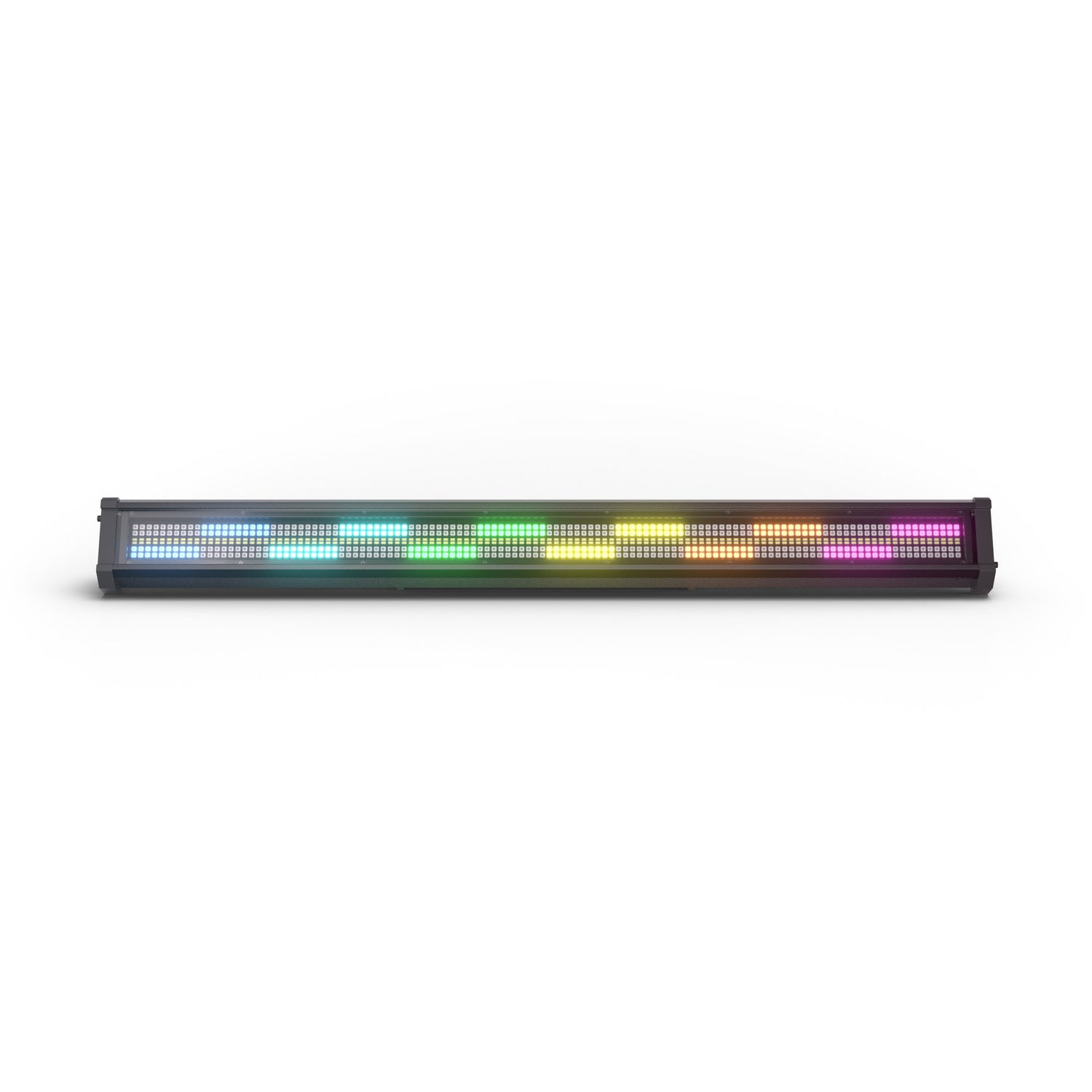

Cameo ROOT® BAR is a linear LED bar available in three versions. Its compact design and impressive versatility make it ideal for creative lighting in trendy clubs, small bars or exclusive events, delivering stunning lighting effects in any setting.

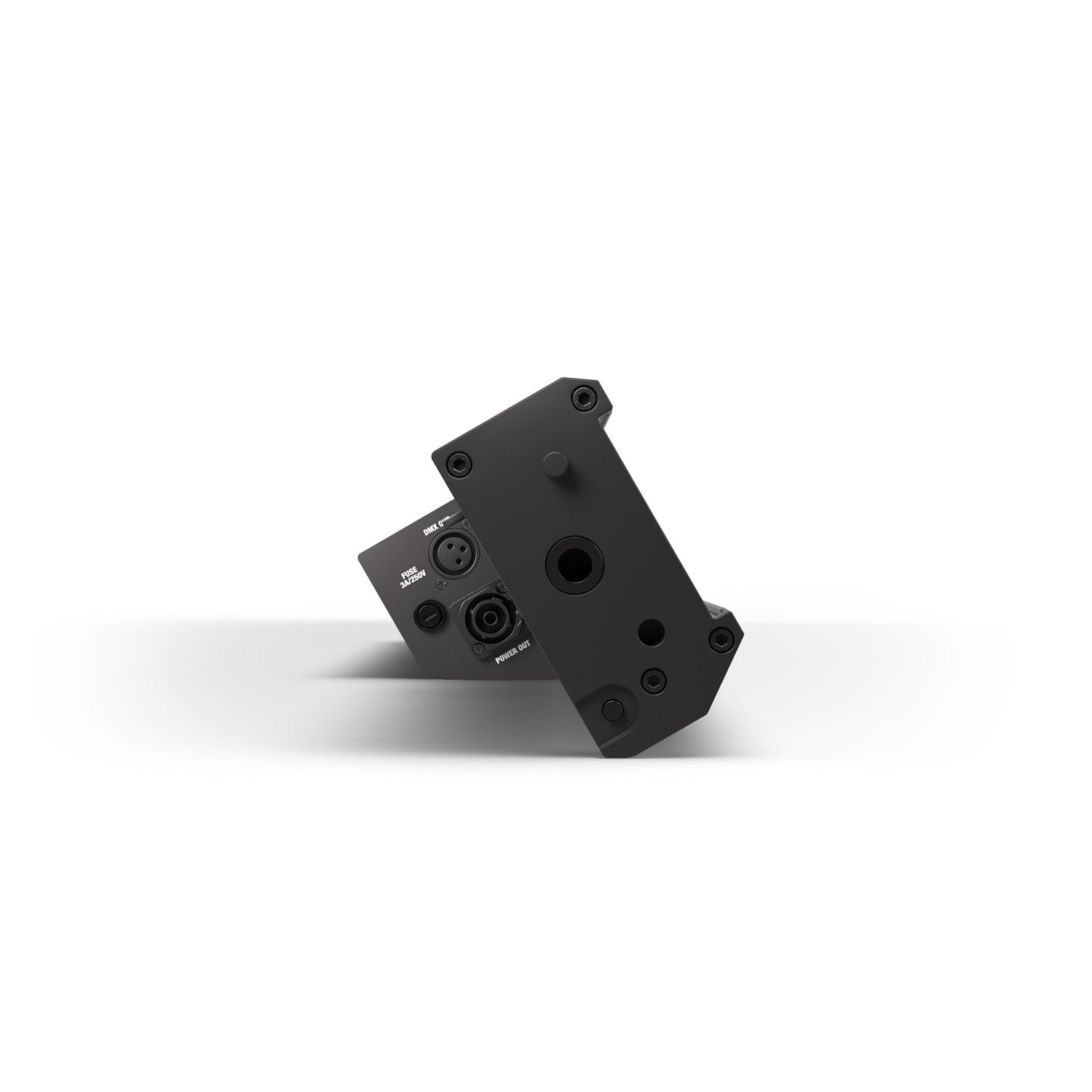

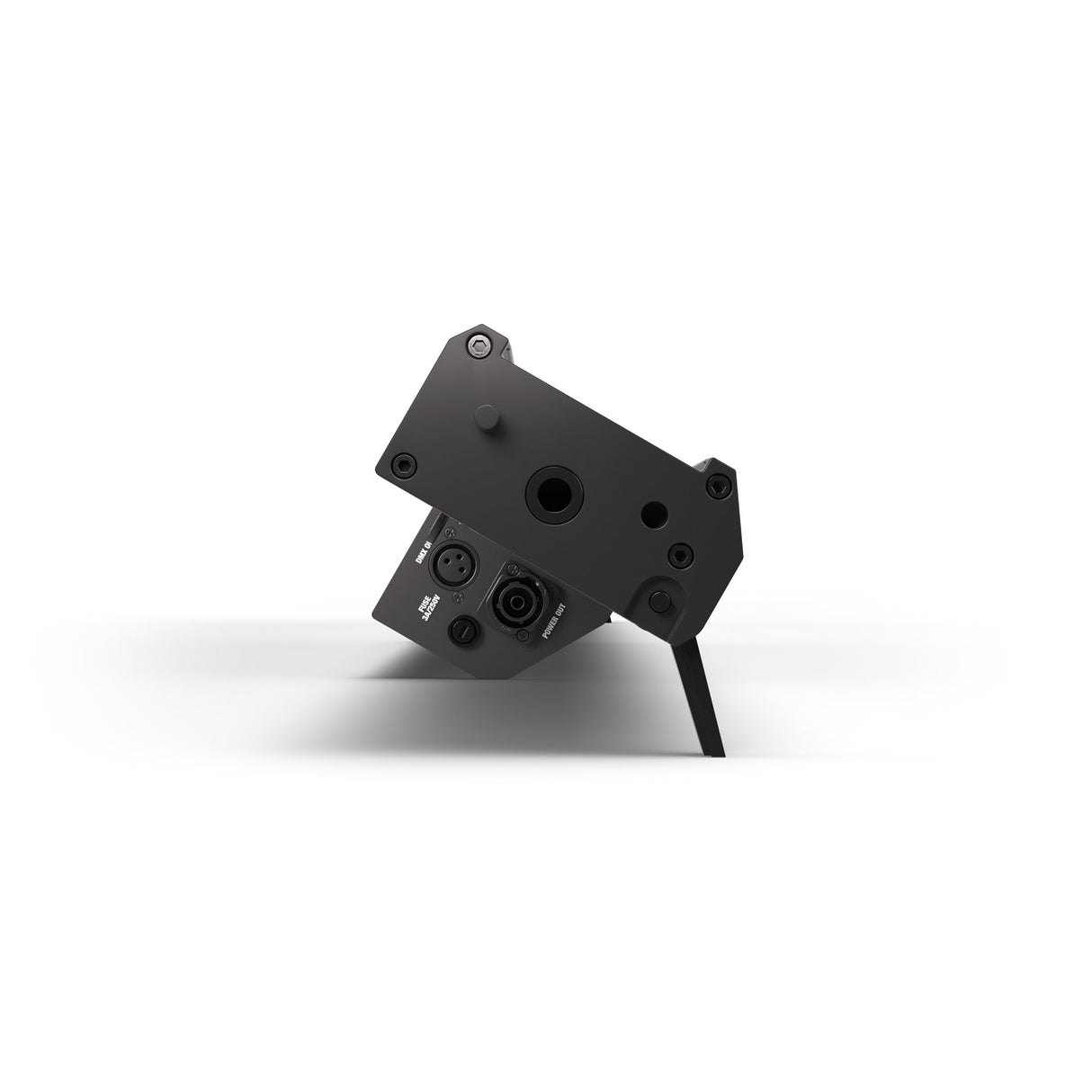

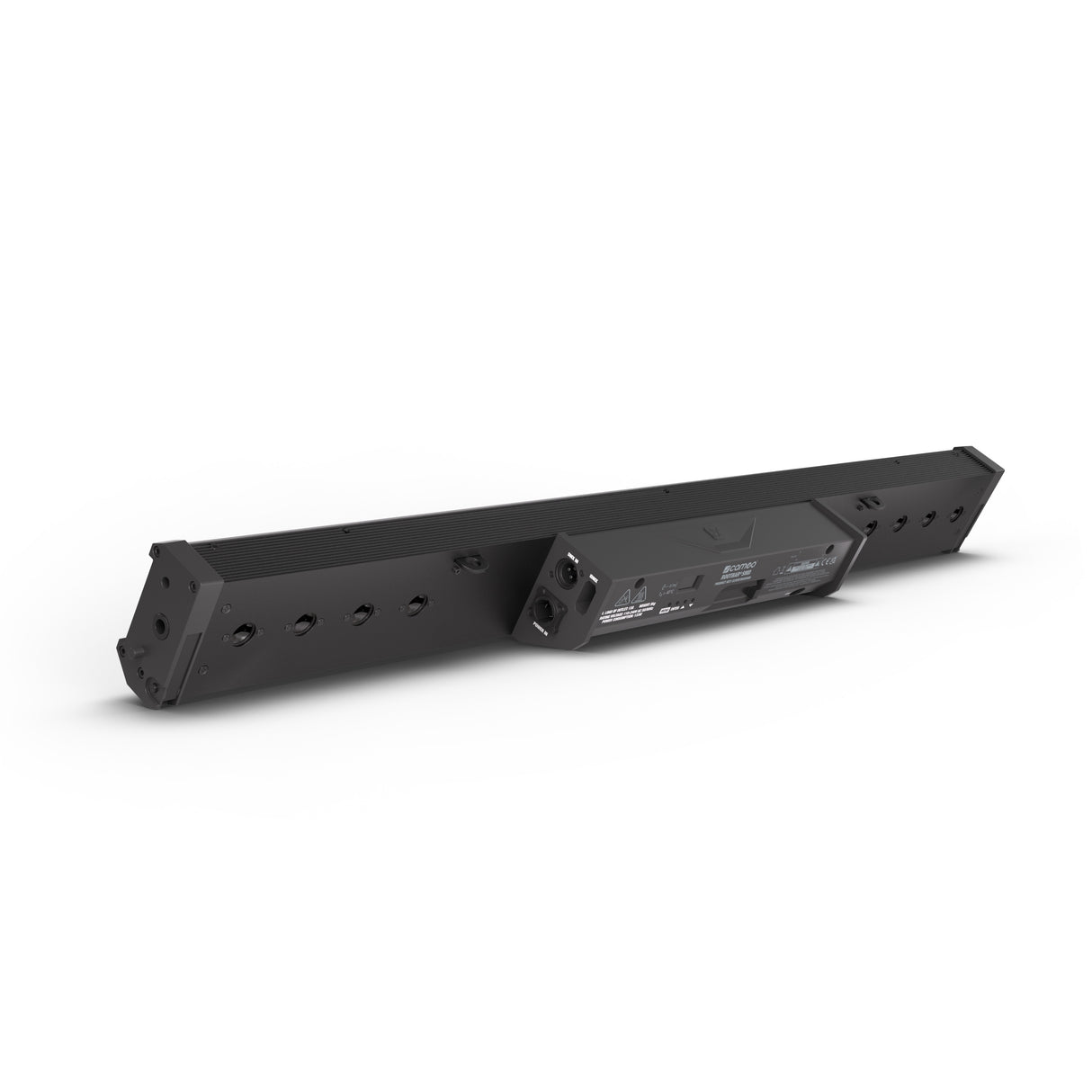

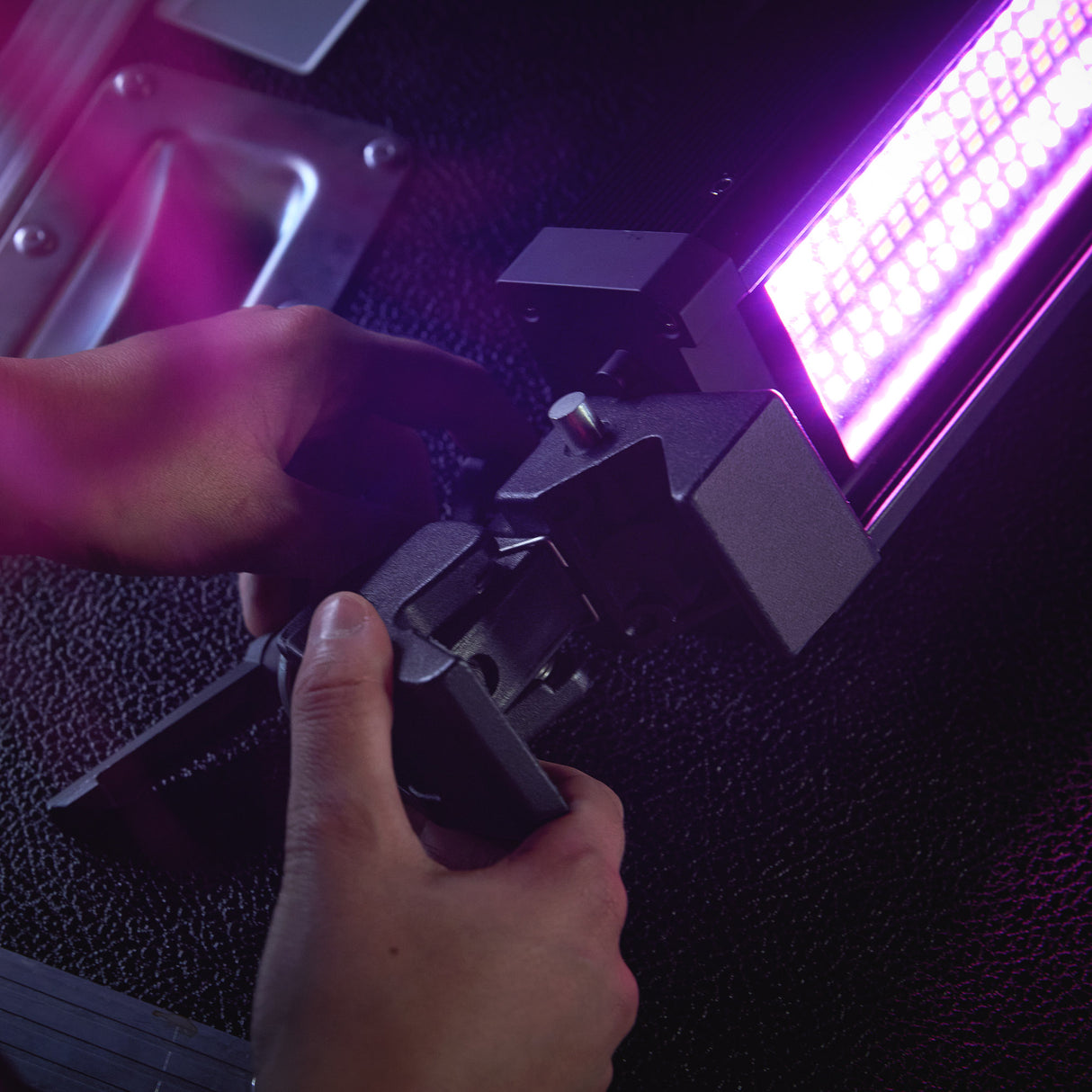

The intelligent design enables flexible positioning at different angles without the included feet. The practical threaded mounting bracket supports both suspended and freestanding use, making it easy to adapt to different environments.

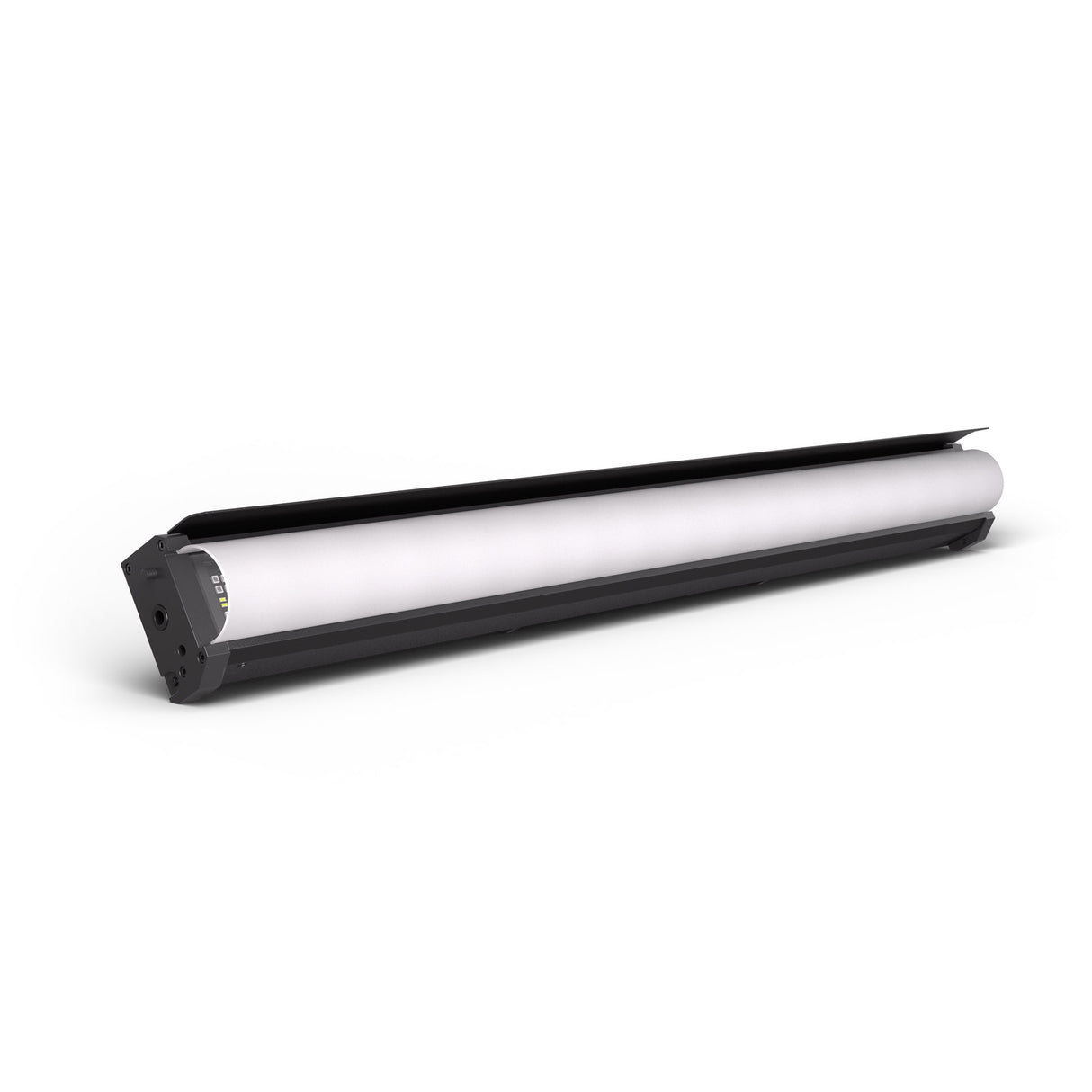

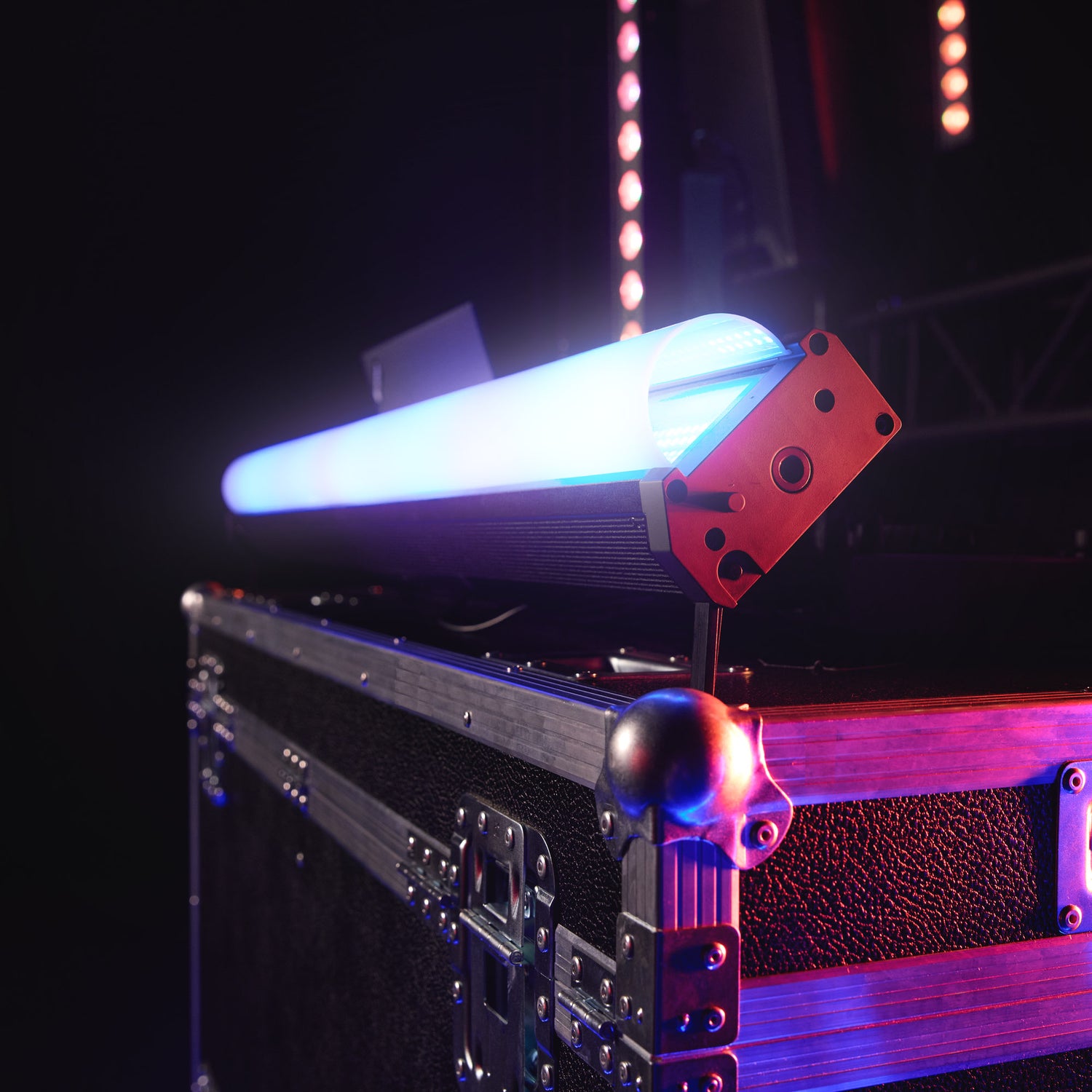

The magnetic Quick Alignment System, combined with various Quick Lock options, enables fast and precise alignment of multiple LED bars to create seamless transitions and spectacular lighting installations. The included neon tube filter and glare shield offer numerous creative options and add striking visual accents.
In addition to control via the DMX protocol, ROOT® BAR can be controlled remotely with the optional IR remote control. For wireless DMX connectivity via W-DMX™, ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. In addition, the unique patented EZchase® DMX delay function makes it possible to create captivating chase patterns and colour transitions with minimal programming effort.
Cameo ROOT® BAR stands for high quality, reliability and modern design. It sets new standards in event lighting and transforms any venue into an unforgettable experience.
- Compact LED bar available in three versions

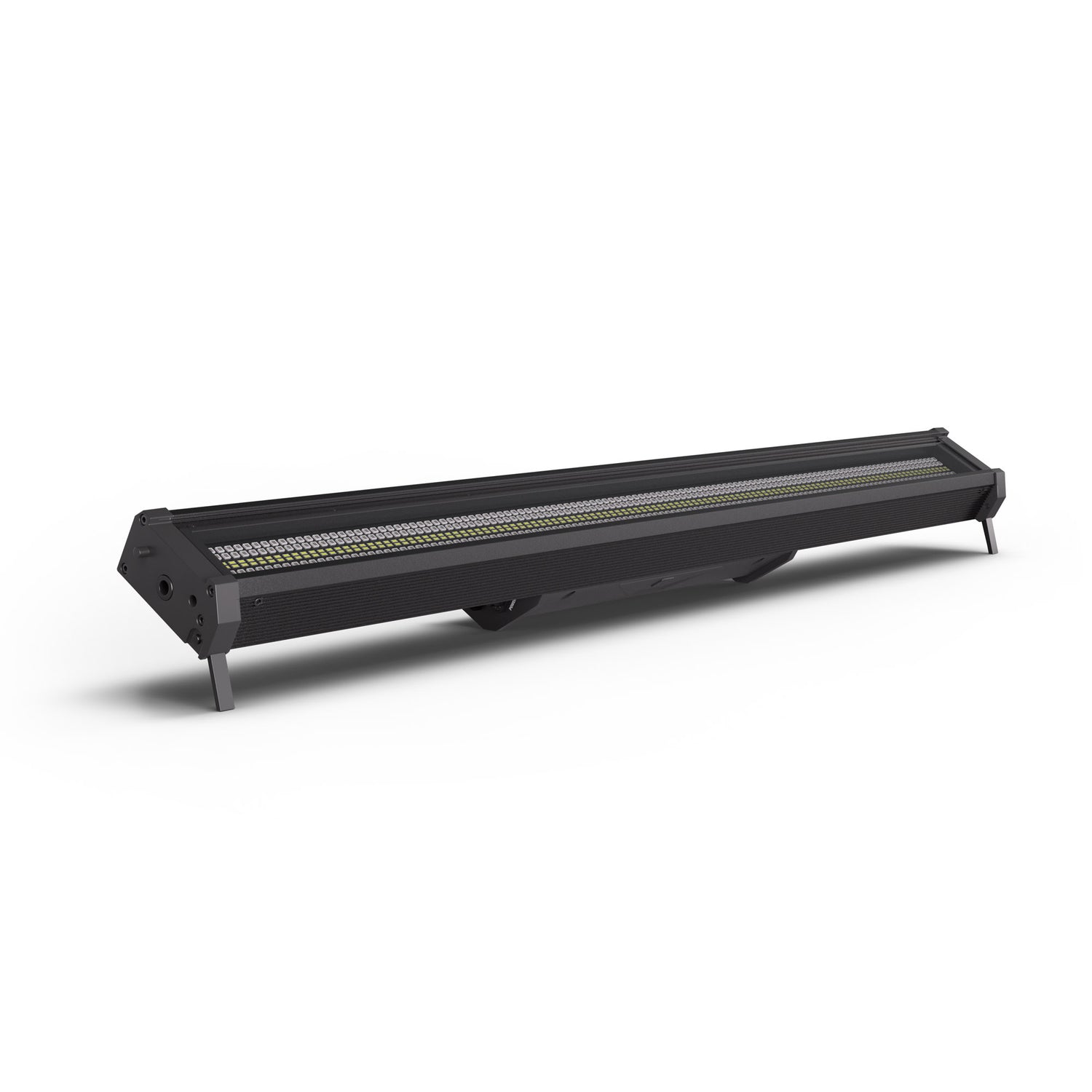

- Flexible positioning at various angles, with or without feet
- Magnetic Quick Alignment System for precise alignment of multiple units
- Includes neon tube filter and glare shield for versatile lighting effects
- Control via DMX or W-DMX (with optional Cameo iDMX Stick)
- Patented EZchase® DMX delay function for chase effects
- 16-bit resolution for smooth dimming and high-performance RGBW LEDs

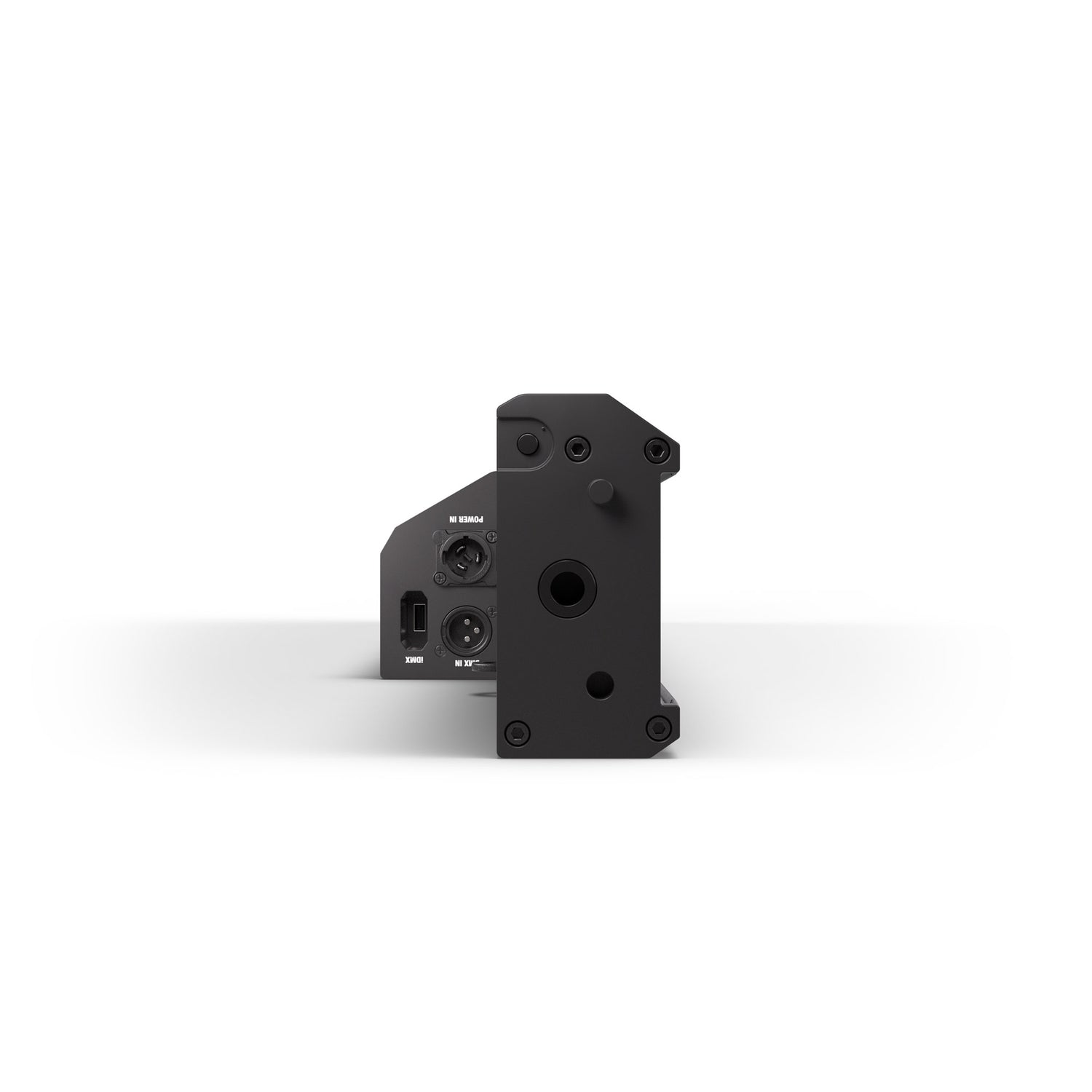

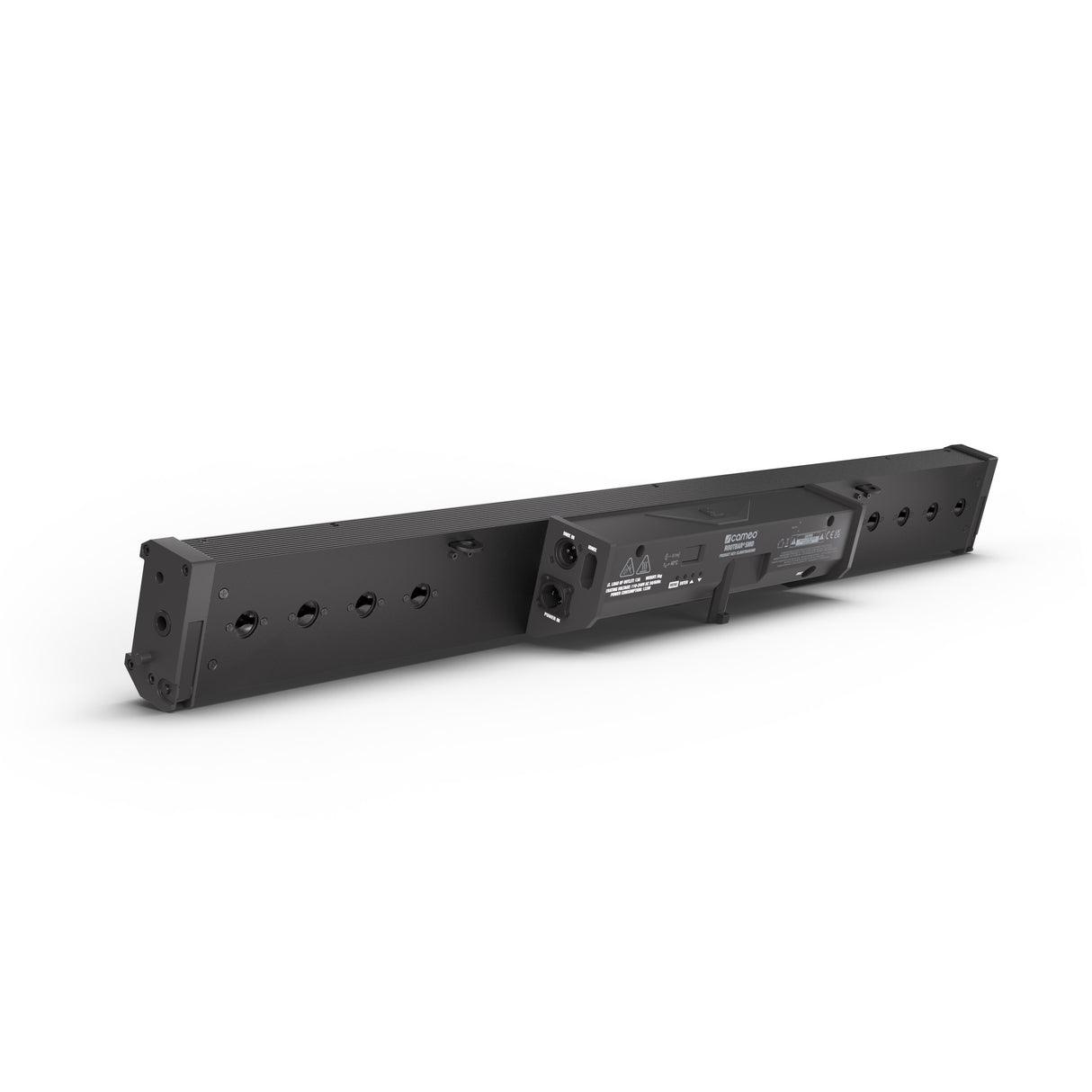

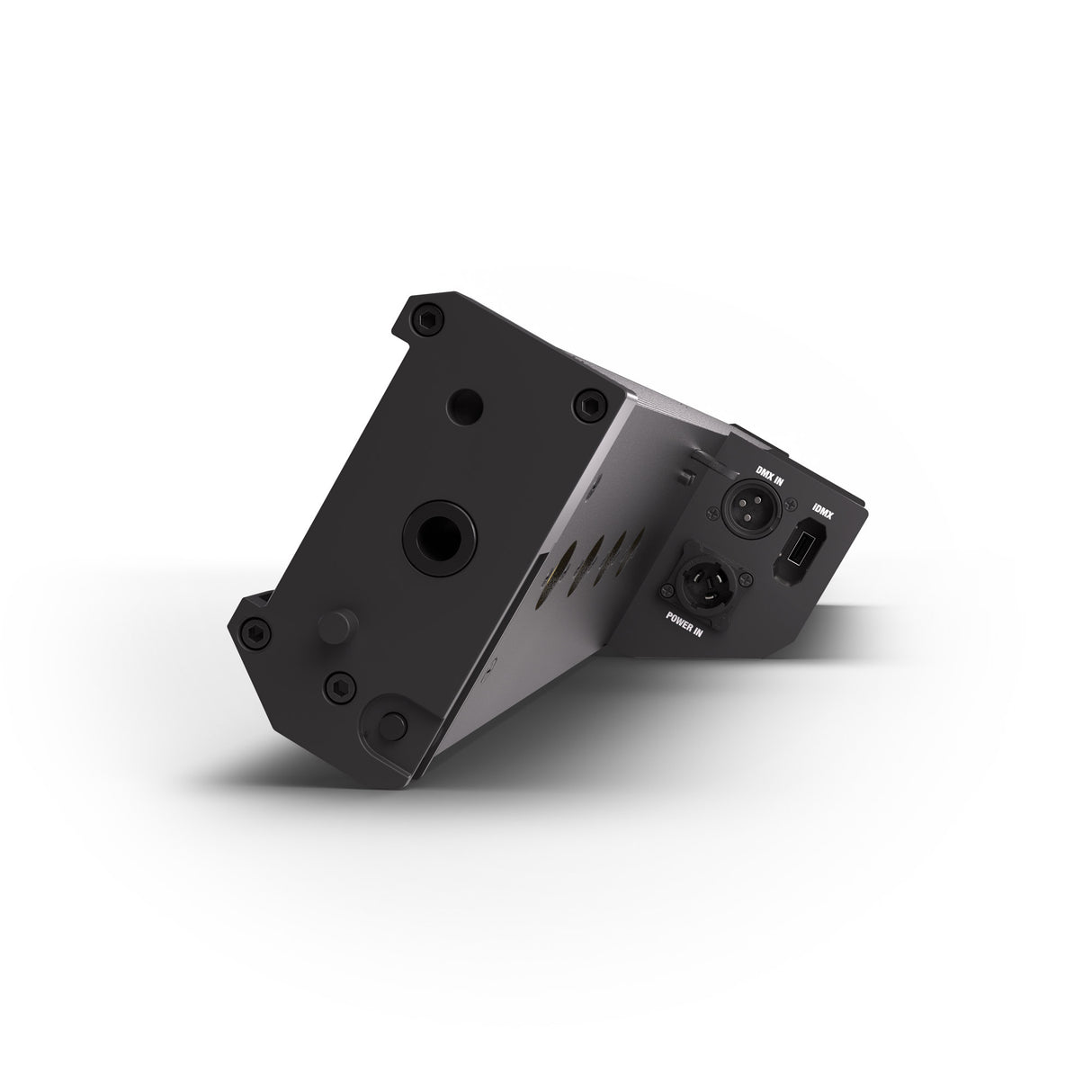

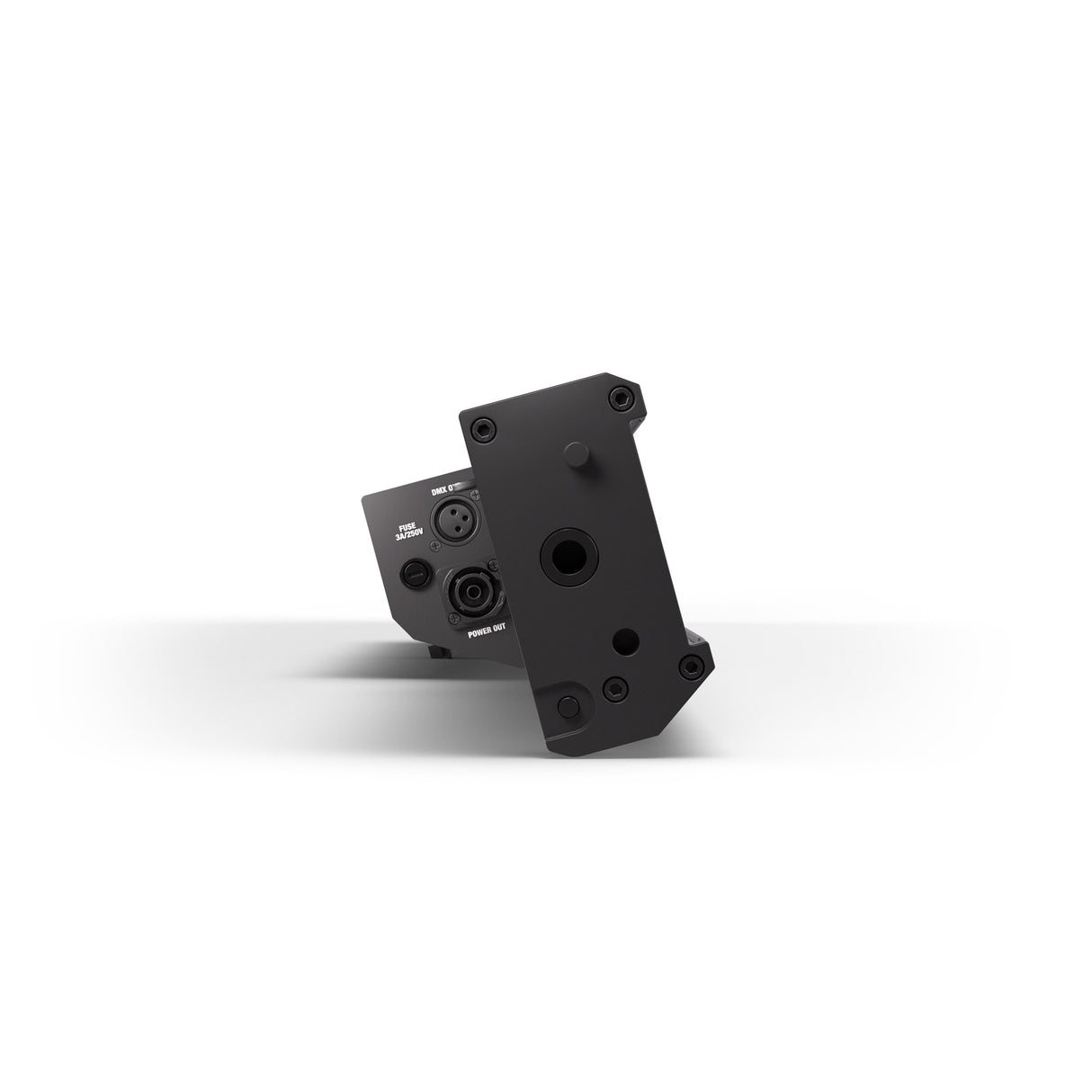

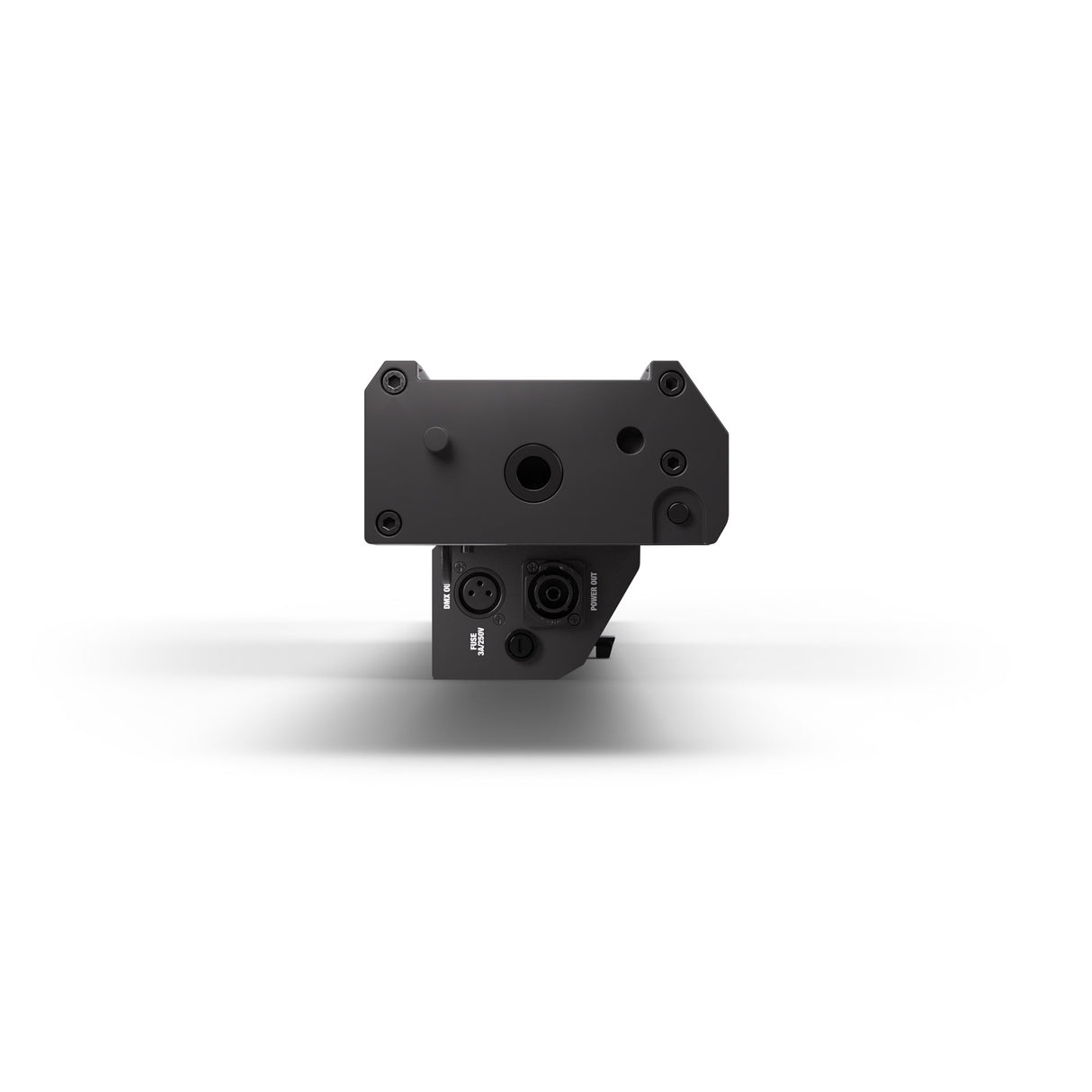

- Power input via Neutrik powerCON and DMX connectors for daisy-chaining multiple units
- Silent, fanless cooling design ideal for noise-sensitive environments
Photometric values
| Illuminant type | RGBW LED |
| LED data | 480 x 0.2 W RGB LED (24 x 20) | 240 x 0.5 W White LED |
| Luminous flux | 5,200 lm |
| Beam/Field angle | Beam: 102° / Field: 127° |
| LED PWM frequency | 12 kHz |
| Dimmer resolution | 16 Bit |
| Dimmer curves | Exponential |
| Dimmer curves | Linear |
| Dimmer curves | Logarithmic |
| Dimmer curves | S curve |
Colours
| Colour mix functions | RGB |
| LED colours | Blue |
| LED colours | Green |
| LED colours | Red |
| LED colours | White |
| Colour rendering index (CRI) | > 70 |
Effects
| Strobe | 0 - 20 Hz |
Control
| Controller protocols | DMX512 |
| Additional DMX features | DMX delay |
| Additional DMX features | LED segment dimmer |
| Additional DMX features | System settings |
| Stand alone operating modes | Autorun |
| Stand alone operating modes | Endless loop |
| Stand alone operating modes | Master/slave |
| Stand alone operating modes | Sound controlled |
| Stand alone operating modes | Static |
| Data in connector | XLR 3-pole male |
| Data out connector | XLR 3-pole female |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
| Rated power | 135 W |
| Mains connector | Mains plug device outdoor male & TRUE1® |
| Mains fuse | F3AL/250 V |
| Power out connector | Mains plug device outdoor female & TRUE1® |
Housing
| Chassis material | Aluminium |
| Chassis material | Plastic |
| Colour | Black |
Cooling
| Cooling system | Convection cooling |
Environmental
| Protection class | IP20 |
| Noise level in operation | 0 dB |
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 1,024 mm |
| Height | 116 mm |
| Depth | 106 mm |
| Weight | 5 kg |
